By Qbic

BookBuddy 3.6" Smart Panel

$535.00
$535.00
SKU: TD-0360-S
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Qbic TD-0360 is a compact 3.6" desk booking smart panel purpose-built for hot-desking and hybrid office environments. On-Cell Touch technology delivers superior display clarity and touch response, while dynamic 256-colour dual LED indicators signal vacant or booked status at a glance. NFC/RFID with optional Apple Wallet compatibility enables tap-to-book directly from a smartphone, with no access card required.

Key features
  • 3.6" on-cell multi-touch display, 480 x 480 resolution, 450 nits, 16.7M colours
  • On-Cell Touch: LCD and touch sensor layers combined for superior clarity and faster touch response
  • Dynamic 256-colour dual LED indicators, instant vacant/booked status visible at a glance
  • Landscape and portrait orientation supported
  • NFC/RFID: Apple Wallet compatible (Ver. O), standard 13.56MHz, or 13.56MHz & 125KHz (Ver. H)
  • Tap-to-book via Apple Wallet, no access card required (Ver. O)
  • Splash resistant, suitable for open-plan and high-traffic office environments
  • Dual-band Wi-Fi 802.11 a/b/g/n/ac with 802.1X enterprise wireless authentication
  • Android 12 OS with Quad-Core ARM Cortex-A35 CPU
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • Glass, surface, and wall mounting; optional desktop stand

Warranty

2-year warranty, extendable to 5 years

Certifications
  • ISO/IEC 27001:2022, Information Security Management (Certificate TW25/00000583, valid to 9 July 2028)
  • CE / UKCA / FCC / IMDA / CB / RoHS / REACH
Product specs Download
Assembly guide Download
Qbic BookBuddy 3.6-inch Smart Panel (TD-0360-S), main product image
$535.00
$535.00

Technical details

Introducing the TD-0360 BookBuddy Desk Booking Smart Panel - transforming workspace challenges into seamless processes.

This workspace booking smart panel features a sleek compact design, 3.6" multi-touch display, Apple Wallet integration and is splash-resistant. It uses RFID (NFC) technology with Fortify+ for promised security.

Key Features:

  1. Latest Android OS: Stay ahead of the curve with the latest Android operating system, ensuring a smooth and intuitive user experience.

  2. Vivid Multi-touch Display: Enjoy crystal-clear visuals and improved responsive touch functionality compared with other booking system touch panels.

  3. Dual-Band WiFi Support: Experience lightning-fast connectivity with dual-band 2.4 and 5GHz Wi-Fi capabilities. Stay connected and productive without the hassle of network interruptions.

Warranty: Two-year standard warranty.

Embrace the future of workplace technology with TD-0360 BookBuddy Desk Booking Smart Panel.

  • 3.6" on-cell multi-touch display, 480 x 480 resolution, 450 nits, 16.7M colours
  • On-Cell Touch: LCD and touch sensor layers combined for superior clarity and faster touch response
  • Dynamic 256-colour dual LED indicators, instant vacant/booked status visible at a glance
  • Landscape and portrait orientation supported
  • NFC/RFID: Apple Wallet compatible (Ver. O), standard 13.56MHz, or 13.56MHz & 125KHz (Ver. H)
  • Tap-to-book via Apple Wallet, no access card required (Ver. O)
  • Splash resistant, suitable for open-plan and high-traffic office environments
  • Dual-band Wi-Fi 802.11 a/b/g/n/ac with 802.1X enterprise wireless authentication
  • Android 12 OS with Quad-Core ARM Cortex-A35 CPU
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • Glass, surface, and wall mounting; optional desktop stand
SpecificationDetail
OSAndroid 12
CPUQuad-Core ARM Cortex-A35
GPUMali-G31 MP2
Memory2GB
Storage16GB eMMC
Display Size3.6" on-cell multi-touch
Resolution480 x 480
Colour Depth16.7M
Brightness450 nits
Viewing Angle (H/V)170° / 170°
OrientationLandscape / Portrait
LED Indicatorx2, 256-bit colour
NFC/RFIDOpt.1, 13.56MHz; Opt.2, 13.56MHz & 125KHz (Ver. H); Opt.3, Apple Wallet compatible (Ver. O)
Wi-Fi802.11 a/b/g/n/ac, Dual-band 2.4GHz / 5GHz, 802.1X
USB1 x USB Type-C, 1 x Micro USB
Power Input5V / 2A
Video DecoderH.265, H.264, VC-1, MPEG-1/2/4, VP8
Dimensions (WxDxH)90 x 90 x 13mm
Net Weight130g
Splash ResistantYes
MountingGlass / Surface / Wall
HousingPlastic
Operating Temp0°C to 50°C
Storage Temp-20°C to 60°C
Humidity0% to 90% (non-condensing)
In the BoxScrews, bracket, tape, QSG
SKUModel
TD-0360Standard NFC (13.56MHz)
TD-0360HNFC 13.56MHz & 125KHz (Ver. H)
TD-0360OApple Wallet compatible NFC (Ver. O)
DetailValue
OptionalDesktop stand

Compatibility

NFC/RFID
  • Standard 13.56MHz / Ver.
  • H adds 125KHz / Ver. O adds Apple Wallet compatibility
Mounting
  • Glass mount
  • Surface mount
  • Wall mount
  • Optional desktop stand
Suitable for
  • Hot-desking and hybrid workplace desk booking
  • open-plan office environments
  • co-working spaces
  • corporate campuses
  • education and government facilities

Features

  • Tap and Book

    Easily reserve your ideal workspace without the need to carry additional accessories. Your booking information stays right on your phone, making your day smoother and more efficient.

  • Bandwidth Brilliance

    Unlock unparalleled connectivity speeds with our device’s dual-band 2.4 and 5GHz Wi-Fi capabilities. Engineered for high-performance workspaces, this ensures seamless data transmission and minimal lag. And with the added assurance of 802.1x security protocols, you gain both top-tier performance and peace of mind in one package.

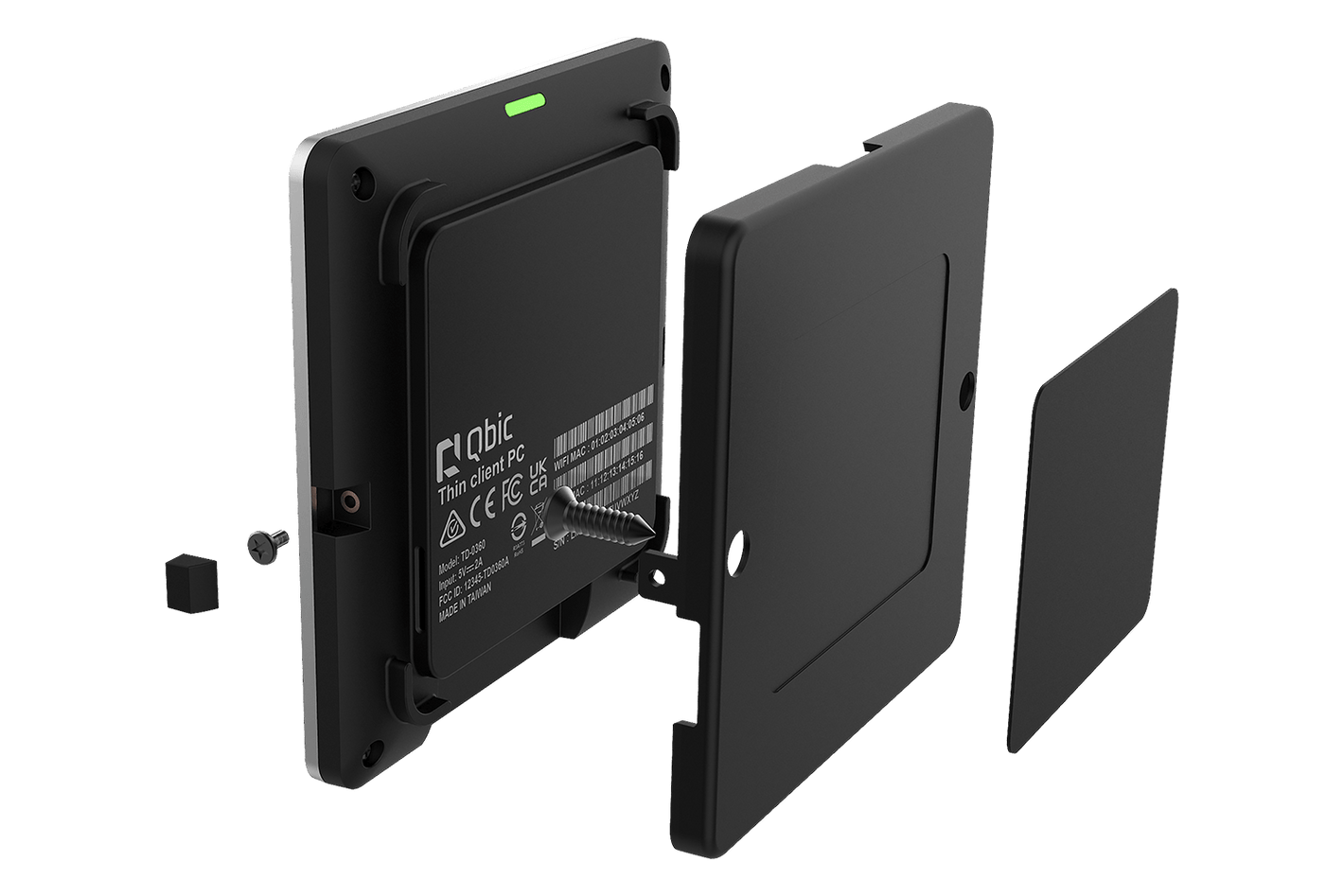

  • Mount Anywhere

    Installing our device is as flexible as your needs. The Flex-Mount feature ensures that you can install it effortlessly on wood, concrete, or glass, offering unrivaled versatility for your workspace.

  • Secure and Streamlined Cabling

    The design ensures that cables are artfully concealed and positioned, enabling device deployment in any orientation with precision. Doubling as a built-in tamper-resistant measure.

Frequently Asked Questions

How do users book a desk?

Users can tap an NFC card, or tap-to-book with Apple Wallet on the O version, with no access card required.

What NFC versions are available?

Standard (13.56MHz), H version (13.56MHz and 125KHz) and O version (Apple Wallet compatible).

How does it show availability?

Dynamic 256-colour dual LED indicators show vacant or booked status at a glance.

Is it splash resistant?

Yes. The BookBuddy is splash resistant.

What stand is available?

An optional desktop stand (AC-113) is available. The panel has a 2-year warranty, extendable to 5 years.

Who distributes Qbic in Australia?

Leading Solutions is the official Australian distributor for Qbic. Call 1800 960 015 or email sales@leadingsolutions.net.au for help.
