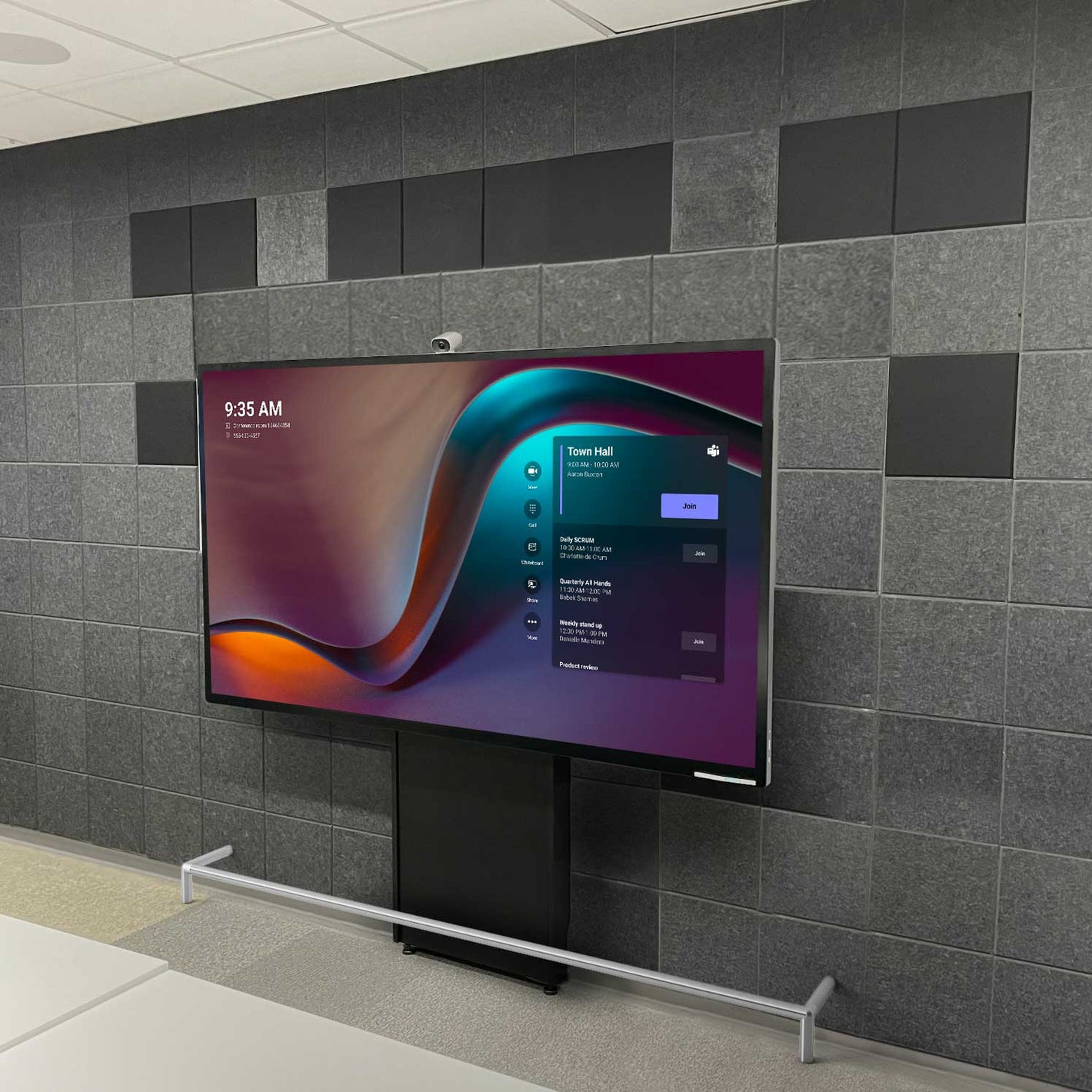

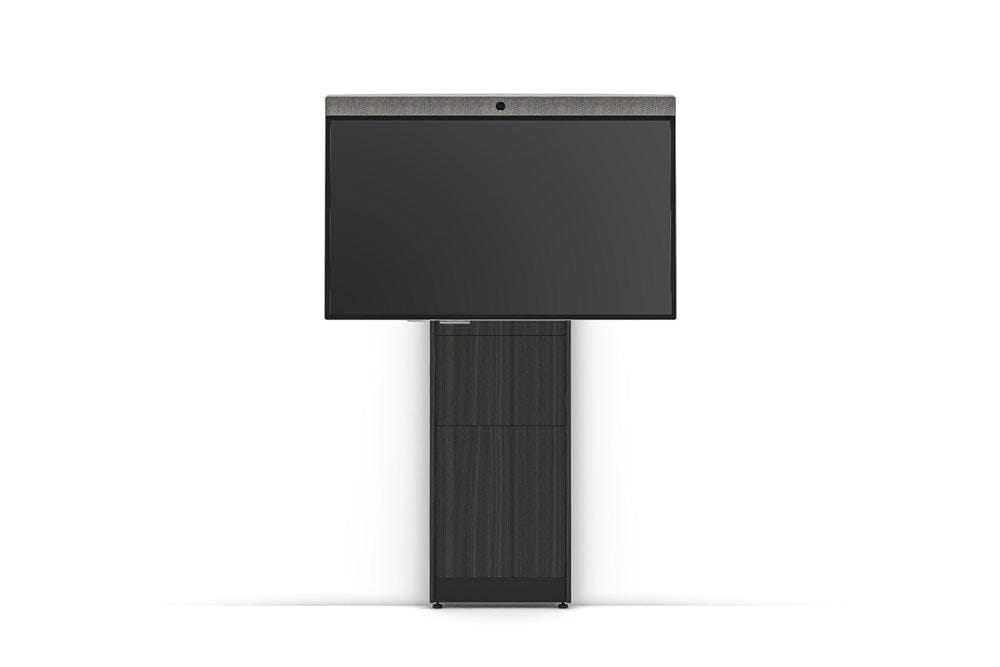

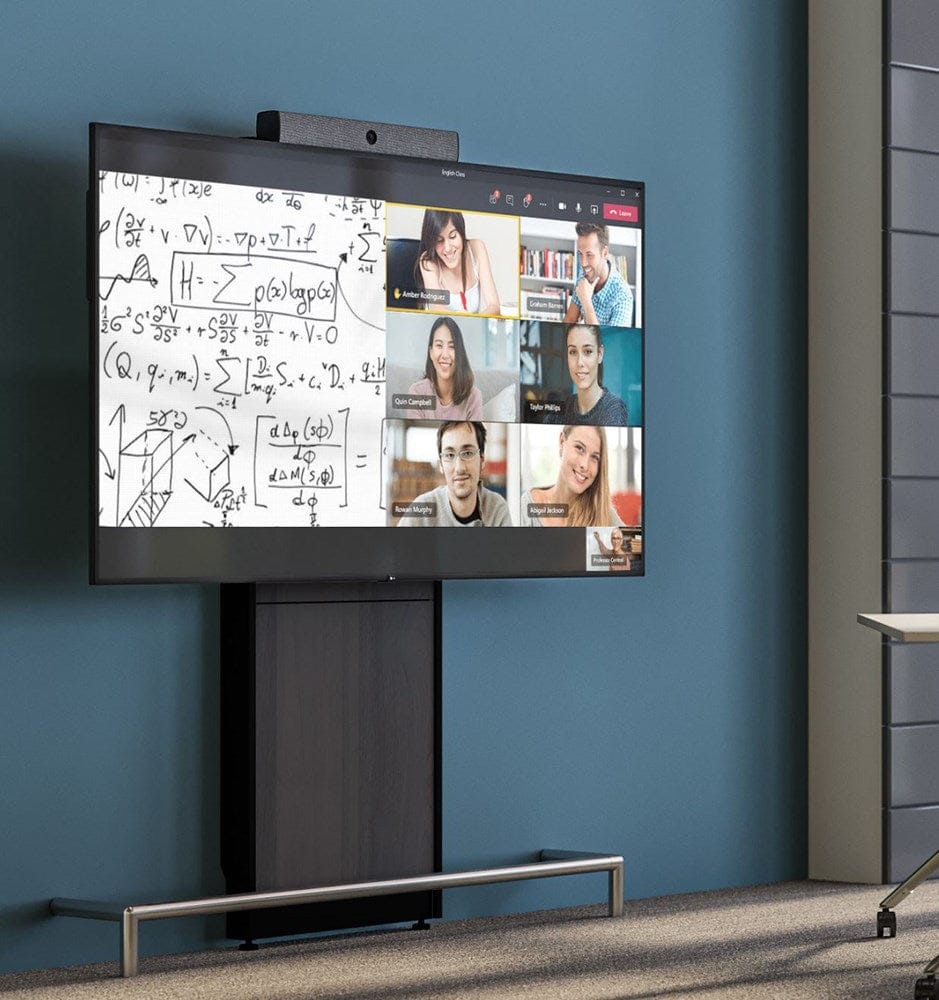

Strut170 Wall System is a premium wall‑stand mounting solution for 55"–98" displays, combining furniture‑grade design with an integrated AV cavity to hide cabling, media players, and small peripherals. It solves complex wall builds by delivering a low‑impact structure that mounts to standard walls, provides manual display height adjustment, and creates a clean, professional front for collaboration and signage spaces.
Key Features:
VESA 200x200 to 800x600, supports 55"–98" displays up to 227 kg
Manual height adjustment: 41.7 cm (16.4") travel in 10 positions

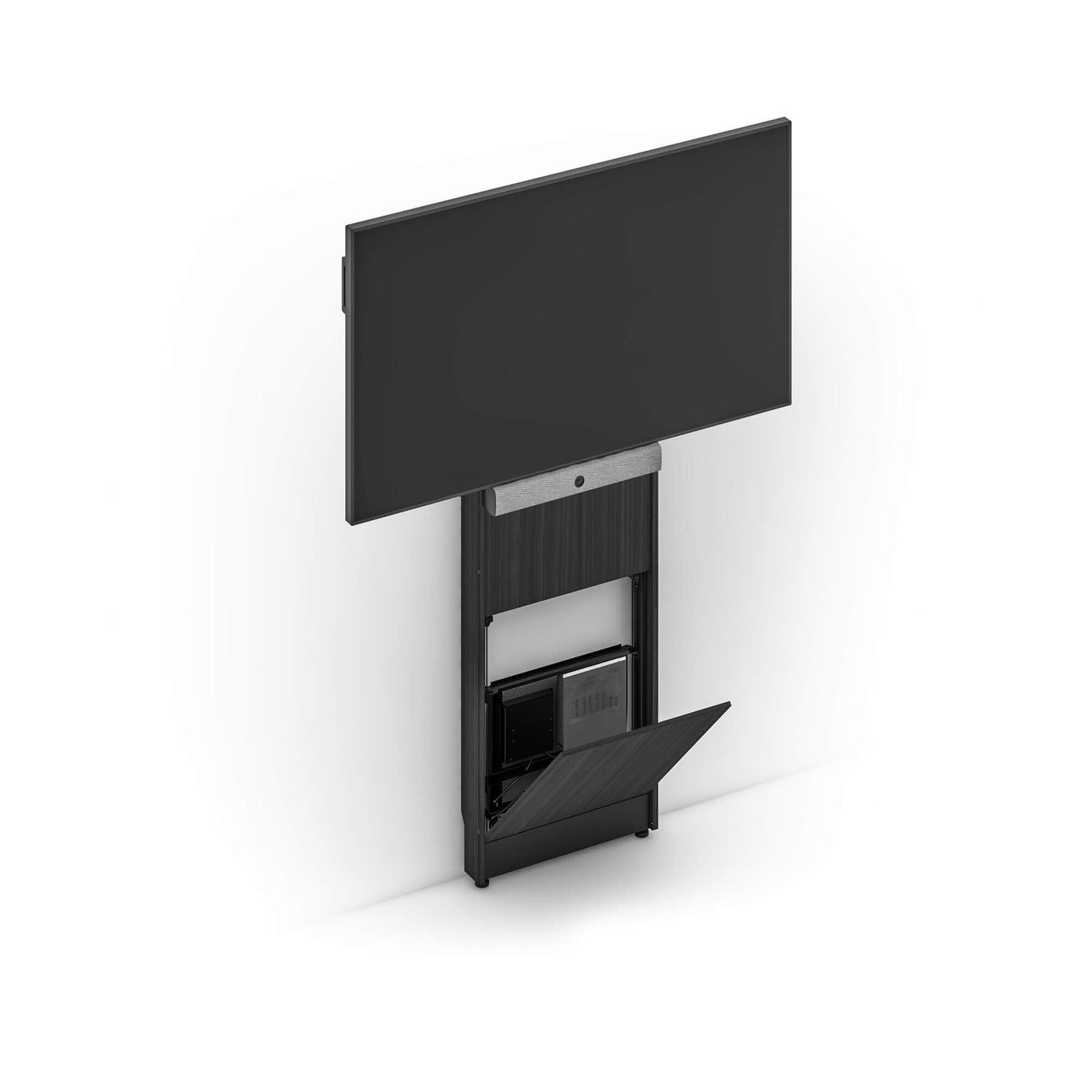

Equipment cavity: 43 cm W x 30 cm H x 7.6 cm D for AV gear
Low-impact wall mount, UL-tested steel frame construction

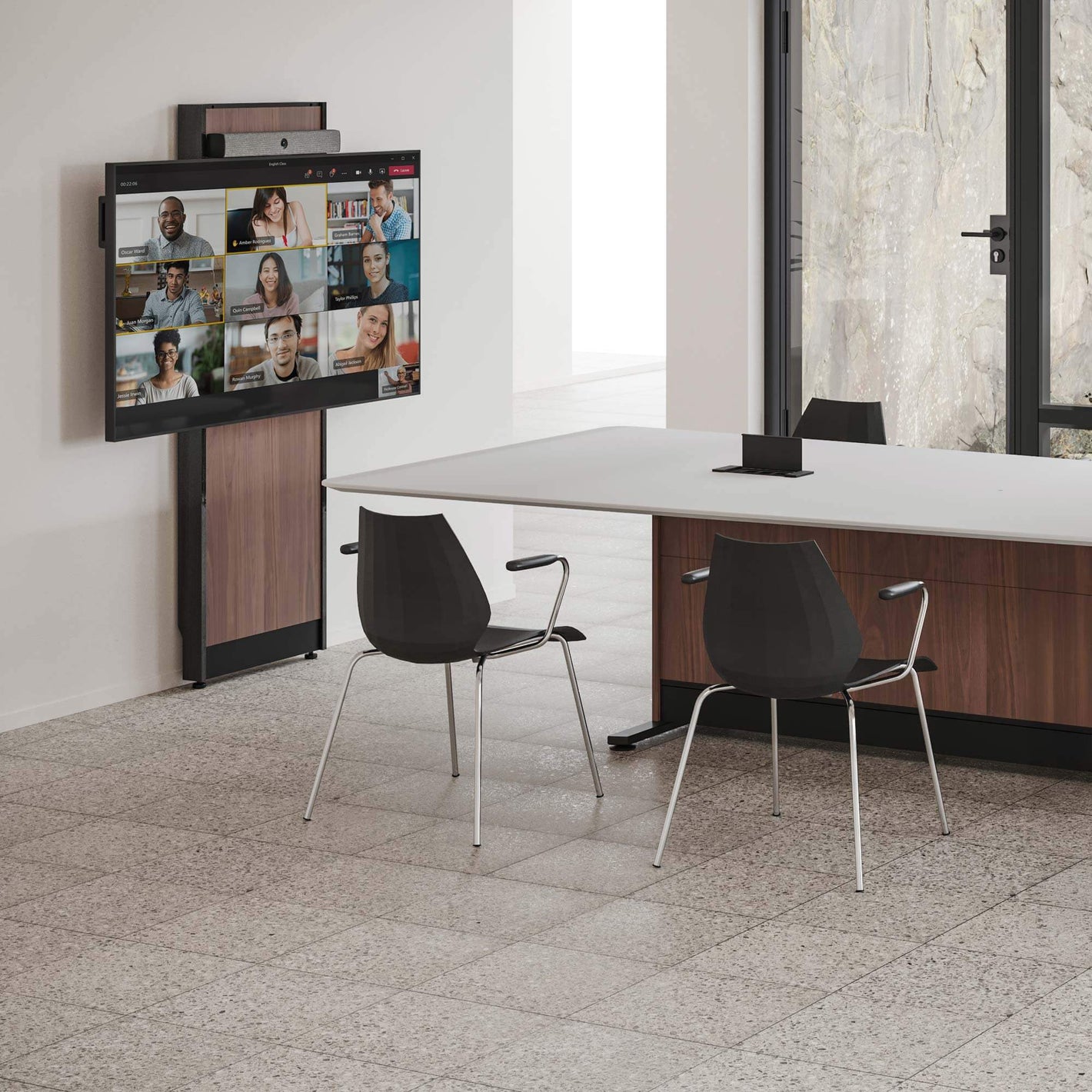

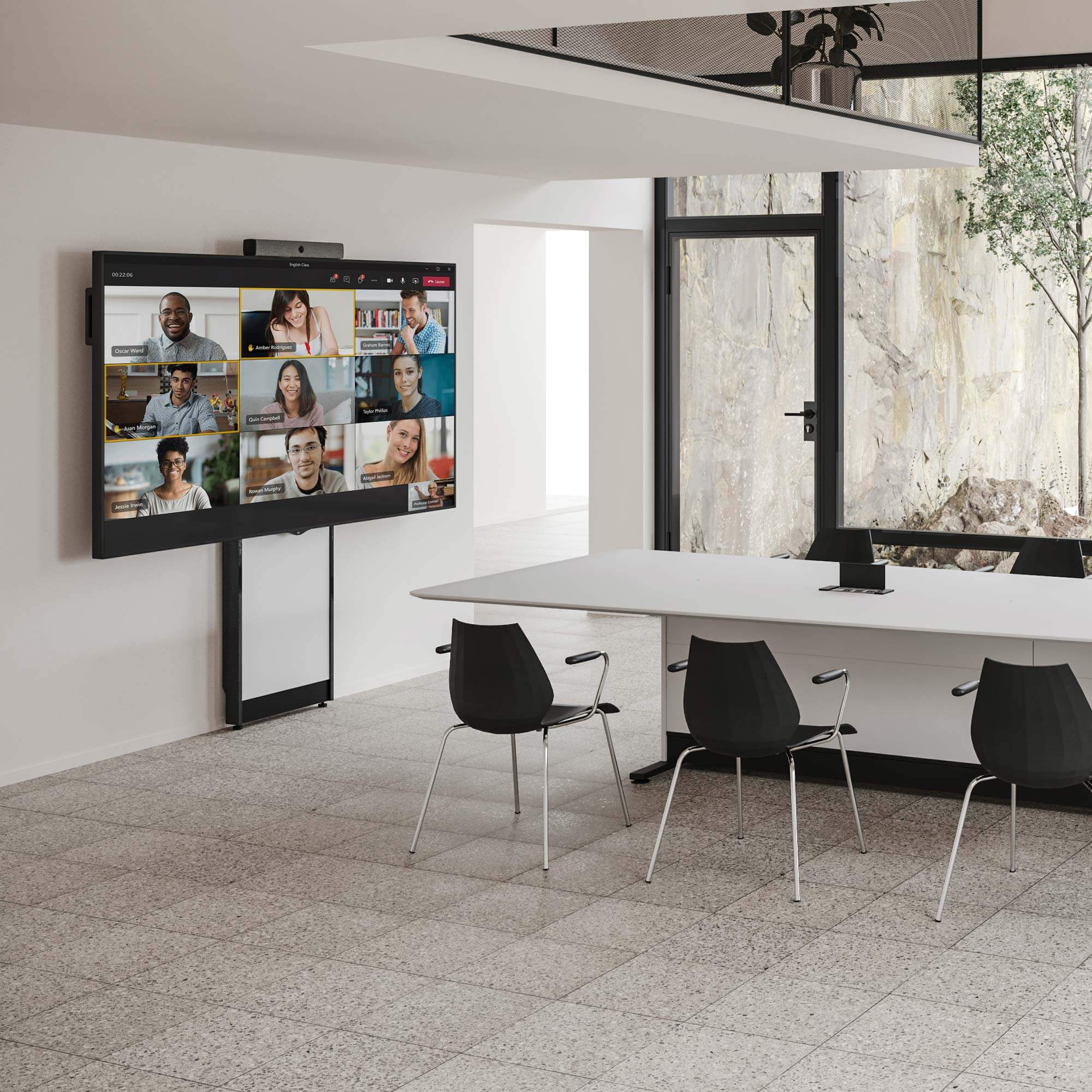

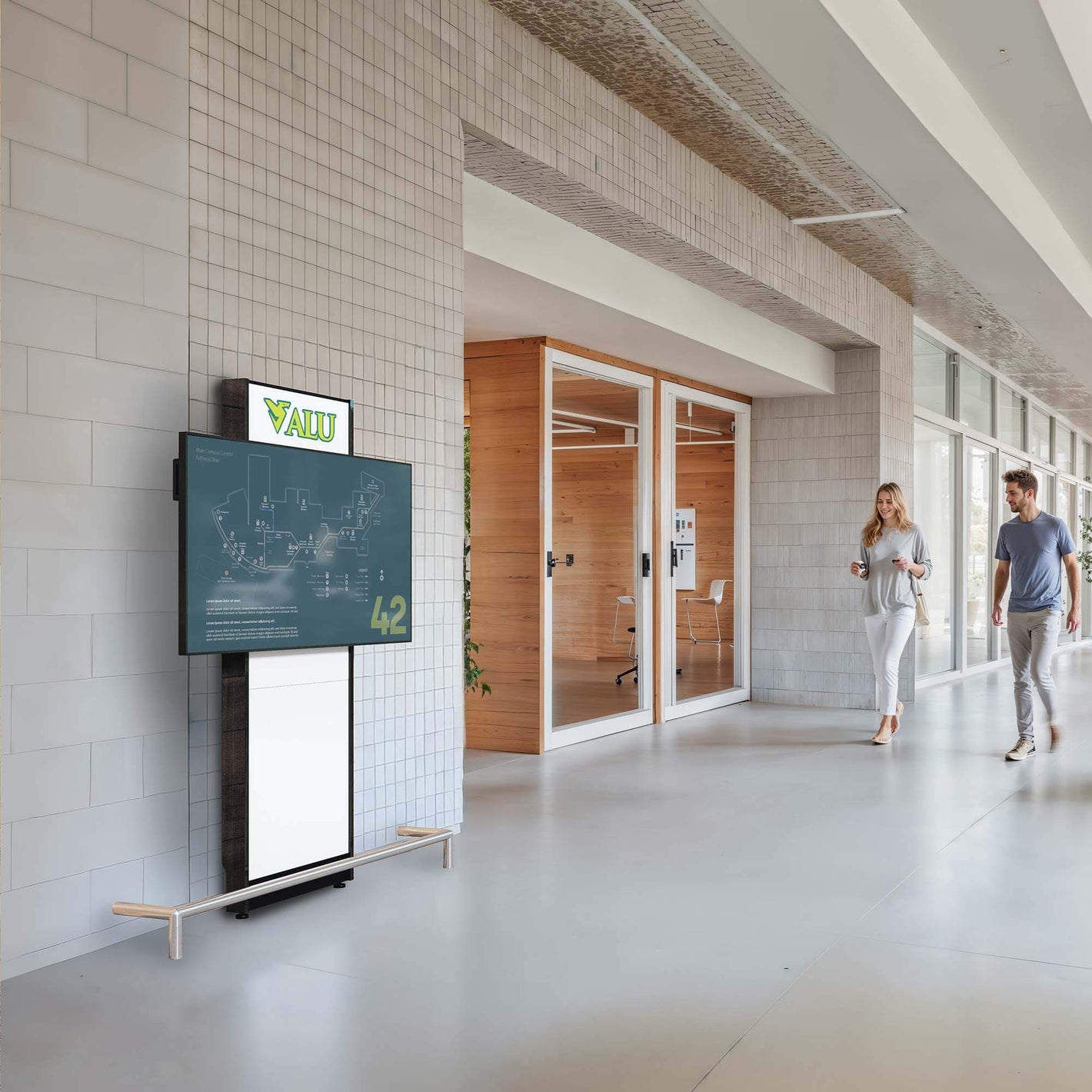

Mainly used in meeting rooms, training spaces, and digital signage locations where a large display and accessories must be wall‑mounted without major construction. It benefits corporate, education, and public venues needing fast, repeatable deployments that look built‑in yet remain serviceable and upgradeable.
- Ultra-low-impact installation — no wall reinforcement, trades, or down time required
- Modular design supports displays while concealing small electronics, computers, and cables
- 1RU vertical equipment mounting area for components, peripherals, and accessories
- Adjustable centre line of screen height
- VESA-compliant mount pattern

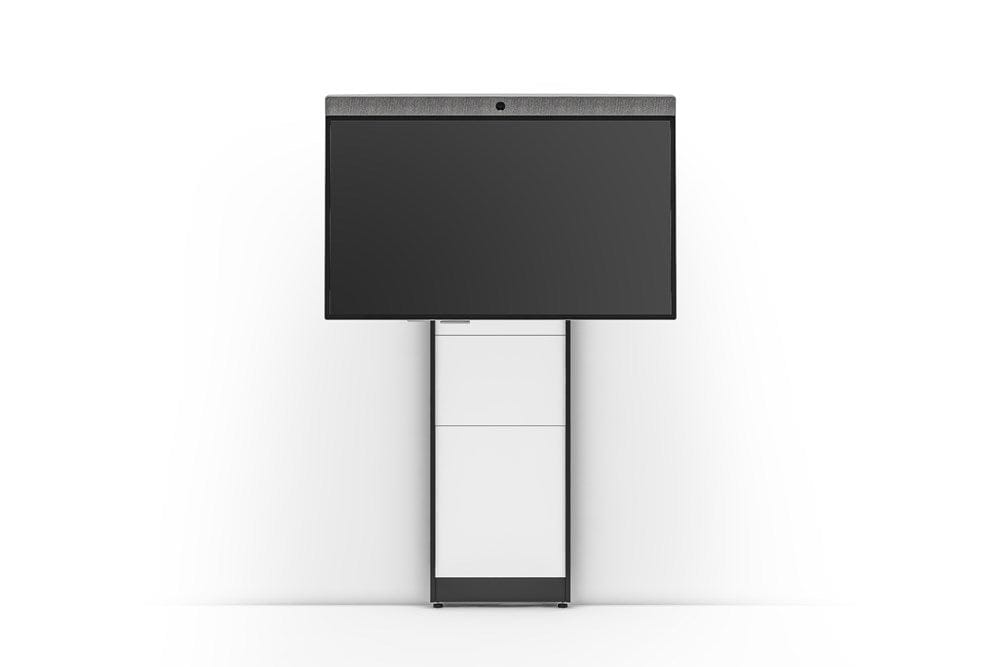

- Available in white laminate and real-wood veneer finishes with black trim
- Future-proof and retro-fit friendly for new technology or new décor
- Limited Lifetime Warranty
| Specification | Detail |
|---|---|
| Width | 1,886mm (74.25in) |
| Height | 711mm (28in) |
| Depth | 229mm (9in) |
| Unit Weight | 36kg (80lbs) |
| Max Display Weight | 102kg (225lbs) |
| Centre of Screen Range | 1,367–1,722mm (53.8–67.8in) |
| VESA Horizontal | 200–600mm |
| VESA Vertical | 100–400mm |
| Internal Storage | 1RU |
Available options
| Colour | SKU |
|---|---|
| Black Oak | SD-STR170/FH1/BO/BK |
| White | SD-STR170/FH1/WH/BK |
| Wenge Oak Front, Black Trim | SD-STR170/FH1/WO/BK |
Compatibility
- Compatible with displays from 55–98", up to 102kg (225lbs)
- VESA Horizontal: 200–600mm, Vertical: 100–400mm
- Also available matched to specific devices: Microsoft Surface Hub 50" and Surface Hub 85"
