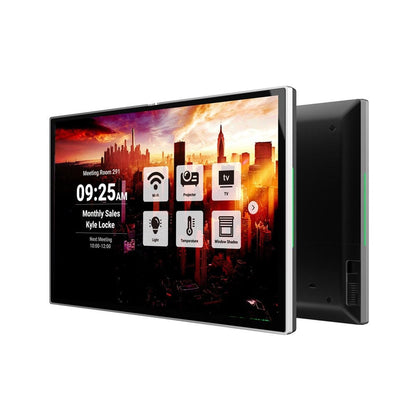

Qbic Luminen Pro 15" - PoE Room Booking Display with LED Status Lights
Back orders delivered in 4 weeks
Not available for local pickup. On backorder
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Certifications
Certifications
Technical details
The Qbic Luminen Pro 15 is designed for high-visibility spaces like boardrooms, open-plan offices, and lecture halls. Featuring a 15.6" Full HD touchscreen with vibrant LED side lighting, this premium panel clearly displays real-time room status and booking information. Android deployments benefit from OTA updates and are Android 15-ready, ensuring long-term performance and compatibility.
With a robust aluminium body, antimicrobial Corning Gorilla Glass, and silent fanless operation, the Luminen Pro 15 delivers both presence and practicality. Integrated PoE simplifies cabling, and the latest wireless connectivity (Wi-Fi 6 and Bluetooth 5.2) ensures reliable performance across networks.
Compatible with Android 13 or Linux Yocto, the panel supports a wide range of room scheduling and signage platforms. Smart Control software allows remote monitoring and OTA updates, simplifying management for IT teams.
Technical Specifications
-
15.6" IPS touchscreen (1920 — 1080 resolution)
-
Projected capacitive touchscreen technology
-
Android 15 (or Linux Yocto OS option), with Android deployments supporting OTA updates and upgradeability to Android 15
-
Quad-core ARM Cortex-A55 processor
-
4GB RAM / 16GB eMMC storage
-
RGB LED side lights (programmable)
-
PoE (IEEE 802.3af) and 12V DC power options
-
Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.2
-
Optional NFC reader and integrated PIR motion & ambient light sensors
-
Antimicrobial Corning Gorilla Glass
-
Supports Qbic Smart Control & remote OTA firmware updates
-
Fanless aluminium unibody
-
VESA 75 — 75 mounting (wall/glass)
-
Certifications: CE, FCC, RoHS, REACH, WEEE compliant
- 3-in-1 functionality: touchscreen panel, network gateway, and mini server in one device
- 15.6" FHD landscape display (1920×1080) with PCAP multi-touch up to 10 points
- Antimicrobial Corning Gorilla Glass for hygiene-conscious environments
- MediaTek Genio 510 ARM 6nm hexa-core processor for responsive, fluid performance
- Android 13 or Linux Yocto, flexible OS support for enterprise deployments
- Wi-Fi 6 and Bluetooth 5.2 for fast, reliable wireless connectivity
- PoE 802.3at support, single cable delivers both data and power
- Gigabit Ethernet (10/100/1000M) for high-speed wired network connection
- KNX-certified integration for building automation control (optional)
- NFC peer-to-peer (13.56MHz) for contactless interaction
- Built-in dual microphones, dual speakers, and ambient light + proximity sensor
- LED status bars (left and right) and optional 13MP camera
- Remotely manage and configure via RCC, apply changes individually or in batch
- Install APK files via USB, contact Leading Solutions for compatible APK files
- Kensington lock slot for physical security
| Specification | Detail |
|---|---|
| Model | HC-1570M |
| Panel Size | 15.6" |
| Panel Orientation | Landscape |
| Display Resolution | 1920×1080 |
| Brightness | >350 cd/m² |
| Contrast Ratio | 800:1 |
| Touch | PCAP multi-touch, up to 10 points |
| Glass | Antimicrobial Corning Gorilla Glass |
| CPU | MediaTek Genio 510, ARM 6nm Hexa-core (2×A78/4×A55) |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC (16GB optional) |
| Operating System | Android 13 or Linux Yocto |
| Ethernet | 10/100/1000M, 1× RJ45 with PoE 802.3at |
| WLAN | Wi-Fi 6, 802.11 a/b/g/n/ac/ax + BT 5.2 |
| PoE | 802.3at |
| USB | 1× USB-C (OTG/ADB), 1× USB-A 2.0 |
| KNX | KNX bus connection block, Certified KNX Stack System B (optional) |
| RS485 | ×1 (optional) |
| NFC | 13.56MHz peer-to-peer |
| Camera | 1× 13MP, 4K/15fps (optional) |
| Speaker | Built-in, 2× 1.5W |
| Microphones | Built-in, 2 |
| Proximity Sensor | ALS + Proximity |
| LED Bar | 2 (left/right) |
| Power | PoE 802.3at or DC-in 12V/3A |
| Dimensions (W×H×D) | 373.5×243.1×26.2 mm |
| Mounting | Wall mount, glass mount, tabletop |
| Lock | Kensington lock |
| Operating Temperature | 0°C to 40°C, 5-85% RH |
| Storage Temperature | -20°C to 60°C, 5-90% RH |
| Detail |
|---|
| HC-1570M, Luminen Pro Smart Control, 15.6" |
Compatibility
- Meeting room AV systems and building automation platforms
- KNX-certified building automation systems (optional)
- RS485 devices (optional)
- Android 13 or Linux Yocto application environments
- Wall mount
- glass mount
- tabletop
- Mounting bracket
- metal stand
- Corporate meeting rooms
- boardrooms
- smart offices
- hospitality
- education
Features
-
High-Speed Wireless
-
Versatile Mounting
-

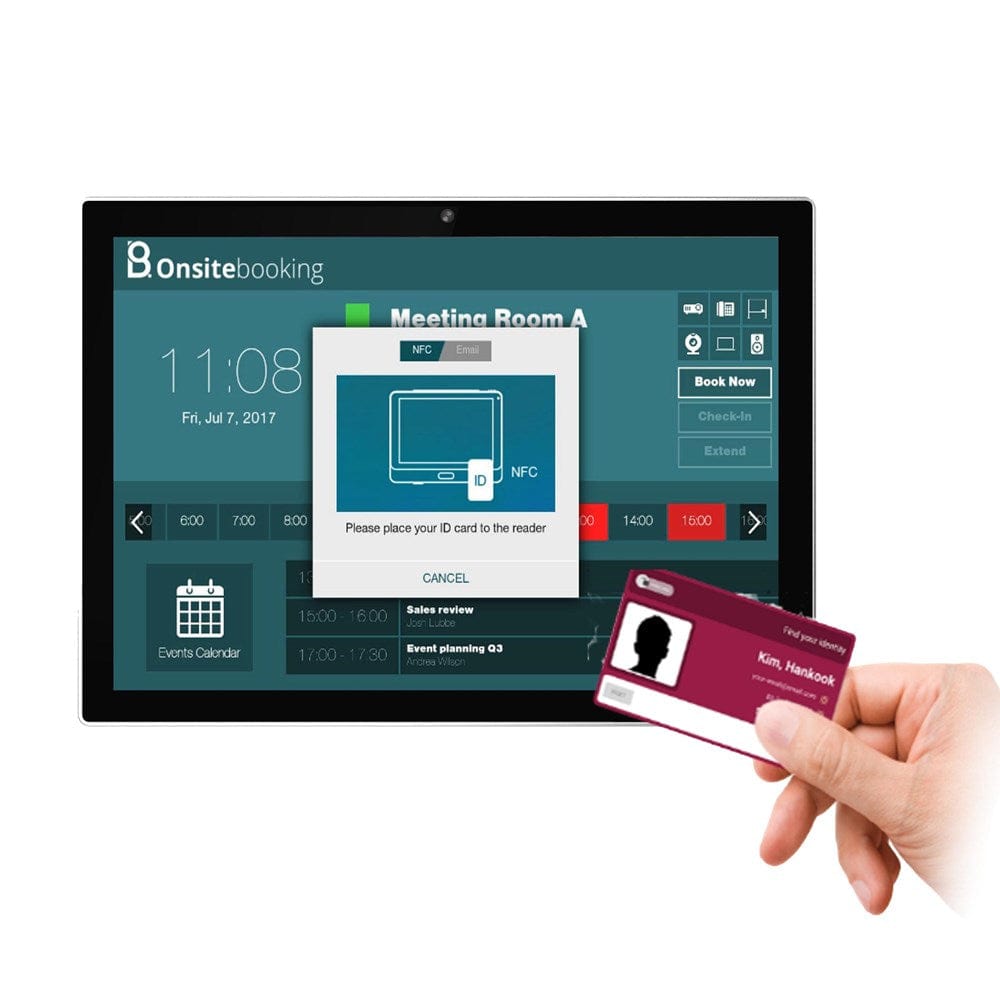

NFC Access Ready
-
