Qbic Luminen Pro 10" - PoE Room Booking Display with LED Status Lights

Optimise your shared spaces with the Qbic Luminen Pro 10 – a compact 10.1” room booking display designed for modern workplaces, educational environments, and flexible meeting rooms. Its high-brightness touchscreen and anodised aluminium housing combine professional presentation with reliable 24/7 performance.

Edge-mounted RGB LED status lights give staff instant visibility of room availability, while Power over Ethernet (PoE) simplifies installation to a single cable for power and data. The slim, fanless design allows wall or glass mounting, making it suitable for both new fitouts and retrofit installations.

The Luminen Pro 10 features Wi-Fi 6, Bluetooth 5.2, and toughened Antimicrobial Corning® Gorilla® Glass for improved hygiene and durability in high-traffic environments. Compatible with Android 15 or Linux Yocto, it integrates seamlessly with leading room scheduling platforms and signage systems. Android deployments support OTA updates ensuring long-term performance and compatibility.

Technical Specifications

• 10.1” IPS touchscreen (1280 × 800 resolution)

• Projected capacitive touchscreen technology

• Android 15 (or Linux Yocto OS option)

• Quad-core ARM Cortex-A55 processor

• 4GB RAM / 16GB eMMC storage

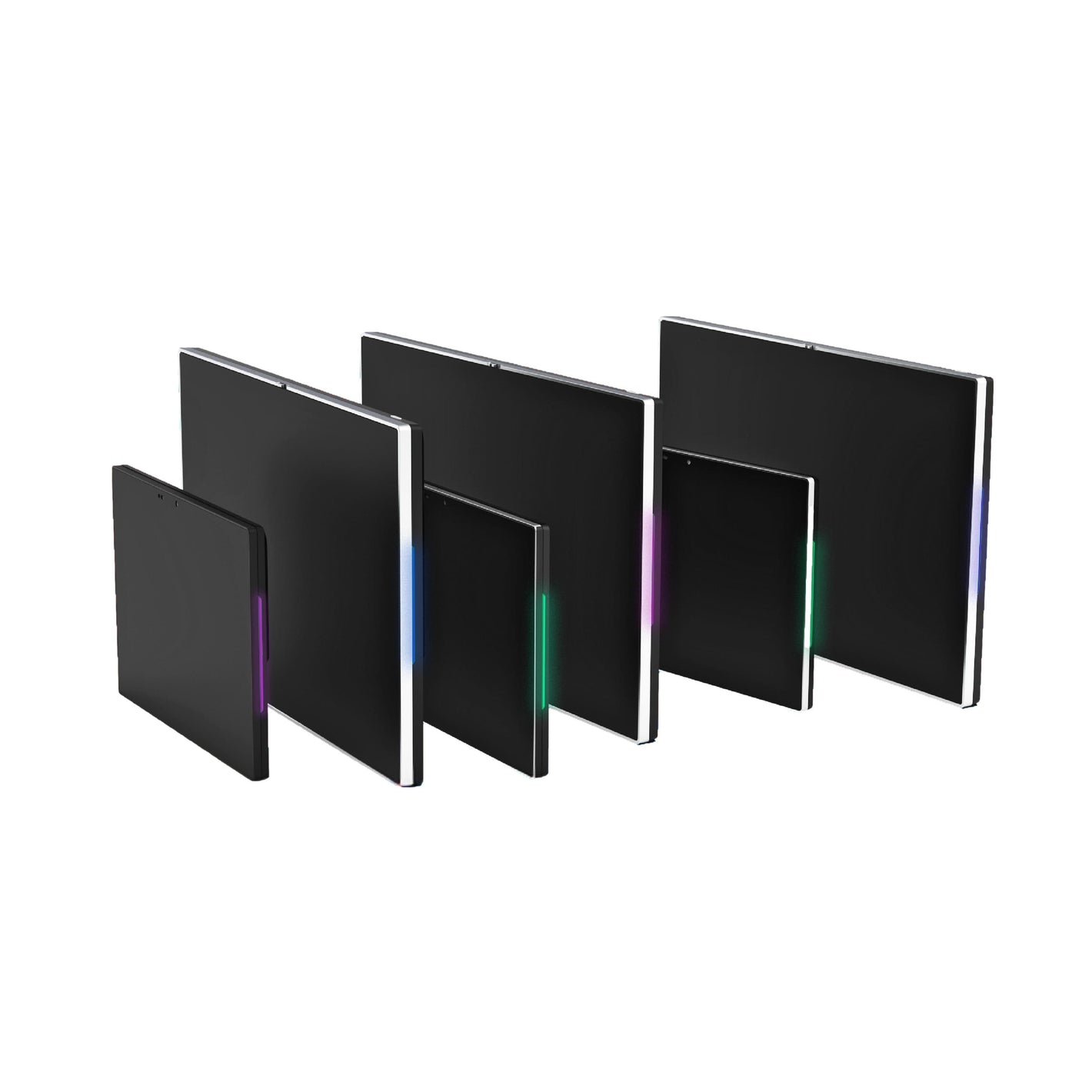

• RGB LED side lights (programmable)

• PoE (IEEE 802.3af) and 12V DC power options

• Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.2

• Optional NFC reader and integrated PIR motion & ambient light sensors

• Antimicrobial Corning® Gorilla® Glass

• Supports Qbic Smart Control & remote OTA firmware updates

• Fanless aluminium unibody

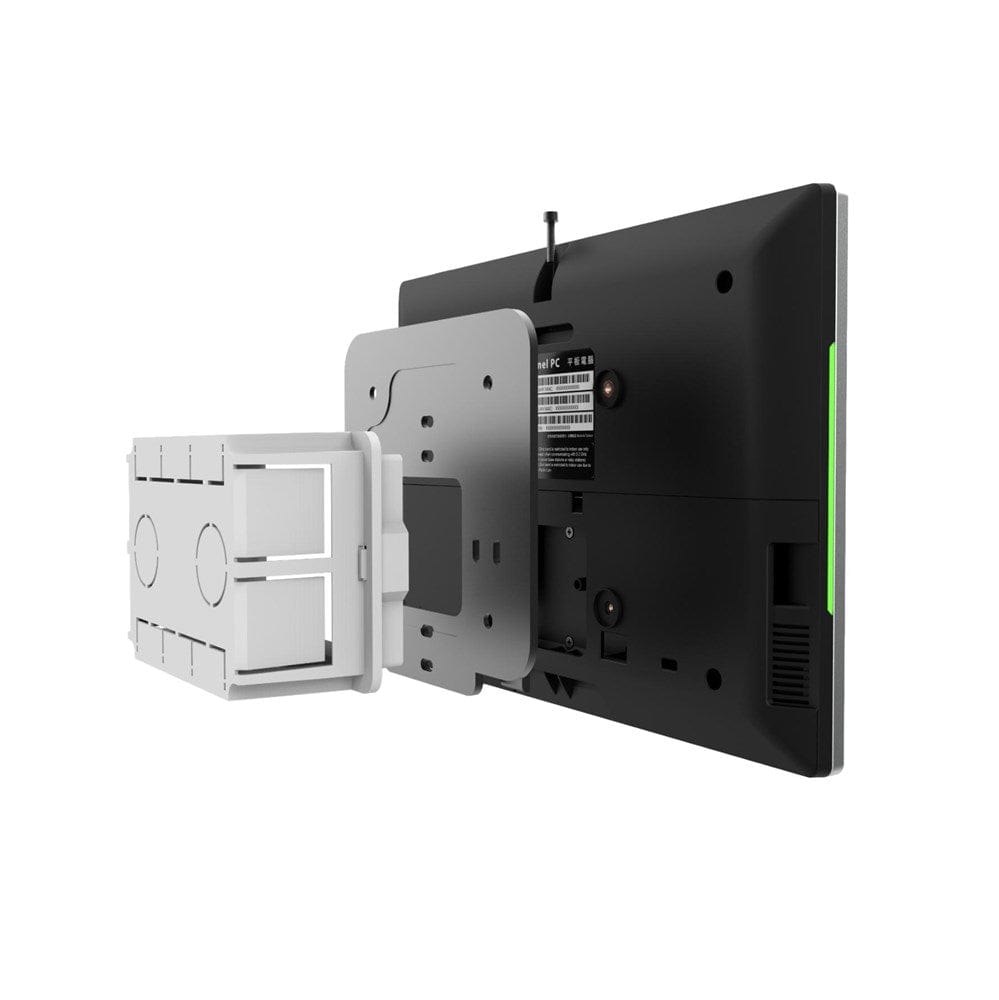

• VESA 75 × 75 mounting (wall/glass)

• Certifications: CE, FCC, RoHS, REACH, WEEE compliant
