By Qbic

Smart Meeting Room Hybrid Hub RJ45 ports for lamp, sensor connections

$333.67
$333.67
SKU: AC-210
Availability: Low stock: 1 left

Free standard shipping on all orders over $250

Overview

The Qbic AC-210.Ex OQ Hybrid Hub is the central controller for a Qbic Smart Meeting Room or occupancy management system. It connects up to 5 lamps and 5 sensors (PIR or seat sensors) via RJ45 and communicates with the FHD-100 gateway via RS-232. Its hybrid design allows mixing different sensor types on the same hub, giving installers flexibility to tailor the system to the layout of any space.

Key features
  • Central hub connecting lamps, PIR sensors, and seat sensors in a single occupancy system
  • 5x RJ45 ports for lamp, PIR or seat sensor connections
  • 5x RJ45 ports for PIR or seat sensor connections
  • 2x RJ45 ports for daisy-chaining additional Hybrid Hub units
  • 1x RS-232 port for connection to FHD-100 gateway
  • Mix-and-match sensor types on the same hub
  • Single 12V DC power supply for entire hub
  • 10x LED lamp status indicators plus power status LED
  • Operating temperature: 0-50°C

Warranty

2-year warranty, extendable to 5 years

Product specs Download
Assembly guide Download

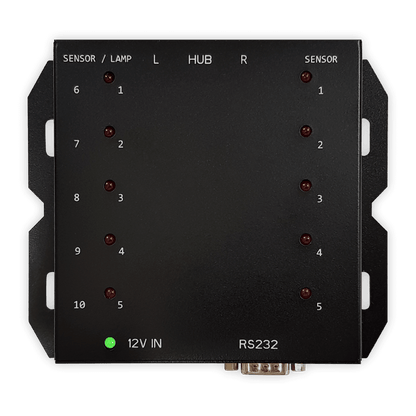

Qbic AC-210.Ex OQ Hybrid Hub (AC-210), smart meeting room RJ45 lamp and sensor hub, main product image
$333.67
$333.67

Technical details

A modern designed occupancy solution paired with LED vacancy light lets anyone visually identify the occupancy status of any room or space. With the Hybrid Hub, you're able to mix-n-match different sensors according to your requirements.

  • Central hub connecting lamps, PIR sensors, and seat sensors in a single occupancy system
  • 5x RJ45 ports for lamp, PIR or seat sensor connections
  • 5x RJ45 ports for PIR or seat sensor connections
  • 2x RJ45 ports for daisy-chaining additional Hybrid Hub units
  • 1x RS-232 port for connection to FHD-100 gateway
  • Mix-and-match sensor types on the same hub
  • Single 12V DC power supply for entire hub
  • 10x LED lamp status indicators plus power status LED
  • Operating temperature: 0-50°C
SpecificationDetail
RJ45 ports (lamp/PIR/seat sensor)5
RJ45 ports (PIR/seat sensor only)5
RJ45 ports (hub series connection)2
RS-232 port (FHD-100 connection)1
DC power input12V (1x DC jack)
LED indicators10x lamp status + 1x power
Dimensions140mm (L) x 120mm (W) x 24mm (H)
Operating temperature0-50°C

Compatibility

  • Compatible with AC-211 OQ Sensor, AC-212 OQ Lamp, and AC-610 Seat Sensor
  • Requires FHD-100 Smart Box PC for network connectivity and remote configuration
  • Multiple hubs can be daisy-chained for larger installations

Frequently Asked Questions

Which Qbic sensors and lamps work with it?

It works with the AC-211 OQ Sensor, AC-212 OQ Lamp and AC-610 Seat Sensor.

How many devices can it connect?

It connects up to 5 lamps and 5 sensors via RJ45.

Can I mix sensor types?

Yes. You can mix PIR sensors and seat sensors on the same hub.

Can multiple hubs be linked?

Yes. Two RJ45 ports allow additional Hybrid Hubs to be daisy-chained for larger installations.

How does it connect to the network?

It connects to the FHD-100 gateway via RS-232 for network connectivity and remote configuration.

How is it powered?

A single 12V DC power supply powers the entire hub. It comes with a 2-year warranty, extendable to 5 years.
