By Magewell

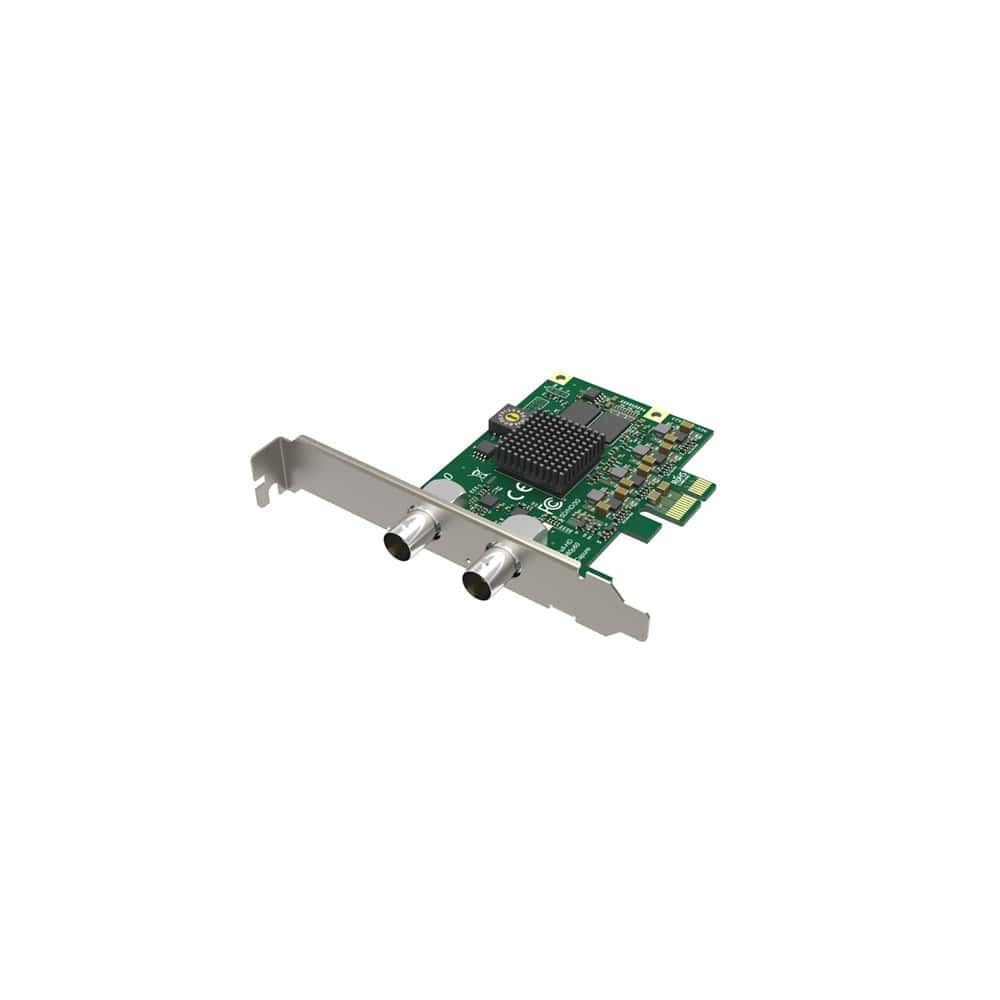

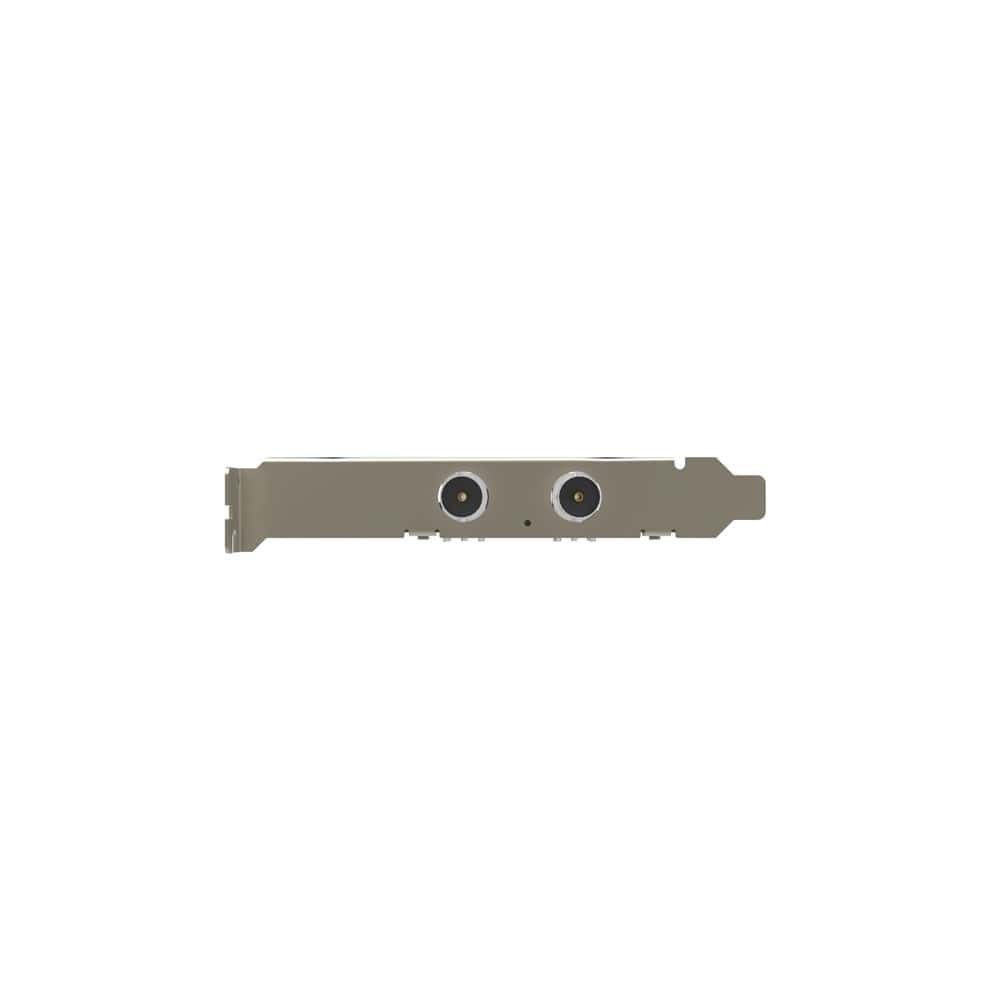

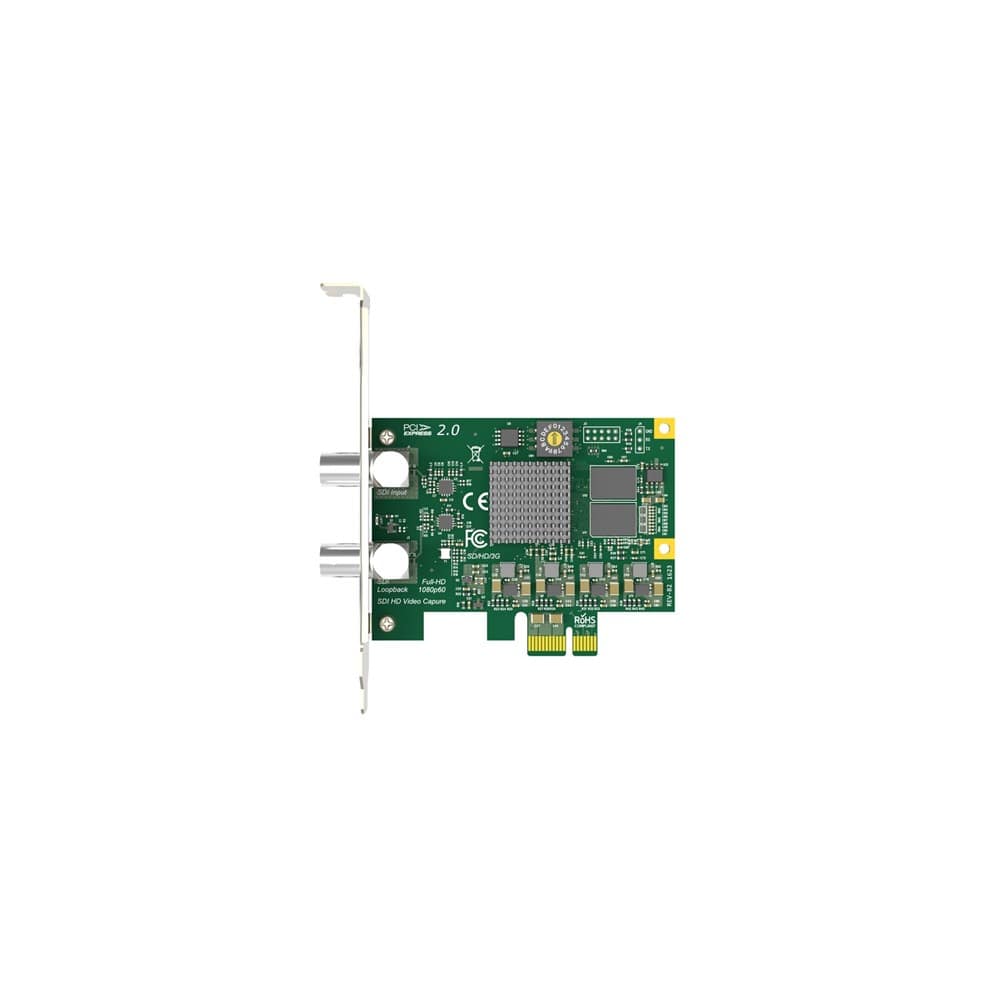

Magewell Pro Capture SDI

$656.92
$656.92
SKU: MG-110500000
Availability: Low stock: 4 left

Overview

Magewell Pro Capture SDI is a single-channel PCIe Gen2 x1 video capture card with BNC SD/HD/3G-SDI input and SDI loop-through output, built for broadcast and professional production. It captures SD/HD/3Ga/3Gb/2K SDI signals with embedded audio at resolutions up to 2048x2160 and frame rates up to 144fps, using hardware-based FPGA processing to minimize CPU load.

Key features
  • SDI Capture: Captures SD/HD/3G/2K SDI sources with embedded audio.
  • SDI Loop-Through: One SDI loop-through output for downstream monitoring.
  • Long Cable Support: Integrated cable equalizer handles SD-SDI runs up to 330m.
  • Closed Caption: Closed Caption extraction available via the SDK.
  • PCIe Gen2 x1: Compact single-lane interface for broad system fit.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell Pro Capture SDI
$656.92
$656.92

Technical details

The Magewell Pro Capture SDI is a single-channel SDI PCIe capture card with loop-through, built for broadcast and professional production. It captures SD/HD/3G/2K SDI signals with near-zero CPU usage.

Ideal for broadcast and live production, the Pro Capture SDI provides professional SDI capture with loop-through in a single card.

  • SDI Capture: Captures SD/HD/3G/2K SDI sources with embedded audio.
  • SDI Loop-Through: One SDI loop-through output for downstream monitoring.
  • Long Cable Support: Integrated cable equalizer handles SD-SDI runs up to 330m.
  • Closed Caption: Closed Caption extraction available via the SDK.
  • PCIe Gen2 x1: Compact single-lane interface for broad system fit.

Frequently Asked Questions

Which SDI formats does the Pro Capture SDI capture?

It captures SD, HD, 3G and 2K SDI sources with embedded audio.

Does it have loop-through?

Yes. It has one SDI loop-through output for downstream monitoring.

How long can the SDI cable runs be?

The integrated cable equalizer handles SD-SDI runs up to 330 m.

Can it extract closed captions?

Yes. Closed caption extraction is available via the Magewell SDK.

What PCIe interface does it use?

It uses a compact PCIe Gen2 x1 interface.

Does it use much CPU?

No. It captures SDI signals with near-zero CPU usage.
