Luminen 5.5 - Smart Control with Touch Screen, Gateway and Mini Server

$1,311.51
$1,311.51
SKU: HC-0550N
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Qbic Luminen 5 is a compact 5.5" three-in-one luxury smart control that combines a touch screen, IoT gateway, and server into a single slim wall panel for smart building and home automation environments. Built on Android 13 with Linux and Yocto BSP support, it features an NPU for AI-accelerated processing, Wi-Fi 6, Gigabit Ethernet with TSN, and RS485 for building automation integration. Protected by Qbic Fortify+ enterprise security and centrally managed via the Remote Configuration Center.

Key features
  • Three-in-one design: touch screen, IoT gateway, and server in a single device
  • 5.5" IPS touch display, 720 x 1280 portrait resolution, 0-300 nits adjustable brightness
  • Android 13 / Linux / Yocto BSP, flexible OS options for custom deployments
  • Neural Processing Unit (NPU) 2.3 TOPS for AI-accelerated applications
  • Gigabit Ethernet with Time Sensitive Networking (TSN)
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.0
  • RS485 serial port for building automation and AV system integration
  • Dual microphones and ambient light / proximity sensors
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • One-gang wall mount, premium plastic and aluminium alloy housing

Warranty

2-year warranty, extendable to 5 years

Certifications
  • ISO/IEC 27001:2022, Information Security Management (Certificate TW25/00000583, valid to 9 July 2028)
Product specs Download
Assembly guide Download

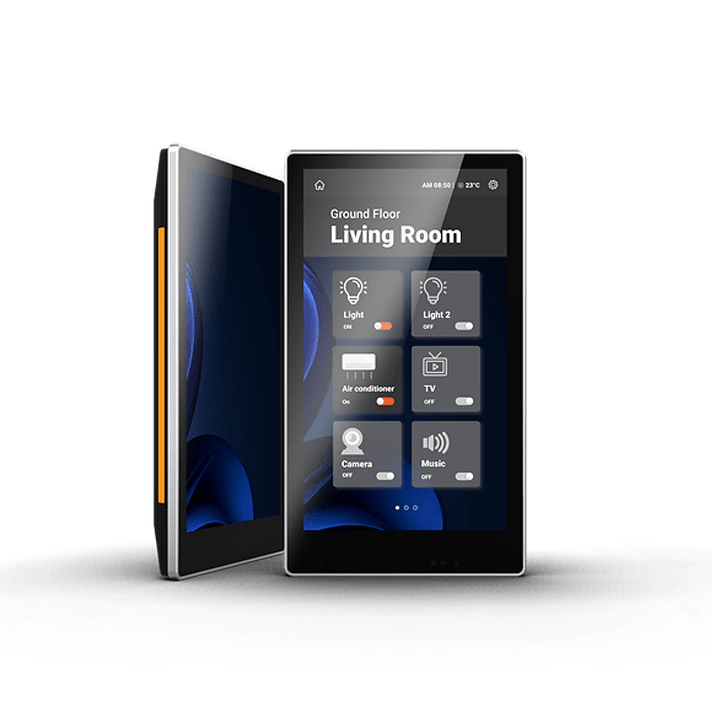

Qbic Luminen 5.5 (HC-0550N), smart control panel, main product image
$1,311.51
$1,311.51

Technical details

The Luminen 5.5″ smart panel offers a streamlined, compact solution for discrete automation interfaces or control points. Despite its size, it includes a full Android 13 OS, edge gateway functionality, and flexible I/O—all in a clean, flush-mountable design. Ideal for lift lobbies, small rooms, or focused digital signage applications. It runs on Android 13 with OTA updates and is Android 15-ready, ensuring long-term performance and compatibility.

Key Features:

  • 5.5″ touchscreen with 1280 × 720 resolution (16:9)

  • Anti-microbial Corning® Gorilla® Glass front

  • Android 13 platform with OTA updates (Android 15-ready)

  • Wi-Fi 6 and Bluetooth 5.0 for robust connectivity

  • 2.3 TOPS NPU for AI functionality

  • PoE (IEEE 802.3af), RJ-45, RS-485, CAN Bus, USB

  • True-color LED status indicators

  • Ambient light sensor for automatic brightness adjustment

  • Flush-mountable with support for standard gang boxes

  • Sleek, compact design for space-critical installations

  • No NFC.

  • Warranty: Two-year standard warranty.

  • Three-in-one design: touch screen, IoT gateway, and server in a single device
  • 5.5" IPS touch display, 720 x 1280 portrait resolution, 0-300 nits adjustable brightness
  • Android 13 / Linux / Yocto BSP, flexible OS options for custom deployments
  • Neural Processing Unit (NPU) 2.3 TOPS for AI-accelerated applications
  • Gigabit Ethernet with Time Sensitive Networking (TSN)
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.0
  • RS485 serial port for building automation and AV system integration
  • Dual microphones and ambient light / proximity sensors
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • One-gang wall mount, premium plastic and aluminium alloy housing
SpecificationDetail
ModelLuminen 5
Display Size5.5" IPS
Resolution720 x 1280 (portrait)
Brightness0-300 nits
OSAndroid 13 / Linux / Yocto BSP
CPUARM Quad-core Cortex-A53 up to 1.8GHz (64-bit)
NPU2.3 TOPS
Memory4GB LPDDR4
Storage32GB eMMC
NFCN/A
TouchYes, multi-touch
MicrophoneDual
SensorAmbient light, Proximity
Bluetooth Beacon (BLE)Yes
PoE802.3af
Ethernet1 x RJ45 Gigabit with TSN
WLAN802.11 a/b/g/n/ac/ax (Wi-Fi 6)
BluetoothBT 5.0
USB1 x USB Micro AB (OTG)
Serial PortRS485
Speaker1W x 1

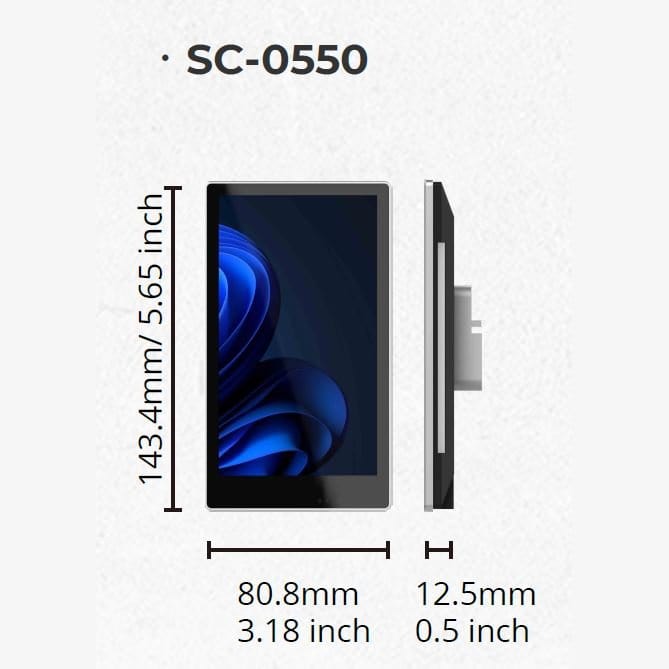

Dimensions (WxHxD)80.8 x 143.4 x 12.5mm (full depth 24.8mm)
MountingOne-gang wall mount
HousingPlastic & Aluminium Alloy
Operating Temp0°C to 40°C
Storage Temp-20°C to 60°C
SKUModel
Luminen 55.5" Smart Control Panel
DetailValue
OS optionsAndroid 13, Linux, Yocto BSP
NoteNFC not available on Luminen 5

Compatibility

  • Compatible with building automation and AV control systems via RS485 serial interface and network

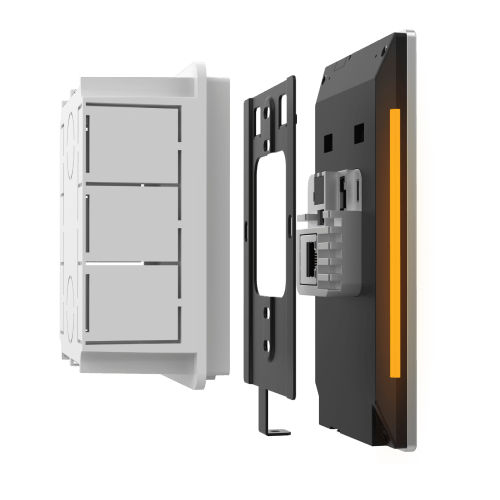

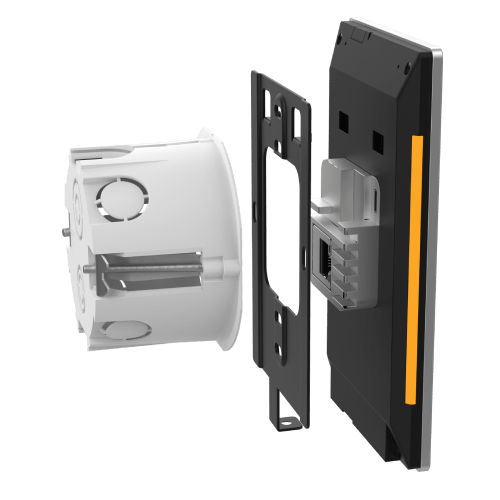

Mounting
  • One-gang wall mount
Suitable for
  • Smart building and home automation control
  • meeting room and space management
  • AV and lighting control
  • hospitality and hotel room controls

Features

  • A Greener Smart Control

    Equipped with sensors, this device boasts an intelligent system that automatically adjusts its brightness according to the surrounding environment, conserving energy and prolonging battery life. As well as being powered by a low power ARM-processor.

  • Connectivity Without Limits

    Experience limitless integration, featuring a diverse array of IO ports and cutting-edge wireless connectivity with WiFi 6 and Bluetooth 5. Connect to a physical ecosystem or go wireless.

  • The Ultimate 3-in-1 Convenience

    Boasting a trifecta of functionality including a touch screen, gateway connectivity, and mini-server capabilities. This innovative combination offers a convenient solution for developers and integrators seeking to streamline their projects.

  • AI-Driven Convenience & Security

    Impressive AI processing power of 2.3 TOPS. This advanced feature expands the capabilities of your device, enabling a range of AI-powered functions such as user identification, authentication, and safety features.

Frequently Asked Questions

How slim is it on the wall?

It measures 80.8 x 143.4 x 12.5mm, with a full depth of 24.8mm.

What is the display resolution?

It has a 5.5" IPS touchscreen with 720 x 1280 portrait resolution.

Does it have NFC?

No. NFC is not available on the Luminen 5.

How is it powered?

It supports PoE (IEEE 802.3af) via Gigabit Ethernet.

How is it mounted?

It flush mounts to a standard one-gang wall box.

What connectivity does it offer?

It offers Wi-Fi 6, Bluetooth 5.0, RS-485 and Gigabit Ethernet with TSN. It has a 2-year warranty, extendable to 5 years.
