By Qbic

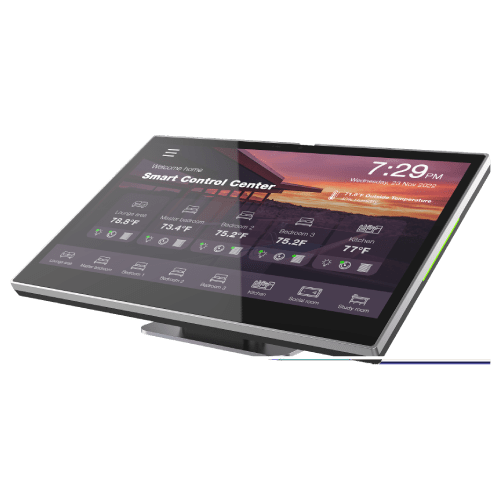

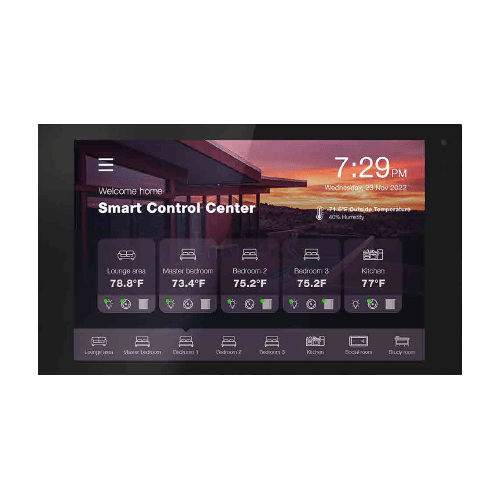

Luminen 15.6" - Smart Control with Touch Screen, Gateway and Mini Server

$2,296.17
$2,296.17
SKU: HC-1570N
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Qbic Luminen 15 is a 15.6" three-in-one luxury smart control panel combining a Full HD IPS touch display, IoT gateway, and server for boardrooms, premium hospitality, and corporate lobby smart building installations. NFC (13.56MHz), 5MP camera, PoE 802.3at, Wi-Fi 6, and an NPU delivering 2.3 TOPS of AI acceleration make it the largest and most capable panel in the Luminen series. Protected by Qbic Fortify+ enterprise security and managed via the Remote Configuration Center.

Key features
  • Three-in-one design: touch screen, IoT gateway, and server in a single device
  • 15.6" Full HD IPS touch display, 1920 x 1080 resolution, 0-300 nits adjustable brightness
  • NFC (13.56MHz) for contactless interaction and access control
  • 5MP fixed-focus front camera
  • Android 13 / Linux / Yocto BSP, flexible OS options for enterprise deployments
  • Neural Processing Unit (NPU) 2.3 TOPS for AI-accelerated applications
  • Gigabit Ethernet with Time Sensitive Networking (TSN)
  • PoE 802.3at compliant, single cable power and network
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.0
  • Dual microphones and ambient light / proximity sensors
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Quick Development Kit (QDK) for faster custom app development
  • Regular Android OS security patching and long-term component support
  • Surface, glass, and tabletop mounting options

Warranty

2-year warranty, extendable to 5 years

Certifications
  • ISO/IEC 27001:2022, Information Security Management (Certificate TW25/00000583, valid to 9 July 2028)
Product specs Download
Luminen 15.6-inch smart home control panel with touch screen and integrated server
$2,296.17
$2,296.17

Technical details

The Luminen 15.6″ smart control panel is a powerful, all-in-one solution combining a high-resolution touchscreen, edge gateway, and Android-based mini-server in a single slimline unit. Ideal for meeting rooms, commercial automation, or guest environments, this large-format panel runs is Android 15 and features PoE+, dual speakers, a 5 MP front camera, and comprehensive I/O options for seamless integration into any automation or AV control environment.

Key Features:

  • 15.6″ touchscreen with 1920 × 1080 resolution (16:9)

  • Corning® Gorilla® Glass with anti-microbial coating

  • Android 15 OS with OTA firmware support

  • Wi-Fi 6 and Bluetooth 5.0 connectivity

  • Built-in 2.3 TOPS NPU for AI-ready applications

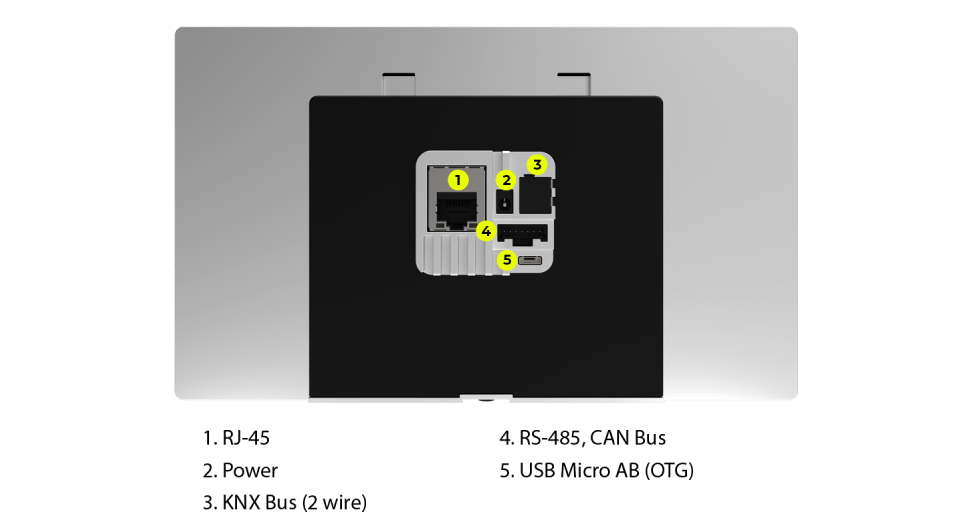

  • PoE+ (IEEE 802.3at), RJ-45 LAN, RS-485, CAN Bus, USB OTG

  • Dual speakers, front-facing 5 MP camera, digital mic

  • Surface or flush mounting with EU/US gang box support

  • True-color LED status indicators

  • Ambient light sensor for automatic brightness adjustment

  • NFC (13.56MHz)

  • Warranty: Two-year standard warranty.

  • Three-in-one design: touch screen, IoT gateway, and server in a single device
  • 15.6" Full HD IPS touch display, 1920 x 1080 resolution, 0-300 nits adjustable brightness
  • NFC (13.56MHz) for contactless interaction and access control
  • 5MP fixed-focus front camera
  • Android 13 / Linux / Yocto BSP, flexible OS options for enterprise deployments
  • Neural Processing Unit (NPU) 2.3 TOPS for AI-accelerated applications
  • Gigabit Ethernet with Time Sensitive Networking (TSN)
  • PoE 802.3at compliant, single cable power and network
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.0
  • Dual microphones and ambient light / proximity sensors
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
  • Quick Development Kit (QDK) for faster custom app development
  • Regular Android OS security patching and long-term component support
  • Surface, glass, and tabletop mounting options
SpecificationDetail
ModelLuminen 15
Display Size15.6" IPS
Resolution1920 x 1080
Brightness0-300 nits
OSAndroid 13 / Linux / Yocto BSP
CPUARM Quad-core Cortex-A53 up to 1.8GHz (64-bit)
NPU2.3 TOPS
Memory4GB LPDDR4
Storage32GB eMMC
NFC13.56MHz
TouchYes, multi-touch
Camera1 x 5MP Fixed focus
MicrophoneDual
SensorAmbient light, Proximity
Bluetooth Beacon (BLE)Yes
PoE802.3at
Ethernet1 x RJ45 Gigabit with TSN
WLAN802.11 a/b/g/n/ac/ax (Wi-Fi 6)
BluetoothBT 5.0
USB1 x USB 3.0 Type A / 1 x USB Type-C (ADB)
Speaker1W x 2
Dimensions (WxHxD)373.5 x 243.1 x 26.2mm

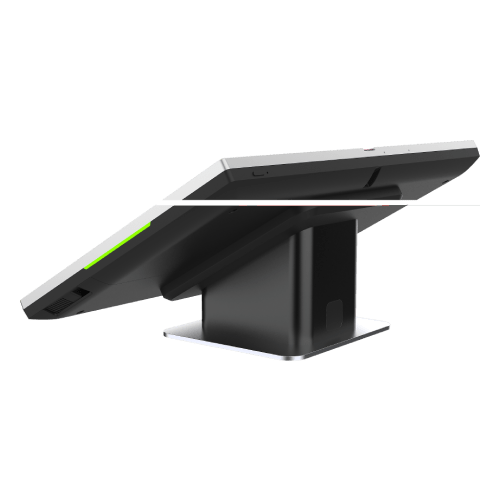

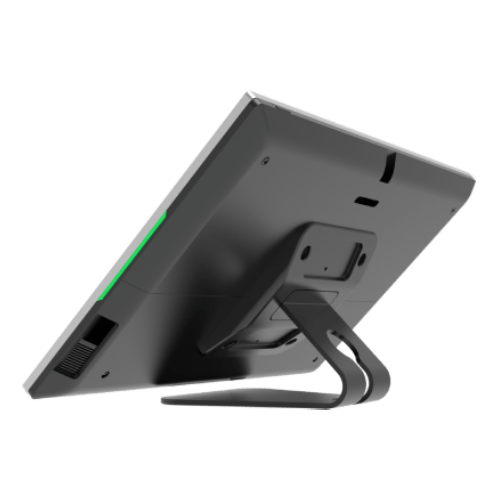

MountingSurface mount, Glass mount, Tabletop
HousingPlastic & Aluminium Alloy
Operating Temp0°C to 40°C
Storage Temp-20°C to 60°C
SKUModel
Luminen 1515.6" Smart Control Panel
DetailValue
OS optionsAndroid 13, Linux, Yocto BSP
NFC13.56MHz
MountingSurface mount, Glass mount, Tabletop

Compatibility

NFC
  • 13.56MHz
Mounting
  • Surface mount
  • Glass mount
  • Tabletop
Suitable for

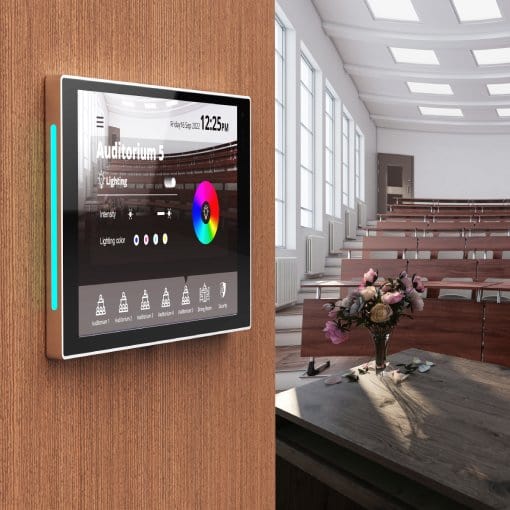

  • Boardroom and large meeting room control
  • smart building lobby and reception management
  • premium AV and lighting control
  • hospitality and hotel room controls
  • corporate and residential smart building installations

Features

  • A Greener Smart Control

    Equipped with sensors, this device boasts an intelligent system that automatically adjusts its brightness according to the surrounding environment, conserving energy and prolonging battery life. As well as being powered by a low power ARM-processor.

  • Connectivity Without Limits

    Experience limitless integration, featuring a diverse array of IO ports and cutting-edge wireless connectivity with WiFi 6 and Bluetooth 5. Connect to a physical ecosystem or go wireless.

  • The Ultimate 3-in-1 Convenience

    Boasting a trifecta of functionality including a touch screen, gateway connectivity, and mini-server capabilities. This innovative combination offers a convenient solution for developers and integrators seeking to streamline their projects.

  • AI-Driven Convenience & Security

    Impressive AI processing power of 2.3 TOPS. This advanced feature expands the capabilities of your device, enabling a range of AI-powered functions such as user identification, authentication, and safety features.
