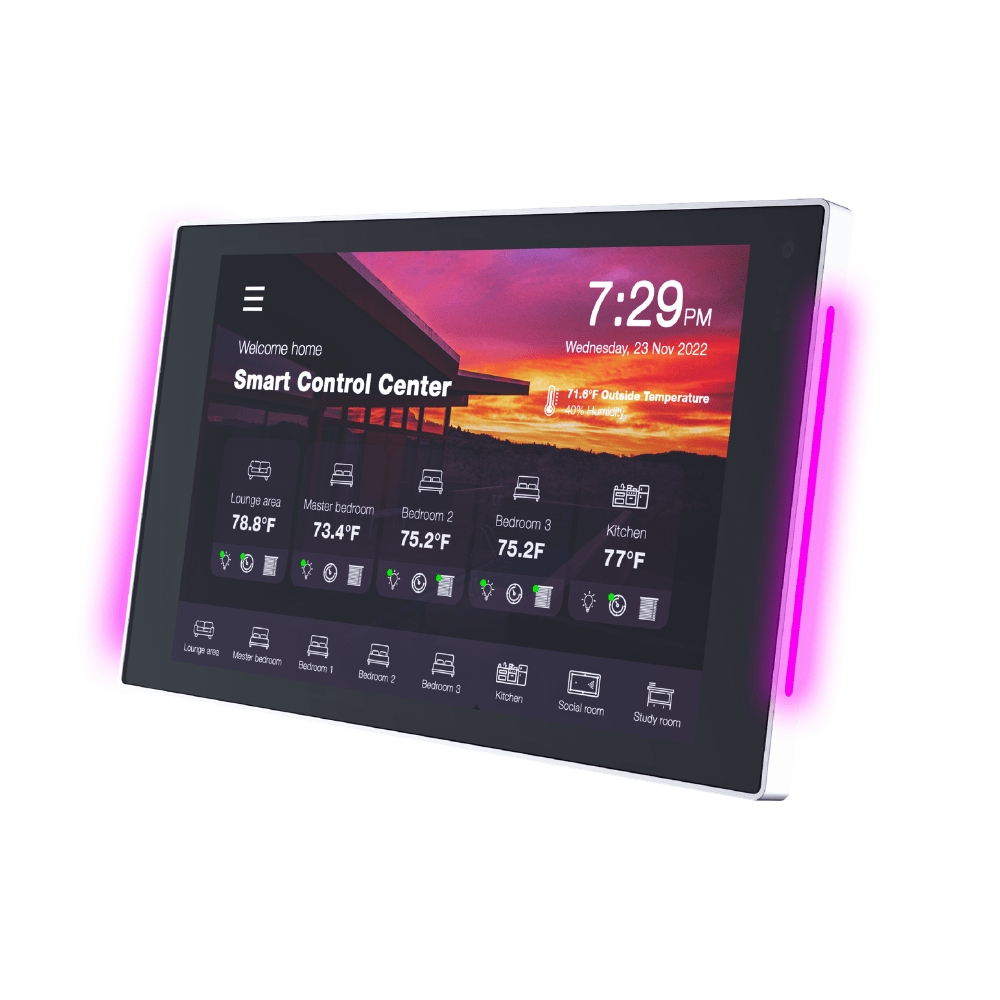

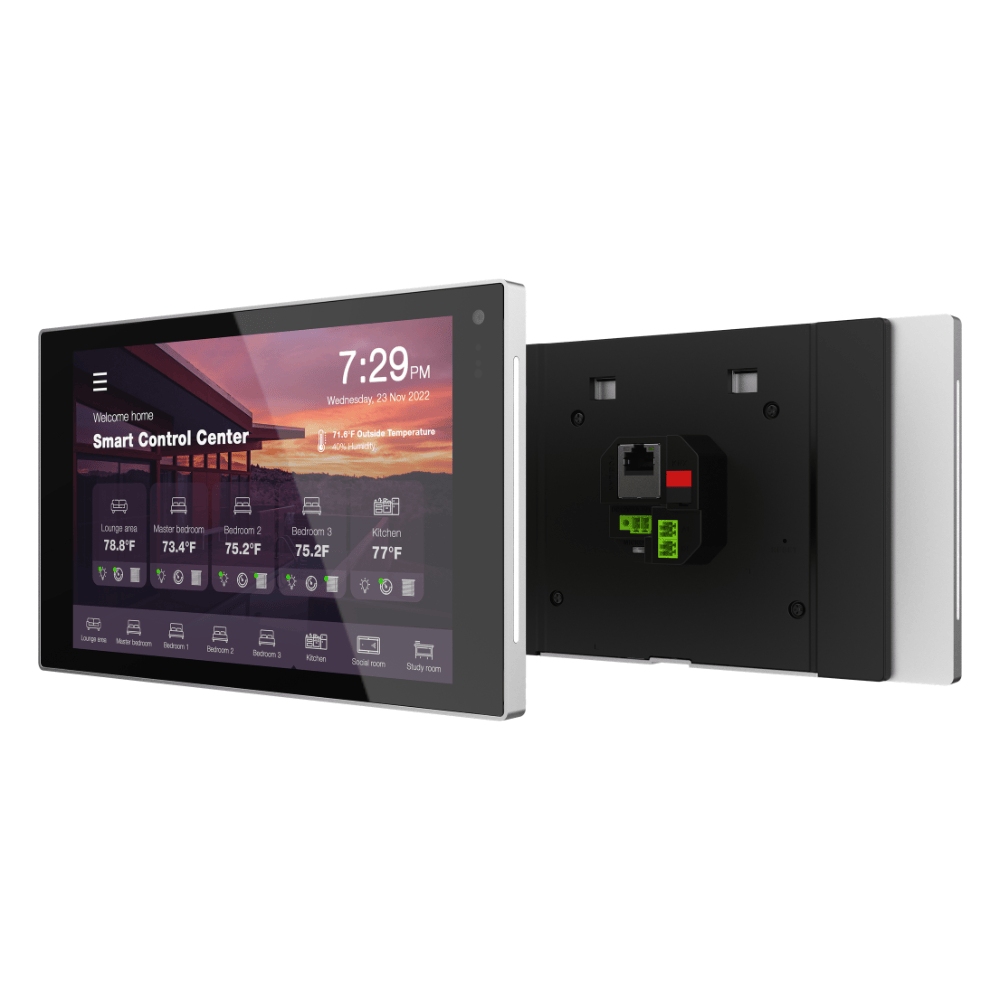

Helinx 8 KNX Smart Control Panel
Back orders delivered in 4 weeks
Not available for local pickup. On backorder
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Certifications
Certifications
Technical details
The Helinx 8 KNX Smart Control Panel is a high-performance, industrial-grade HMI designed for advanced KNX installations. With full KNX System B support—including TP (Twisted Pair), RF (Radio Frequency), and IP protocols in a single integrated device—it eliminates the need for external gateways while enabling seamless interoperability across complex, distributed systems.
Engineered to handle large-scale deployments, Helinx 8 supports over 1,000 KNX datapoints, making it ideal for multi-zone residential, commercial, and hospitality environments. Its embedded architecture ensures stable, low-latency communication across all KNX media, providing reliable real-time control of lighting, HVAC, shading, security, and custom automation scenes.
The 8-inch high-resolution capacitive touchscreen delivers a responsive, intuitive user interface, while the IP65-rated front panel and Power over Ethernet (PoE) capability allow for flexible installation in demanding environments with reduced wiring complexity.
-
KNX System B Multi-Protocol Stack
Native support for KNX TP, RF, and IP in a single device (no external couplers required) -
High Datapoint Capacity
Supports 1,000+ KNX group addresses for large-scale, high-density automation projects -
Industrial-Grade Touch Interface
8" capacitive touchscreen with high brightness and wide viewing angles for continuous operation -
Embedded Processing Architecture
Dedicated onboard processing ensures deterministic performance and low-latency KNX communication -
Power over Ethernet (PoE)
IEEE 802.3af compliant for simplified deployment and centralized power management -
Robust Environmental Protection
IP65-rated front panel for dust and water resistance, suitable for commercial and semi-outdoor use -
Real-Time Control & Visualization
Instant control of lighting, HVAC, blinds, security systems, and scene logic via KNX group communication -
Flexible Integration
Compatible with ETS configuration tools and standard KNX system architecture
Helinx 8 is purpose-built for system integrators and KNX professionals delivering high-end smart building solutions. It is particularly suited for luxury residences, commercial offices, and hospitality projects requiring:
- Multi-protocol KNX integration without added hardware layers
- Scalable system architecture with high datapoint density
- Reliable, always-on control interfaces in demanding environments
Compared to alternatives such as Peaknx (Windows-based systems with higher power consumption and maintenance overhead) or Basalte (design-focused panels with limited KNX media support), Helinx 8 provides a more technically versatile, efficient, and deployment-friendly solution.
- KNX certified (System B), integrates natively with KNX-enabled smart home and building automation systems
- 8" FHD landscape touchscreen (1280×800) with PCAP 5-point multi-touch
- Antimicrobial Corning Gorilla Glass for hygiene-conscious residential and commercial environments
- Built-in IP gateway for seamless KNX network connectivity
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.3 for fast wireless connectivity
- PoE 802.3af/at compatible, single cable delivers data and power
- GPIO digital and analogue input ports for sensor and peripheral integration
- Ambient mood LED bars (left and right) for personalised lighting ambience
- Ambient light sensor and proximity sensor for intelligent auto-adjustment
- Built-in dual microphones and dual speakers for voice and audio interaction
- Optional 5MP camera and NFC (13.56MHz) for enhanced interactivity
- In-wall one-gang installation for a clean, architectural finish
- Remotely manage and configure via RCC, apply changes individually or in batch
- Install APK files via USB, contact Leading Solutions for compatible APK files
| Specification | Detail |
|---|---|
| CPU | i.MX8M Plus Quad Core A53 |
| Memory | 4GB LPDDR4 (2GB optional) |
| Storage | 32GB eMMC (16GB optional) |
| Operating System | Android 13 or Linux Yocto |
| Panel Size | 8" |
| Panel Orientation | Landscape |
| Display Resolution | 1280×800 |
| Brightness | >300 cd/m² |
| Contrast Ratio | 800:1 |
| Touch | PCAP multi-touch, 5 points |
| Glass | Antimicrobial Corning Gorilla Glass |
| Ethernet | 10/100/1000M, 1× RJ45 with PoE 802.3af |
| WLAN | Wi-Fi 6, 802.11 a/b/g/n/ac/ax + BT 5.3 |
| PoE | 802.3af (802.3at compatible) |
| USB | 1× Micro USB, 1× USB-C 3.0 (OTG) |
| KNX | KNX bus connection block (RED/Black), Certified KNX Stack System B |
| Analog Input | ×1 |
| Digital Input | ×1 |
| Camera | 1× 5MP, FF (optional) |
| NFC | 13.56MHz (optional) |
| Speaker | Built-in, 2× 1W |
| Microphones | Built-in, dual |
| LED Bar | 2 (left/right) |
| Proximity Sensor | ALS + Proximity |
| Power | PoE 802.3af/at or DC-in 12V/1.5A-24V/0.75A |
| Dimensions (W×L×H) | 127.6×213.2×15.4 mm |
| Weight | 500 g |
| Front Bezel | Aluminium alloy |
| Housing | Plastic rear cover |
| Mounting | In-wall, one-gang |
| Operating Temperature | 0°C to 40°C, 5-85% RH |
| Storage Temperature | -20°C to 60°C, 5-90% RH |
Compatibility
- KNX-certified building automation and smart home systems (KNX Stack System B)
- Digital and analogue input devices
- Android 13 or Linux Yocto application environments
- In-wall
- one-gang
- Residential smart homes
- hotel rooms
- corporate meeting rooms
- building automation
Features
-

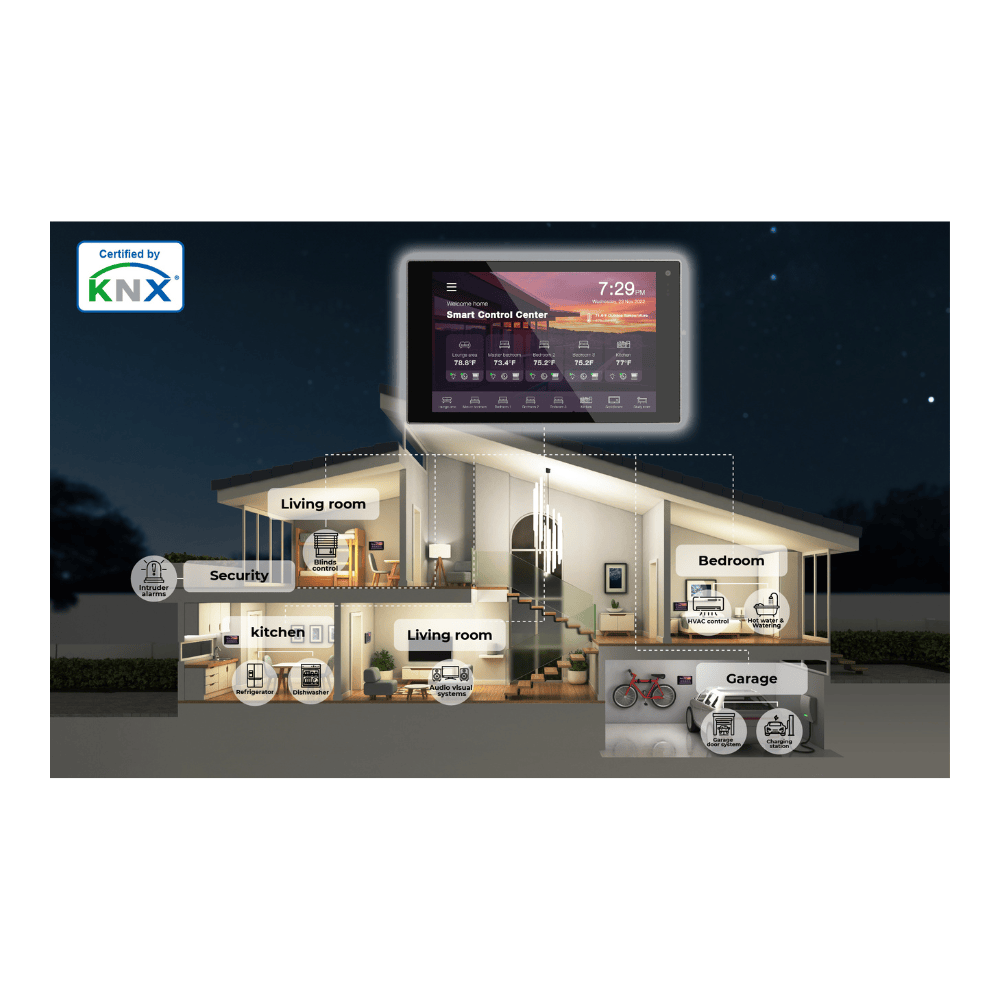

Future-Ready KNX Stack: System B
-
Stay Clean and Protected
-
Eco-Friendly Brilliance
-
AI-Driven Innovation
Frequently Asked Questions
Is the Helinx 8 KNX certified?
Is the Helinx 8 KNX certified?
How many KNX datapoints does it support?
How many KNX datapoints does it support?
What display does it have?
What display does it have?
Can it be powered by PoE?
Can it be powered by PoE?
Which operating systems does it run?
Which operating systems does it run?
What wireless connectivity does it have?
What wireless connectivity does it have?
