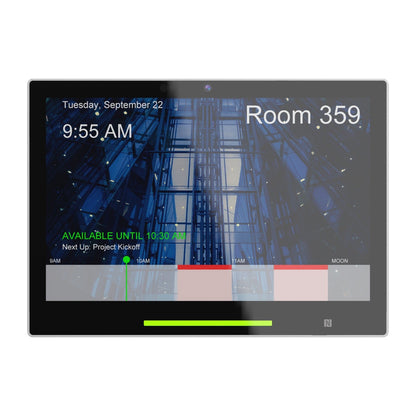

Qbic 10.1" Smart Panel PC, Full HD IPS Display, NFC/RFID AI-Ready
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Certifications
Certifications
NFC 13.56MHz
Technical details
The Qbic TD-1070 is a 10.1-inch smart panel PC designed for modern workplace, signage, and access-control environments where hardware reliability and platform flexibility matter. Built on a premium aluminum and Gorilla Glass chassis, it provides a robust front-of-space interface that can support a wide range of third-party applications and deployment workflows.
-
10.1" 1920 x 1200 direct-bonded display
-
Android 14 platform
-
Aerospace-grade aluminum construction
-
Corning Gorilla Glass touchscreen
-
NFC/RFID contactless authentication
-
Dual microphones with noise reduction
-
8MP camera with HDR
-
PoE+ power and data over one cable
-
Programmable LED status indicators
-
Wall, glass, recessed, or tabletop mounting
Ideal for integrators and end users needing a versatile panel for room booking, visitor management, digital signage, and custom workflow applications. Its software-friendly design makes it suitable for projects where the hardware needs to integrate cleanly with different platforms and ecosystems.
- 10.1" FHD 1920 x 1200 IPS touch display, 430 nits, antimicrobial Corning® Gorilla® Glass (99.9% microbial reduction)
- Aerospace-grade Mg-Al alloy unibody chassis, superior strength, passive heat dissipation, ultra-slim profile
- Three-sided 256-colour programmable RGB LED lights, visible room status from any angle
- Embedded AI accelerator for independent voice and image recognition
- NFC/RFID: supports 30+ card types (13.56MHz standard; optional 125KHz and HID variants)
- ALS + Proximity sensor, automatically turns display on/off to save energy
- Dual noise-reduction microphones with Auto Echo Cancellation (AEC)
- 8MP HDR front camera
- PoE+ (25W), single cable delivers power and network connectivity
- Independent hardware watchdog ensures automatic recovery from software faults
- Qbic Fortify+ security: Access Protection (secure connection, secure ports, admin authentication), Data Protection (encryption, permission management, privacy controls), Environment Protection (secure boot, device integrity, ongoing security updates)
- Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
- Custom app deployment: install APK files via USB or Micro SD, contact Leading Solutions for compatible APK files
- Regular Android OS security patching and long-term component support
- Glass, surface, and recessed mounting options
- Optional Wi-Fi (802.11 b/g/n/ac) and Bluetooth Beacon (BLE)
| Specification | Detail |
|---|---|
| OS | Android 11 |
| CPU | ARM Quad-core Cortex-A55 up to 2.0GHz (64-bit) |
| Memory | 2GB LPDDR4 |
| Storage | 32GB eMMC |
| Display Size | 10.1" |
| Resolution | 1920 x 1200 (FHD) |
| Brightness | 430 nits |
| Contrast | 1000:1 |
| Touch | Yes, multi-touch |
| Viewing Angle | 85°/85°/85°/85° |
| Camera | 1 x 8MP with HDR |
| Microphone | 2 (Noise Reduction & Auto Echo Cancellation) |
| Speaker | 2W x 2 |
| ALS + Proximity Sensor | Yes |
| NFC/RFID | 13.56MHz standard; optional H version (13.56M & 125KHz); optional R version (encrypted) |
| Bluetooth Beacon (BLE) | Optional |
| PoE | PoE+ (25W) |
| Watchdog | Yes, independent |
| Ethernet | 1 x RJ45 (10M/100M/1000M) |
| WLAN | Optional, 802.11 b/g/n/ac |
| USB | 2 x USB 2.0 Type A / 1 x USB 3.0 Type C (with ADB) |
| Audio | 1 x 3.5mm stereo |
| Expansion Storage | 1 x Micro SDHC/SDXC slot |
| Video Decoder | H.264 / H.265, VC-1, MPEG-4, VP9 |

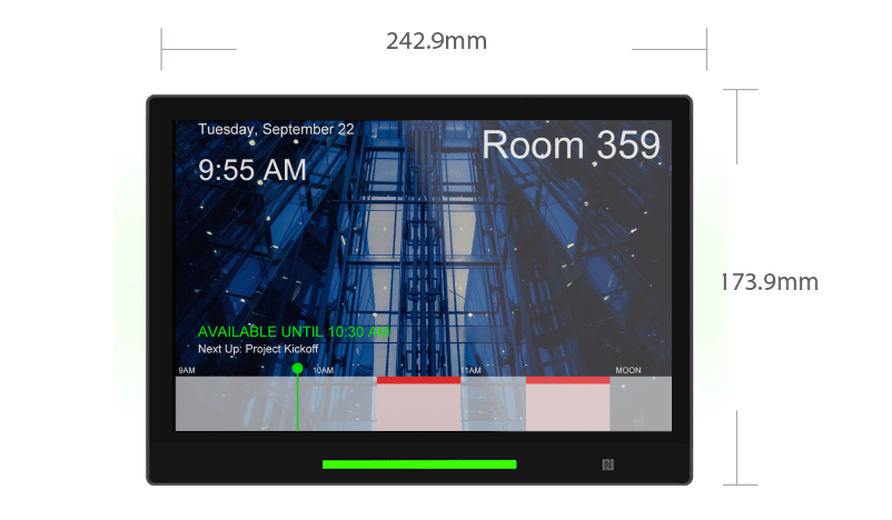

| Dimensions (WxDxH) | 242.9 x 173.4 x 20.8mm |
| Mounting | Glass / Surface / Recessed |
| Housing | Plastic & Mg-Al Alloy |
| Operating Temp | 0°C to 50°C |
Available options
| NFC/RFID | SKU |
|---|---|
| NFC 13.56MHz | TD-1070 |
| HID 13.56MHz/125KHz | TD-1070-BH |
Compatibility
- Standard 13.56MHz (Mifare
- ISO 14443
- ISO 15693) / H version adds 125KHz HID / R version adds encrypted content reading
- Glass mount
- Surface mount
- Recessed mount
- Meeting room and facility management
- visitor check-in and access control
- retail and hospitality touchpoints
- corporate reception and lobby
- healthcare and education environments
Features
-
Smarter Way to Manage Your Space
-
Breaktaking Screen Quality
-
True Color Radient LED Lights
-
Seamless NFC/RFID Technology
Frequently Asked Questions
Does it save energy when no one is nearby?
Does it save energy when no one is nearby?
What is the display like?
What is the display like?
How does it show room status?
How does it show room status?
What NFC/RFID cards does it support?
What NFC/RFID cards does it support?
Does it have a camera and microphones?
Does it have a camera and microphones?
How is it powered?
How is it powered?
