Technical details

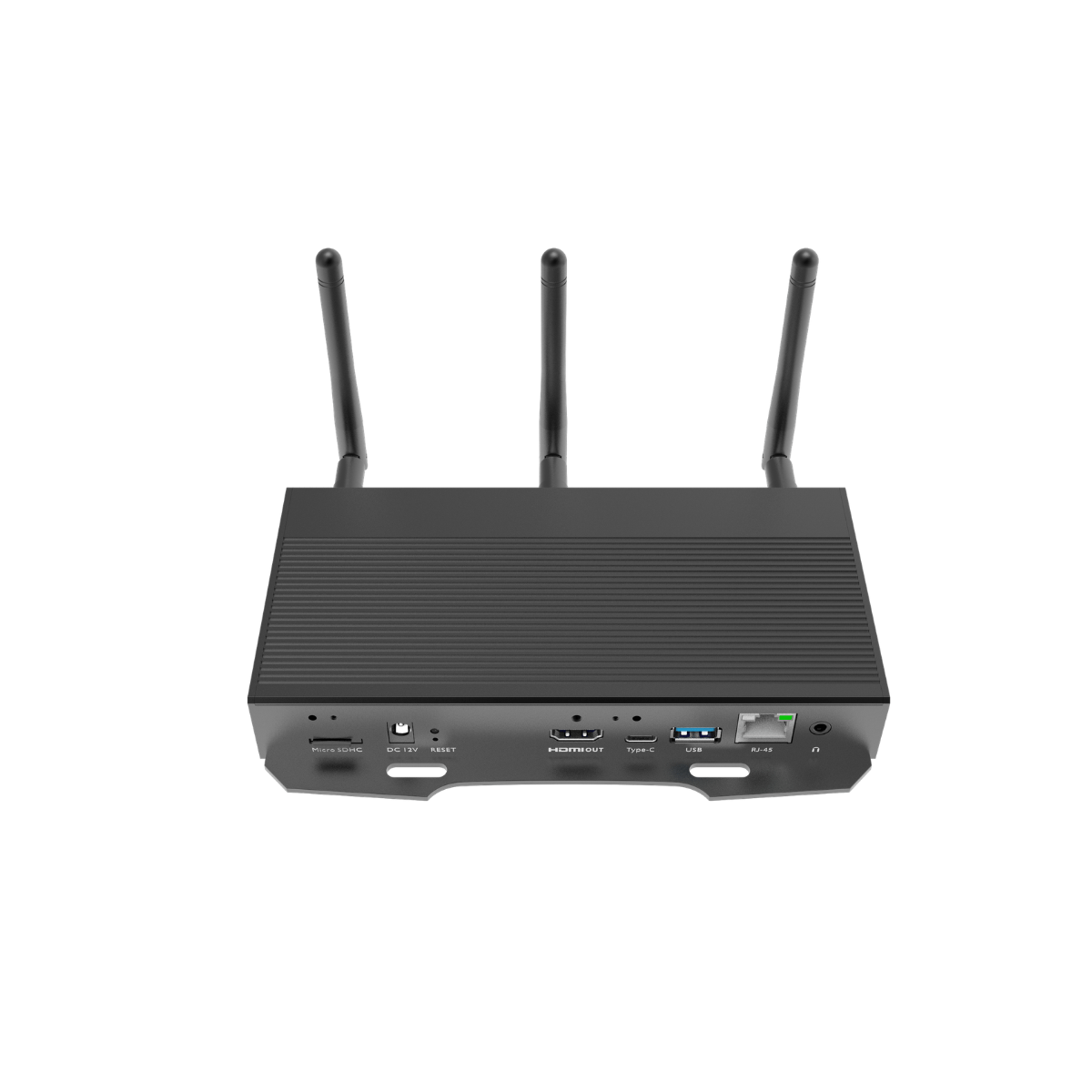

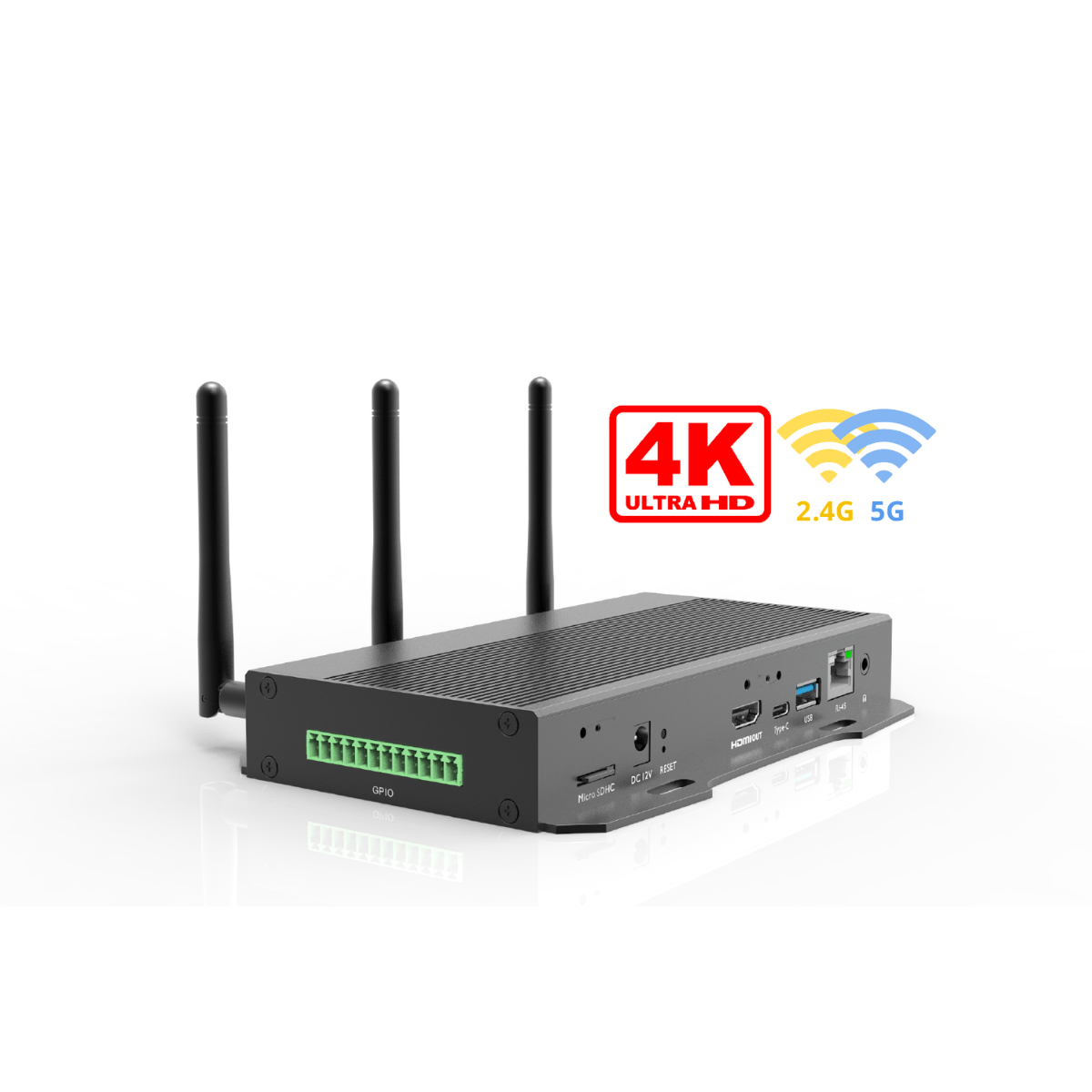

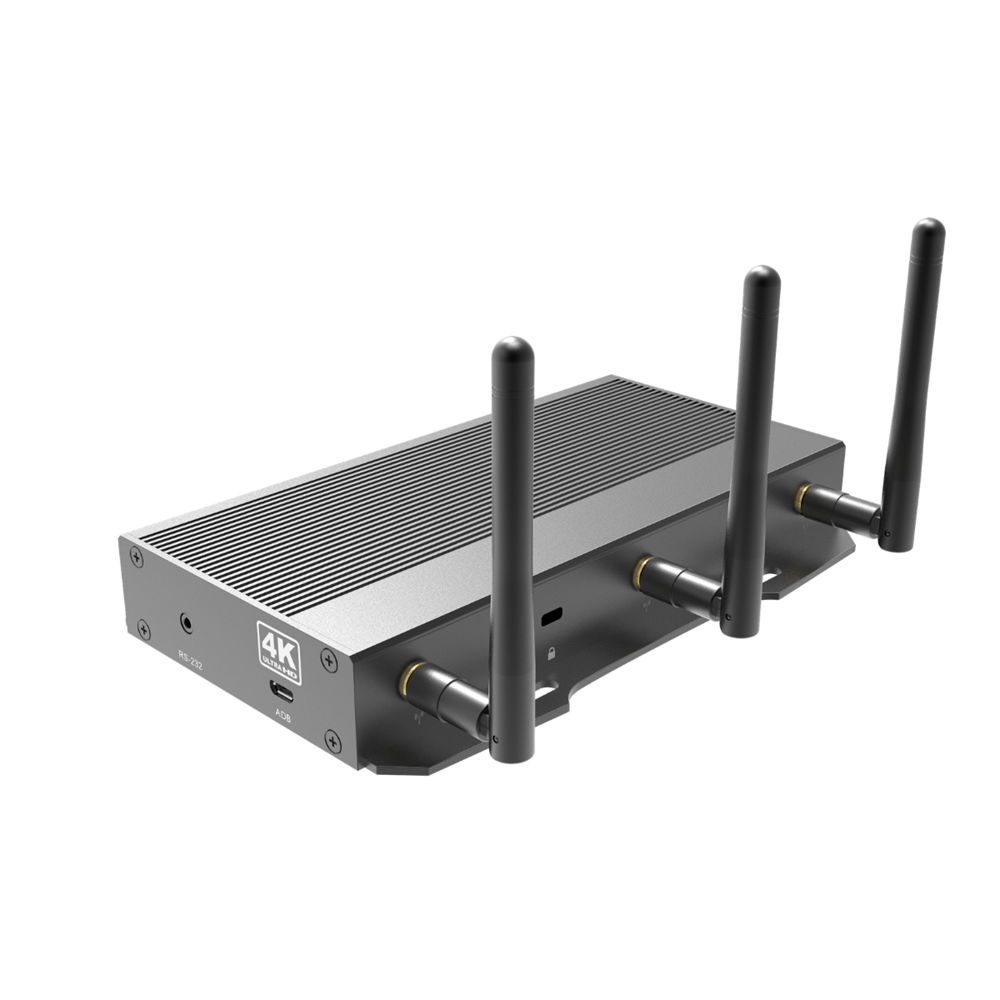

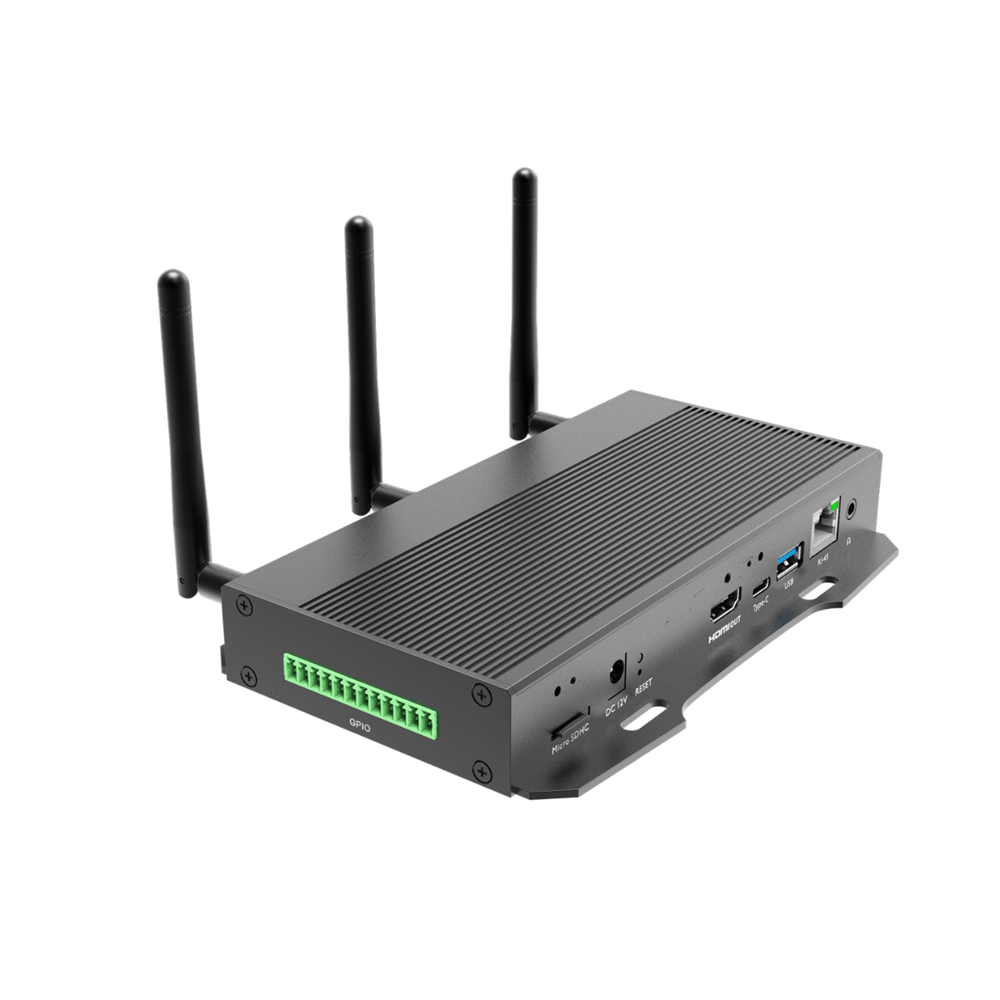

The Qbic BXP-320 is a compact ARM-based box PC built for 4K-UHD digital signage and other high-resolution display applications. Its fanless solid-state design supports quiet, low-maintenance operation in commercial environments, while the small form factor makes it easy to integrate into professional AV and signage installations.
4K-UHD HDMI 2.0 output.
ARM dual-core Cortex-A72 + quad-core Cortex-A53 CPU.
64-bit architecture at 1.8GHz.
8 configurable GPIO via 12-pin phoenix connector.
Fanless solid-state design for silent operation.
Android 14, Debian, or Linux support.
Compact enclosure for discreet installation.
This product is designed for signage integrators, AV installers, and commercial users who need a reliable media player or box PC for 4K display output. It is well suited to retail, hospitality, corporate lobby, and kiosk deployments where quiet operation, remote management, and peripheral integration are important.
- 4K Ultra HD output at 60fps via HDMI 2.0 with CEC
- 64-bit Dual-Core A72 + Quad-core A53 CPU, 4GB RAM
- Independent hardware watchdog, automatic recovery from firmware, software, or hardware faults
- Configurable 8-pin GPIO, connect and control external devices (LED lights, sensors, switches)
- Secure I/O: all ports individually manageable to prevent unauthorised use
- 4G LTE ready via M.2 slot, deploy without fixed network infrastructure
- Mini-SIM slot (2FF) for cellular connectivity
- Optional Wi-Fi (802.11 b/g/n) and BLE Beacon
- IEEE 802.1X authentication and SSL/TLS secured connections
- RTSP/HTTP streaming and HTML5 / W3C SMIL API support
- Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
- Remote firmware and APK updates over the air (OTA)
- Kensington Lock for physical security
- Durable aluminium construction, VESA 100x100mm mount kit included
| Specification | Detail |
|---|---|
| OS | Android 8.1 / 10.1 / 12 |
| CPU | ARM Dual-Core A72 + Quad-core A53, 64-bit 1.8GHz |
| GPU | Mali-T864 |
| Memory | 4GB |
| Storage | 32GB eMMC |
| Watchdog | Yes, independent |
| HDMI Output | 1 x HDMI 2.0b with CEC (4K UHD 3840x2160@60fps) |
| Video Playback | H.265 4K@60p, H.264 4K@30p, MPEG-4 1080P@60fps, HTML5 |
| Ethernet | 1 x RJ45, Gigabit 10/100/1000 |
| WLAN | Optional 802.11 b/g/n |
| BLE/Beacon | Optional (BT 4.0) |
| 4G LTE | M.2 module slot (M.2 3042 B-Key) |
| Mini-SIM | 1 x 2FF slot |
| USB | 1 x USB 2.0, 1 x USB 3.0 Type-C |
| ADB | 1 x Micro USB |
| COM Port | 1 x RS-232 2.5mm jack (Tx/Rx/GND) |
| GPIO | 8 configurable pins (Phoenix type 12-pin) |
| Audio | 1 x 3.5mm (4-ring) |
| Storage Expansion | 1 x Micro SDHC slot |
| Kensington Lock | Yes |
| Dimensions (WxDxH) | 180 x 118 x 27mm |
| Net Weight | 400g |
| Material | Durable Aluminium |
| Mounting | Easy wall mount, VESA 100x100mm |
| Power | DC 12V/3A |
| Operating Temp | -40°C to 70°C |
| Storage Temp | -40°C to 80°C |
| SKU | Model |
|---|---|
| BXP-320 | Supercharged 4K Digital Signage Player |
| Detail | Value |
|---|---|
| Options | Wi-Fi module (802.11 b/g/n), 4G LTE M.2 module, BLE Beacon module, M.2 SSD |
| Includes | DC adaptor, dipole antenna 2dBi, Velcro strip x2, HDMI x1, GPIO connector |
Compatibility
- 4K UHD (3840x2160) @ 60fps
- 8-pin configurable for LED lights
- motion sensors
- switch buttons
- Gigabit Ethernet (standard)
- optional Wi-Fi 802.11 b/g/n
- optional 4G LTE
- Retail digital signage and interactive kiosk applications
- self-service and point-of-sale displays
- transport and wayfinding signage
- corporate and hospitality public displays
- remote or outdoor deployments requiring 4G connectivity
