By Magewell

USB Fusion

$2,764.03
$2,764.03
SKU: MG-35060
Availability: Contact to order

Back orders delivered in 14 days

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Magewell USB Fusion is a standalone hardware video switcher and presentation device that combines HDMI sources, USB webcams, wireless screen casts (AirPlay, Miracast, Google Cast), imported files, and web pages into composited scenes, then outputs the result as a USB webcam to any conferencing or streaming software. A built-in 128GB storage, Wi-Fi, and RTMP streaming engine mean it can also record and broadcast independently of a host application.

Key features
  • Multi-source video switcher: combines 2 × HDMI, 1 × USB webcam, AirPlay/Miracast/Google Cast, imported media, and web pages
  • Appears as a standard USB webcam to Zoom, Teams, Meet, OBS, and any UVC/UAC software
  • HDMI output for secondary display (program, HDMI 1, or HDMI 2)
  • RTMP streaming at up to 1080p60 and 20Mbps; 128GB local recording storage
  • Simultaneous wireless screen casting from up to 4 devices
  • Picture-in-picture, side-by-side, and custom scene compositing
  • Annotation tools: pens, shapes, text (exportable as notes)
  • iOS/Android app for presentation control and PTZ camera operation
  • Wi-Fi 802.11ax (5GHz) and Gigabit Ethernet
Product specs Download
Assembly guide Download

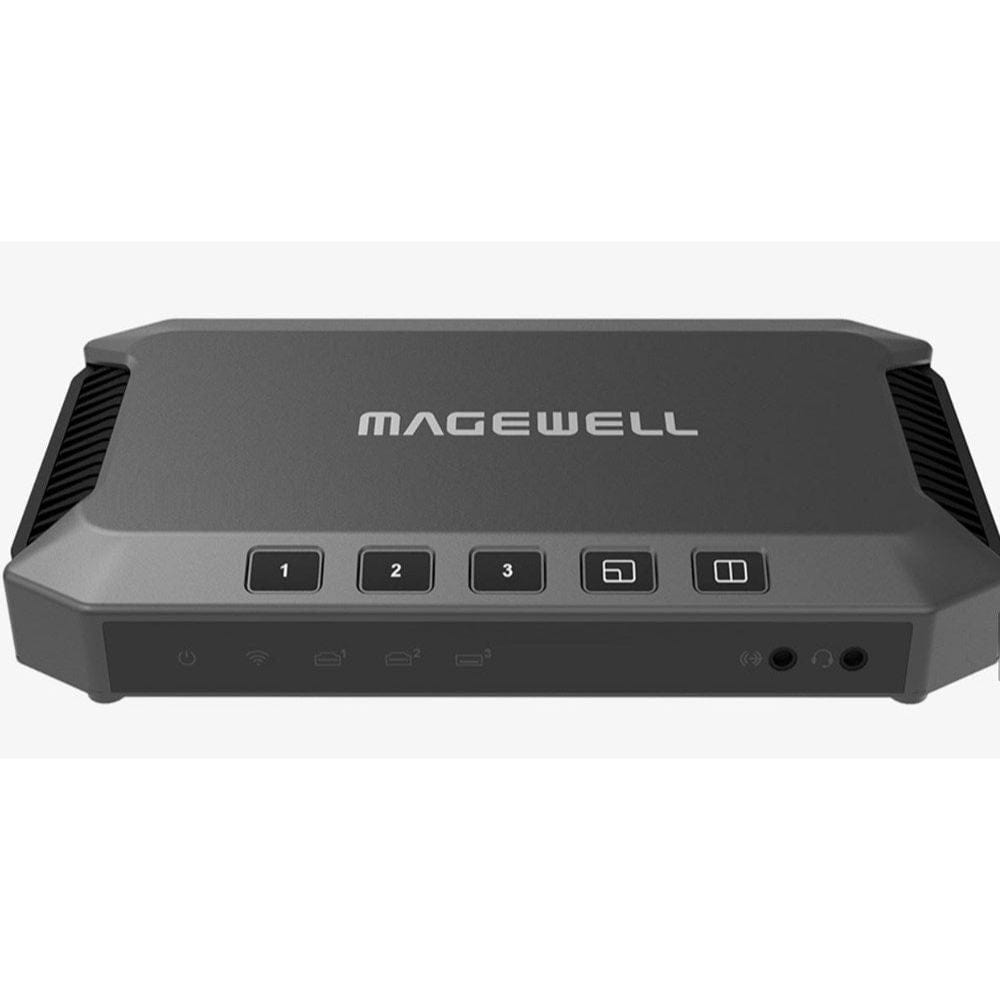

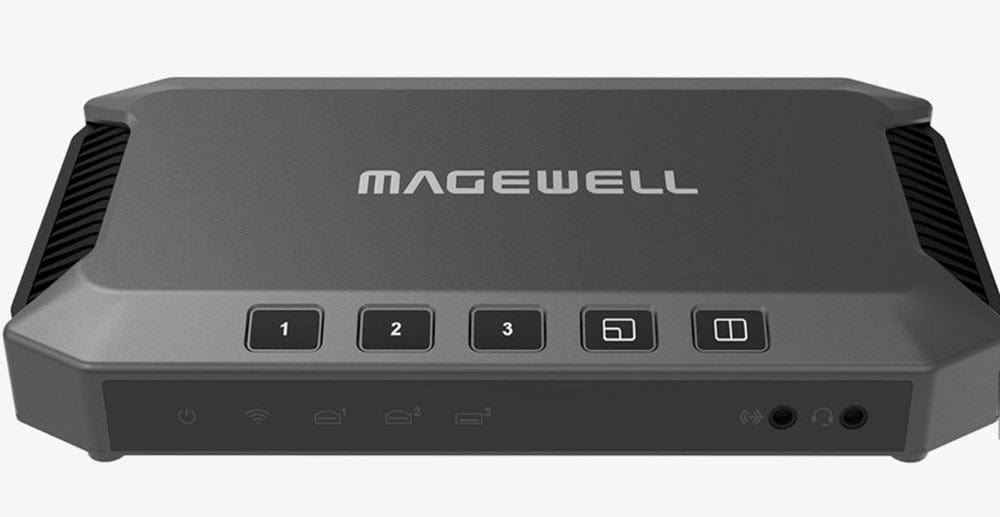

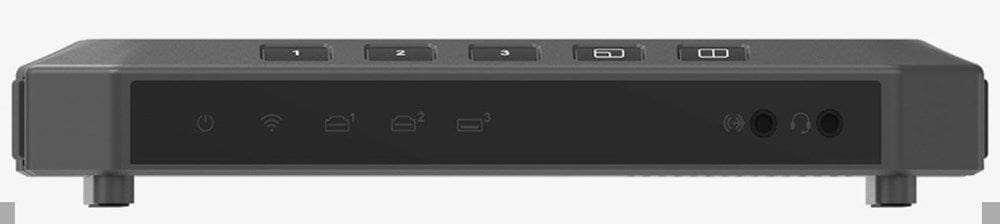

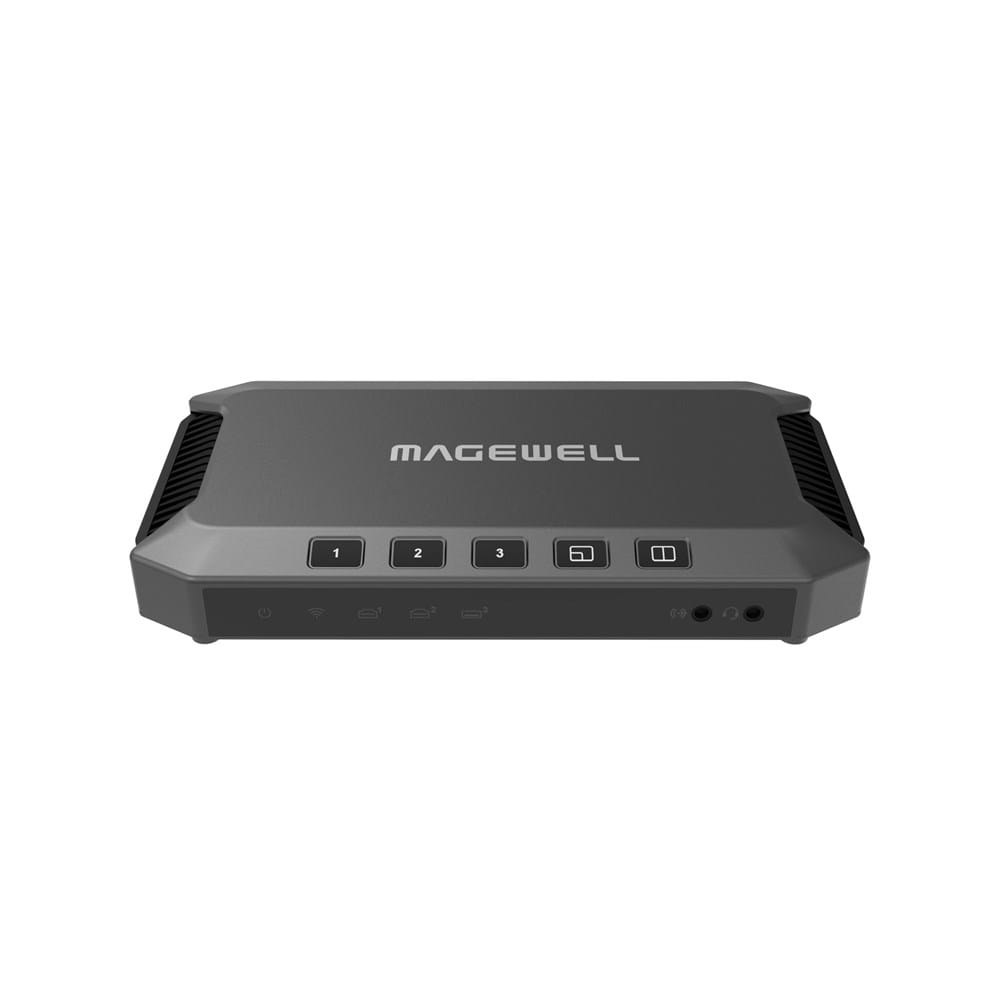

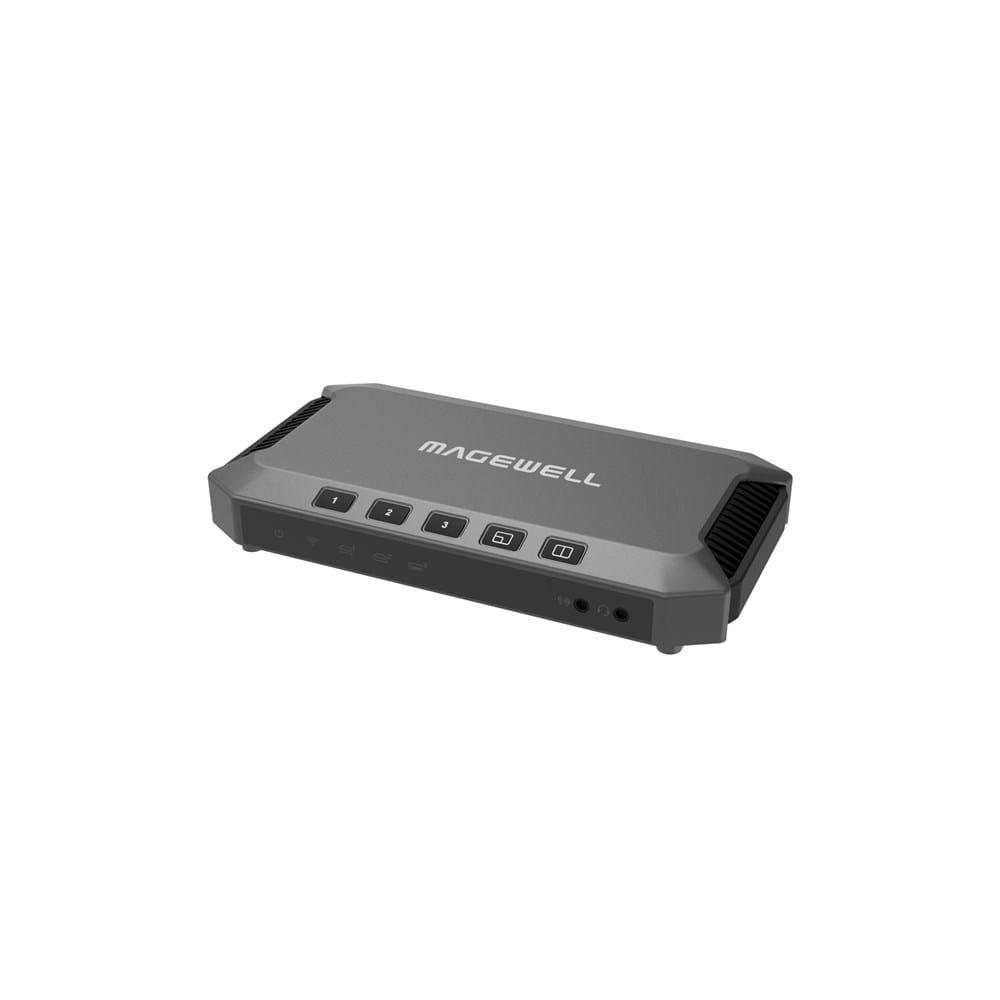

Magewell USB Fusion media processor (MG-35060), main product image
$2,764.03
$2,764.03

Technical details

Combines live video sources for a more engaging presentation.

Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps.

Switches between sources or combines two simultaneously into one output.

Companion tablet app for more advanced features.

  • Multi-source video switcher: combines 2 × HDMI, 1 × USB webcam, AirPlay/Miracast/Google Cast, imported media, and web pages
  • Appears as a standard USB webcam to Zoom, Teams, Meet, OBS, and any UVC/UAC software
  • HDMI output for secondary display (program, HDMI 1, or HDMI 2)
  • RTMP streaming at up to 1080p60 and 20Mbps; 128GB local recording storage
  • Simultaneous wireless screen casting from up to 4 devices
  • Picture-in-picture, side-by-side, and custom scene compositing
  • Annotation tools: pens, shapes, text (exportable as notes)
  • iOS/Android app for presentation control and PTZ camera operation
  • Wi-Fi 802.11ax (5GHz) and Gigabit Ethernet
SpecificationDetail
Part Number35060

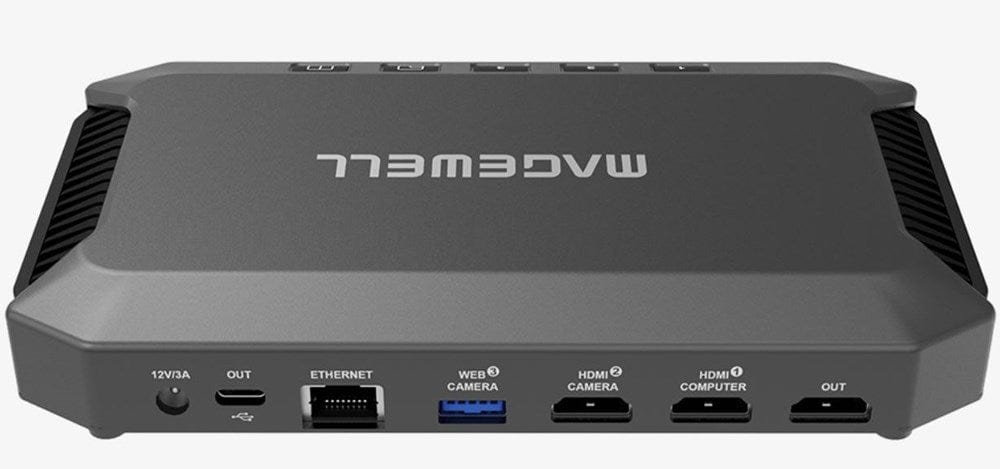

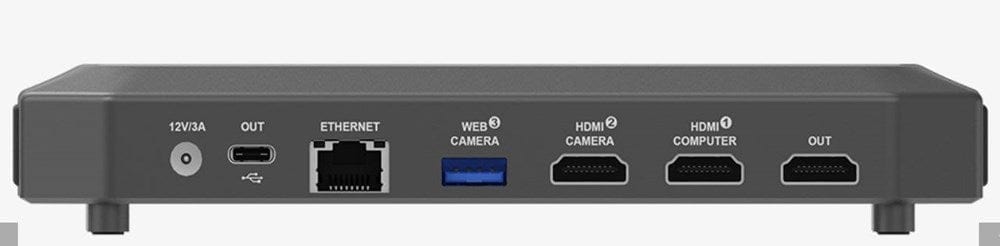

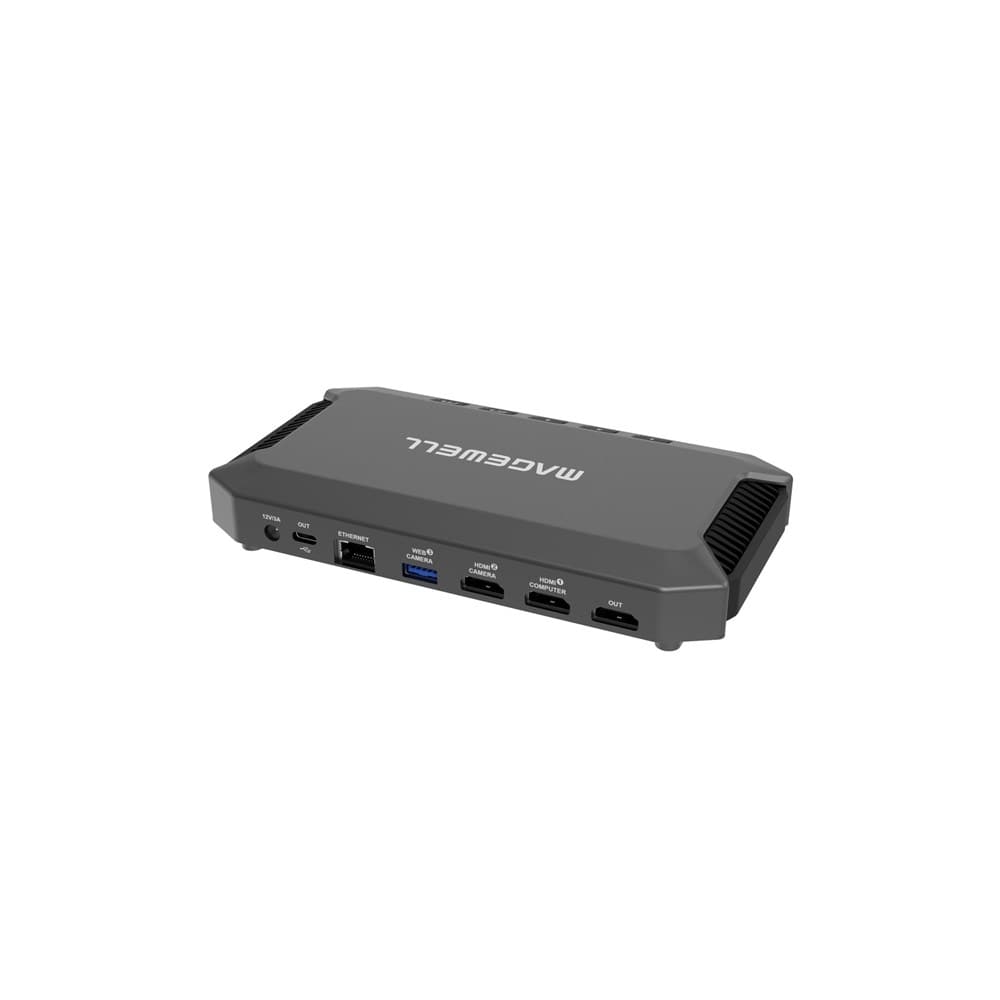

HDMI Inputs2 × HDMI 1.4a (up to 2048×1080 60fps)
USB Camera Input1 × USB 3.0 Type-A (up to 2040×1080 60fps)
ScreencastAirPlay, Miracast, Google Cast (up to 4 simultaneous)
USB Output1 × USB 3.0 Type-C (up to 1920×1080 60fps)
HDMI Output1 × HDMI 1.4a
Audio3.5mm Line In; 3.5mm Headset (CTIA)
NetworkGigabit Ethernet (RJ45); Wi-Fi 802.11 a/ac/ax (5GHz)
Internal Storage128GB
Max Power17.5W full load (12V/3A)
Dimensions186 × 101.2 × 30mm
OS Support (host)Windows 7+; Linux kernel 2.6.35+; macOS 10.9+
Operating Temp0-50°C

Compatibility

  • Compatible with Zoom, Microsoft Teams, Google Meet, Skype, and any software supporting UVC/UAC, DirectShow (Windows), V4L2 (Linux), or AVFoundation (macOS). AirPlay requires iOS 12.3+/macOS 10.14+; Miracast requires Windows 10/11 or Android 4.2+; Google Cast requires Windows 7+ or macOS 10.9+.

Frequently Asked Questions

Can I annotate during a presentation?

Yes. It includes pens, shapes and text annotation tools, and annotations can be exported as notes.

How many inputs does it have?

It has 2 HDMI inputs and 1 USB webcam input, each up to 1080p60, and it supports up to 4 simultaneous wireless screen casts.

Which wireless casting standards are supported?

It supports AirPlay, Miracast and Google Cast.

Does it work with Zoom and Teams?

Yes. It appears as a standard USB webcam to Zoom, Microsoft Teams, Google Meet, OBS and other UVC/UAC software.

Can it stream and record on its own?

Yes. It streams via RTMP at up to 1080p60 and records to 128GB of internal storage.

Is there an app?

Yes. A companion tablet app gives access to more advanced features.
