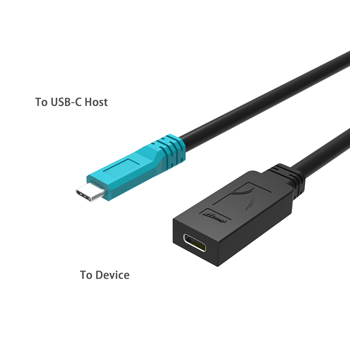

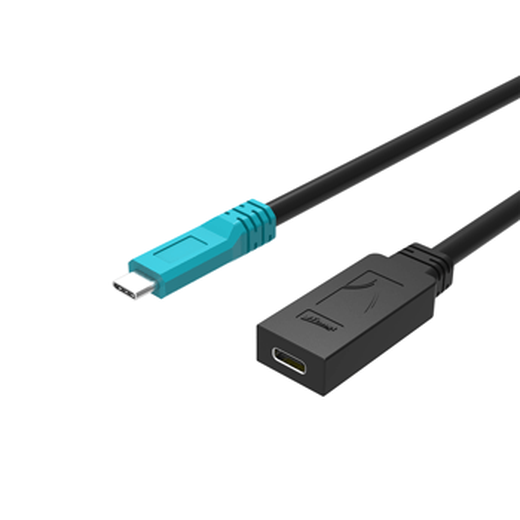

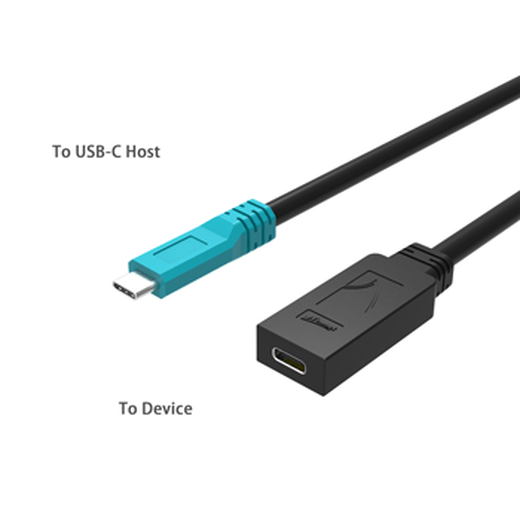

USB-C Active Extension Cable USB 3.1 Gen 2 10Gbps, DisplayPort 1.4, and 60W PD - 4 Metres
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Certifications
Certifications
Technical details
This USB-C Active Extension Cable offers a 4-metre solution for extending USB 3.2 connections with high-speed 10Gbps data transfer and DisplayPort Alt Mode support. Designed for performance, it enables video output up to 4K and power delivery, making it ideal for professional AV and data setups.
Key Features:
- Data Transfer: USB 3.2, up to 10Gbps.
- Video Support: DisplayPort Alt Mode up to 4K resolution.
- Power Delivery: Supports up to 60W (20V/3A).
- 4 metre length
Applications:
Suitable for high-demand setups requiring extended USB-C connections with both video and power capabilities.

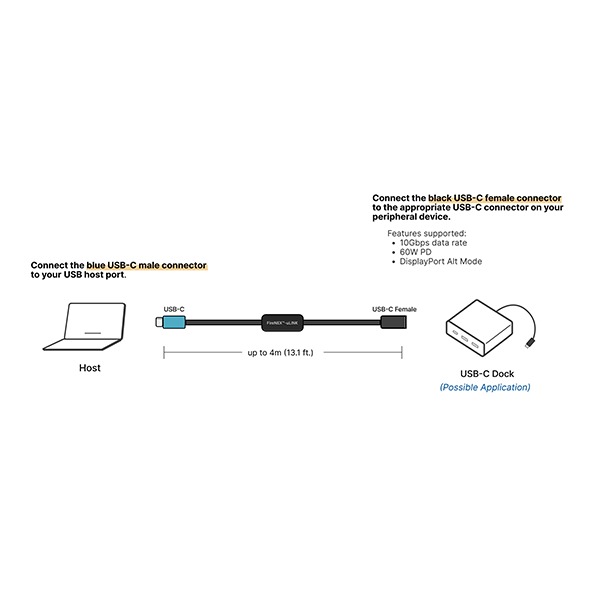

- Extends USB-C installations by 4 metres via active USB-C male-to-female design
- USB 3.2 Gen 2 data at 10Gbps; backward compatible to USB 3.2 Gen 1 (5Gbps) and USB 2.0/1.1
- 2-Lane DP 1.4 (HBR3): up to one 4K@60Hz or two 4K@30Hz / two 2K@60Hz
- Bidirectional USB PD 3.0 up to 60W (20V/3A)
- Colour-coded aqua host plug prevents incorrect orientation
- Compact repeater enclosure suited to conduit and wall installation
- Plug and play, no drivers required on Windows, macOS, or Linux
| Specification | Detail |
|---|---|
| Part Number | ULK10G-CCEX-4M |
| Type | USB-C Active Extension Cable (C Male to C Female) |
| USB Standard | USB 3.2 Gen 2 (10Gbps); backward compatible to 5Gbps / USB 2.0 |
| DisplayPort | DP 1.4, 2-Lane, HBR3 (up to 4K@60Hz or two 2K@60Hz) |
| Power Delivery | USB PD 3.0, bidirectional; up to 60W (20V/3A); voltage profiles 20V/15V/12V/9V/5V |
| Cable Length | 4m (13.1 ft.) |
| Cable Diameter | 6.4 ± 0.1mm |
| Cable Jacket | PVC, Black |
| Host Connector | USB-C Male, Aqua |
| Device Connector | USB-C Female, Black |
| Operating Temp | -20°C to 40°C |
| Operating Humidity | 20-80% RH, non-condensing |
Compatibility
- Compatible with USB-C hosts and devices supporting USB 3.2 Gen 2 data, DisplayPort 1.4 Alt Mode, and/or USB Power Delivery. Works with Windows, macOS, and Linux.
Do not use with 50V USB-C EPR chargers or docks.
Frequently Asked Questions
Do I need to install drivers?
Do I need to install drivers?
What data speed does it support?
What data speed does it support?
Does it support video?
Does it support video?
How much power can it carry?
How much power can it carry?
Can I use it with any USB-C charger?
Can I use it with any USB-C charger?
What warranty does it have?
What warranty does it have?
