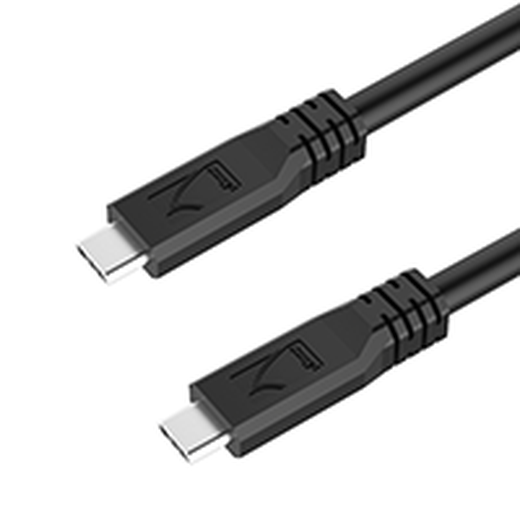

USB 3.1 USB-C to USB-C (6.3mm OD) C Male Straight to C Male Straight - 5m
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Certifications
Certifications
Technical details
The Newnex USB 3.2 Gen 2 Type-C Cable is designed for high-speed data transfer, DisplayPort Alt Mode support, and reliable power delivery, making it ideal for professional and industrial applications. This 5-metre cable features a rugged build and a coaxial structure for enhanced signal integrity, allowing data rates up to 10Gbps and supporting 8K video resolution at 60Hz.
Key Features:
- Data Rate: USB 3.2 Gen 2 up to 10Gbps.
- Video Support: DP Alt Mode, up to 8K@60Hz.
- Power Delivery: USB PD with E-marker, up to 20V/5A.
- Durability: Reinforced for extended flex life and industrial use.
Applications:
Perfect for AV setups, high-speed data transfer, and extended USB-C connections in demanding environments.
- Full-featured USB 3.1 Gen 2 USB-C to USB-C passive cable at 10Gbps
- Slim 6.30mm OD profile, flexible and easy to route
- C Male Straight connectors at both ends for reliable, low-profile connections
- Complete USB-C pin-out: SuperSpeed lanes, USB 2.0, VCONN, and SBU lines
- 100% factory tested for open, short, and miswiring
- RoHS compliant
| Specification | Detail |
|---|---|
| Part Number | U4SLC01C01-050 |
| Type | USB-C Passive Cable (C Male to C Male) |
| USB Standard | USB 3.1 Gen 2 (10Gbps) |
| Cable Length | 5m |
| Cable Diameter | 6.30mm OD |
| Cable Jacket | PVC, Black |
| Connectors | USB 3.1 Type-C Male (straight) at both ends |
Compatibility
- Compatible with any USB-C host or device supporting USB 3.1 Gen 2 (10Gbps) data transfer.
