By Magewell

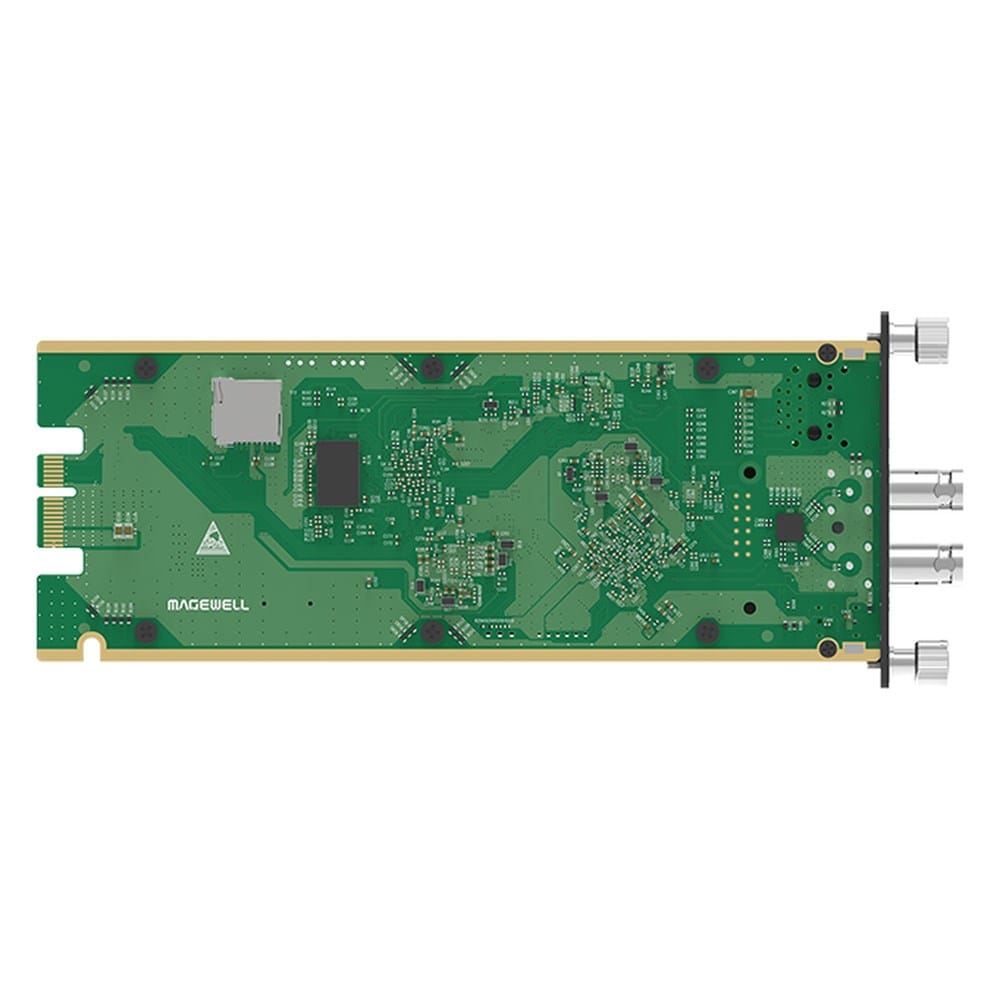

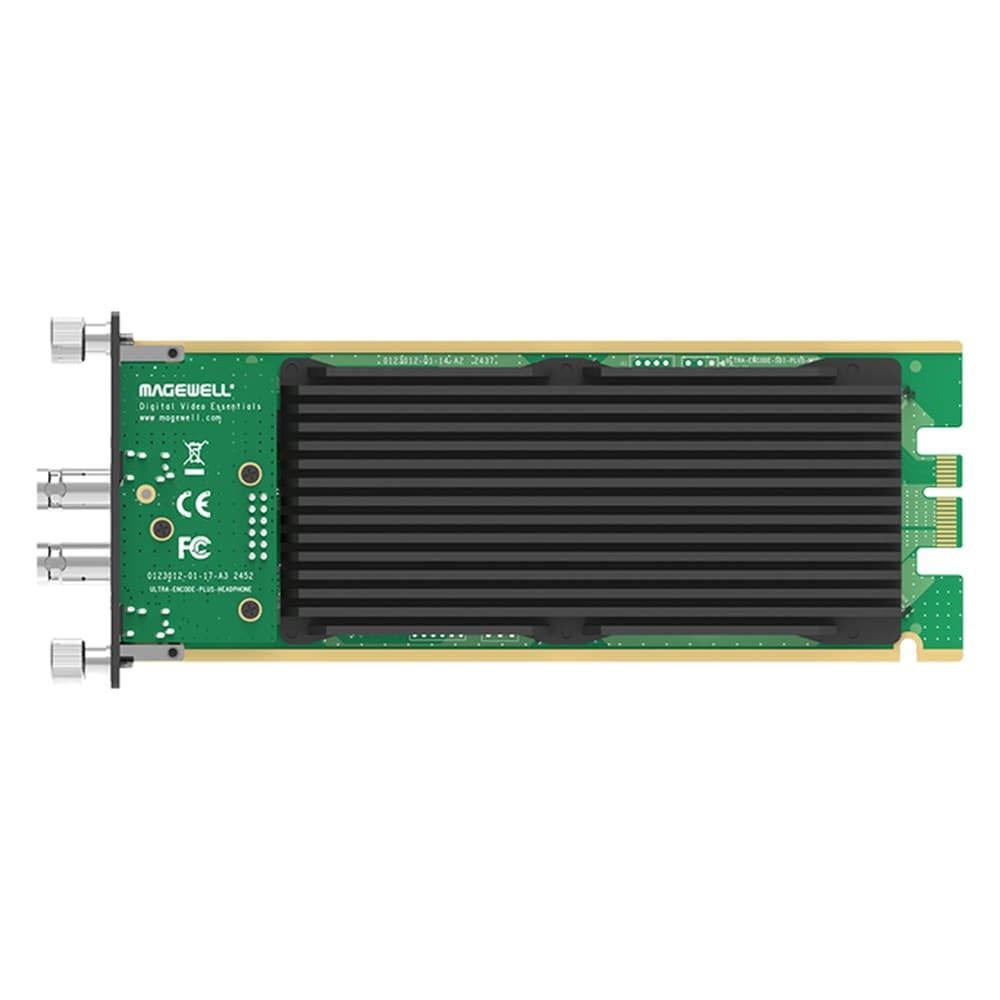

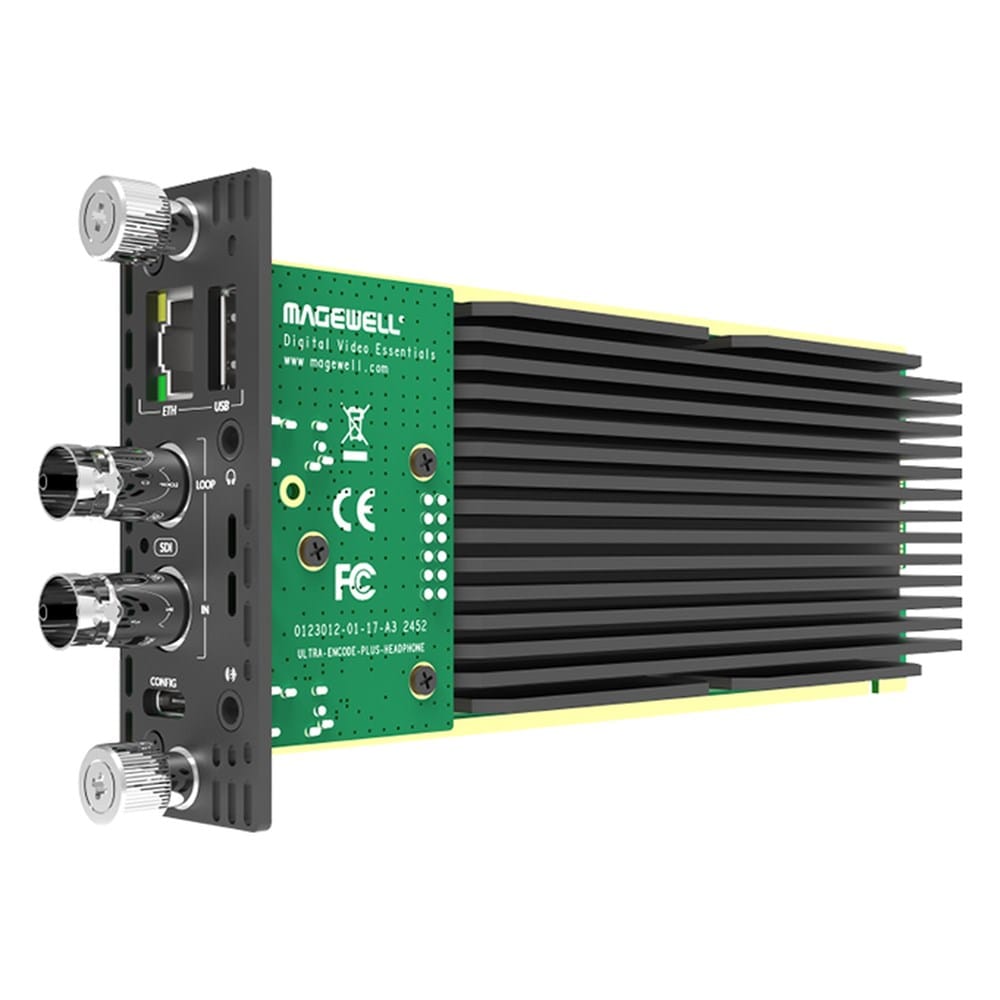

Ultra Encode SDI Plus - Rackmount version for installation inside Modator 2U

$1,259.89
$1,259.89
SKU: MG-B31610000
Availability: In stock with supplier

Overview

The Magewell Ultra Encode SDI Plus Module is a video encoding module designed for centralised deployment in a Modator 2U rackmount system. It captures SDI video and provides live streaming, recording and network video output in a compact, hot-swappable form factor.

Key features
  • Module form factor for installation in a Modator 2U system.
  • Hot-swappable Modator interface.
  • SDI input and loop-through on two BNC ports.
  • Support for SD, HD, 3G and 6G SDI standards.
  • Supports video input up to 4096 × 2160p at 30 fps.
  • Dual-stream encoding with H.264 or H.265 (HEVC).
  • NDI HX2 and NDI HX3 support, alongside RTSP, RTMP/RTMPS, SRT, HLS and other streaming protocols.
  • Streaming to up to six destinations, subject to protocol and session limits.
  • Supports up to eight encoded audio streams, including one 8-channel stream and seven 2-channel streams.
  • Records to the supplied 128GB microSD card, external USB storage or network-attached storage.
  • Recording formats include MP4, MOV and TS.
  • 3.5mm line input and output, plus embedded SDI audio support.
  • Web-based configuration, stream preview, recording management and up to eight overlays per stream.
  • Gigabit Ethernet and support for USB network connectivity.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Stream (Encoding) Ultra Encode SDI Plus - Rackmount version for installation inside Modator 2U
$1,259.89
$1,259.89

Technical details

SDI Encoding for Centralised Rackmount Deployment

The Magewell Ultra Encode SDI Plus Module is a video encoding module designed for centralised deployment in a Modator 2U rackmount system. It captures SDI video and provides live streaming, recording and network video output in a compact, hot-swappable form factor.

With support for SDI input and loop-through, dual-stream encoding, multiple streaming protocols and local or network recording, the module is suited to broadcast, production and other professional video workflows. It can be configured and managed through its web interface or Magewell Control Hub.

SDI Capture and Encoding

The module accepts SDI signals through its BNC input and provides a loop-through output. It supports SD, HD, 3G and 6G SDI standards, with input formats including 4Kp30, 1080p and 720p.

H.264 and H.265 encoding supports a main stream and an optional sub stream. Video settings include resolution and frame-rate selection, aspect ratio conversion, cropping and image rotation.

Streaming and Recording Options

Ultra Encode SDI Plus Module supports protocols including NDI HX2, NDI HX3, RTSP, RTMP/RTMPS, SRT, HLS, TS over UDP and TS over RTP. It can stream to multiple destinations, with the number of simultaneous sessions depending on the protocol used.

Recordings can be saved to the supplied microSD card, external USB storage or supported network storage. Files can be saved as MP4, MOV or TS, and recording tasks can be scheduled or managed through the web interface.

Centralised Management

The module can be configured through its web interface, which provides access to input settings, encoding parameters, streaming destinations, recording tasks and recorded files. It also supports registration with Magewell Control Hub for remote centralised management.

A 1000Mbps Ethernet port, USB Type-C configuration port, line audio connections and Modator interface provide connectivity for installation and operation in a rackmount deployment.

  • Module form factor for installation in a Modator 2U system.
  • Hot-swappable Modator interface.
  • SDI input and loop-through on two BNC ports.
  • Support for SD, HD, 3G and 6G SDI standards.
  • Supports video input up to 4096 × 2160p at 30 fps.
  • Dual-stream encoding with H.264 or H.265 (HEVC).
  • NDI HX2 and NDI HX3 support, alongside RTSP, RTMP/RTMPS, SRT, HLS and other streaming protocols.
  • Streaming to up to six destinations, subject to protocol and session limits.
  • Supports up to eight encoded audio streams, including one 8-channel stream and seven 2-channel streams.
  • Records to the supplied 128GB microSD card, external USB storage or network-attached storage.
  • Recording formats include MP4, MOV and TS.
  • 3.5mm line input and output, plus embedded SDI audio support.
  • Web-based configuration, stream preview, recording management and up to eight overlays per stream.
  • Gigabit Ethernet and support for USB network connectivity.
SpecificationDetail
Product typeSDI encoding module for Modator 2U
SKUB31610000
Part numberB3161
SDI ports2 × BNC: 1 input and 1 loop-through
Supported SDI standardsSD, HD, 3Ga, 3Gb, 3Gb-DL, 3Gb-DS and 6G
Maximum listed input format4096 × 2160p at 30 fps
EncodingH.264 and H.265 (HEVC), with main stream and optional sub stream
Streaming protocolsNDI HX2, NDI HX3, RTSP, RTMP/RTMPS, SRT, HLS, TS over UDP, TS over RTP and TVU ISSP
Simultaneous streamingUp to 6 destinations, subject to protocol and session limits
Audio16-channel embedded SDI audio; 2-channel 3.5mm line input and output
Recording storageSupplied 128GB microSD card, external USB storage or NAS
Recording formatsMP4, MOV and TS
Network connection1 × RJ45 10/100/1000Mbps Ethernet
Other connectionsUSB Type-C configuration port, USB Type-A, 3.5mm line input and output, microSD card slot
Form factorModator interface module; hot-swappable in Modator 2U
Power consumptionMaximum 14.42W
Dimensions184.4 × 30.0 × 81.5mm
WeightApproximately 322g
Operating temperature0 to 50°C

Compatibility

  • Module form factor for installation in a Modator 2U system.
  • NDI HX2 and NDI HX3 support, alongside RTSP, RTMP/RTMPS, SRT, HLS and other streaming protocols.

Frequently Asked Questions

What does the Ultra Encode SDI Plus do?

The Magewell Ultra Encode SDI Plus Module is a video encoding module designed for centralised deployment in a Modator 2U rackmount system. It captures SDI video and provides live streaming, recording and network video output in a compact, hot-swappable form factor.

What are the main features of the Ultra Encode SDI Plus?

Module form factor for installation in a Modator 2U system. Hot-swappable Modator interface. SDI input and loop-through on two BNC ports.

What is the Ultra Encode SDI Plus compatible with?

Module form factor for installation in a Modator 2U system. NDI HX2 and NDI HX3 support, alongside RTSP, RTMP/RTMPS, SRT, HLS and other streaming protocols.

What connections or installation requirements does the Ultra Encode SDI Plus have?

Hot-swappable Modator interface. SDI input and loop-through on two BNC ports. Supports video input up to 4096 × 2160p at 30 fps.

What capabilities or limits should I check before choosing the Ultra Encode SDI Plus?

Supports video input up to 4096 × 2160p at 30 fps. Streaming to up to six destinations, subject to protocol and session limits. Supports up to eight encoded audio streams, including one 8-channel stream and seven 2-channel streams.

What warranty applies to the Ultra Encode SDI Plus?

2-year limited manufacturer warranty.
