By Salamander Designs

Salamander X-Large Electric Lift Mobile Carts

Regular price $7,299.00
Regular price Sale price $7,299.00
SKU: SD-FPS1/XL/EL/EX
Availability: Low stock: 9 left

**Bulky Item** request a quote to place your order.

Overview

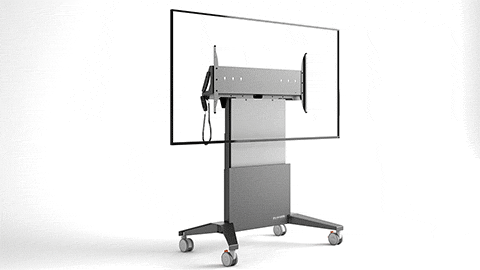

The Salamander FPS1XL/EL/GG/EX is a heavy-duty motorised electric lift mobile stand built for very large interactive displays and collaboration screens up to 98 inches. The telescoping column raises and lowers the screen across a 650mm range of travel using a wired remote control, providing full ADA-compliant ergonomic positioning for any user. Made in the USA from powder-coated welded steel, it is designed for permanent deployment in large boardrooms, training rooms, and enterprise collaboration spaces.

Key features

  • Heavy-duty motorised electric lift with 650mm range of travel for full ergonomic control
  • Supports large displays up to 98" and 300 lbs (136 kg)
  • ADA compliant, delivers waist-to-shoulder height adjustment for all users
  • Broad VESA compatibility: horizontal 400-1300mm, vertical 100-600mm
  • 5" heavy-duty non-marking locking casters with brakes on two wheels
  • Telescoping design collapses for compact storage and transport
  • Fully concealed internal cable management for a clean installation
  • Made in the USA from powder-coated welded steel with Linak motor components
  • Limited lifetime warranty

Warranty

Limited lifetime warranty

Product specs Download
Assembly guide Download

Free standard shipping on all orders (exlcuding bulk freight)

Returns

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Shipping

To return your product, you should mail your product to:

Activ8tion, 12 Distribution Drive, Orchard Hills, NSW, 2748.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Missing item(s) or Wrong item(s)

When receiving a parcel please make sure you inspect the contents before signing for it.

For missing item(s) please contact us within 14-days and let us know about your missing item(s). We will ship out the missing item(s) to you free of charge within the 14-days return policy.

For incorrect item(s) please contact us within 14-days and let us know about the incorrect item(s). We will either refund you in full or dispatch the correct item(s) (if applicable and available). Leading Solutions will decide whether the incorrect item(s) needs to be returned back to us and we will shoulder the shipping fee.

For any issues please contact:

sales@leadingsolutions.net.au or phone us at 1800 960 015

We are available during the following hours:

Mon - Fri 8:30am - 5:00 PM

Warranty

For any faulty items we offer a 1-year warranty period from the original date of purchase if the product fails due to a manufacturing defect.

If the item is deemed faulty, please send it back to our warehouse for inspection together with your reference number and we will inspect if it is claimable.

If the product is indeed faulty we will replace this unit free-of-charge.

The warranty does not cover misuse or damage caused by wear and tear.

The warranty will be voided if the product is used  for other than what the product is designed for.

Before sending the “broken” or faulty unit back to us please contact us before hand as we can advise immediately if this is claimable or not.

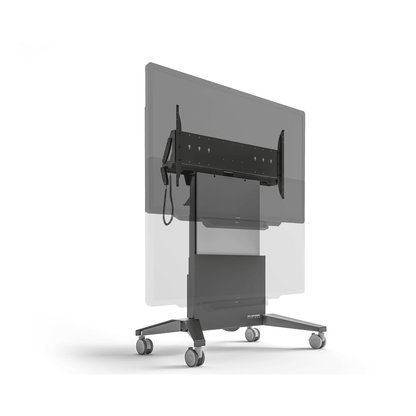

Salamander X-Large Electric Lift Mobile Cart, main product image with large display, motorised height and steel frame
Regular price $7,299.00
Regular price Sale price $7,299.00

Technical details


Think Big with Salamander XL Electric Lift Mobile Stand

Need to display a large screen? Salamander’s XL Electric Lift motorised stand is a heavy-duty mobile stand for interactive displays and touchscreen panels.

It’s designed to integrate seamlessly with most large displays (up to 98” screens, to 136kg in weight). With a sleek, stylish design, it’s also incredibly compact and easy to transport, while also featuring a handy electric lift function so you can seamlessly adjust the height of your screen during presentations.

Elevate your presentation and enhance engagement with the Salamander XL Electric Lift Mobile Stand today.

Take Your Presentation to New Heights with the Salamander XL Mobile Stand

With the Salamander XL Mobile Stand, you’ll be able to move easily between spaces. It has an ergonomic design, with adjustable height positioning to provide the best viewing angle.

Features include:

  • Motorised electric lift and wired remote control.
  • Screen size & weight: Supports most VESA-compliant displays up to 136 kg.
  • Portable: Easy to manoeuvre and transport.
  • Telescopic design allows compact position for transport and storage.
  • Range of travel, centre of screen: Min - 969 mm, Max 1619 mm
  • Cables: Fully concealed cable management allows clean and uncluttered installation
  • Storage: Handy storage for electronic components, peripherals and accessories.
  • Made with durable powder-coated steel, Linak Motor components, and powder coated and/or veneered MDF panels
  • Optional accessories include peripheral equipment mounting, retractable cable reel, secure equipment storage cover, keyboard tray and more
  • Limited lifetime warranty

VESA COMPLIANT MOUNT PATTERN

  • Horizontal - 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300mm
  • Vertical - 100, 200, 300, 400, 500, 600mm
  • Panel Mounting - M8 Machine Screws
  • Includes Microsoft Surface Hub 2 Mounting adapter
  • (CA/MAC4) VESA 350mm x 350mm

Get Organised with Innovative Solutions Today

Here at Leading Solutions, we have everything you need to make the right impression with your presentation. We carry a wide range of Salamander products, along with cables, AV hardware, mounts and many more.

For more information on our range, contact the team at Leading Solutions today. We’re always on hand to assist you.

  • Heavy-duty motorised electric lift with 650mm range of travel for full ergonomic control
  • Supports large displays up to 98" and 300 lbs (136 kg)
  • ADA compliant, delivers waist-to-shoulder height adjustment for all users
  • Broad VESA compatibility: horizontal 400-1300mm, vertical 100-600mm
  • 5" heavy-duty non-marking locking casters with brakes on two wheels
  • Telescoping design collapses for compact storage and transport
  • Fully concealed internal cable management for a clean installation
  • Made in the USA from powder-coated welded steel with Linak motor components
  • Limited lifetime warranty
SpecificationDetail
Screen SizeUp to 98"
Weight Capacity300 lbs (136 kg)
VESA CompatibilityHorizontal 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300mm; Vertical 100, 200, 300, 400, 500, 600mm
Screen Centre Height Range38.16", 63.75" (969-1619mm)
Overall Height Range50.41", 76" (1280-1930mm)
Product Width58.44" (1484mm)
Product Depth32.5" (826mm)
Casters5" HD non-marking, brakes on 2
Power Input90-240V, 48-63Hz
Duty Cycle10% max (2 min on / 18 min off)
ConstructionPowder-coated welded steel, Linak motor components
Option
Graphite / Gray panels
White panels

Compatibility


  • Compatible with VESA-compliant large format displays up to 98". Compatible with Microsoft Surface Hub 2S 85" (includes CA/MAC4 adapter). Cisco Webex Board 70" and 85" adapters available separately (CA/MAC2, CA/MAC3).

Frequently Asked Questions


What screen sizes does the XL Electric Lift Mobile Stand support?

It supports most VESA-compliant displays up to 98".

How much weight can it hold?

It holds displays up to 136 kg (300 lbs).

What is the height range?

The screen centre adjusts from 969 mm to 1619 mm, a 650 mm range of travel.

Which VESA patterns does it support?

It supports VESA patterns from 400 to 1300 mm horizontal and 100 to 600 mm vertical, using M8 machine screws.

Is it ADA compliant?

Yes. The motorised lift gives waist-to-shoulder height adjustment over a 650mm range, making it ADA compliant.

What warranty is included?

It includes a limited lifetime warranty.
