Surface Go 2/3/4 (2020 - 2023) / Black / Exposed Front Camera and Home Button
Technical details

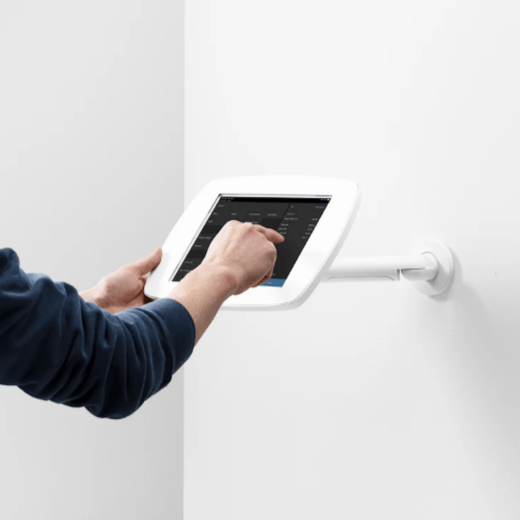

Original Reach - Surface is a flexible wall-mounted tablet kiosk with an articulated swing arm, letting users pan, tilt, and extend the screen for comfortable interaction at info points, booking stations, and kiosks. It solves fixed-angle wall mounts by folding neatly back to the wall when not in use, saving space while keeping tablets secure, powered, and cable-free.
Key Features:
Articulated swing arm with pan, tilt, and extend adjustment
Lockable enclosure with integrated cable management
Portrait/landscape orientation for versatile content
Compatible with Microsoft tablets
Mainly used for wall-mounted interactive displays, visitor check-ins, and digital signage where users need adjustable positioning. It benefits retail, hospitality, and corporate environments deploying secure tablet kiosks without floor space requirements.
- Wall-mounted arm extending 306mm from the surface, presents the Surface at standing height
- Portrait orientation, face-on for comfortable standing interaction
- No desk or floor footprint, clean wall-mounted installation
- Cable management through the arm and wall via 16mm cable exit
- Mounting from below (max surface thickness 25mm) or from above (min surface thickness 34mm)
- Lockable PC/ABS case with powder-coated mild steel faceplate
- Lightweight powder-coated aluminium arm
- Multiple case sizes to suit Surface Pro and Surface Go
- Available in Exposed (EEB/EEW) style, Black or White
| Specification | Detail |
|---|---|
| Case material | PC/ABS Plastic |
| Faceplate | Powder-coated Mild Steel |
| Case lock | Brass, Stainless Steel |
| Reach arm | Powder-coated Aluminium |
| Surface mounting kit | Powder-coated Aluminium, PC/ABS Plastic |
| Mounting | Fixed to wall or surface, from below (max surface thickness 25mm) or from above (min surface thickness 34mm) |
| Detail | Arm projection from wall: 306mm (Midi, Maxi, Mega) | 68mm (Mini) |
| Colour | Black or White |
Dimensions by case size
| Case size | Width | Packaged weight |
|---|---|---|
| Mini | 274mm | 1.81kg |
| Midi | 302mm | 2.13kg |
| Maxi | 338mm | 2.27kg |
| Mega | 375mm | 2.36kg |
| Detail | Value |
|---|---|
| Case sizes | Multiple case sizes available to suit Surface Pro and Surface Go models |
| Style | Exposed Ends (EEB/EEW) |
| Colour | Black or White |
| SKU codes include | BP-RCH304-EEB, BP-RCH304-EEW, BP-RCH305-EEB, BP-RCH305-EEW |
| Suffix guide | -EEB = Exposed/Black, -EEW = Exposed/White |
Compatibility
- Compatible with Microsoft Surface Pro and Surface Go models
- Refer to individual SKU for specific Surface model compatibility
- building entrances and lobbies
- lift and corridor wayfinding
- visitor sign-in points
- access control
- retail wall-mounted kiosks
- healthcare and hospital corridors
- education campuses
Features
-
Swing & Pan
-
Angle Adjustment
-
Lock & Key
-
Cable Management
Frequently Asked Questions
Can the screen position be adjusted?
Can the screen position be adjusted?
How far does the arm extend?
How far does the arm extend?
How are cables managed?
How are cables managed?
How is it mounted?
How is it mounted?
Which Surface models are supported?
Which Surface models are supported?
What warranty is included?
What warranty is included?
