By Bouncepad

Reach - Samsung

$365.00
$365.00
SKU: BP-RCH202-EEW
Availability: In stock with supplier

Free standard shipping on all orders over $250

Overview

When a Samsung tablet needs to be accessible on a wall, at an entrance, a corridor station, a check-in point, or anywhere there is no desk or counter available, the Bouncepad Reach puts it at exactly the right height. The arm extends 306mm out from the wall and holds the Samsung tablet in portrait orientation at a comfortable face-on position for standing use. There is no floor or desk footprint, and all cabling is managed through the arm and wall via a 16mm cable exit, leaving a clean, professional installation. The arm fixes from below for surfaces up to 25mm, or from above for surfaces at least 34mm. The lockable case keeps the tablet secure at all times.

Key features
  • Wall-mounted arm extending 306mm from the surface, presents the tablet at standing height
  • Portrait orientation, face-on for comfortable standing interaction
  • No desk or floor footprint, clean wall-mounted installation
  • Cable management through the arm and wall via 16mm cable exit
  • Mounting from below (max surface thickness 25mm) or from above (min surface thickness 34mm)
  • Lockable PC/ABS case with powder-coated mild steel faceplate
  • Lightweight powder-coated aluminium arm
  • Multiple case sizes available
  • Available in Exposed (EEB/EEW) style, Black or White

Warranty

3-year warranty

Product specs Download
Assembly guide Download

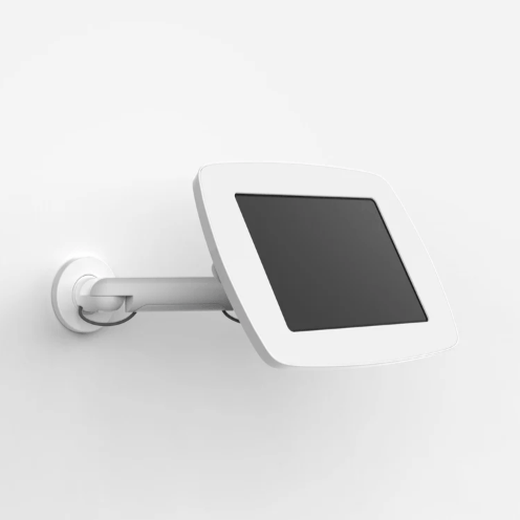

Bouncepad Reach Samsung tablet enclosure, main product image
$365.00
$365.00

Technical details

Original Reach - Samsung is a flexible wall-mounted tablet kiosk with an articulated swing arm, letting users pan, tilt, and extend the screen for comfortable interaction at info points, booking stations, and kiosks. It solves fixed-angle wall mounts by folding neatly back to the wall when not in use, saving space while keeping tablets secure, powered, and cable-free.

Key Features:

  • Articulated swing arm with pan, tilt, and extend adjustment

  • Lockable enclosure with integrated cable management

  • Portrait/landscape orientation for versatile content

  • Compatible with Samsung tablets

Mainly used for wall-mounted interactive displays, visitor check-ins, and digital signage where users need adjustable positioning. It benefits retail, hospitality, and corporate environments deploying secure tablet kiosks without floor space requirements.

  • Wall-mounted arm extending 306mm from the surface, presents the tablet at standing height
  • Portrait orientation, face-on for comfortable standing interaction
  • No desk or floor footprint, clean wall-mounted installation
  • Cable management through the arm and wall via 16mm cable exit
  • Mounting from below (max surface thickness 25mm) or from above (min surface thickness 34mm)
  • Lockable PC/ABS case with powder-coated mild steel faceplate
  • Lightweight powder-coated aluminium arm
  • Multiple case sizes available
  • Available in Exposed (EEB/EEW) style, Black or White
SpecificationDetail
Case materialPC/ABS Plastic
FaceplatePowder-coated Mild Steel
Case lockBrass, Stainless Steel
Reach armPowder-coated Aluminium
Surface mounting kitPowder-coated Aluminium, PC/ABS Plastic
MountingFixed to wall or surface, from below (max surface thickness 25mm) or from above (min surface thickness 34mm)
DetailArm projection from wall: 306mm (Midi, Maxi, Mega) | 68mm (Mini)
ColourBlack or White

Dimensions by case size

Case sizeWidthPackaged weight
Mini274mm1.81kg
Midi302mm2.13kg
Maxi338mm2.27kg
Mega375mm2.36kg
DetailValue
Case sizesMultiple case sizes available to suit Samsung Galaxy Tab models
StyleExposed Ends (EEB/EEW)
ColourBlack or White
SKU codes includeBP-RCH202-EEB, BP-RCH202-EEW, BP-RCH209-EEB, BP-RCH209-EEW, BP-RCH229-EEB, BP-RCH229-EEW
Suffix guide-EEB = Exposed/Black, -EEW = Exposed/White

Compatibility

  • Compatible with selected Samsung Galaxy Tab models
  • Refer to individual SKU for specific Samsung model compatibility
Suitable environments
  • building entrances and lobbies
  • lift and corridor wayfinding
  • visitor sign-in points
  • access control
  • retail wall-mounted kiosks
  • healthcare and hospital corridors
  • education campuses

Features

  • Swing & Pan

    The articulated arm allows the tablet to swing and pan easily, bringing the screen closer to the user or tucking it away when not in use.

  • Angle Adjustment

    Set the screen angle with built-in tilt functionality for the perfect ergonomic viewing position.

  • Lock & Key

    The lockable enclosure keeps your tablet safe and secure, ideal for high-traffic areas like retail, healthcare, or hospitality.

  • Cable Management

    Power cables run neatly along the arm, keeping everything hidden and your setup looking professional.

Frequently Asked Questions

Does it need a desk or counter?

No. It mounts to the wall with an arm extending 306mm, so it takes up no desk or floor space.

How far does the arm extend?

The arm extends 306mm from the wall on the Midi, Maxi and Mega case sizes.

How are cables managed?

Cabling runs through the arm and wall via a 16mm cable exit for a clean installation.

How is it mounted?

It fixes from below for surfaces up to 25mm, or from above for surfaces at least 34mm thick.

Can the screen position be adjusted?

Yes. The articulated swing arm lets users pan, tilt and extend the screen for comfortable interaction.

What warranty is included?

The Bouncepad Reach comes with a 3-year warranty.
