Modular HDMI to NDI Conversion
The Magewell Pro Convert HDMI Plus Module is a hot-swappable encoder module for converting HDMI video into high-bandwidth NDI streams. It is designed for installation in a Magewell Modator 2U chassis and includes an HDMI loop-through output.
Supporting HDMI input and loop-through signals up to 4096×2160, the module can encode NDI output at resolutions up to 2048×2160 and 120fps. It is suited to production environments that need to integrate HDMI sources with NDI-based video workflows.

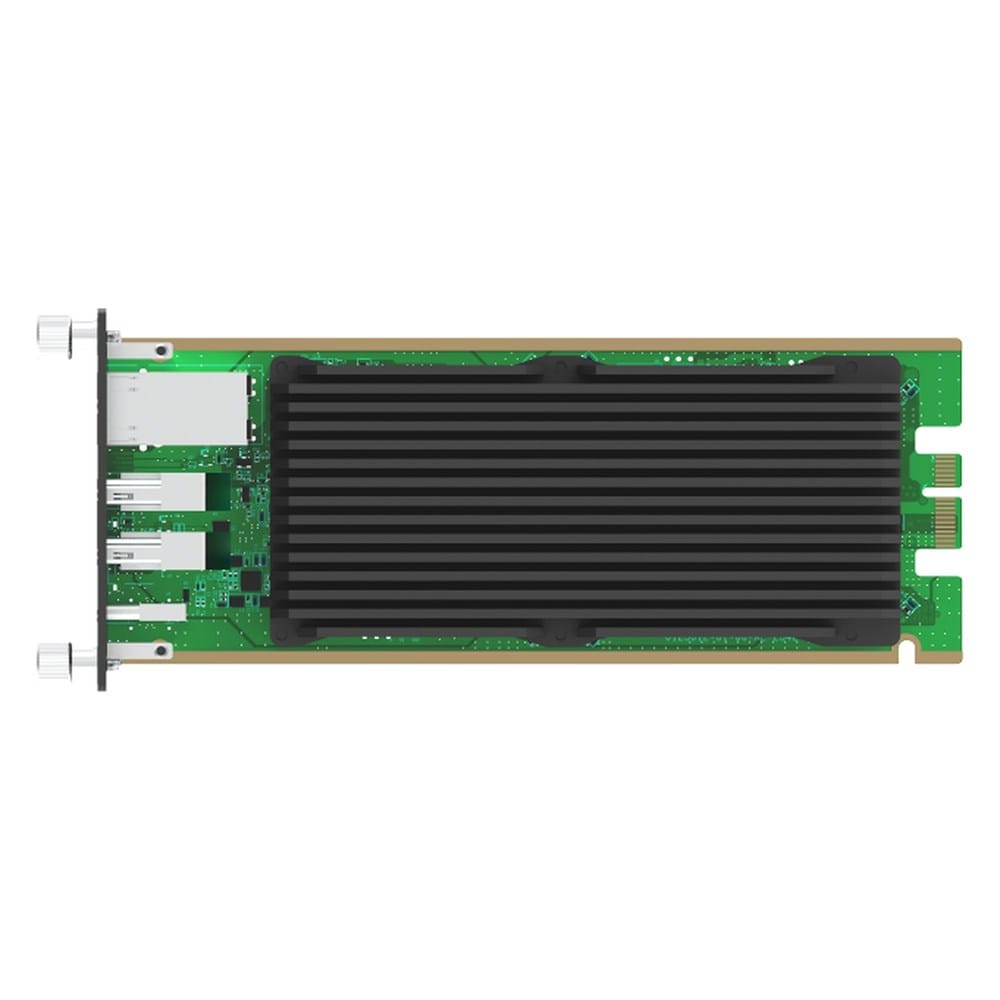

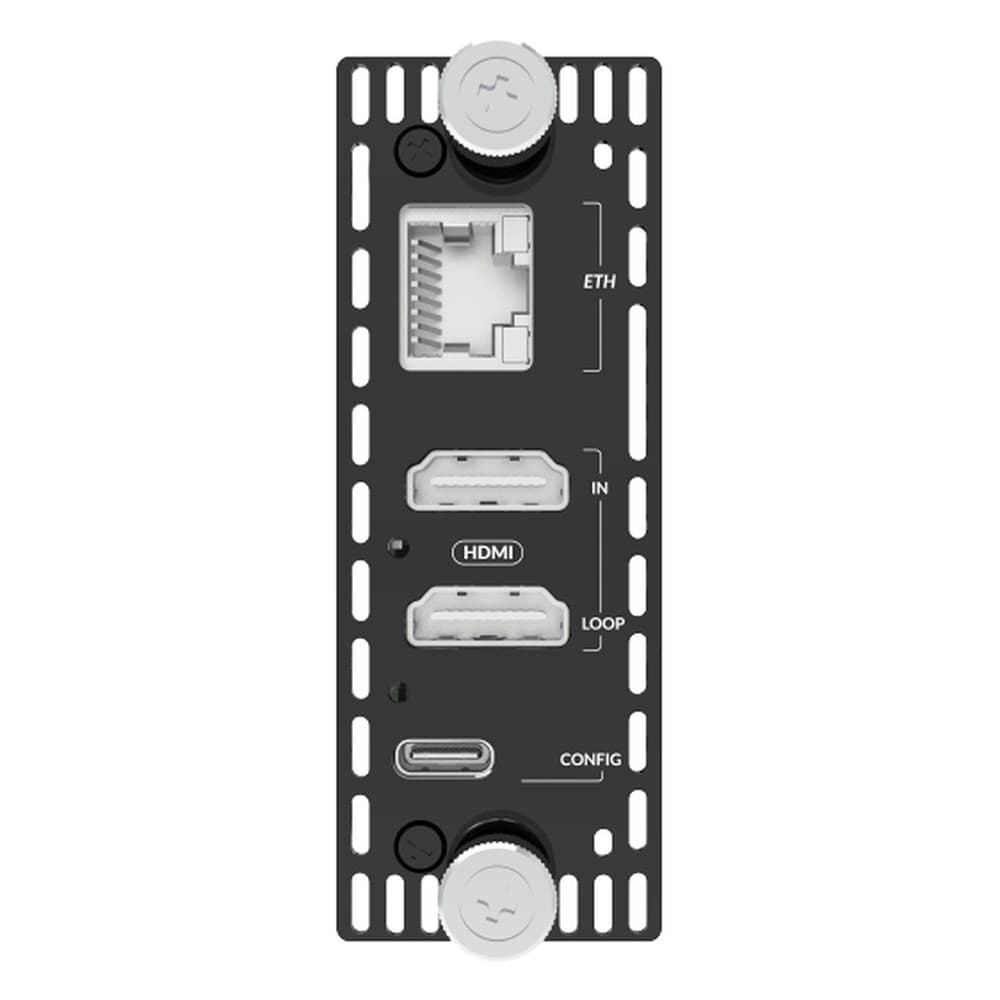

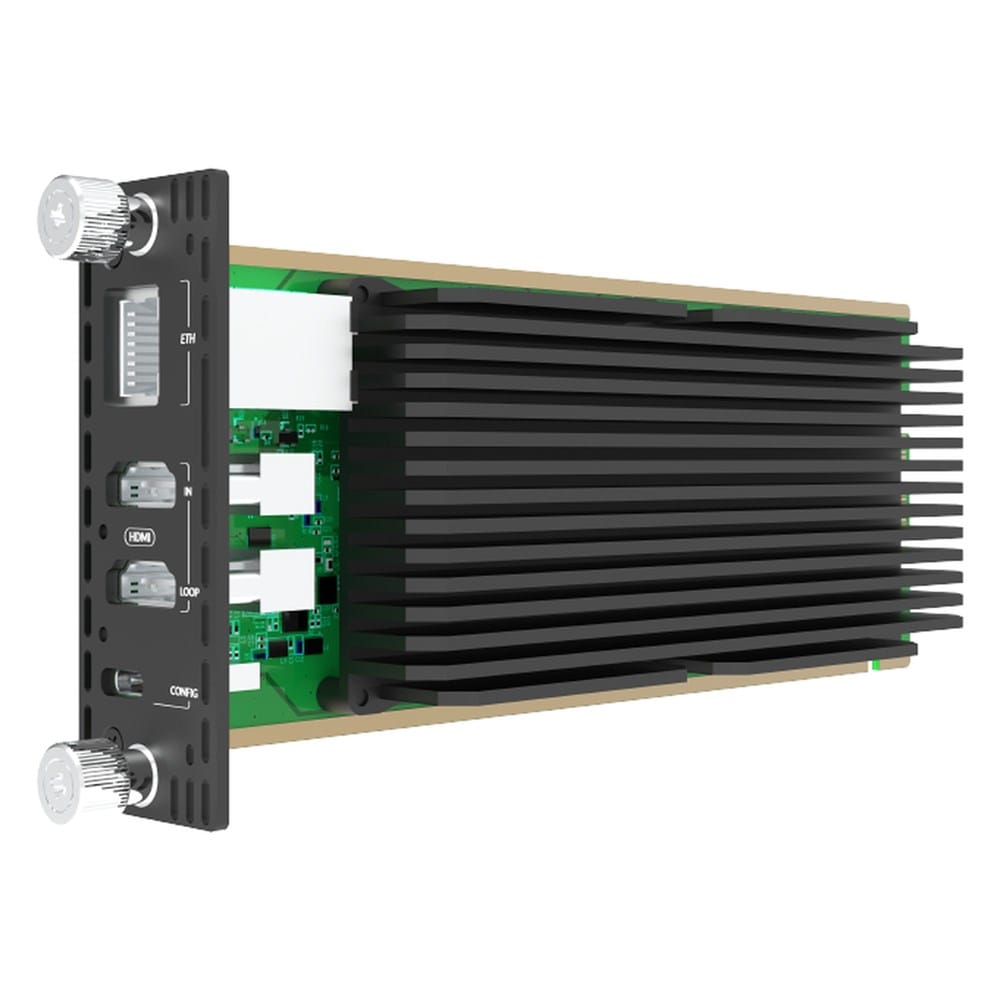

HDMI Input and Loop-Through
The module accepts HDMI video and provides a loop-through output, allowing the connected source to feed a display or other equipment while also being encoded for network use.
Input EDID can be customised to accommodate different video formats. The module supports up to eight channels of embedded HDMI audio.
High-Bandwidth NDI Encoding
Pro Convert HDMI Plus Module encodes real-time NDI High Bandwidth streams at resolutions up to 2048×2160 and frame rates up to 120fps. The output can match the input resolution or be set to a custom resolution.
Output frame rate can match the original signal or be set to one-half, one-third or one-quarter of the input frame rate. Eight-channel embedded audio is also carried in the NDI stream.
Management and Integration
The module can be configured and managed through its web interface, the Modator chassis touchscreen or Magewell Control Hub for remote centralised management.
A Gigabit Ethernet port carries the NDI stream, while the USB Type-C port supports configuration. The module also provides HTTP APIs for integration.
- Hot-swappable module for installation in a Magewell Modator 2U chassis.
- One HDMI 1.4 input and one HDMI 1.4 loop-through output.
- Supports input and loop-through signals up to 4096×2160 at 30fps in 4:4:4 or 4:2:2.
- Supports input and loop-through signals up to 4096×2160 at 60fps in 4:2:0.
- Customisable input EDID for accepting video in different formats.
- Supports RGB and YUV BT.601/709 video signals.
- Supports eight-channel HDMI-embedded audio.
- Encodes NDI High Bandwidth streams at up to 2048×2160, 120fps, 4:2:2, 8-bit.
- Can output the same resolution as the input or a custom resolution.
- Supports output frame rates matching the input, or at one-half, one-third or one-quarter of the input frame rate.
- Encodes eight-channel NDI-embedded audio.
- Gigabit Ethernet connection for network video output.
- Configurable through its web interface, Magewell Control Hub or the Modator chassis touchscreen.
- USB Type-C port for configuration and support for USB RNDIS/ECM.
| Specification | Detail |
|---|---|
| Product type | Hot-swappable HDMI-to-NDI encoder module for Magewell Modator 2U |
| HDMI interfaces | 1 × HDMI 1.4 input; 1 × HDMI 1.4 output |
| Module interface | Modator 2U hot-swappable interface |
| Network interface | 1 × RJ45 1000Mbps Ethernet |
| Configuration interface | 1 × USB Type-C |
| Maximum input and loop-through signal | 4096×2160 at 30fps 4:4:4/4:2:2, or 4096×2160 at 60fps 4:2:0 |
| Supported input video | RGB and YUV BT.601/709; customisable input EDID |
| HDMI-embedded audio | 8 channels |
| NDI encoding | NDI High Bandwidth, up to 2048×2160 at 120fps, 4:2:2, 8-bit |
| NDI audio | 8-channel embedded audio |
| Output resolution | Same as input or custom resolution |
| Output frame rate | Same as input, or one-half, one-third or one-quarter of input frame rate |
| NDI version | NDI 6.2 |
| Management | Web UI, Magewell Control Hub and Modator chassis touchscreen; HTTP APIs |
| Dimensions | 184.4mm (L) × 30.0mm (W) × 81.5mm (H) |
| Weight | Approximately 295g |
| Maximum power consumption | 6.2W |
| Operating temperature | 0 to 50°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
