By Magewell

Pro Convert for NDI to HDMI 4K Module

$2,178.07
$2,178.07
SKU: MG-B41100000
Availability: In stock with supplier

Overview

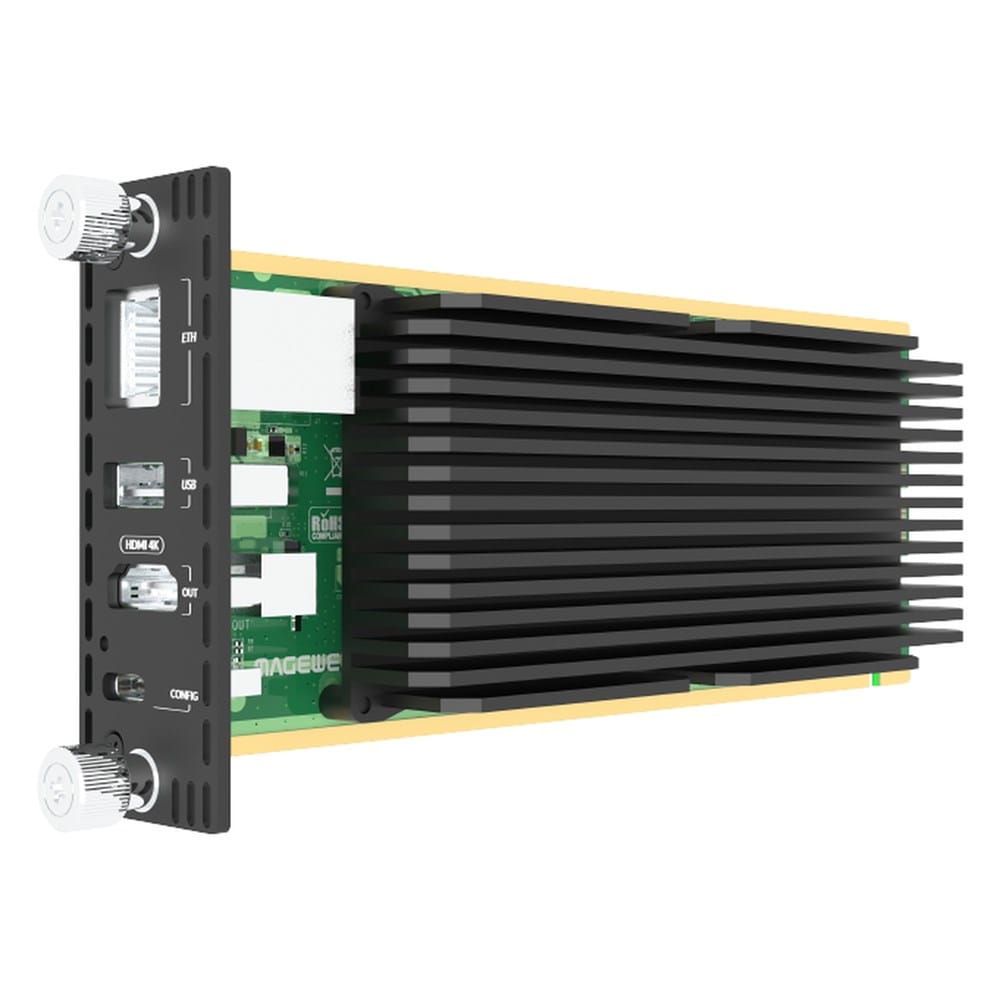

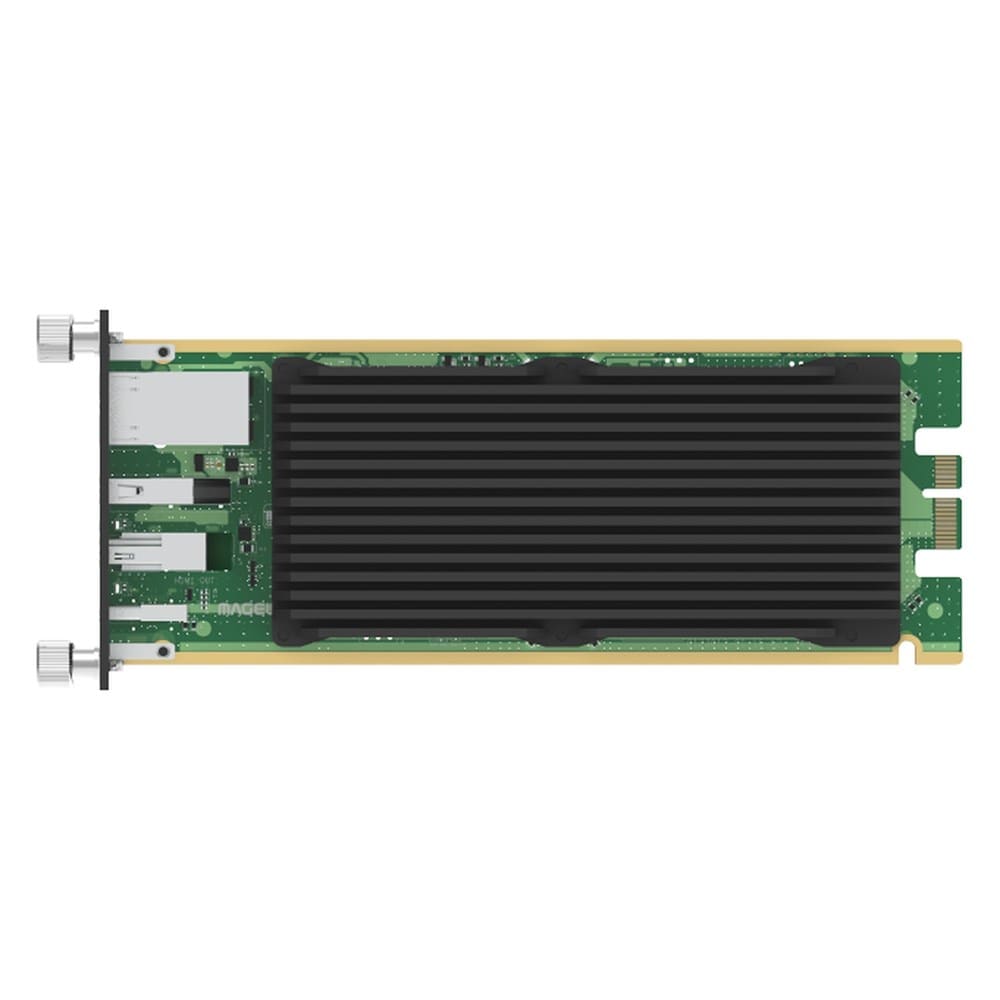

The Magewell Pro Convert for NDI to HDMI 4K Module is a hot-swappable decoder module for the Magewell Modator 2U chassis. It converts live NDI and other supported IP video streams into an HDMI output for displays and production equipment.

Key features
  • Hot-swappable module for installation in the Magewell Modator 2U chassis.
  • Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60.
  • Supports NDI 6.2.
  • Decodes H.264 and H.265 video from RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP.
  • Supports TVU ISSP streams.
  • Provides HDMI output up to 4096 Ɨ 2160 at 60 fps, 4:4:4, 8-bit.
  • Automatically selects an output format based on the connected display's EDID.
  • Supports 96 kHz, 16-bit, 8-channel audio output.
  • Includes AAC and MP3 audio decoders.
  • Can be configured through its Web UI or Magewell Control Hub.
  • Provides real-time information about the device and decoded signals.
  • Includes a Gigabit Ethernet port, USB Type-C configuration port and USB 3.0 Type-A peripheral port.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Convert Pro Convert for NDI to HDMI 4K Module
$2,178.07
$2,178.07

Technical details

Flexible 4K IP Video Decoding

The Magewell Pro Convert for NDI to HDMI 4K Module is a hot-swappable decoder module for the Magewell Modator 2U chassis. It converts live NDI and other supported IP video streams into an HDMI output for displays and production equipment.

Supporting streams up to 4Kp60, the module is suited to IP-based production and distribution workflows. It can decode NDI, NDI HX and H.264 or H.265 video delivered over a range of network protocols, with output automatically matched to the connected display's EDID.

Broad IP Stream Compatibility

The module decodes NDI High Bandwidth and NDI HX streams, along with H.264 and H.265 video delivered over RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP, SRT or RTP, and TVU ISSP.

NDI device discovery across network segments is supported, providing additional flexibility when working with networked video sources.

Flexible HDMI Output and Management

The HDMI 2.0 output supports resolutions up to 4096 Ɨ 2160 at 60 fps. Output format is selected according to the connected display's EDID, with options including 4K, 1440p, 1080p and 720p formats at supported frame rates.

Configuration and management are available through the Web UI or Magewell Control Hub. The Web UI provides signal information and settings for output resolution, deinterlacing, audio and network connection, as well as firmware updates.

Designed for Modator Deployment

As a hot-swappable module for the Magewell Modator 2U chassis, the Pro Convert for NDI to HDMI 4K Module supports rack-based deployments that require IP video decoding and HDMI output.

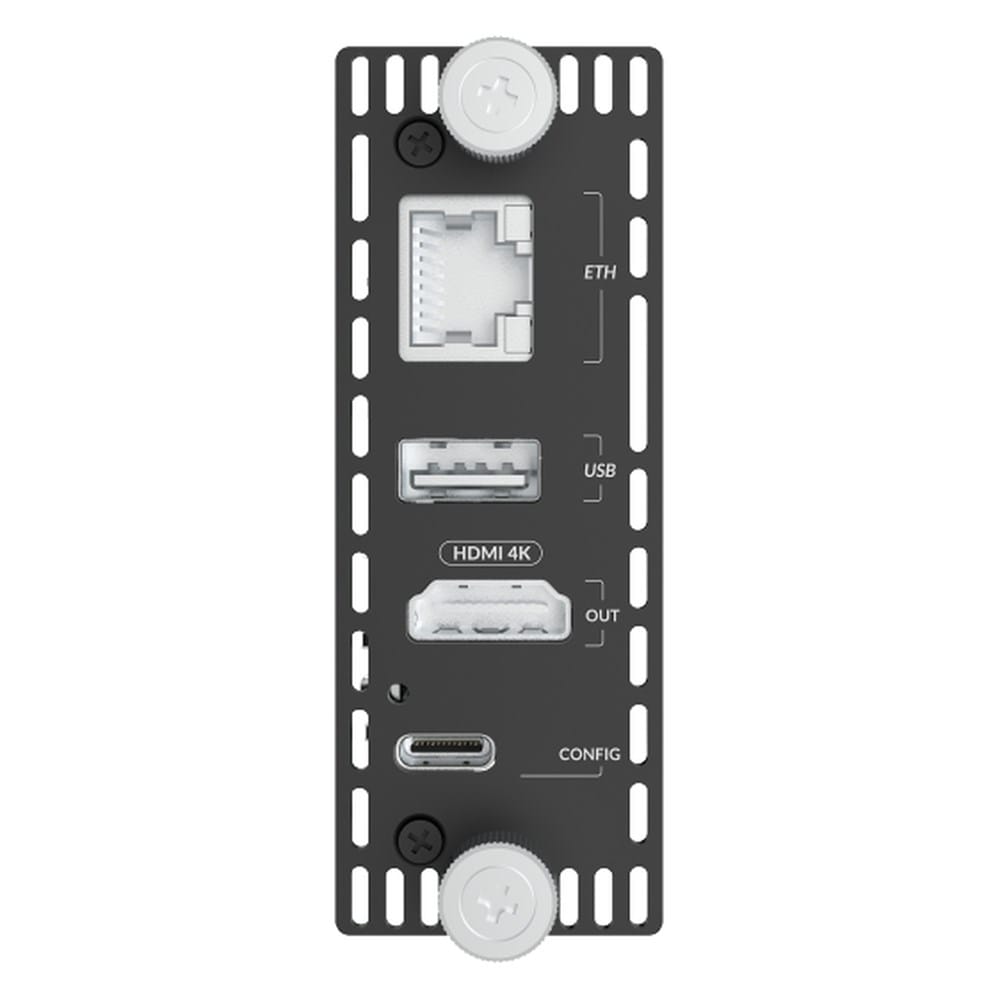

Its compact form factor includes a 1000 Mbps Ethernet connection, USB Type-C port for configuration, USB Type-A 3.0 port for peripherals and an HDMI 2.0 output.

  • Hot-swappable module for installation in the Magewell Modator 2U chassis.
  • Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60.
  • Supports NDI 6.2.
  • Decodes H.264 and H.265 video from RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP.
  • Supports TVU ISSP streams.
  • Provides HDMI output up to 4096 Ɨ 2160 at 60 fps, 4:4:4, 8-bit.
  • Automatically selects an output format based on the connected display's EDID.
  • Supports 96 kHz, 16-bit, 8-channel audio output.
  • Includes AAC and MP3 audio decoders.
  • Can be configured through its Web UI or Magewell Control Hub.
  • Provides real-time information about the device and decoded signals.
  • Includes a Gigabit Ethernet port, USB Type-C configuration port and USB 3.0 Type-A peripheral port.
SpecificationDetail
Product typeHot-swappable IP video decoder module for Magewell Modator 2U
Supported video streamsNDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP
NDI supportNDI 6.2
Video decodersH.264 and H.265
Audio decodersAAC and MP3
Maximum output4096 Ɨ 2160 at 60 fps, 4:4:4, 8-bit
HDMI output1 Ɨ HDMI 2.0
Audio output96 kHz, 16-bit, 8-channel
Network interface1 Ɨ RJ45 1000 Mbps Ethernet
USB interfaces1 Ɨ USB Type-C for configuration; 1 Ɨ USB Type-A 3.0 for peripherals
Form factor184.4 Ɨ 30.0 Ɨ 81.5 mm
WeightApproximately 316 g
Maximum power consumption9.85 W
Operating temperature0 to 50 Ā°C
Storage temperatureāˆ’20 to 70 Ā°C
Relative humidity5% to 90%, non-condensing

Compatibility

  • Hot-swappable module for installation in the Magewell Modator 2U chassis.
  • Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60.
  • Supports NDI 6.2.
  • Decodes H.264 and H.265 video from RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP.

Frequently Asked Questions

What does the Pro Convert for NDI to HDMI 4K Module do?

The Magewell Pro Convert for NDI to HDMI 4K Module is a hot-swappable decoder module for the Magewell Modator 2U chassis. It converts live NDI and other supported IP video streams into an HDMI output for displays and production equipment.

What are the main features of the Pro Convert for NDI to HDMI 4K Module?

Hot-swappable module for installation in the Magewell Modator 2U chassis. Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60. Supports NDI 6.2.

What is the Pro Convert for NDI to HDMI 4K Module compatible with?

Hot-swappable module for installation in the Magewell Modator 2U chassis. Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60. Supports NDI 6.2. Decodes H.264 and H.265 video from RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT or RTP.

What connections or installation requirements does the Pro Convert for NDI to HDMI 4K Module have?

Provides HDMI output up to 4096 Ɨ 2160 at 60 fps, 4:4:4, 8-bit. Automatically selects an output format based on the connected display's EDID. Supports 96 kHz, 16-bit, 8-channel audio output.

What capabilities or limits should I check before choosing the Pro Convert for NDI to HDMI 4K Module?

Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 4Kp60. Provides HDMI output up to 4096 Ɨ 2160 at 60 fps, 4:4:4, 8-bit.

What warranty applies to the Pro Convert for NDI to HDMI 4K Module?

2-year limited manufacturer warranty.
