By Magewell

Pro Convert AES67 - Bi-Directional AES67 Audio Encoder/Decoder with Analog Stereo Input/Output

$847.25
$847.25
SKU: MG-642400000
Availability: In stock with supplier

Overview

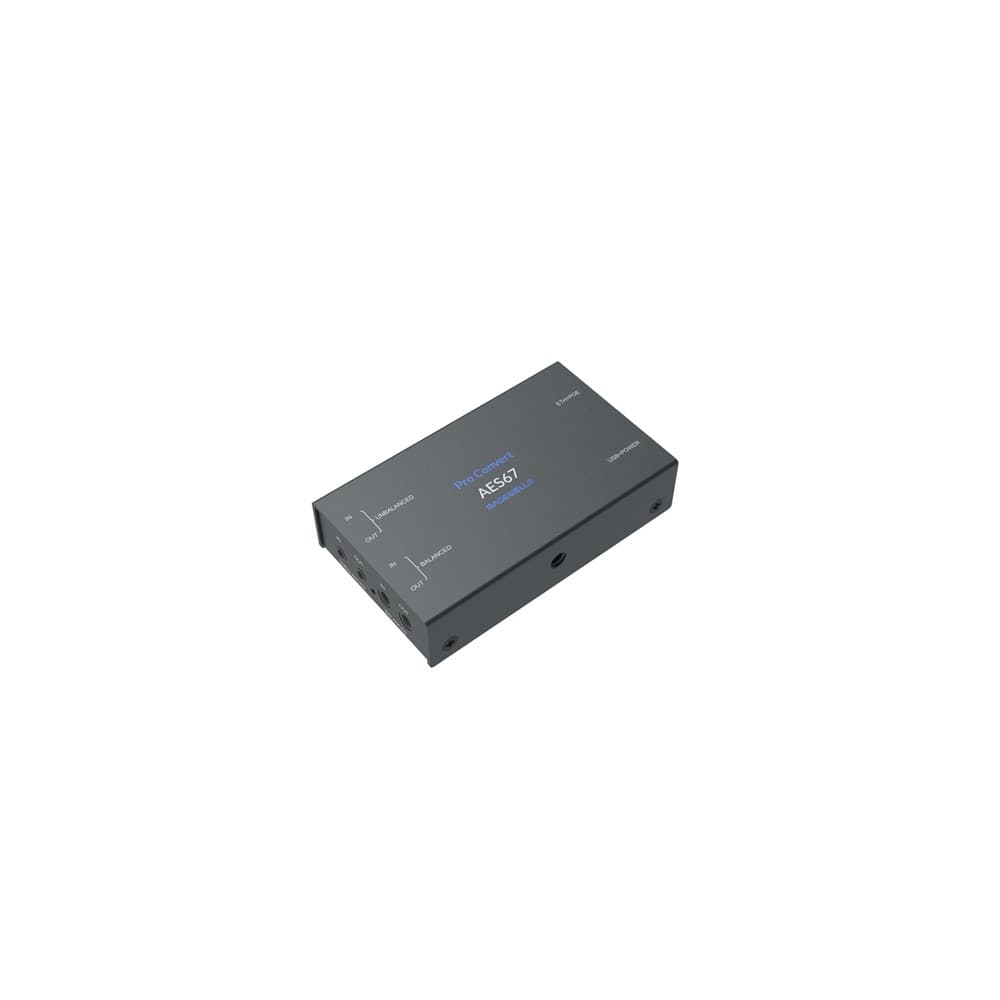

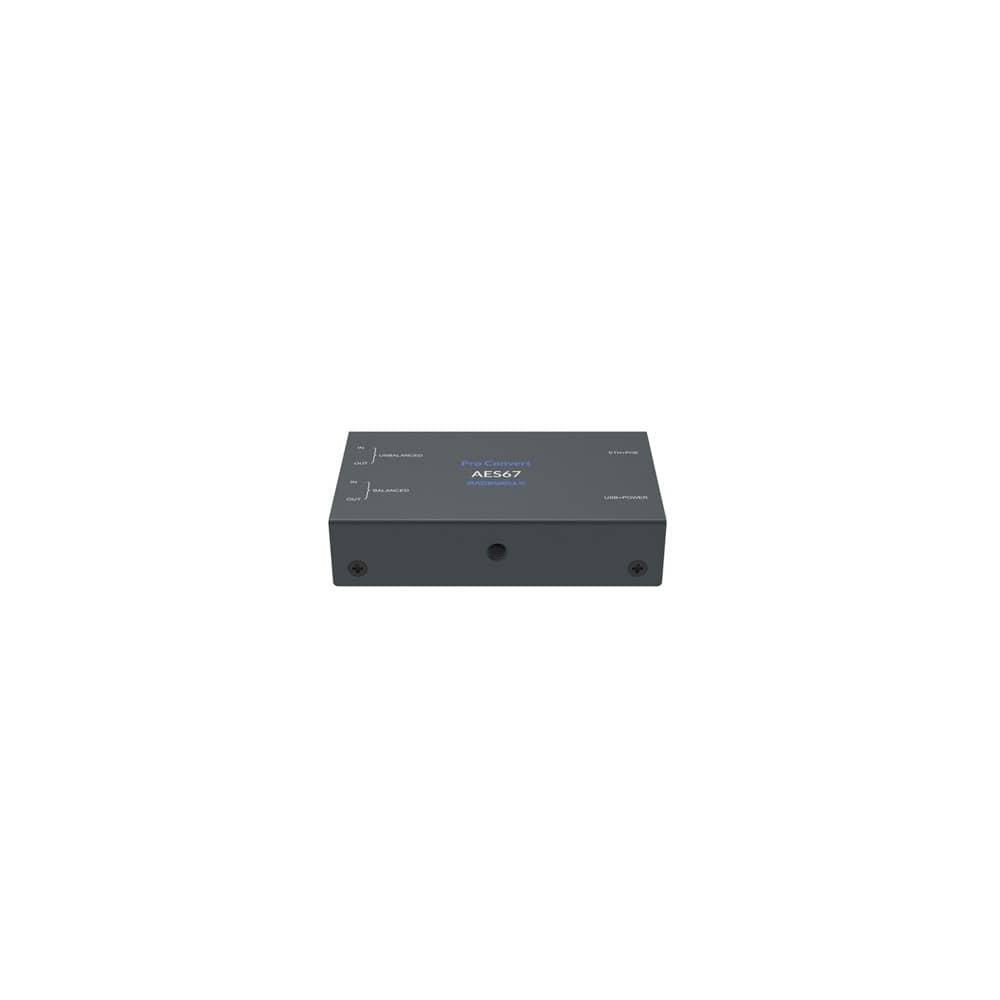

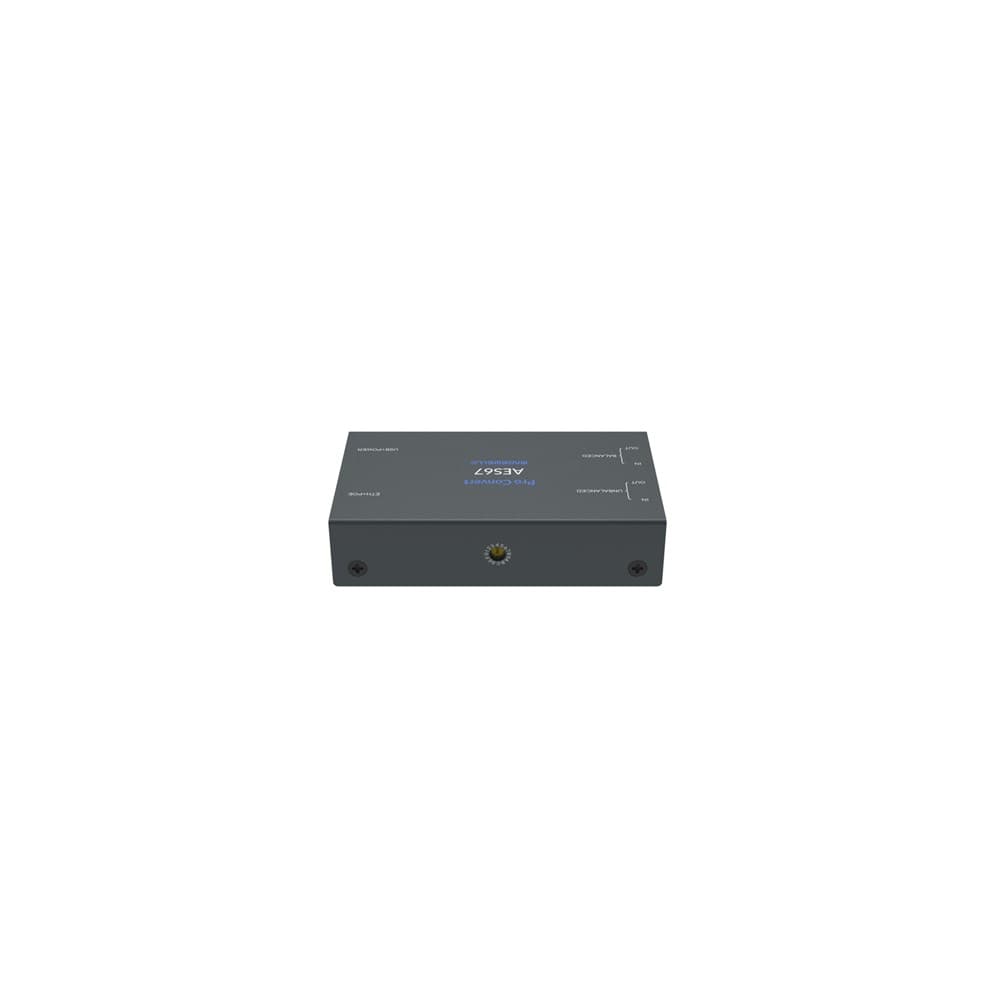

The Magewell Pro Convert AES67 is a bi-directional audio encoder/decoder that bridges analog stereo audio with AES67 network audio (SMPTE ST 2110-30 compliant), while also supporting NDI and SRT audio streaming and USB Audio Class I/O. It accepts and outputs 2-channel 3.5mm unbalanced and 4.4mm balanced analog audio, and can simultaneously receive and send multiple 8-channel 24-bit AES67 streams over Ethernet with PTP synchronization.

Key features
  • Bi-Directional Conversion: Encodes and decodes audio between analog and IP at the same time.
  • AES67 Networking: Bridges analog audio with AES67 network audio.
  • Flexible IP Streaming: Also supports NDI® and SRT audio streaming.
  • Virtual Audio Matrix: Routes and mixes any analog or IP input to any output.
  • Analog Stereo I/O: Analog stereo input and output for traditional gear.

Warranty

2-year warranty

Magewell Convert Pro Convert AES67 - Bi-Directional AES67 Audio Encoder/Decoder with Analog Stereo Input/Output
$847.25
$847.25

Technical details

The Magewell Pro Convert AES67 is a bi-directional AES67 audio encoder and decoder that bridges analog audio with AES67, NDI® and SRT. It is built for ProAV installs and productions that mix analog and IP audio.

Ideal for ProAV installs and remote production, the Pro Convert AES67 connects analog and IP audio in one compact device.

  • Bi-Directional Conversion: Encodes and decodes audio between analog and IP at the same time.
  • AES67 Networking: Bridges analog audio with AES67 network audio.
  • Flexible IP Streaming: Also supports NDI® and SRT audio streaming.
  • Virtual Audio Matrix: Routes and mixes any analog or IP input to any output.
  • Analog Stereo I/O: Analog stereo input and output for traditional gear.

Frequently Asked Questions

Can it connect analog gear to an AES67 network?

Yes. It encodes analog stereo audio onto AES67 and decodes AES67 back to analog, so traditional equipment can join an IP audio network.

Can it encode and decode at the same time?

Yes. It converts audio between analog and IP in both directions simultaneously.

What analog connections does it have?

It has analog stereo input and output for connecting traditional audio equipment.

What is the virtual audio matrix?

It lets you route and mix any analog or IP input to any output.

Which IP streaming formats does it support?

It supports AES67 network audio, plus NDI and SRT audio streaming.

Should I choose this or the Pro Convert Audio DX?

Choose this model for AES67 networks. If your system runs Dante, the Pro Convert Audio DX supports 8-channel Dante flows as well as NDI and SRT.
