Compact HDMI Capture for Professional Workflows

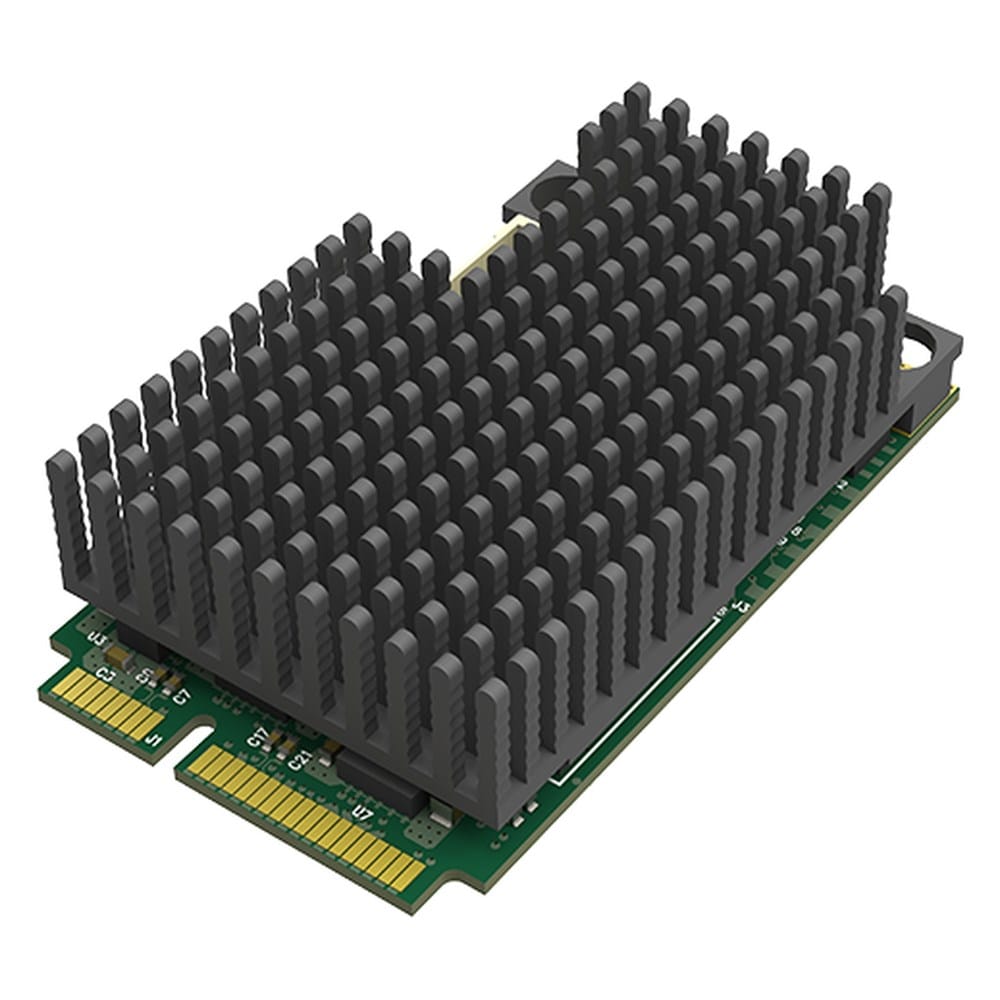

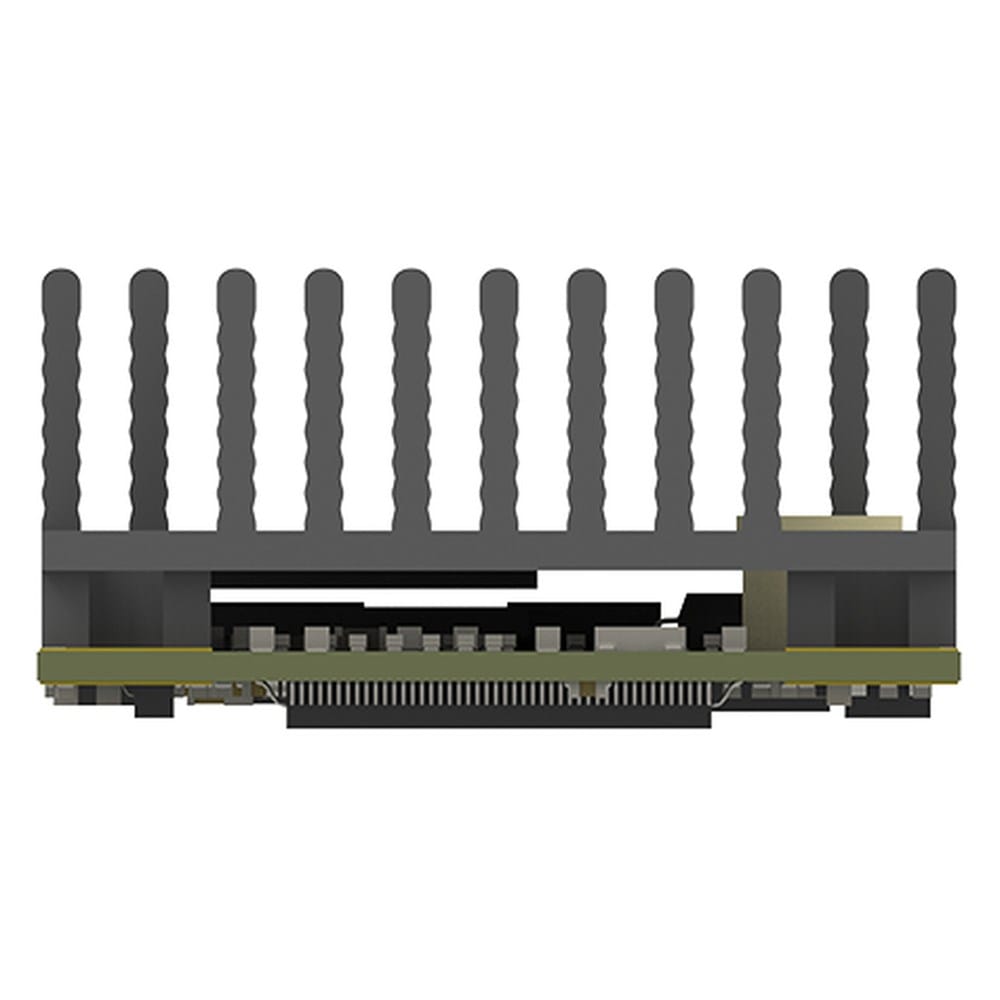

The Magewell Pro Capture Mini HDMI LH is a one-channel HDMI capture card for capturing video and embedded audio on a compatible computer. Its Mini PCIe form factor provides a compact option for integrating HDMI capture into professional video workflows.
With support for input and capture resolutions up to 2048×2160, high-bit-depth video and a range of processing features, the card is suited to live production, streaming, recording and other applications requiring reliable HDMI capture.
Flexible HDMI Capture

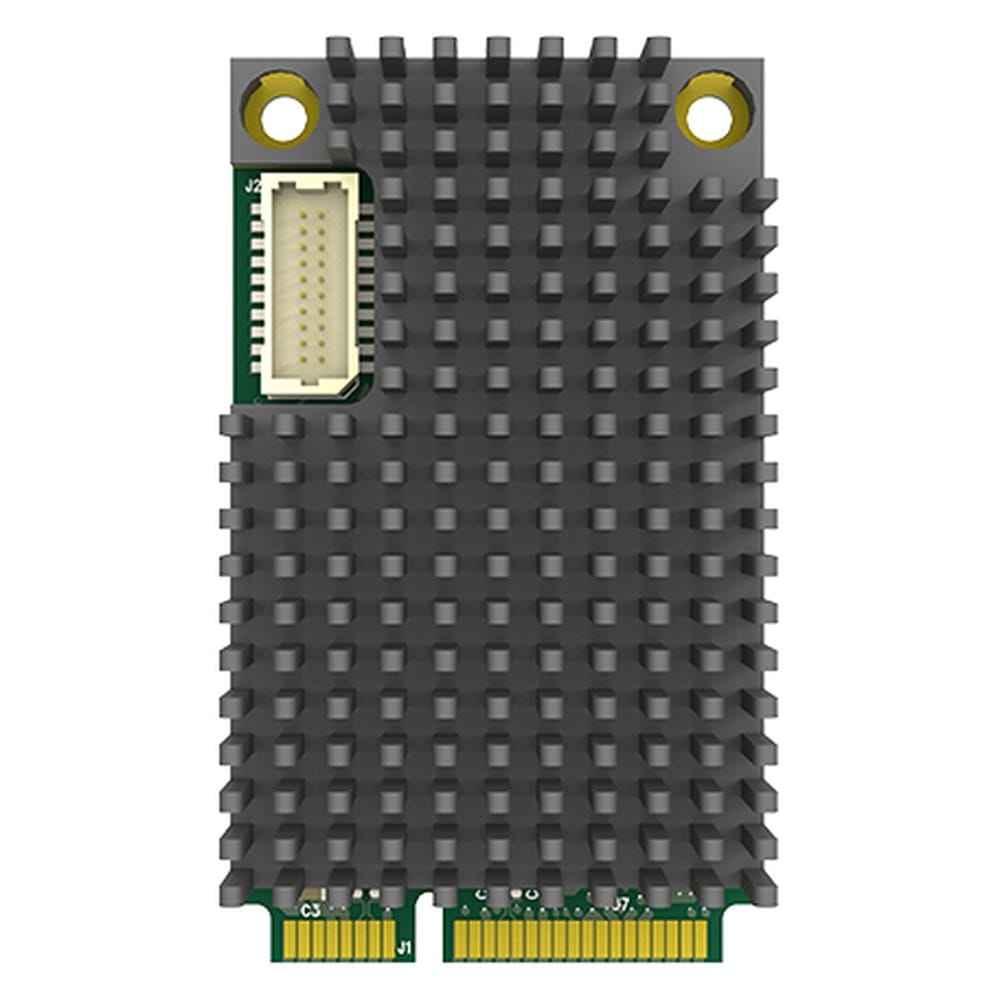

The card captures HDMI video and embedded audio through its JST SHD 20-pin input connector. It supports a wide range of video formats, with capture resolutions up to 2048×2160 pixels.
Support for RGB and YCbCr colour sampling, multiple bit depths and HDMI 3D formats allows the card to accommodate a variety of source signals.
On-board Video Processing
Two video processing pipelines provide approximately 180 Mpixels/s of processing bandwidth each. Features include cropping, scaling, deinterlacing and aspect ratio conversion, with full 10-bit video processing.
Capture frame rates can reach 144fps, although actual performance depends on PCIe bandwidth and the resolution being captured. At 1920×1080, the maximum frame rate is approximately 80fps.
Compact System Integration
The Mini PCIe form factor and PCIe Gen2 x1 host interface make the card suitable for integration into compatible systems. Multiple cards can be installed in one system, and multiple capture streams are supported.
The Pro Capture Mini HDMI LH supports Windows, Linux and macOS. Magewell also specifies continuous 24/7 operation.
- One HDMI input with embedded audio support.
- JST SHD 20-pin input connector.
- Mini PCIe host interface with PCIe Gen2 x1 support.
- Input and capture resolutions up to 2048×2160 pixels.
- Capture frame rates up to 144fps, subject to PCIe bandwidth and video processing limits.
- Support for 8-bit, 10-bit and 12-bit input colour depths.
- Full 10-bit video processing.
- Support for RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2 colour sampling.
- Support for up to eight-channel HDMI audio streams.
- Two video processing pipelines, each with approximately 180 Mpixels/s processing bandwidth.
- Video cropping, scaling, deinterlacing and aspect ratio conversion.
- Support for Side-by-Side Half, Top-and-Bottom and Frame Packing 3D modes.
- Low-latency mode and multiple capture streams.
- Support for multiple cards in one system and continuous 24/7 operation.
| Specification | Detail |
|---|---|
| Product type | One-channel HDMI capture card |
| Input interface | 1 × HDMI 1.4a via JST SHD 20-pin connector |
| Host interface | Mini PCIe, PCIe Gen2 x1 |
| Maximum input resolution | 2048×2160 pixels |
| Maximum capture resolution | 2048×2160 pixels |
| Maximum capture frame rate | Up to 144fps, subject to PCIe bandwidth and video processing limits |
| Colour depth | 8-bit, 10-bit and 12-bit input; full 10-bit video processing |
| Colour sampling | RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2 |
| Audio | Embedded HDMI audio, up to 8 channels |
| Video processing | Two pipelines, approximately 180 Mpixels/s processing bandwidth per pipeline |
| Operating systems | Windows, Linux and macOS |
| Operating mode | Continuous 24/7 operation supported |
Compatibility
- Mini PCIe host interface with PCIe Gen2 x1 support.
- Capture frame rates up to 144fps, subject to PCIe bandwidth and video processing limits.
