POE+ to USB-C Power + Data with USB-A Port
Back orders delivered in 14 days
Not available for local pickup. On backorder
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Technical details

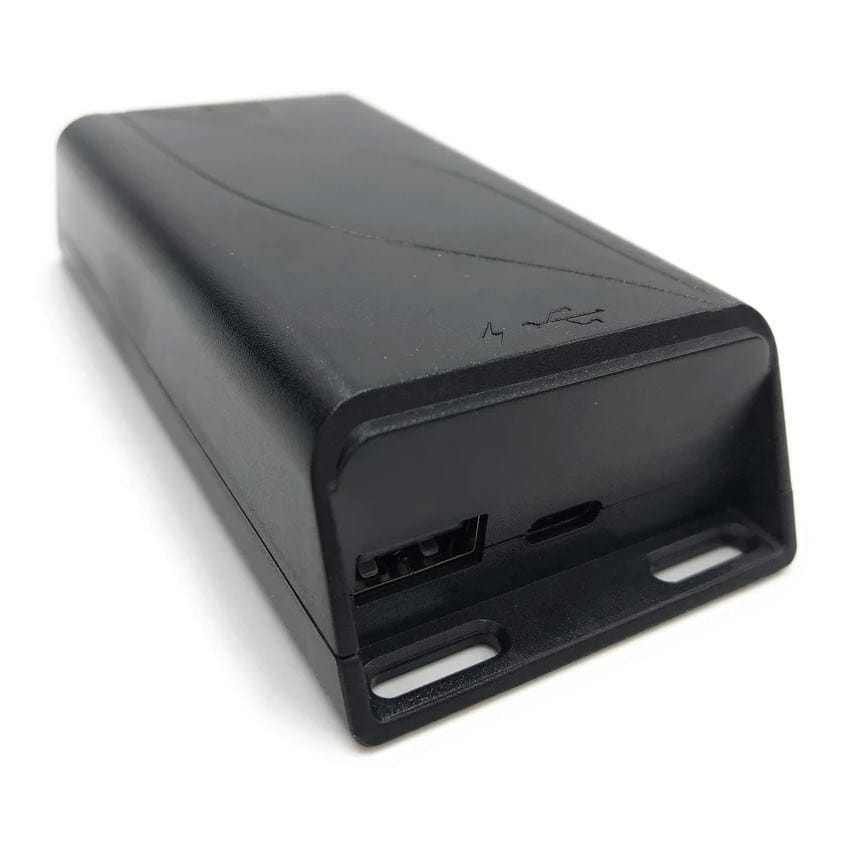

Power your tablet and accessories from a single Ethernet cable with the AT-USBC-A-PD PoE+ to USB-C & USB-A Converter, providing reliable USB-C Power Delivery and USB-A output using an IEEE 802.3at PoE+ input. Designed for clean, compact installations, it delivers stable power and data without the need for separate power adapters.
- Total Output: Up to 25 W shared
- Ports: 1 × USB-C PD 3.0 + 1 × USB-A (5 V)
- PoE Input: IEEE 802.3at PoE+ (48–56 V)

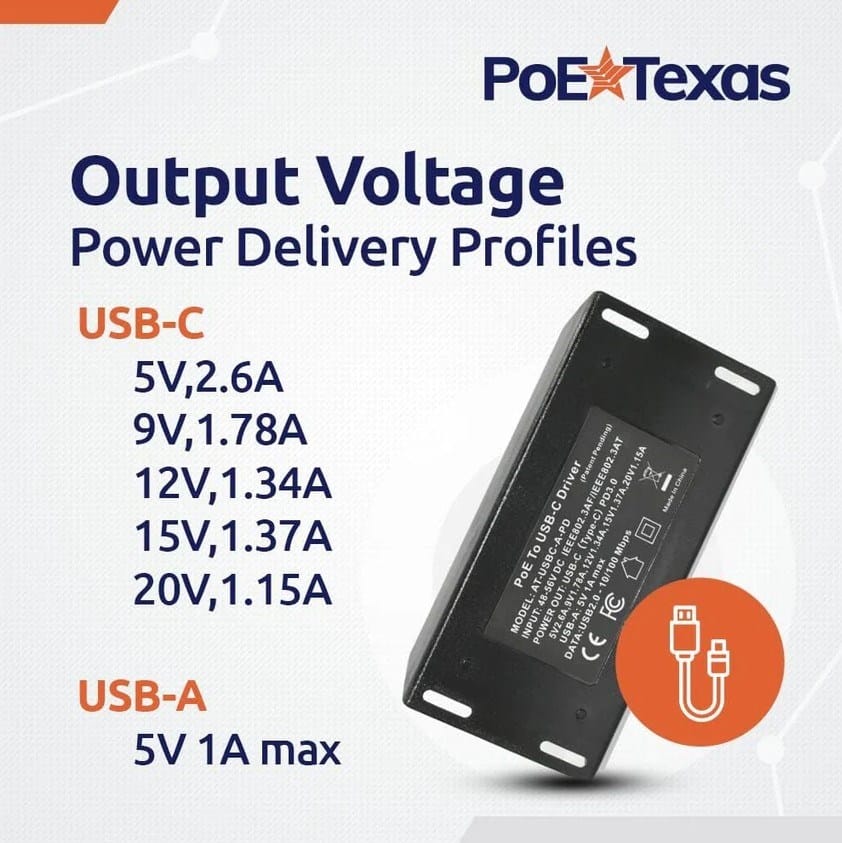

- USB-C PD Profiles: 5 V 2.6 A, 9 V 1.78 A, 12 V 1.34 A, 15 V 1.37 A, 20 V 1.15 A
- USB-A Output: 5 V up to 1 A
- Smart Power Distribution: Automatically allocates power between USB-C and USB-A
- Data Support: USB-C data + 10/100/1000 Mbps Gigabit Ethernet input
- Protection: Over-current, over-voltage, and short-circuit
- Mounting: Wall or DIN-rail compatible
Compatible with iPad Pro, Samsung Galaxy Tab, Surface Go, Google Pixel tablets, and low-power USB-A peripherals such as card readers and storage devices.
Ideal for kiosks, POS systems, check-in stations, and digital signage, this PoE-powered converter creates a clean, cable-efficient setup while delivering dependable power and data through a single network run.
- Delivers up to 25W USB-C Power Delivery from a single PoE+ connection
- Additional USB-A port (5V/1A) for powering accessories simultaneously
- Gigabit (10/100/1000 Mbps) data passthrough at USB 2.0 speeds
- Compatible with IEEE 802.3at (PoE+) switches and injectors
- Supports full USB-PD voltage negotiation: 5V, 9V, 12V, 15V, 20V output profiles
- LED indicators for connection and data activity
- Mounts to wall or DIN rail
| Specification | Detail |
|---|---|
| PoE Standard | IEEE 802.3at (PoE+) |
| Max Power Output | 25W (total) |
| Input Voltage | 48-56V |
| USB-C Output Voltage | 5V/2.6A; 9V/1.78A; 12V/1.34A; 15V/1.37A; 20V/1.15A |
| USB-A Output | 5V, 1A max |
| Data Rate (Input) | 10/100/1000 Mbps (Gigabit) |
| Data Rate (Output) | 10/100 Mbps |
| Data Standard | USB 2.0 |
| Connectors | USB-C (Power Delivery) + USB-A |
| Weight | 3 oz |
| LED Indicators | Green (Connection); Yellow (Activity) |
Compatibility
- Compatible with IEEE 802.3at PoE+ switches and injectors. USB-C port for primary device; USB-A port for accessories (5V/1A max).
Frequently Asked Questions
Does it have status LEDs?
Does it have status LEDs?
How is power shared between the ports?
How is power shared between the ports?
What can I connect to the USB-A port?
What can I connect to the USB-A port?
Which tablets are compatible?
Which tablets are compatible?
How can it be mounted?
How can it be mounted?
What PoE standard is required?
What PoE standard is required?
