Magewell USB Capture SDI Plus
Regular price
$822.19
Regular price
Sale price
$822.19
Unit price
per
SKU:
MG-320500000
Availability:
Low stock: 2 left
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Regular price
$822.19
Regular price
Sale price
$822.19
Technical details

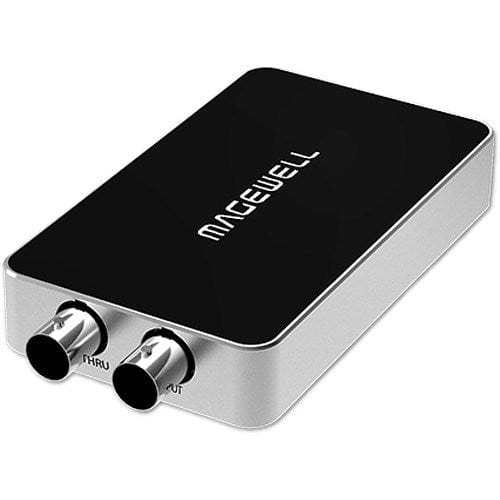

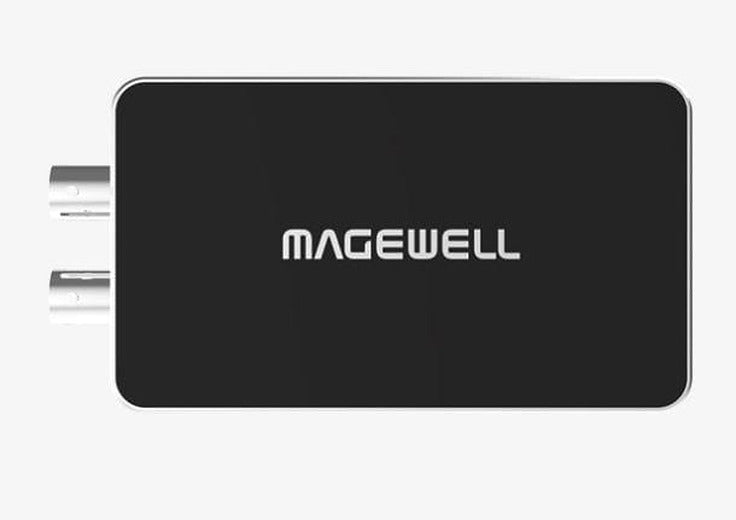

Magewell USB Capture SDI Plus
One-channel 2K capture device.

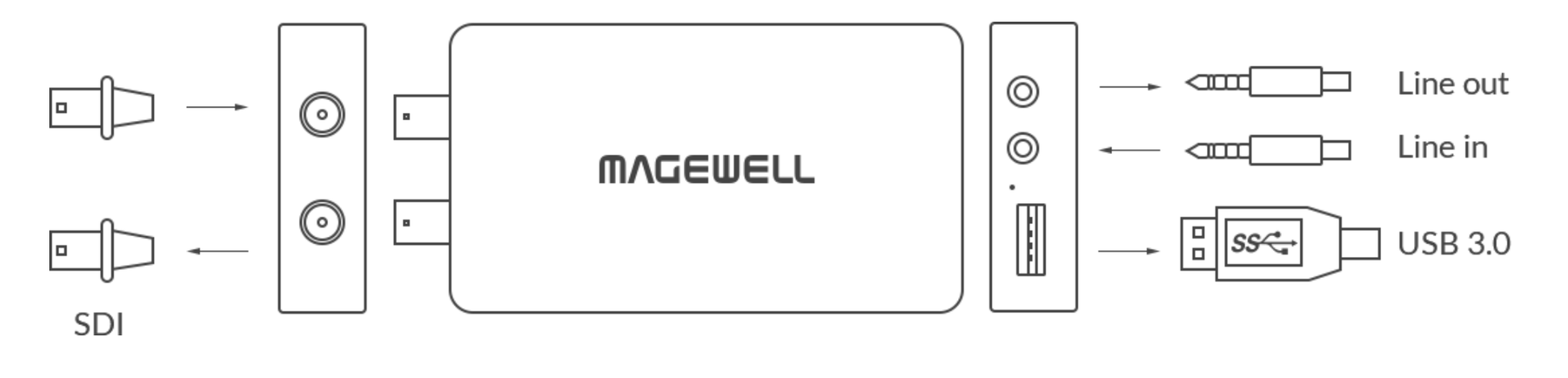

Capture SD/HD/3G/ 2K SDI + embedded audio.
Loop-through SD/HD/3G/2K SDI.
Audio input via Line in.
Extract SDI embedded audio and output via Line out.

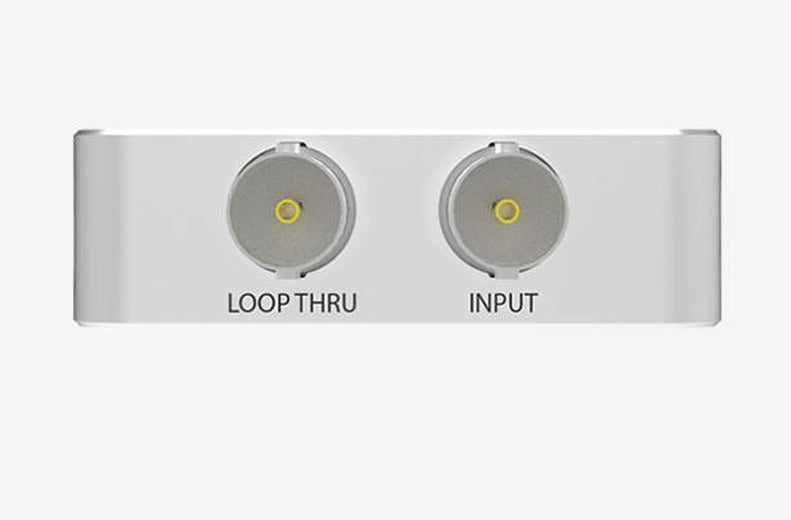

- Single SD/HD/3G-SDI BNC input with full SDI loop-through output
- Captures up to 2048×1080 at up to 120fps via USB 3.0

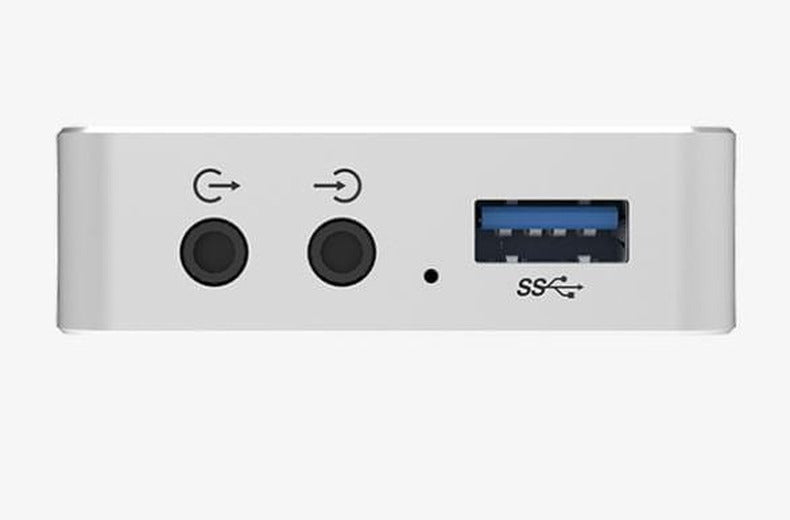

- 3.5mm analogue Line In and Line Out alongside SDI-embedded audio capture
- SDI cable runs up to 150m supported for 3G-SDI signals
- Up to 8-channel embedded audio capture
- Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
- Rated for continuous 24/7 operation
| Specification | Detail |
|---|---|
| Part Number | 32050 |
| Video Input | 1 × SD/HD/3G-SDI (BNC) |
| Loop-Through Output | 1 × SDI (BNC) |
| SDI Standards | SD (ST 259), HD (ST 292), 3Ga/3Gb-DL/3Gb-DS (ST 425) |
| Max Input Resolution | 2048×1080 at 60fps |
| Audio Ports | 3.5mm Line In / Line Out |
| USB Standard | USB 3.0 (USB 2.0 compatible) |
| Max Power | ~2.5W (0.5A at 5V) |
| Dimensions | 110.7 × 56.8 × 17mm |
| OS Support | Windows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS |
| Operating Temp | 0-45°C |
Compatibility
- Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
