By Magewell

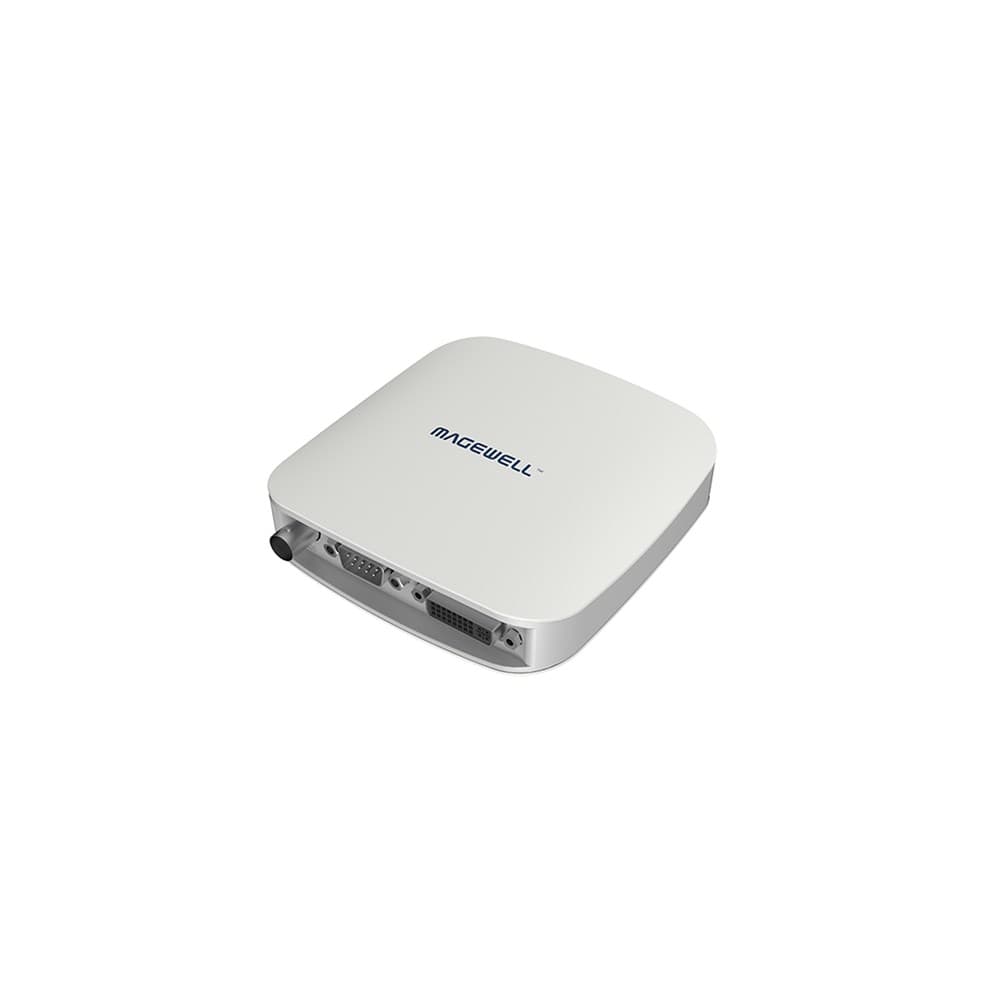

Magewell USB Capture AIO

$1,194.03
$1,194.03
SKU: MG-321100000
Availability: In stock with supplier

Overview

The Magewell USB Capture AIO is an all-in-one, single-channel USB 3.0 capture device that accepts HDMI, SDI, DVI, VGA, component, composite or S-Video sources through one shared DVI-I, BNC and DB9 input set with included breakout cables, capturing whichever signal is connected. It outputs a standard USB video/audio class stream to a host computer at resolutions up to 2048x2160 and frame rates up to 120fps, requiring no drivers.

Key features
  • All-in-One Inputs: Captures SDI, HDMI, DVI, VGA, component, composite and S-video sources.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 120fps.
  • Plug-and-Play USB 3.0: Connects over USB 3.0 and is backward compatible with USB 2.0, with no drivers required.
  • Broad Compatibility: Works with Windows, Linux, macOS and Chrome OS, plus Zoom Rooms, Teams Rooms and OBS.
  • Built to Run: Rated for continuous 24/7 operation for always-on capture and streaming.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell USB Capture AIO
$1,194.03
$1,194.03

Technical details

The Magewell USB Capture AIO is an all-in-one HD video capture device that turns almost any video source into a USB webcam-style input on your computer. With one box covering SDI, HDMI, DVI, VGA, component, composite and S-video, it is perfect for AV integrators, streamers and educators working with mixed equipment.

Perfect for lecture capture, live streaming and video conferencing, the USB Capture AIO brings legacy and modern sources into any software with a single connection.

  • All-in-One Inputs: Captures SDI, HDMI, DVI, VGA, component, composite and S-video sources.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 120fps.
  • Plug-and-Play USB 3.0: Connects over USB 3.0 and is backward compatible with USB 2.0, with no drivers required.
  • Broad Compatibility: Works with Windows, Linux, macOS and Chrome OS, plus Zoom Rooms, Teams Rooms and OBS.
  • Built to Run: Rated for continuous 24/7 operation for always-on capture and streaming.

Frequently Asked Questions

Which sources can the USB Capture AIO capture?

It captures SDI, HDMI, DVI, VGA, component, composite and S-video sources.

What resolution and frame rate does it support?

It supports resolutions up to 2048 x 2160 at frame rates up to 120fps.

Do I need drivers?

No. It is plug-and-play over USB 3.0, is backward compatible with USB 2.0 and needs no drivers.

Which operating systems and platforms does it work with?

It works with Windows, Linux, macOS and Chrome OS, plus Zoom Rooms, Teams Rooms and OBS.

Can it run continuously?

Yes. It is rated for continuous 24/7 operation.

How does it compare with the USB Capture DVI Plus?

The AIO adds SDI, composite and S-video inputs alongside HDMI, DVI, VGA and component, while the DVI Plus focuses on DVI, with VGA, component and HDMI via converter cabling.
