By Magewell

Magewell Ultra Stream SDI

$1,028.77
$1,028.77
SKU: MG-53020
Availability: Contact to order

Back orders delivered in 14 days

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Magewell Ultra Stream SDI is a standalone hardware streaming encoder for SDI broadcast environments that accepts SD/HD/3G-SDI input and streams H.264 or H.265 video at up to 1080p60 to multiple destinations simultaneously, including Facebook, Twitch, and YouTube, with a single button press. Built-in Wi-Fi, Gigabit Ethernet, and Bluetooth connectivity, plus 32GB internal storage for simultaneous local recording, mean no computer or additional capture software is needed.

Key features
  • Standalone SDI streaming encoder, no computer required
  • Accepts SD/HD/3G-SDI sources up to 2048×1080 60fps; streams at up to 1080p60
  • Dual-stream H.264/H.265 encoding at up to 8Mbps main and 2Mbps sub stream
  • Streams to up to 2 destinations simultaneously via RTSP/RTMP/RTMPS
  • Native one-click streaming to Facebook, Twitch, and YouTube
  • Records simultaneously to USB flash drive, 32GB internal SD, and paired mobile device
  • Wi-Fi 802.11ac, Gigabit Ethernet, and Bluetooth 4.0 connectivity
  • Remote control via iOS/Android app and web browser UI
  • SDI loop-through output for downstream equipment

Warranty

2-year warranty

Product specs Download
Assembly guide Download

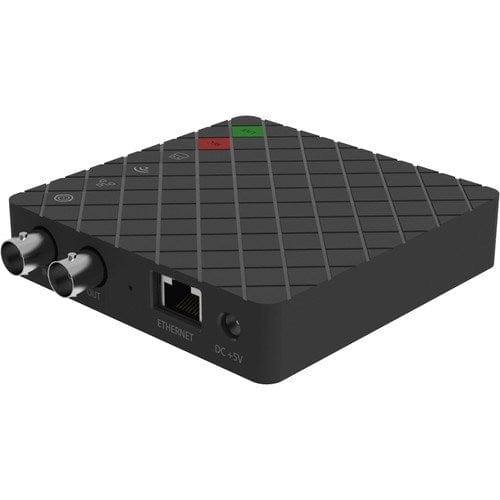

Magewell Ultra Stream SDI media processor (MG-53020), main product image
$1,028.77
$1,028.77

Technical details

A dedicated SDI streaming encoder with loop-through.

Live streaming to popular services such as Facebook Live, YouTube, or Twitch.

Streams to a custom specified RTMP or RMTPS server and supports sending RTSP streams.

Records video to the internal storage, a connected USB drive, or an associated smartphone.

On-device controls plus intuitive smartphone app and browser-based web UI.

  • Standalone SDI streaming encoder, no computer required
  • Accepts SD/HD/3G-SDI sources up to 2048×1080 60fps; streams at up to 1080p60
  • Dual-stream H.264/H.265 encoding at up to 8Mbps main and 2Mbps sub stream
  • Streams to up to 2 destinations simultaneously via RTSP/RTMP/RTMPS
  • Native one-click streaming to Facebook, Twitch, and YouTube
  • Records simultaneously to USB flash drive, 32GB internal SD, and paired mobile device
  • Wi-Fi 802.11ac, Gigabit Ethernet, and Bluetooth 4.0 connectivity
  • Remote control via iOS/Android app and web browser UI
  • SDI loop-through output for downstream equipment
SpecificationDetail
Part Number53020
Video Input1 × SD/HD/3G-SDI (BNC); max 2048×1080 60fps
SDI StandardsSD (ST 259), HD (ST 292), 3Ga/3Gb/3Gb-DL/3Gb-DS (ST 425)
SDI Loop-ThroughYes (BNC)
Max Stream Resolution1920×1080 at 60fps
EncodingH.264 / H.265 (HEVC); AAC audio 2-channel 48kHz
Max Bitrate8Mbps (main stream); 2Mbps (sub stream)
Streaming ProtocolsRTSP, RTMP, RTMPS
NetworkGigabit Ethernet; Wi-Fi 802.11 a/b/g/n/ac; Bluetooth 4.0 BLE
Internal Storage32GB SD
Max Power~7.2W (DC 5V/2A)
Dimensions94.2 × 94.2 × 22.3mm
Operating Temp0-40°C

Compatibility

  • SD/HD/3G-SDI sources including broadcast cameras, vision mixers, and production switchers. Compatible with Facebook Live, Twitch, YouTube, and any RTSP/RTMP-compatible streaming platform. Remote control via iOS 12+ and Android 7.0+ app.

Frequently Asked Questions

How many destinations can it stream to?

It streams to up to 2 destinations at once via RTSP, RTMP or RTMPS, with native one-click streaming to Facebook, Twitch and YouTube.

What resolution does it stream at?

It accepts SDI up to 2048 x 1080 60fps and streams at up to 1080p60.

Does it have SDI loop-through?

Yes. It has an SDI loop-through output on BNC.

Can it record while streaming?

Yes. It records to 32GB of internal storage, a USB flash drive or a paired mobile device.

How can it be controlled?

Control it with the on-device buttons, a smartphone app (iOS 12+ and Android 7.0+) or a browser-based web UI.

What warranty is included?

It includes a 2-year warranty.
