By Magewell

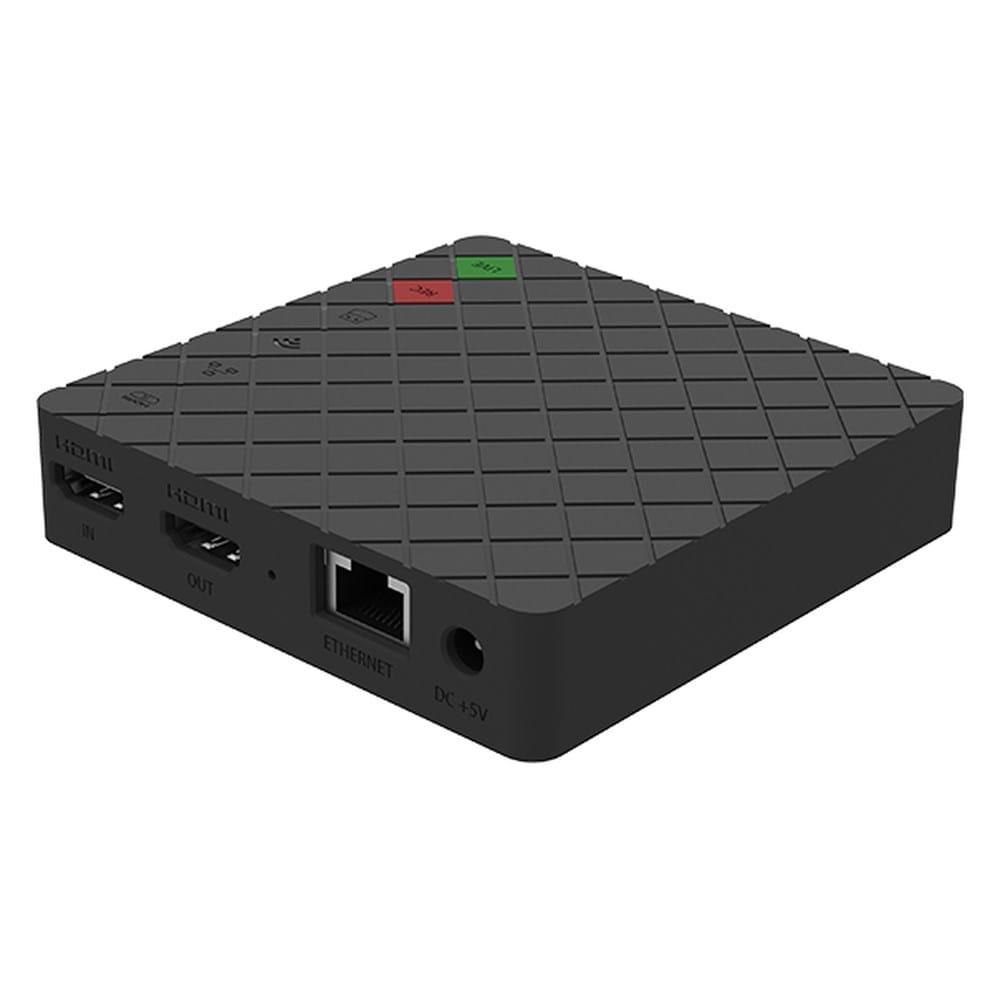

Magewell Ultra Stream HDMI encoder

$1,028.76
$1,028.76
SKU: MG-53010
Availability: Low stock: 2 left

Overview

The Magewell Ultra Stream HDMI is a standalone hardware streaming encoder that accepts a 4K HDMI source and streams H.264 or H.265 video at up to 1080p60 to multiple destinations simultaneously, including Facebook, Twitch, and YouTube, with a single button press. Built-in Wi-Fi, Gigabit Ethernet, and Bluetooth connectivity, combined with 32GB internal storage for local recording, make it a self-contained live production tool that requires no computer.

Key features
  • Standalone HDMI streaming encoder, no computer required
  • Accepts HDMI sources up to 4096×2160 60fps; streams at up to 1080p60
  • Dual-stream H.264/H.265 encoding at up to 8Mbps main stream and 2Mbps sub stream
  • Streams to up to 2 destinations simultaneously via RTSP/RTMP/RTMPS
  • Native one-click streaming to Facebook, Twitch, and YouTube
  • Records simultaneously to USB flash drive, 32GB internal SD, and paired mobile device
  • Wi-Fi 802.11ac, Gigabit Ethernet, and Bluetooth 4.0 connectivity
  • Remote control via iOS/Android app and web browser UI
  • HDMI loop-through output to feed a connected display

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Stream (Encoding) Magewell Ultra Stream HDMI encoder
$1,028.76
$1,028.76

Technical details

Magewell Ultra Stream HDMI encoder

A dedicated HDMI streaming encoder with loop-through.

Live streaming to popular services such as Facebook Live, YouTube, or Twitch.

Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams.

Records video to the internal storage, a connected USB drive, or an associated smartphone.

Internet connectivity via wired Ethernet, Wi-Fi, and optional 3G/4G modem support.

  • Standalone HDMI streaming encoder, no computer required
  • Accepts HDMI sources up to 4096×2160 60fps; streams at up to 1080p60
  • Dual-stream H.264/H.265 encoding at up to 8Mbps main stream and 2Mbps sub stream
  • Streams to up to 2 destinations simultaneously via RTSP/RTMP/RTMPS
  • Native one-click streaming to Facebook, Twitch, and YouTube
  • Records simultaneously to USB flash drive, 32GB internal SD, and paired mobile device
  • Wi-Fi 802.11ac, Gigabit Ethernet, and Bluetooth 4.0 connectivity
  • Remote control via iOS/Android app and web browser UI
  • HDMI loop-through output to feed a connected display
SpecificationDetail
Part Number53010
Video Input1 × HDMI (HDMI 1.4a); max 4096×2160 60fps 4:2:0
HDMI Loop-ThroughYes
Max Stream Resolution1920×1080 at 60fps
EncodingH.264 / H.265 (HEVC); AAC audio 2-channel 48kHz
Max Bitrate8Mbps (main stream); 2Mbps (sub stream)
Streaming ProtocolsRTSP, RTMP, RTMPS
NetworkGigabit Ethernet; Wi-Fi 802.11 a/b/g/n/ac; Bluetooth 4.0 BLE
Internal Storage32GB SD
Max Power~9.6W (DC 5V/2A)
Dimensions94.2 × 94.2 × 22.3mm
Operating Temp0-40°C

Compatibility

  • HDMI sources including cameras, computers, gaming consoles, and presentation systems. Compatible with Facebook Live, Twitch, YouTube, and any RTSP/RTMP-compatible streaming platform. Remote control via iOS 12+ and Android 7.0+ app.

Frequently Asked Questions

Can I connect a display while streaming?

Yes. An HDMI loop-through output lets you feed a connected display while the source is streamed.

What resolution does it stream at?

It accepts HDMI input up to 4096 x 2160 60fps and streams at up to 1080p60.

How many destinations can it stream to?

It streams to up to 2 destinations at the same time via RTSP, RTMP or RTMPS.

Can it record?

Yes. It records to 32GB of internal storage, a USB flash drive or a paired mobile device.

What connectivity does it have?

It offers Wi-Fi 802.11ac, Gigabit Ethernet and Bluetooth 4.0, and it can be controlled from an iOS or Android app.

What warranty does it have?

It has a 2-year warranty.
