By Magewell

Magewell Ultra Encode HDMI

$1,070.08
$1,070.08
SKU: MG-53040
Availability: Low stock: 2 left

Free standard shipping on all orders over $250

Overview

The Magewell Ultra Encode HDMI is a standalone network-connected hardware encoder that takes an HDMI input and delivers H.264/H.265 streams to up to six simultaneous destinations using protocols including SRT, RTMP, RTMPS, NDI HX2, HLS, and MPEG-TS. Built-in Wi-Fi and Gigabit Ethernet provide flexible connectivity, and the device is managed entirely through a web browser or Magewell Control Hub without requiring a host computer.

Key features
  • Standalone HDMI encoder streaming to up to 6 destinations simultaneously
  • Supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, and TVU ISSP protocols
  • Dual-stream H.264/H.265 encoding at up to 16Mbps
  • Native one-click streaming to Twitch, YouTube, and Facebook
  • HDMI 1.4a input up to 4096×2160 60fps 4:2:0; HDMI loop-through output
  • 3.5mm Line In and Line Out for analogue audio
  • Wi-Fi 802.11ac and Gigabit Ethernet connectivity
  • Up to 8 text/image overlays per stream; managed via web browser or Magewell Control Hub
  • No host computer required

Warranty

2-year warranty

Product specs Download
Assembly guide Download

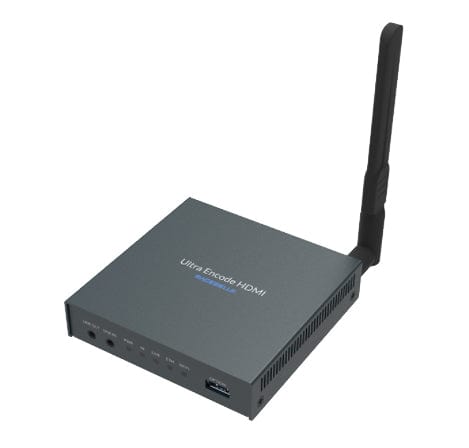

Magewell Ultra Encode HDMI (MG-53040), main product image
$1,070.08
$1,070.08

Technical details

A Flexible & Affordable Universal Encoder

Live H.264/H.265 streaming

Supports streaming protocols including SRT, NDI|HX, HLS & more

Suitable for various network environment

  • Standalone HDMI encoder streaming to up to 6 destinations simultaneously
  • Supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, and TVU ISSP protocols
  • Dual-stream H.264/H.265 encoding at up to 16Mbps
  • Native one-click streaming to Twitch, YouTube, and Facebook
  • HDMI 1.4a input up to 4096×2160 60fps 4:2:0; HDMI loop-through output
  • 3.5mm Line In and Line Out for analogue audio
  • Wi-Fi 802.11ac and Gigabit Ethernet connectivity
  • Up to 8 text/image overlays per stream; managed via web browser or Magewell Control Hub
  • No host computer required
SpecificationDetail
Part Number53040 (current SKU: 53110)
Video Input1 × HDMI 1.4a / DVI-D; max 4096×2160 60fps 4:2:0
HDMI Loop-ThroughYes
EncodingH.264 / H.265 (HEVC); dual-stream; up to 16Mbps
Streaming ProtocolsSRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, TVU ISSP
Audio Ports3.5mm Line In / Line Out
NetworkGigabit Ethernet (RJ45); Wi-Fi 802.11 a/b/g/n/ac
Max Power~8.62W (DC 5V/3A)
Dimensions106.6 × 106.2 × 25mm
Operating Temp0-40°C

Compatibility

  • HDMI video sources including cameras, computers, and presentation systems. Streams to Facebook Live, Twitch, YouTube, and any SRT/RTMP/HLS/NDI HX2-compatible platform or receiver.

Frequently Asked Questions

How many destinations can it stream to at once?

It streams to up to 6 destinations simultaneously, with dual-stream H.264/H.265 encoding at up to 16Mbps and no computer required.

What input resolution does it accept?

It accepts HDMI 1.4a input up to 4096 x 2160 60fps 4:2:0, and has an HDMI loop-through output.

Which streaming protocols are supported?

It supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP and TVU ISSP.

Can it stream directly to YouTube or Facebook?

Yes. It offers native one-click streaming to Twitch, YouTube and Facebook.

How is it connected and managed?

It connects via Wi-Fi or Gigabit Ethernet and is managed through a web browser or Magewell Control Hub.

What warranty is included?

It includes a 2-year warranty.
