By Magewell

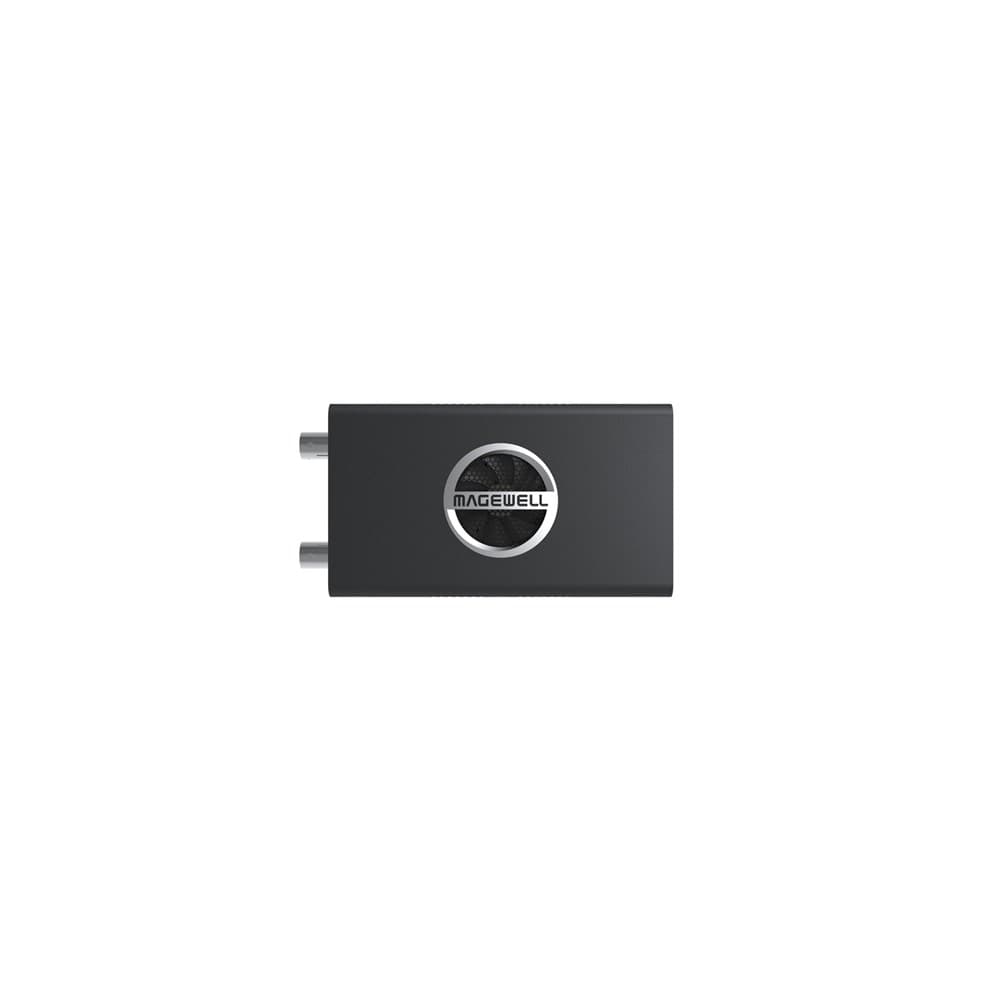

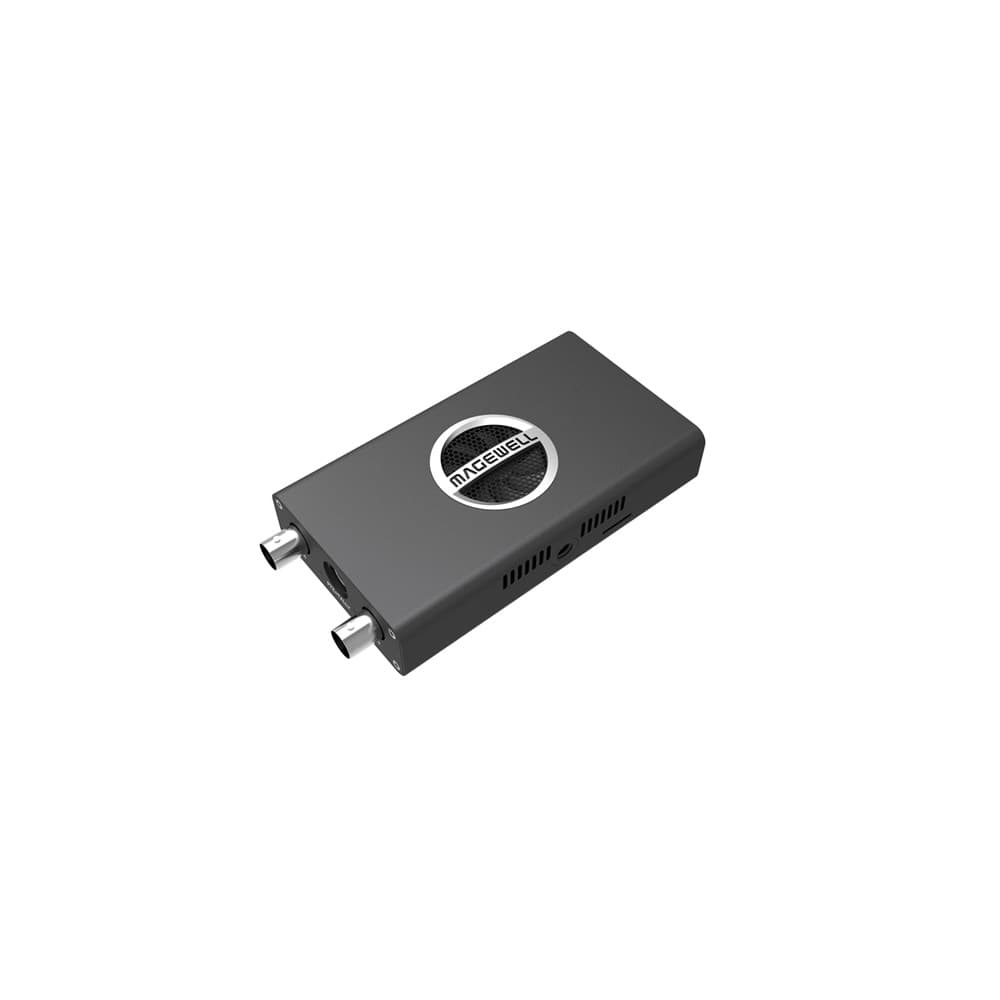

Magewell Pro Convert SDI 4K Plus

$1,983.04
$1,983.04
SKU: MG-640300000
Availability: In stock with supplier

Overview

The Pro Convert SDI 4K Plus is a standalone 6G-SDI-to-NDI encoder that converts a single SDI input, up to 4096x2160 at 30fps, into a Full NDI stream with SDI loop-through for downstream monitoring. It is powered over PoE or USB and configured via web UI or Control Hub, suited to bringing 4K SDI broadcast sources into IP-based live production networks.

Key features
  • 6G-SDI to NDI®: Converts 6G-SDI input up to 4096 x 2160 30fps into Full NDI®.

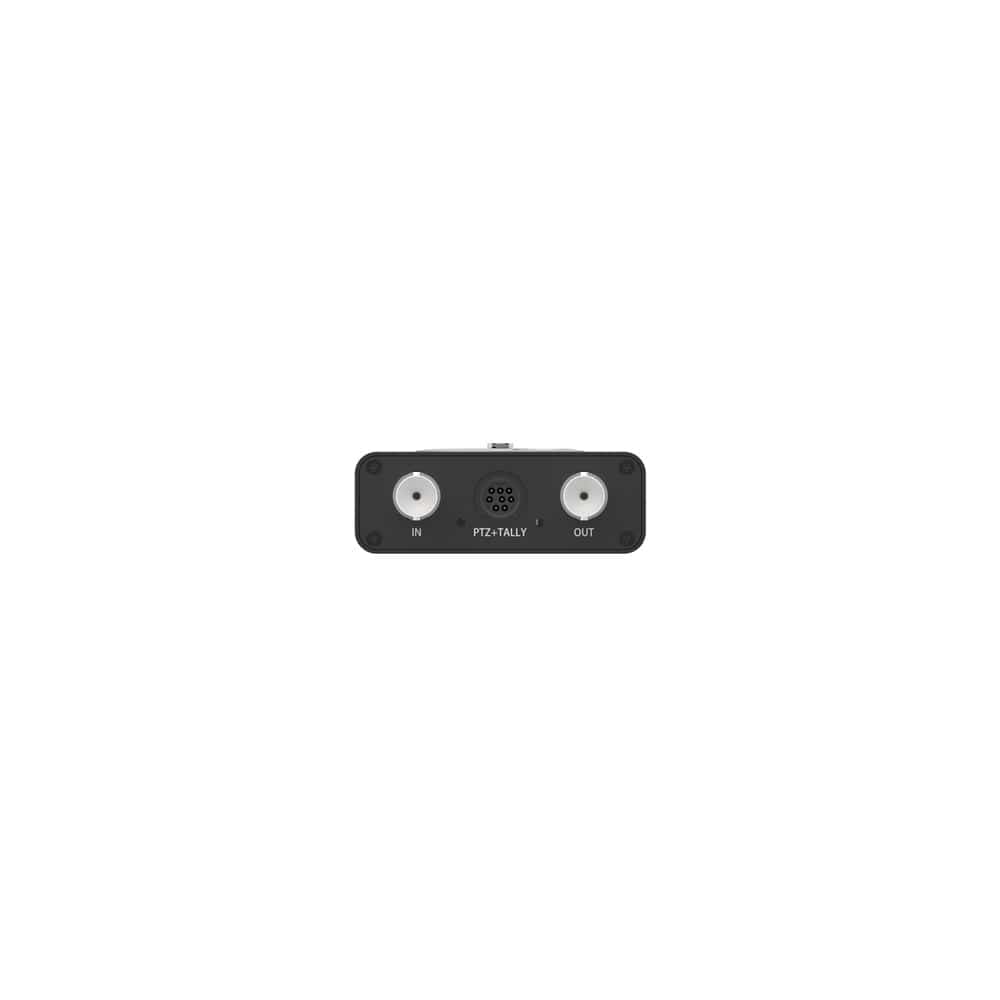

  • SDI Loop-Through: Pass-through output for downstream monitoring.
  • 16-Channel Audio: Supports up to sixteen embedded audio channels.
  • PoE Powered: Gigabit Ethernet with IEEE 802.3af PoE for single-cable install.
  • Plug-and-Play: Automatic input detection and DHCP setup.

Warranty

2-year warranty

Magewell Convert Magewell Pro Convert SDI 4K Plus
$1,983.04
$1,983.04

Technical details

The Magewell Pro Convert SDI 4K Plus is a 6G-SDI-to-NDI® converter that brings 4K SDI sources into IP-based media networks. It is built for broadcast and live production moving to AV-over-IP.

Perfect for 4K broadcast over IP, the Pro Convert SDI 4K Plus connects SDI gear straight into NDI networks.

  • 6G-SDI to NDI®: Converts 6G-SDI input up to 4096 x 2160 30fps into Full NDI®.
  • SDI Loop-Through: Pass-through output for downstream monitoring.
  • 16-Channel Audio: Supports up to sixteen embedded audio channels.
  • PoE Powered: Gigabit Ethernet with IEEE 802.3af PoE for single-cable install.
  • Plug-and-Play: Automatic input detection and DHCP setup.

Frequently Asked Questions

Is there an HD version?

Yes. The Pro Convert SDI Plus converts 3G-SDI up to 2048 x 1080 at 60fps into Full NDI, with SDI loop-through and PoE.

Does it have SDI loop-through?

Yes. An SDI loop-through output allows downstream monitoring.

How many audio channels are supported?

It supports up to 16 embedded audio channels.

Is it PoE powered?

Yes. It supports Gigabit Ethernet with IEEE 802.3af PoE for single-cable installation.

How is it set up?

It is plug-and-play with automatic input detection and DHCP setup.

What's the difference from the 12G SDI 4K Plus?

The SDI 4K Plus accepts 6G-SDI up to 4K 30fps, while the 12G SDI 4K Plus handles 12G-SDI up to 4K 60fps.
