IP Video Decoding and QHD Multiview

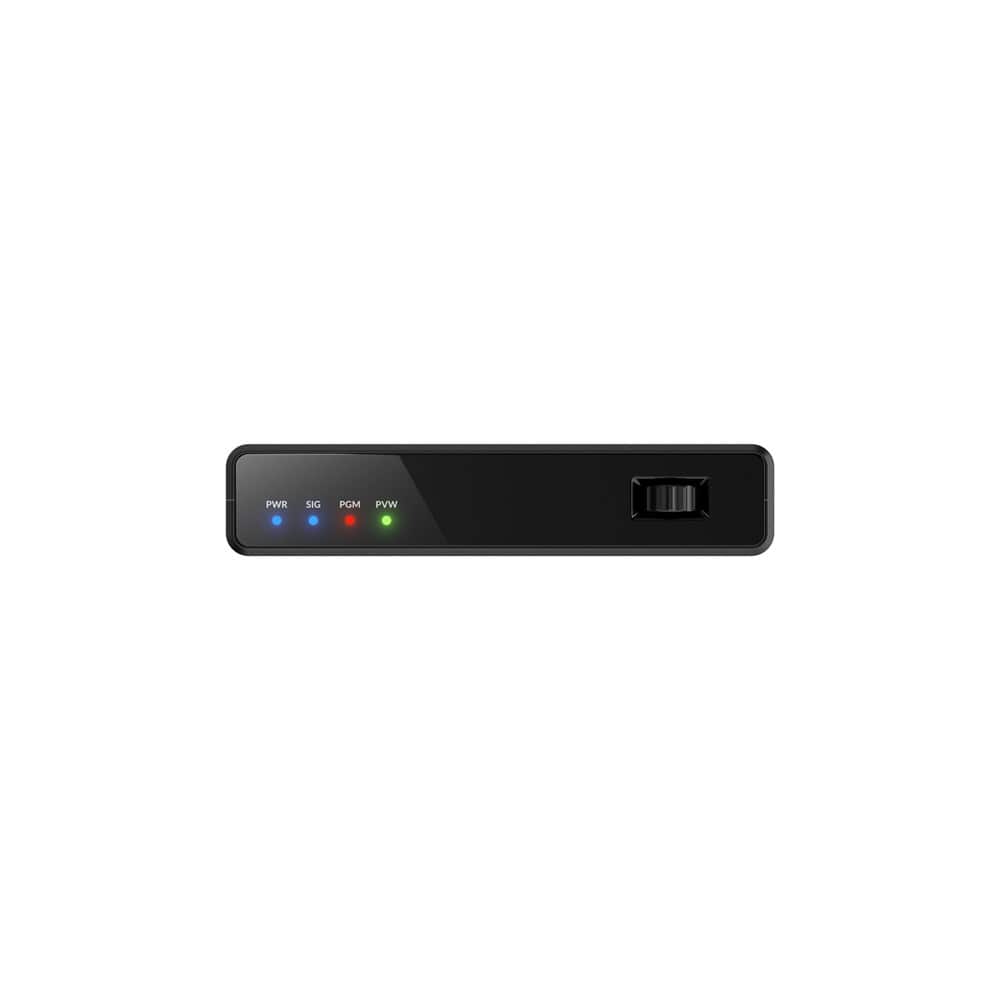

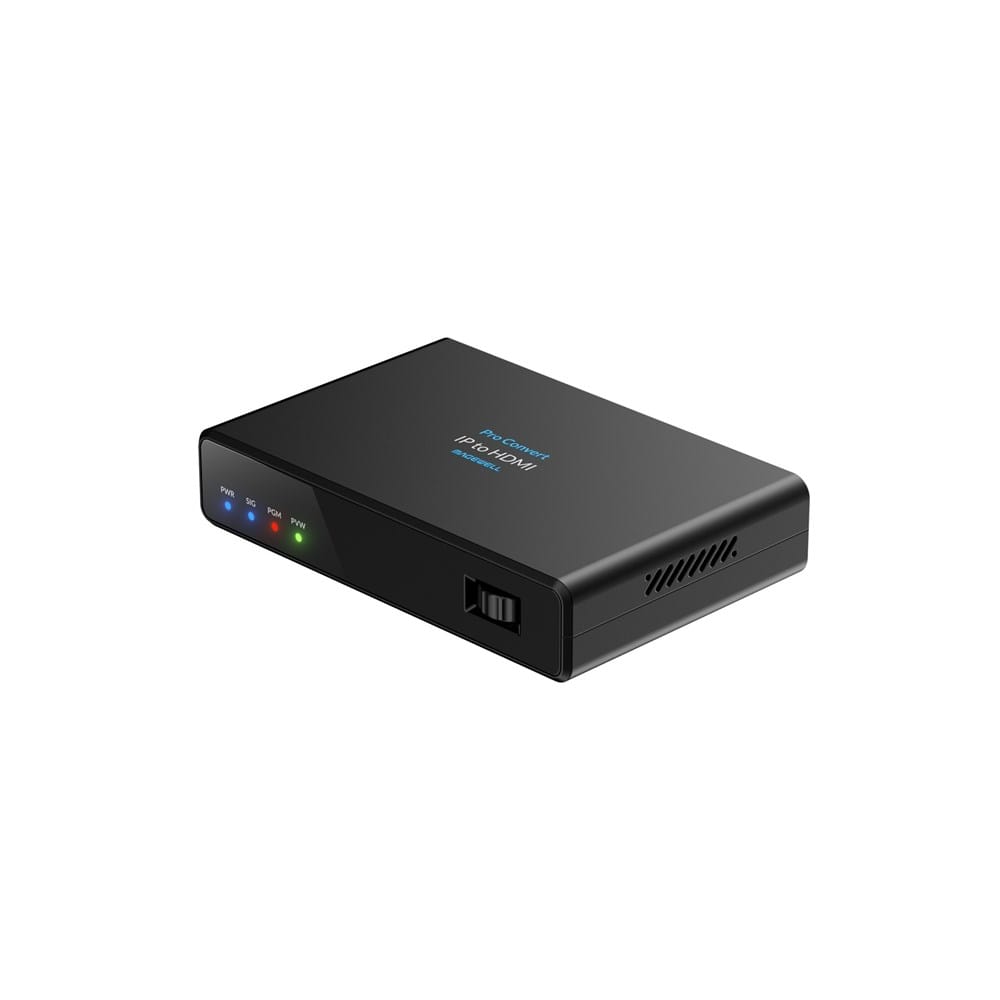

The Magewell Pro Convert IP to HDMI is a standalone decoder that converts up to four IP video streams into a single QHD HDMI output. It supports preset single-view, picture-in-picture and quad-screen layouts for monitoring and production workflows.
With support for NDI and a range of other IP video protocols, Pro Convert IP to HDMI connects network video sources to HDMI displays and equipment. It is suitable for broadcast, security and surveillance, command and control, and other IP-based video applications.
Flexible IP Video Monitoring
Pro Convert IP to HDMI can display a single source full-screen or combine sources in picture-in-picture and quad-screen layouts. In quad-screen mode, it can decode up to four H.264 or H.265 streams at up to 1920 Ć 1080p60 simultaneously.
For single-view use, the decoder supports one stream up to 2560 Ć 1440p60. The web interface also provides real-time stream or image previews to assist with monitoring and configuration.
Broad Protocol and Format Support
The decoder supports NDI High Bandwidth and NDI HX variants, as well as SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI. Video decoding supports H.264, H.265, SpeedHQ and MPEG2, with audio formats including AAC, MP3, AC3, Opus and G.711.
QHD HDMI output supports HDR10, a range of colour spaces and up to eight channels of 48 or 96kHz audio, making the unit suitable for integration with professional displays and monitoring systems.
Configuration and Connectivity

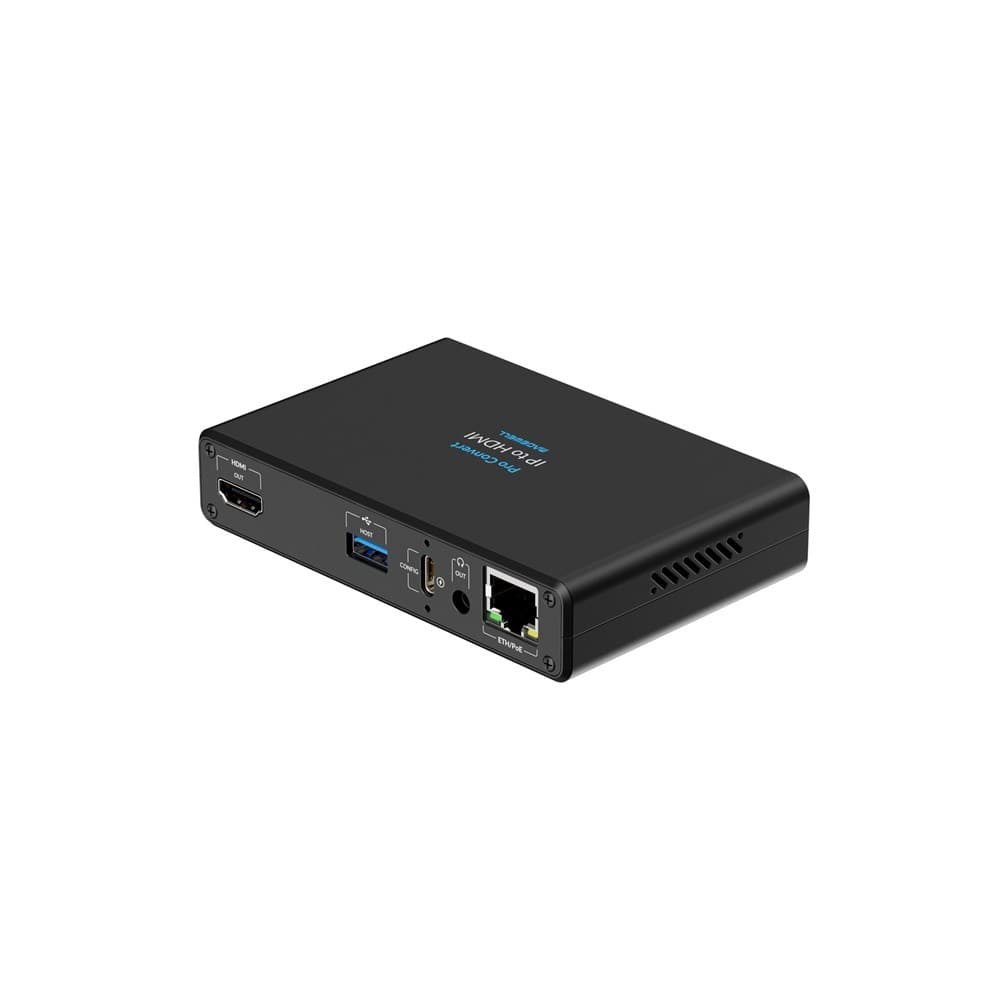

Configuration and device monitoring are available through the web GUI, which supports output preview and PTZ control. The device provides Gigabit Ethernet with PoE and PoE+ support, along with USB connections for power and peripherals.
Compact and standalone, Pro Convert IP to HDMI provides a practical bridge between IP-based video networks and HDMI displays or other baseband equipment.
- Decodes up to four IP video streams into one HDMI output.
- Single-view, picture-in-picture and quad-screen display layouts.
- Decodes one stream up to 2560 Ć 1440p60 in single-view mode.
- Supports up to four 1920 Ć 1080p60 streams in quad-screen mode.
- Supports NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3.
- Supports SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI protocols.
- Decodes H.264, H.265, SpeedHQ and MPEG2 video formats.
- Supports NDI features enabled by NDI SDK 6.x.
- QHD output up to 2560 Ć 1440 at 60fps, 4:4:4 and 10-bit.
- Supports HDR10 and BT.601, BT.709 and BT.2020 colour spaces.
- Outputs up to eight channels of audio at 48 or 96kHz.
- Web GUI provides device monitoring, video preview and PTZ control.
- Gigabit Ethernet supports IEEE 802.3af PoE and 802.3at PoE+.
- USB Type-C power input and USB Type-A peripheral connection.
| Specification | Detail |
|---|---|
| Product type | Standalone IP video decoder with HDMI output |
| Maximum number of IP streams | Up to 4 |
| Display layouts | Single-view, picture-in-picture and quad-screen |
| Maximum single-view decode resolution | 2560 Ć 1440p60 |
| Maximum quad-screen decode | 4 Ć 1920 Ć 1080p60 |
| Supported protocols | NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI |
| Supported video formats | H.264, H.265, SpeedHQ and MPEG2 |
| Supported audio formats | AAC, MP3, AC3, Opus and G.711 |
| Maximum output | 2560 Ć 1440 at 60fps, 4:4:4, 10-bit |
| HDR and colour spaces | HDR10; BT.601, BT.709 and BT.2020 |
| Audio output | Up to 8 channels at 48 or 96kHz |
| HDMI interface | HDMI 1.4 |
| Network interface | 10/100/1000 Mbps Ethernet; IEEE 802.3af PoE and 802.3at PoE+ |
| USB interfaces | USB 3.0 Type-C power input; USB 3.0 Type-A for peripherals |
| Dimensions | 120 Ć 79.3 Ć 24.5mm |
Compatibility
- Supports NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3.
- Supports SRT, TS over RTP/UDP, RTMP, RTSP, HLS and ZIXI protocols.
- Supports NDI features enabled by NDI SDK 6.x.
