By Magewell

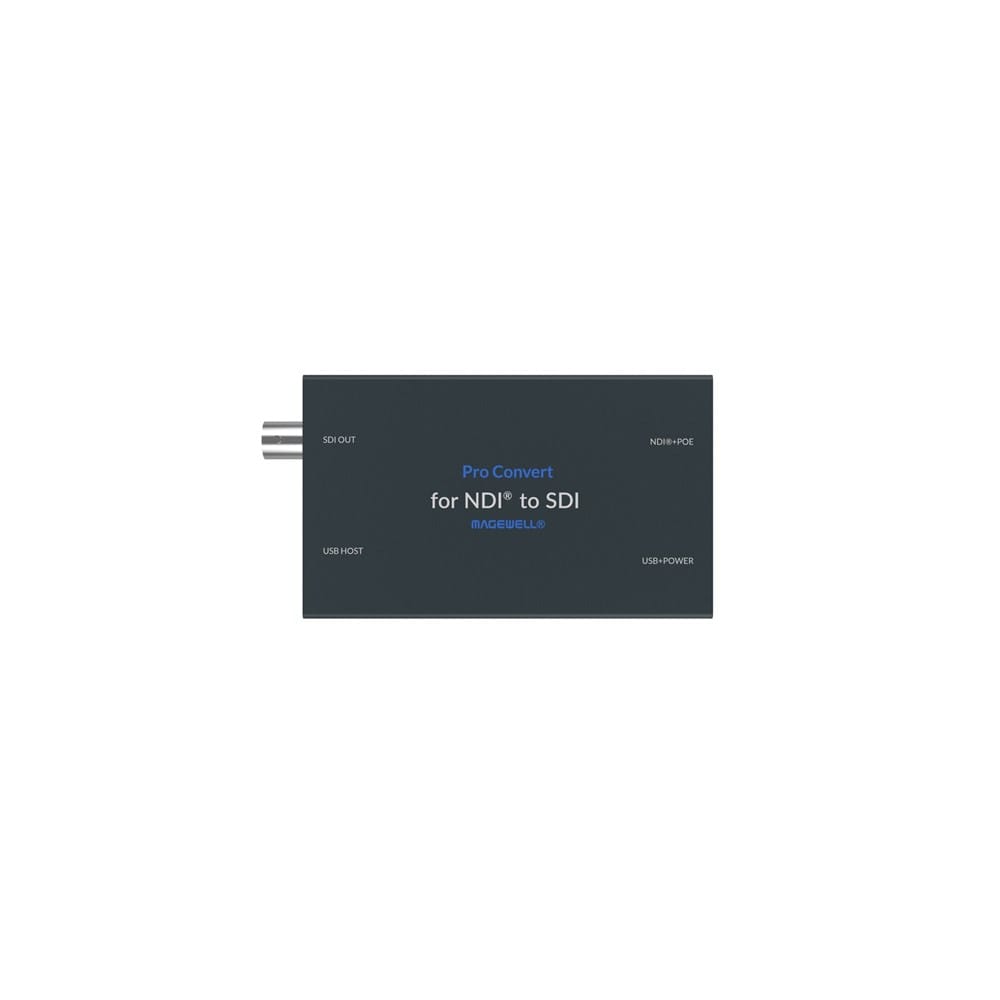

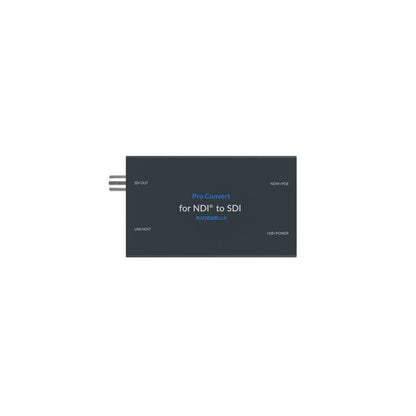

Magewell Pro Convert for NDI to SDI

$895.93
$895.93
SKU: MG-641500000
Availability: In stock with supplier

Overview

The Magewell Pro Convert for NDI to SDI is a standalone hardware decoder that converts a live NDI stream into a baseband 3G-SDI signal of up to 1920x1080 at 60fps. It decodes NDI High Bandwidth and NDI HX/HX2/HX3 streams as well as RTSP, HTTP, HLS and RTMP pull/push and MPEG-TS over UDP/SRT/RTP, and supports native CEA-608/708 captions.

Key features

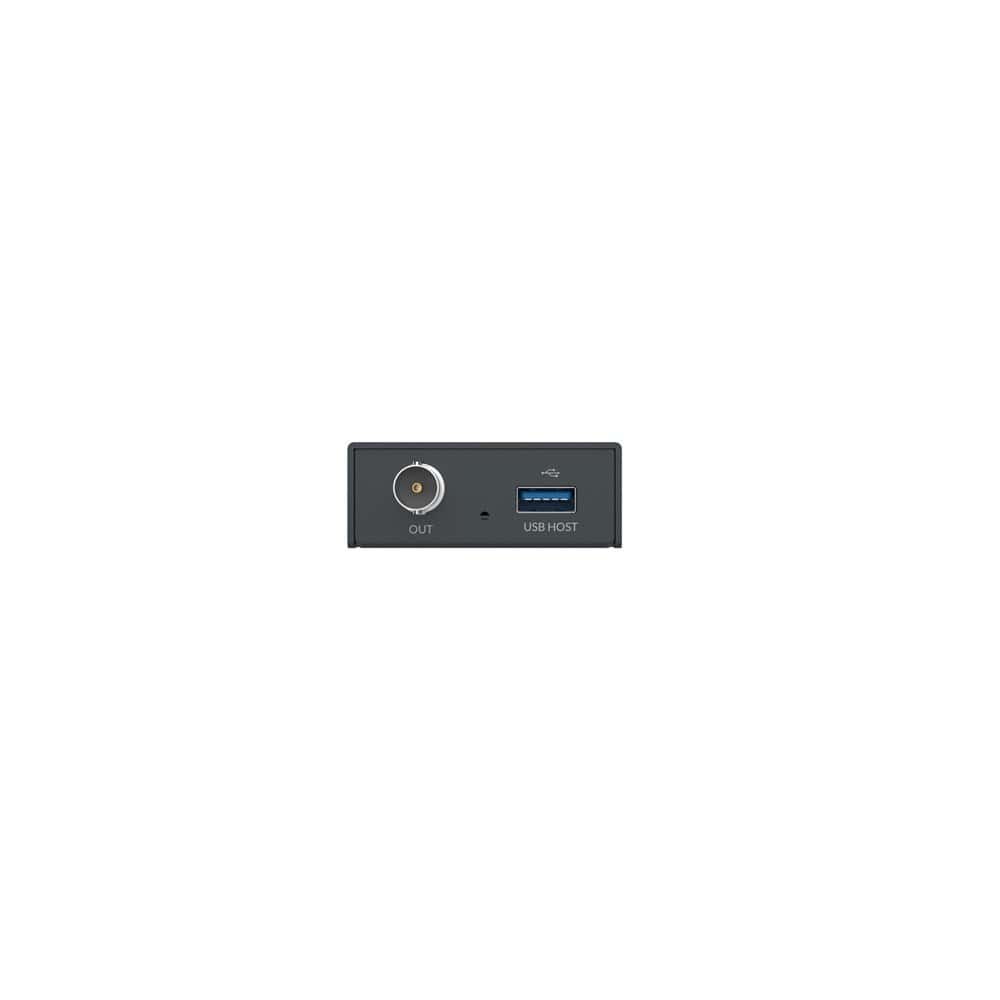

  • IP to 3G-SDI: Decodes live streams into a 3G-SDI output.
  • Flexible Decoding: Decodes NDI High Bandwidth and high-efficiency NDI HX.
  • Broad Protocol Support: Also supports SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP.

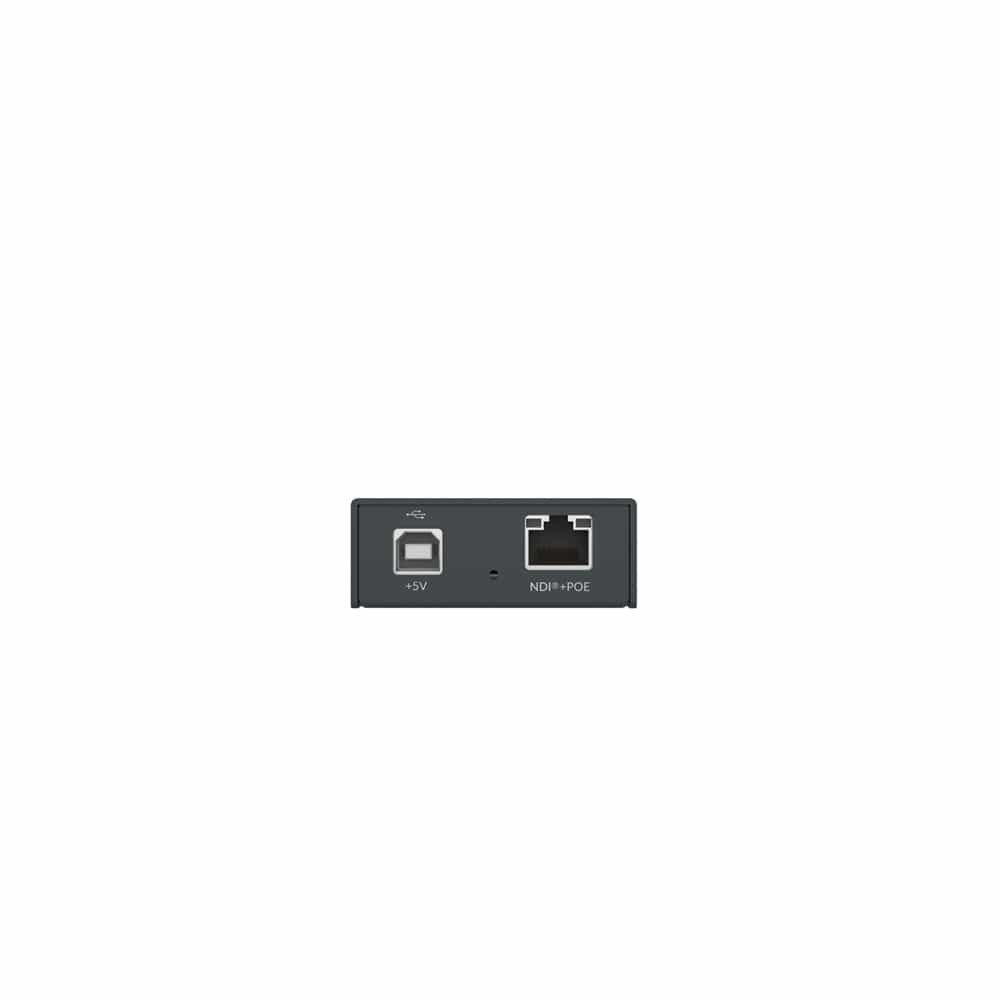

  • Gigabit Ethernet: Single network connection for IP-based signal input.

Warranty

2-year warranty

Magewell Convert Magewell Pro Convert for NDI to SDI
$895.93
$895.93

Technical details

The Magewell Pro Convert for NDI to SDI is an IP-to-SDI decoder that bridges NDI® networks back to baseband SDI infrastructure. It is ideal for feeding switchers, monitors and broadcast gear from an IP workflow.

Perfect for bridging IP and baseband, the Pro Convert for NDI to SDI feeds SDI equipment from your NDI network.

  • IP to 3G-SDI: Decodes live streams into a 3G-SDI output.
  • Flexible Decoding: Decodes NDI High Bandwidth and high-efficiency NDI HX.
  • Broad Protocol Support: Also supports SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP.
  • Gigabit Ethernet: Single network connection for IP-based signal input.

Frequently Asked Questions

Does it output 3G-SDI?

Yes. It decodes live IP streams into a 3G-SDI output, bridging your NDI network back to baseband SDI infrastructure.

Which NDI formats does it decode?

It decodes NDI High Bandwidth and high-efficiency NDI HX.

What other protocols are supported?

It also supports SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP.

How does it connect to the network?

It uses a single Gigabit Ethernet connection.

What equipment can it feed?

It can feed switchers, monitors and other broadcast gear with SDI inputs.

Does it output HDMI?

No. It outputs SDI only. For HDMI and SDI together, see the Pro Convert for NDI to AIO.
