By Magewell

Magewell Pro Capture Quad SDI

$2,061.66
$2,061.66
SKU: MG-110900000
Availability: Low stock: 2 left

Overview

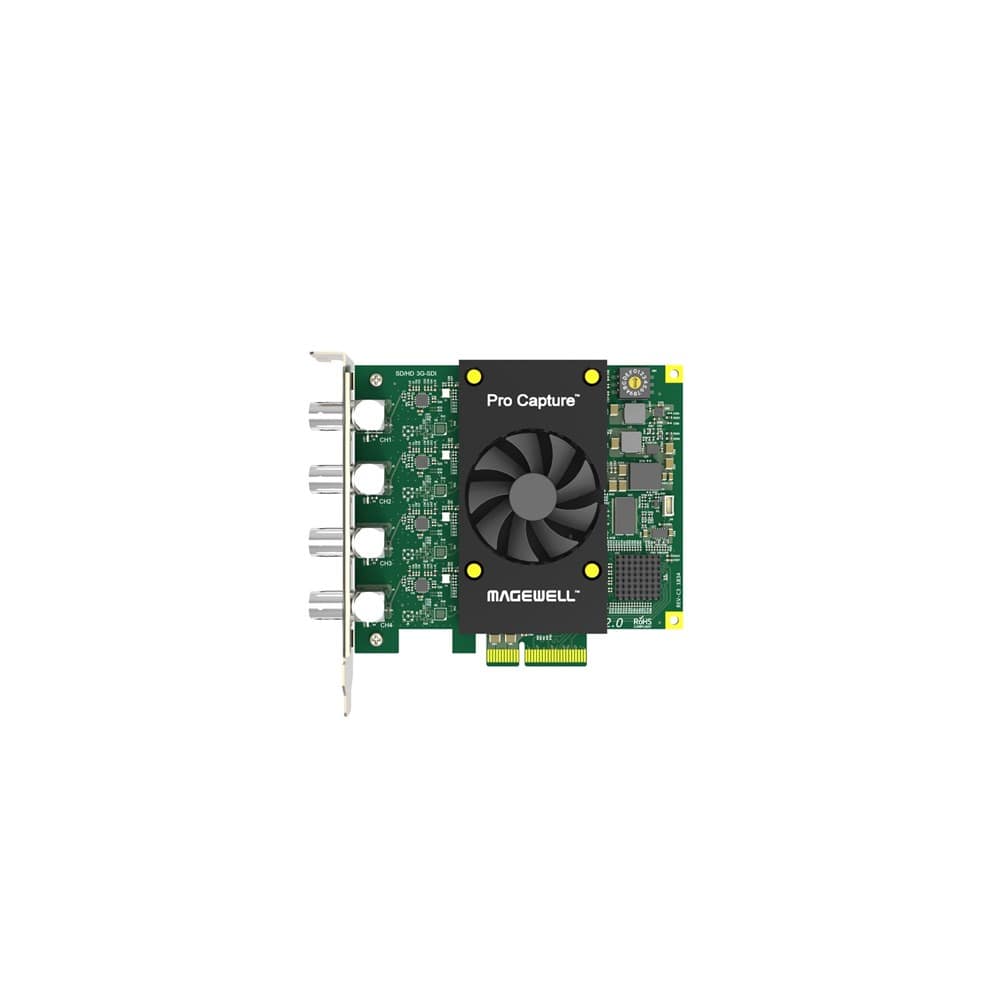

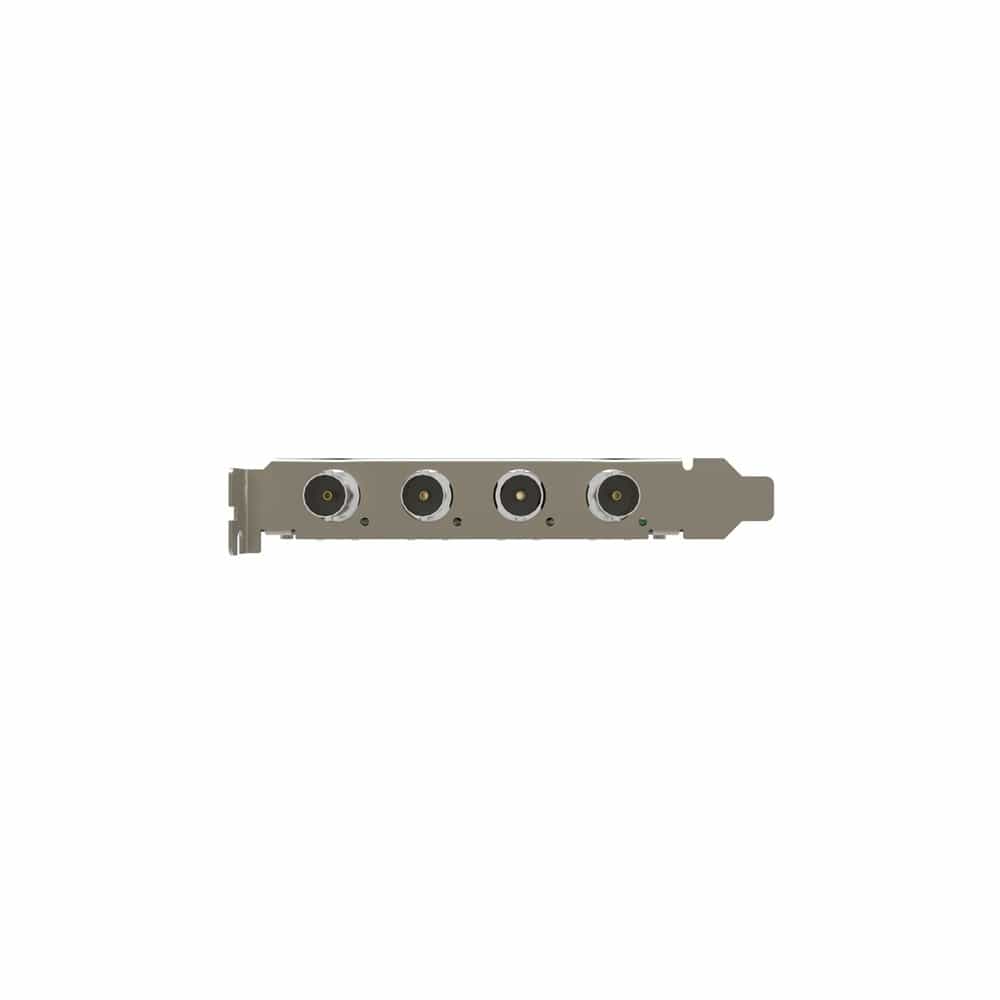

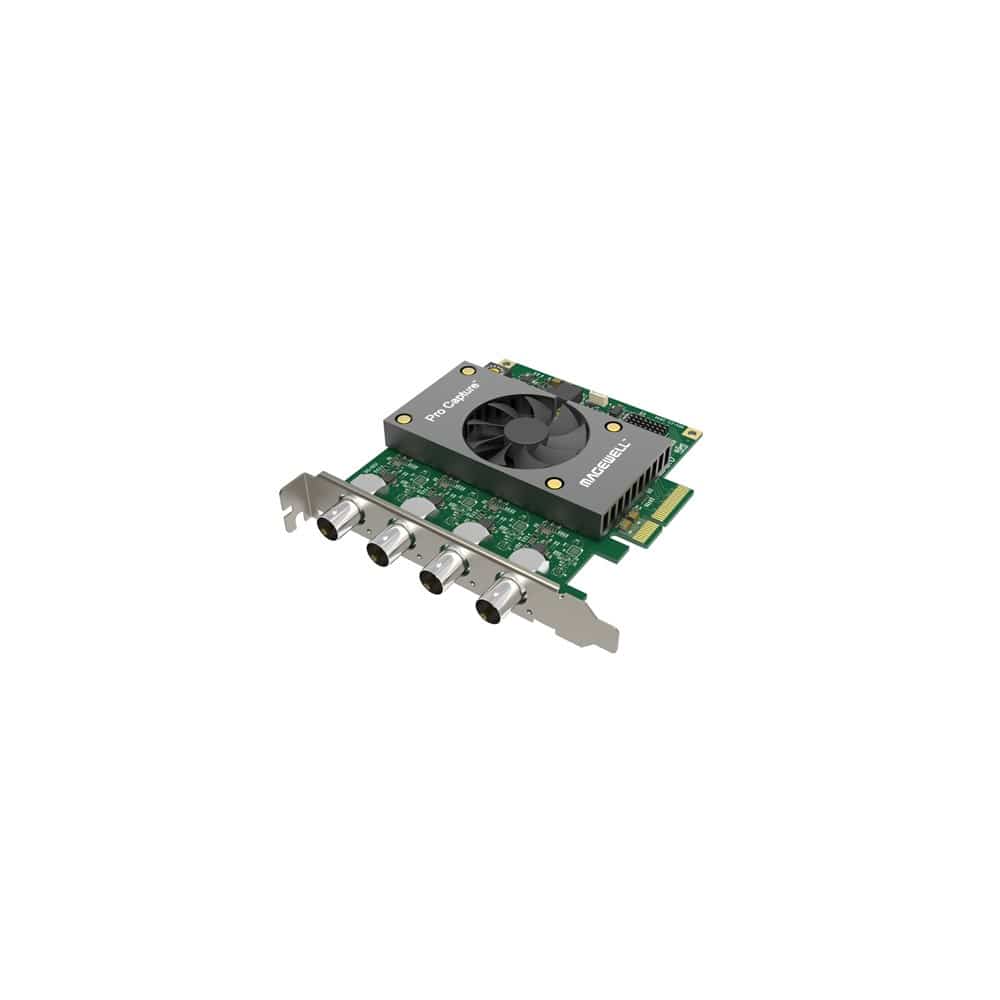

Magewell Pro Capture Quad SDI is a four-channel PCIe Gen2 x4 video capture card with four BNC SD/HD/3G-SDI inputs, designed for multi-camera broadcast and live event production. It captures up to four independent SD/HD/3Ga/3Gb/2K SDI feeds at resolutions up to 2048x2160 and frame rates up to 144fps, with an integrated cable equalizer extending usable cable runs and near-zero CPU load thanks to hardware-based FPGA processing.

Key features
  • Four SDI Channels: Captures four independent SD/HD/3G/2K SDI sources on one card.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Long Cable Support: Integrated cable equalizer handles SD-SDI runs up to 330m.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for reliable multi-channel capture.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell Pro Capture Quad SDI
$2,061.66
$2,061.66

Technical details

The Magewell Pro Capture Quad SDI is a four-channel SDI PCIe capture card for multi-camera broadcast and production. It captures up to four SD/HD/3G/2K SDI sources on a single card with near-zero CPU load.

Perfect for multi-camera broadcast and live events, the Pro Capture Quad SDI captures four SDI feeds on a single card.

  • Four SDI Channels: Captures four independent SD/HD/3G/2K SDI sources on one card.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Long Cable Support: Integrated cable equalizer handles SD-SDI runs up to 330m.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for reliable multi-channel capture.

Frequently Asked Questions

How many SDI sources can it capture?

It captures four independent SD, HD, 3G or 2K SDI sources on one card.

What resolution does it support?

It supports resolutions up to 2048 x 2160 at frame rates up to 144fps.

How long can SDI cable runs be?

The integrated cable equalizer handles SD-SDI runs up to 330 m.

Does it use much CPU?

No. FPGA-based hardware capture keeps CPU usage extremely low.

What PCIe interface does it use?

It uses a PCIe Gen2 x4 interface.

Is there a two-channel version with loop-through?

Yes. The Pro Capture Dual SDI captures two SDI sources and adds two SDI loop-through outputs for downstream monitoring.
