By Magewell

Magewell Pro Capture HDMI 4K Plus

$2,061.66
$2,061.66
SKU: MG-111500000
Availability: In stock with supplier

Overview

The Magewell Pro Capture HDMI 4K Plus is a single-channel HDMI PCIe capture card that captures resolutions up to 4096x2160 with HDR10 support, using a 594MHz HDMI receiver and full colorimetry support. It connects via PCIe Gen2 x4 and provides hardware-based FPGA video processing for cropping, scaling, de-interlacing and color format conversion, making it suitable for high-resolution 4K live production, broadcast and streaming applications.

Key features
  • 4K HDMI Capture: Captures HDMI up to 4096 x 2160 at 60fps.
  • High Frame Rates: Supports capture frame rates up to 144fps, such as 1080p144.
  • HDR10 Support: Captures high dynamic range content with a 594MHz HDMI receiver.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for smooth 4K capture.

Warranty

2-year warranty

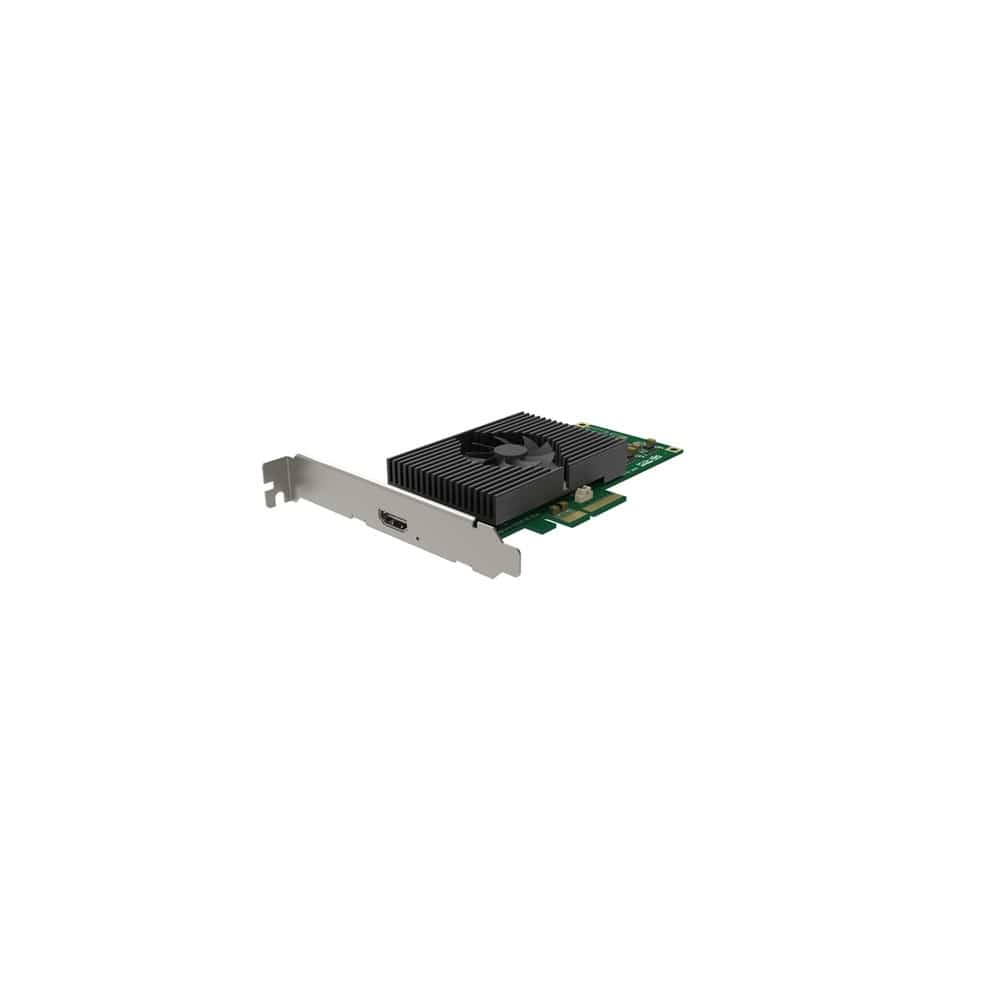

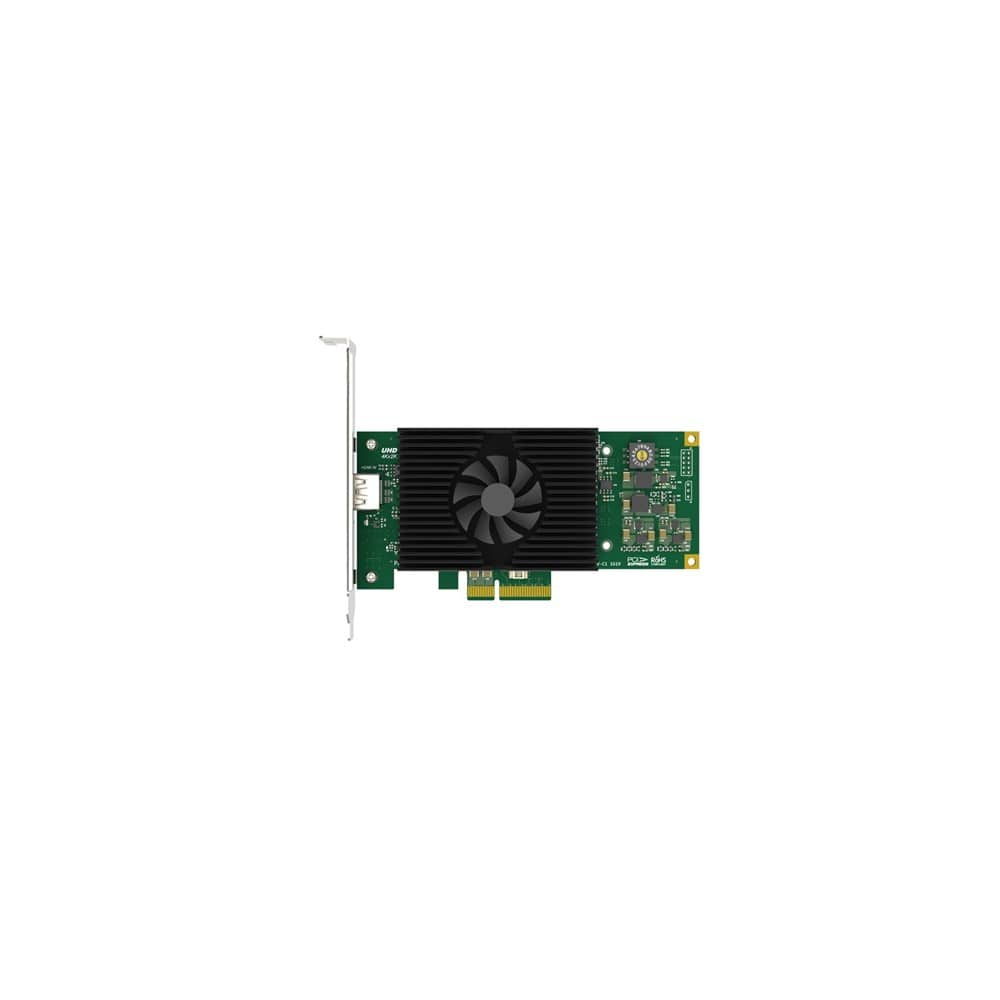

Magewell I/O (Capture) Magewell Pro Capture HDMI 4K Plus
$2,061.66
$2,061.66

Technical details

The Magewell Pro Capture HDMI 4K Plus is a high-performance single-channel 4K HDMI PCIe capture card with HDR support. It is built for professional streaming, production and recording at the highest quality.

Perfect for premium 4K streaming and production, the Pro Capture HDMI 4K Plus delivers top-tier HDMI capture with HDR.

  • 4K HDMI Capture: Captures HDMI up to 4096 x 2160 at 60fps.
  • High Frame Rates: Supports capture frame rates up to 144fps, such as 1080p144.
  • HDR10 Support: Captures high dynamic range content with a 594MHz HDMI receiver.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for smooth 4K capture.

Frequently Asked Questions

What resolution does the Pro Capture HDMI 4K Plus support?

It captures HDMI at up to 4096 x 2160 at 60fps.

Can it capture high frame rates?

Yes. It supports capture frame rates up to 144fps, such as 1080p144.

Does it support HDR?

Yes. It supports HDR10 capture with a 594MHz HDMI receiver.

Does it use much CPU?

No. FPGA-based hardware capture keeps CPU usage extremely low.

What PCIe interface does it use?

It uses a PCIe Gen2 x4 interface.

Does it have HDMI loop-through?

No. If you need loop-through for monitoring, choose the Pro Capture HDMI 4K Plus LT.
