Magewell Pro Capture Dual SDI 4K Plus

$4,499.30
$4,499.30
SKU: MG-112700000
Availability: In stock with supplier

Overview

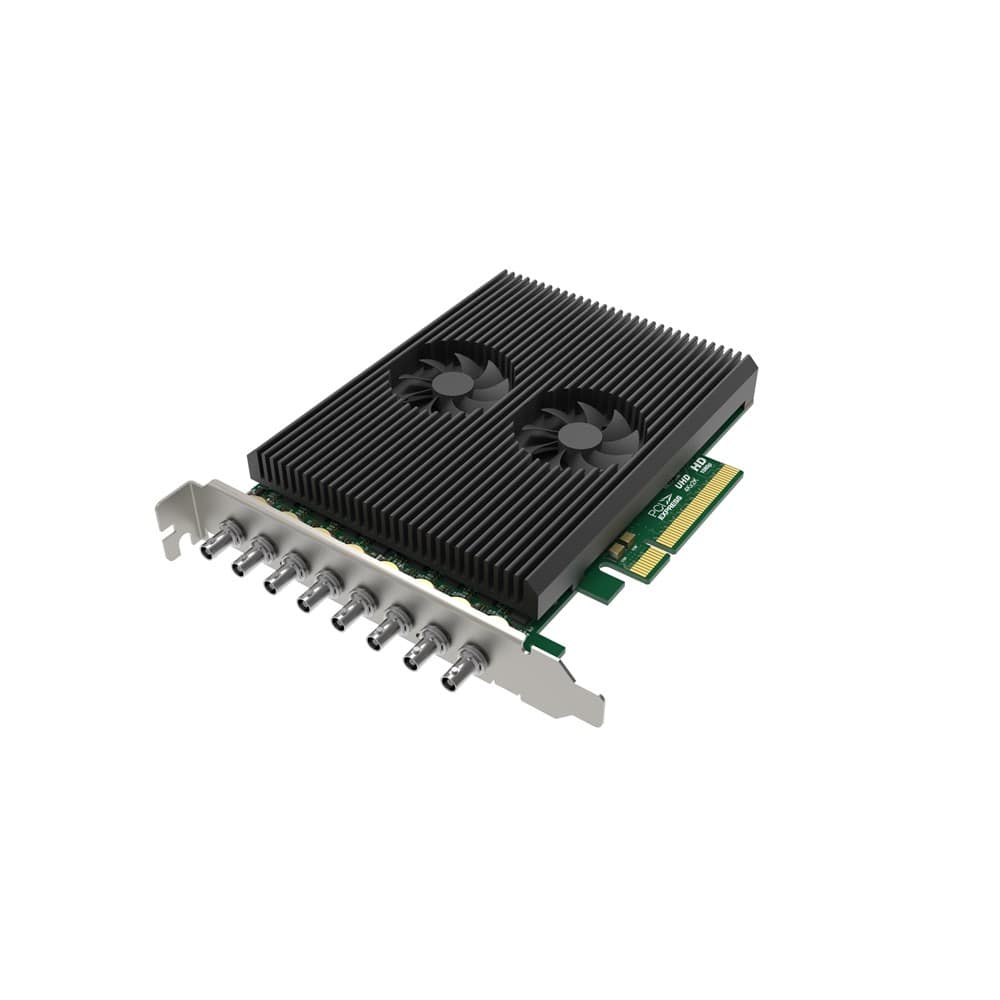

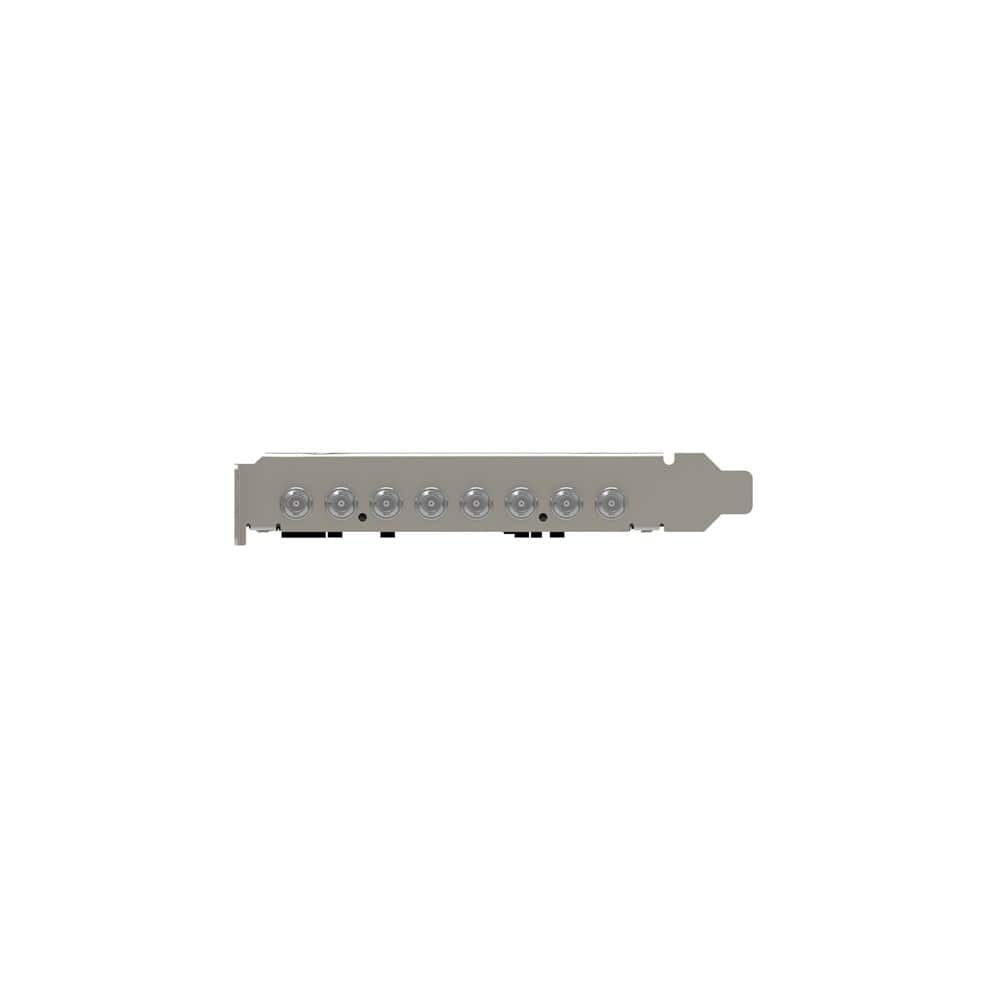

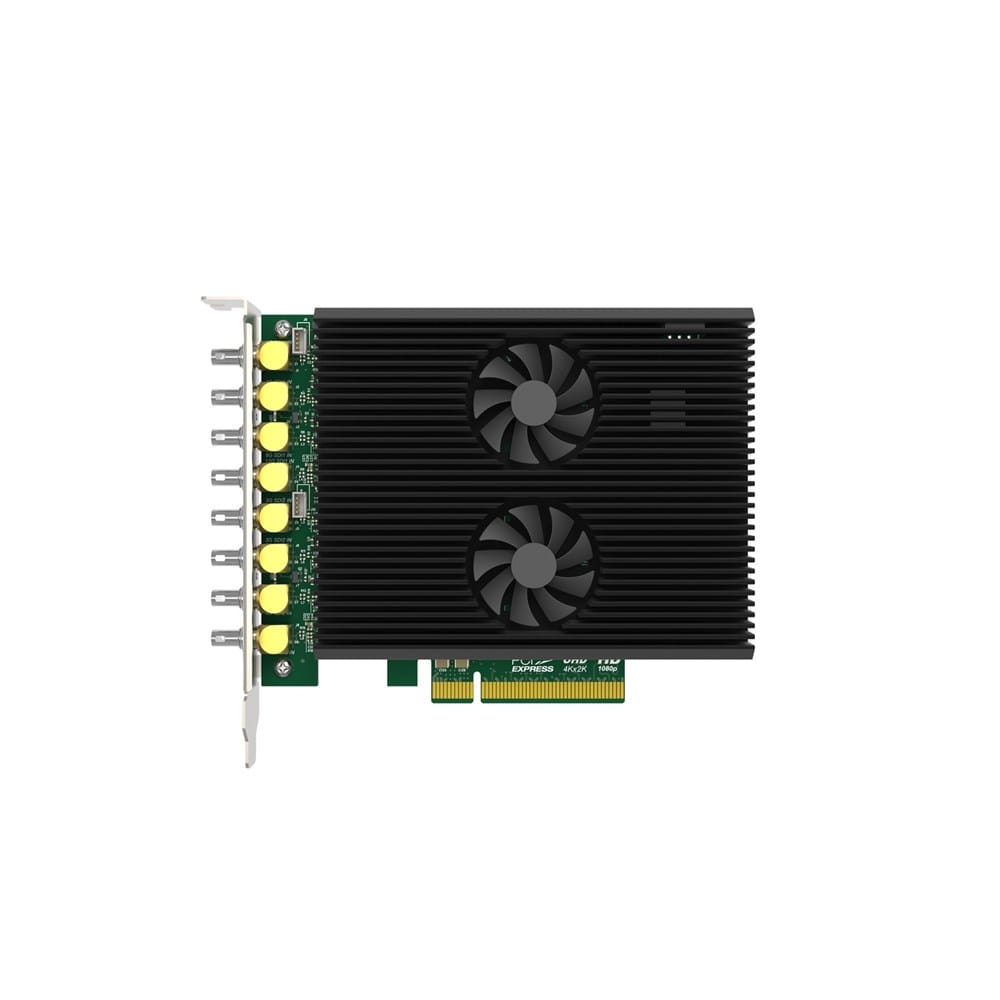

The Pro Capture Dual SDI 4K Plus is a two-channel SDI PCIe capture card with eight HD-BNC input connectors supporting SD/HD/3G/6G/12G-SDI, including single-link, dual-link and quad-link input for 4K sources. It connects via PCIe Gen2 x8, captures resolutions up to 4096x2160 at frame rates up to 144fps, and includes an integrated cable equalizer to extend SDI cable runs.

Key features
  • Dual 12G-SDI: Captures two independent 12G-SDI channels at up to 4096 x 2160.
  • Auto Link Detection: Also supports dual-link 6G-SDI and quad-link 3G-SDI automatically.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x8: High-bandwidth interface for reliable dual 4K SDI capture.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell Pro Capture Dual SDI 4K Plus
$4,499.30
$4,499.30

Technical details

The Magewell Pro Capture Dual SDI 4K Plus is a two-channel 4K SDI PCIe capture card supporting 12G-SDI per channel with auto link detection. It is designed for high-resolution multi-camera broadcast.

Ideal for 4K multi-camera broadcast, the Pro Capture Dual SDI 4K Plus captures two 12G-SDI feeds on one card.

  • Dual 12G-SDI: Captures two independent 12G-SDI channels at up to 4096 x 2160.
  • Auto Link Detection: Also supports dual-link 6G-SDI and quad-link 3G-SDI automatically.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x8: High-bandwidth interface for reliable dual 4K SDI capture.

Frequently Asked Questions

What does the Pro Capture Dual SDI 4K Plus capture?

It captures two independent 12G-SDI channels at up to 4096 x 2160.

Does it support multi-link SDI?

Yes. Auto link detection supports dual-link 6G-SDI and quad-link 3G-SDI.

What frame rates are supported?

It supports capture frame rates up to 144fps.

Does it use much CPU?

No. FPGA-based hardware processing keeps CPU usage extremely low.

What PCIe interface does it use?

It uses a PCIe Gen2 x8 interface for reliable dual 4K SDI capture.

Is there a single-channel version?

Yes. The Pro Capture SDI 4K Plus captures one 12G-SDI channel at up to 4096 x 2160, with 12G-SDI cable runs up to 40m, on PCIe Gen2 x4.
