By Magewell

Magewell Pro Capture AIO 4K Plus

$2,185.61
$2,185.61
SKU: MG-111400000
Availability: In stock with supplier

Overview

The Magewell Pro Capture AIO 4K Plus is an all-in-one, single-channel PCIe capture card that accepts either HDMI (up to HDMI 2.0) or SDI (up to 6G-SDI) input on the same board, capturing resolutions up to 4096x2160 with HDR10 support.

Key features
  • HDMI or SDI 4K: Captures HDMI 2.0 or up to 6G-SDI at up to 4096 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • HDR10 Support: Captures high dynamic range content with a 594MHz HDMI receiver.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for reliable 4K capture.

Warranty

2-year warranty

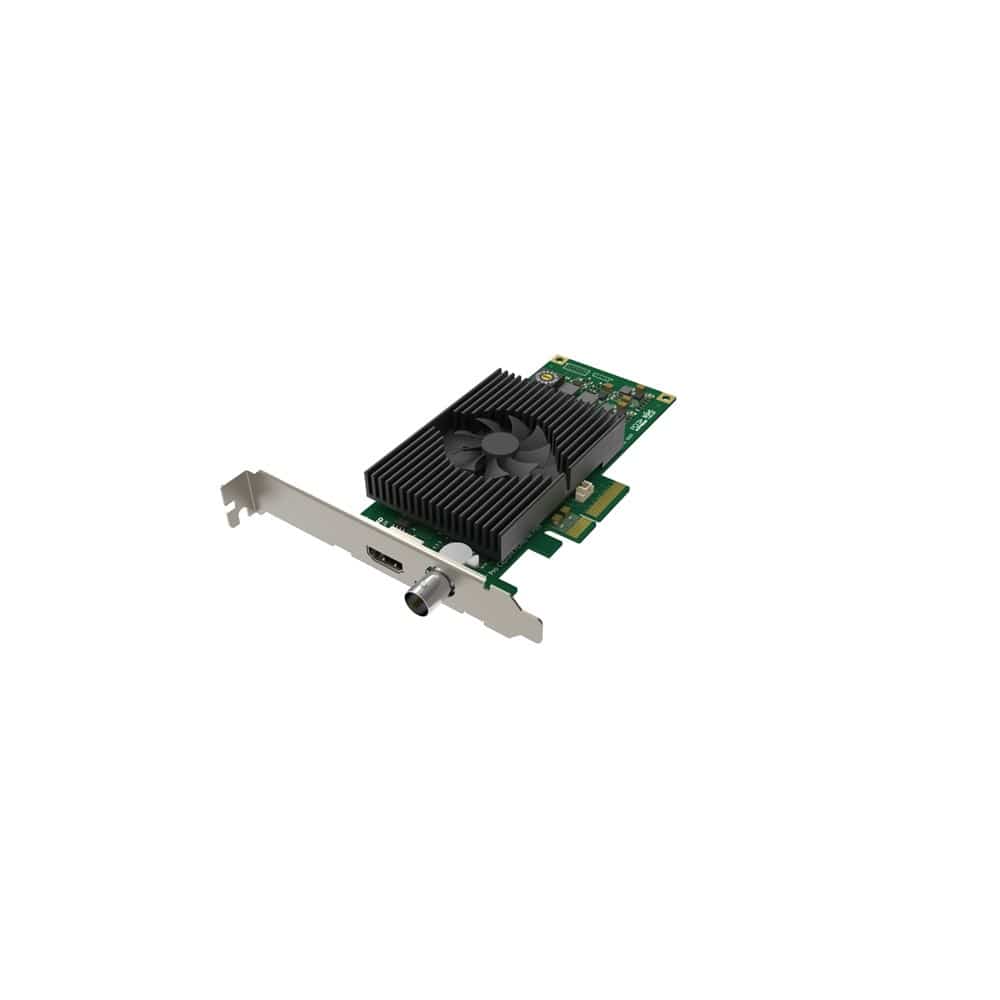

Magewell I/O (Capture) Magewell Pro Capture AIO 4K Plus
$2,185.61
$2,185.61

Technical details

The Magewell Pro Capture AIO 4K Plus is an all-in-one 4K PCIe capture card that captures either HDMI or SDI signals with HDR support. It combines format flexibility with high-performance 4K capture for demanding production.

Ideal for flexible 4K production, the Pro Capture AIO 4K Plus handles both HDMI and SDI in a single high-performance card.

  • HDMI or SDI 4K: Captures HDMI 2.0 or up to 6G-SDI at up to 4096 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • HDR10 Support: Captures high dynamic range content with a 594MHz HDMI receiver.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x4: High-bandwidth interface for reliable 4K capture.

Frequently Asked Questions

What inputs does the Pro Capture AIO 4K Plus accept?

It captures either HDMI 2.0 or SDI up to 6G-SDI.

What is the maximum resolution?

It captures at up to 4096 x 2160, with frame rates up to 144fps.

Does it support HDR?

Yes. It supports HDR10 capture with a 594MHz HDMI receiver.

Does it use much CPU?

No. FPGA-based hardware processing keeps CPU usage extremely low.

What PCIe interface does it use?

It uses a PCIe Gen2 x4 interface for reliable 4K capture.

Can it capture 12G-SDI?

No. Its SDI input supports up to 6G-SDI. For 12G-SDI, the Pro Capture SDI 4K Plus captures single-link 12G-SDI at up to 4096 x 2160.
