By Magewell

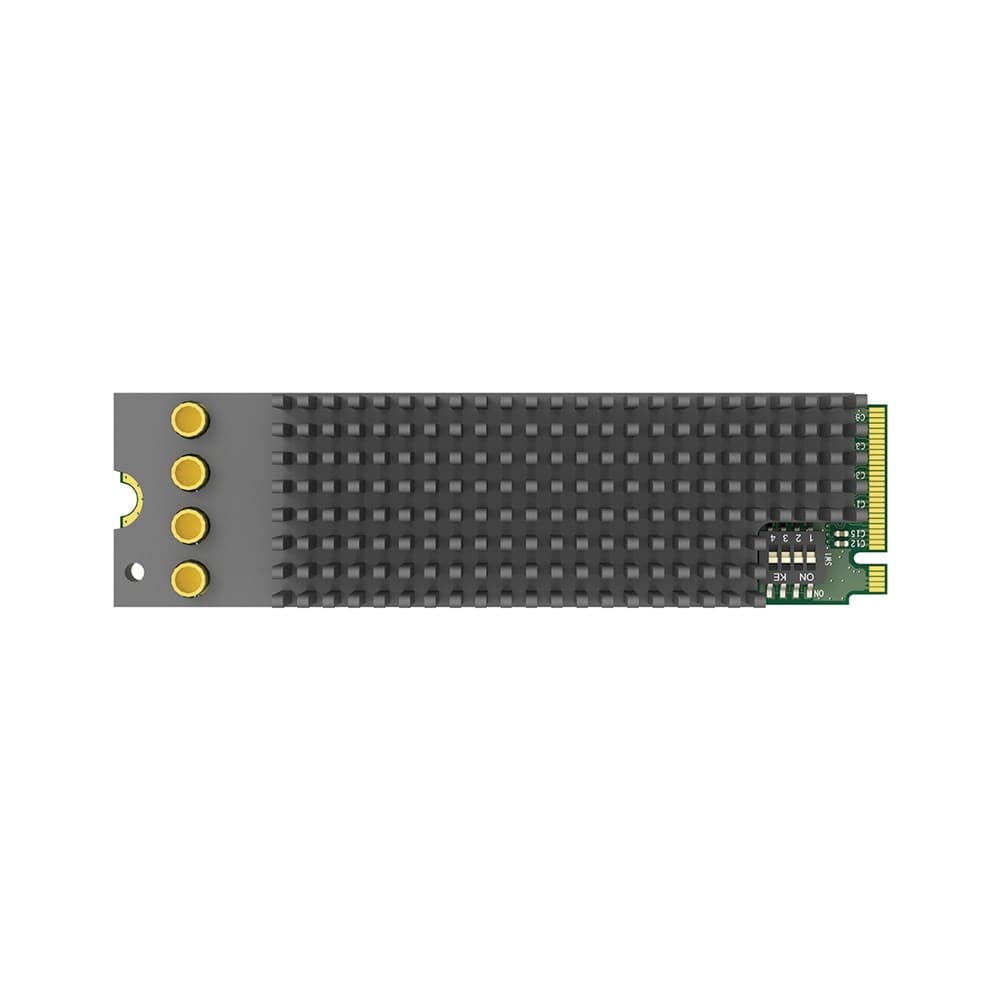

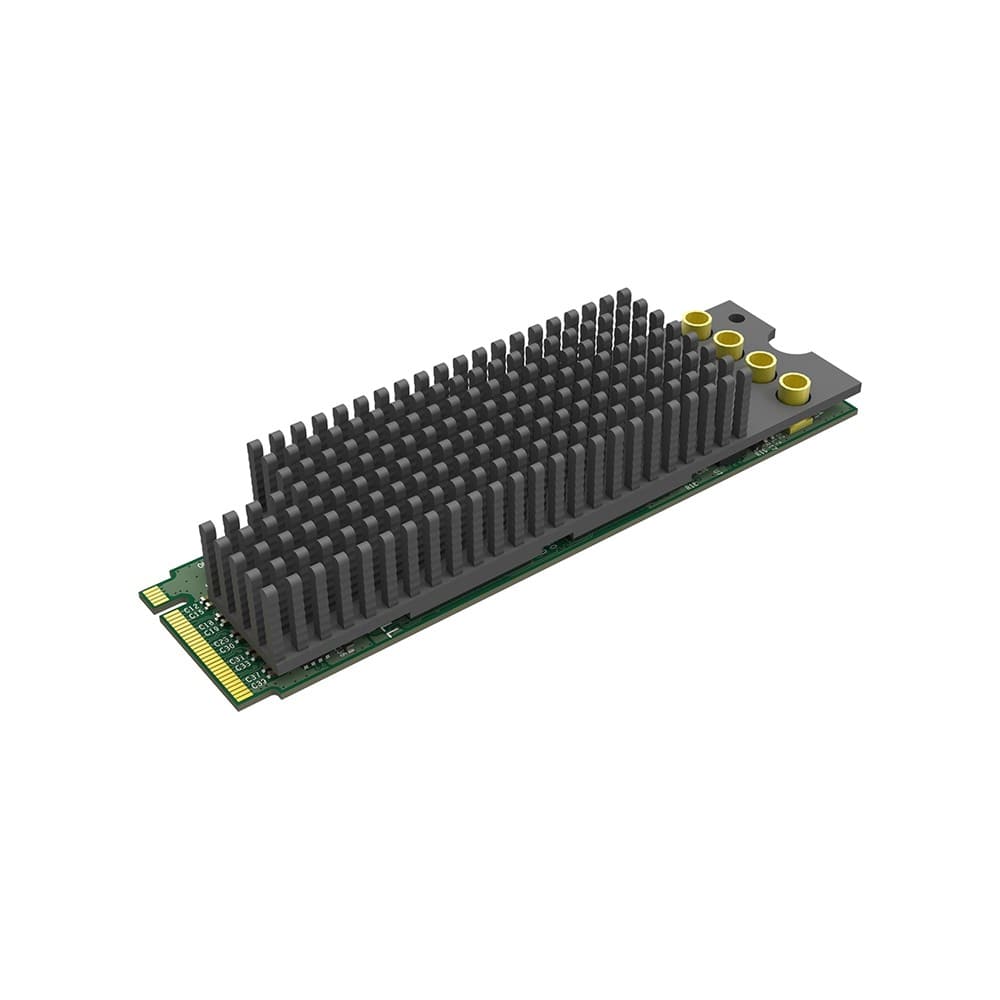

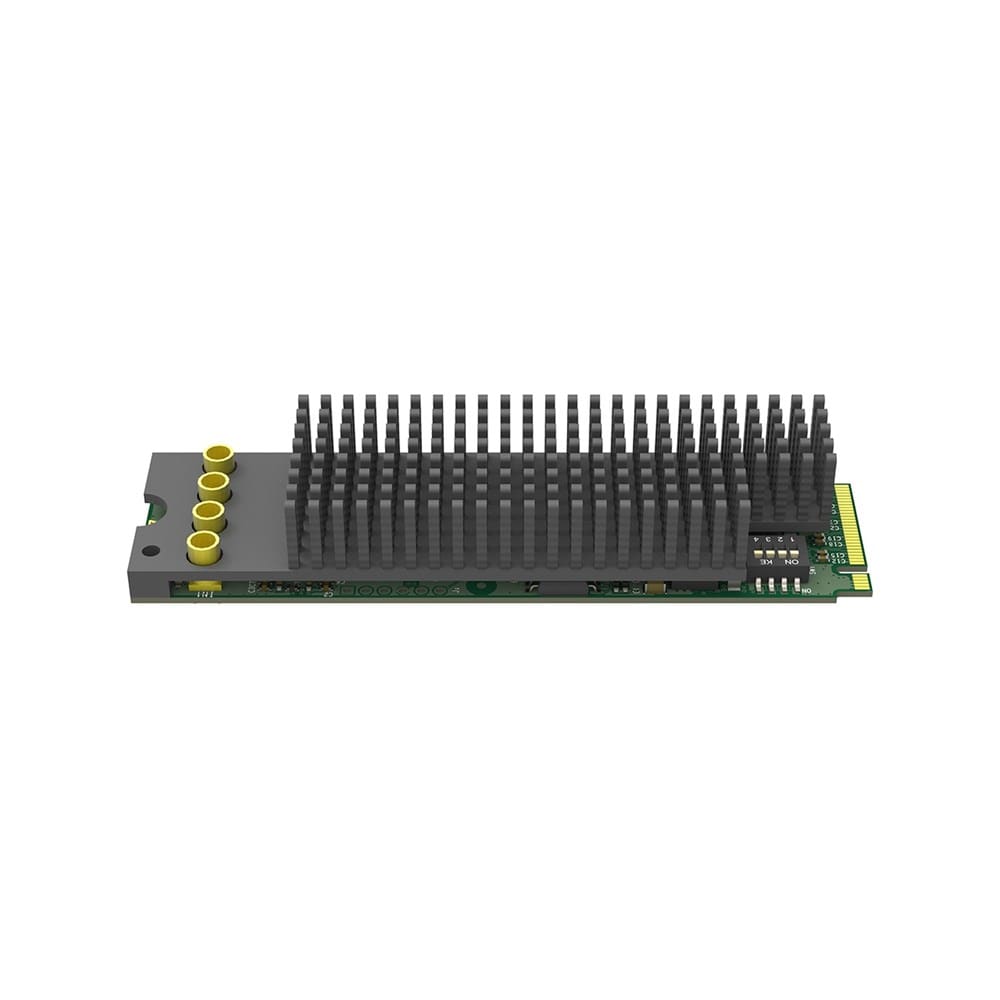

Magewell Eco Capture quad SDI M.2

$1,607.19
$1,607.19
SKU: MG-115400000
Availability: In stock with supplier

Overview

The Magewell Eco Capture Quad SDI M.2 is a compact M.2 2280 capture card that provides four independent SD/HD/3G/2K SDI input channels on a single low-power module. It connects via a PCIe Gen2 x4 M.2 (Type M) host interface and captures resolutions up to 2048x1080 at up to 144fps, with hardware hardware-accelerated video processing to minimize CPU load.

Key features
  • Four SDI Channels: Captures four independent SD/HD/3G/2K SDI sources on one card.
  • High-Quality Capture: Supports resolutions up to 2048 x 1080 at frame rates up to 144fps.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.
  • Low Power Draw: Efficient design ideal for dense, compact capture builds.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell Eco Capture quad SDI M.2
$1,607.19
$1,607.19

Technical details

The Magewell Eco Capture Quad SDI M.2 is a compact M.2 capture card offering four independent SDI channels for multi-camera capture in space-limited systems. It is built for OEMs and integrators needing high channel density in a small footprint.

Ideal for multi-camera production and embedded systems, the Eco Capture Quad SDI M.2 fits four SDI channels into a single M.2 slot.

  • Four SDI Channels: Captures four independent SD/HD/3G/2K SDI sources on one card.
  • High-Quality Capture: Supports resolutions up to 2048 x 1080 at frame rates up to 144fps.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.
  • Low Power Draw: Efficient design ideal for dense, compact capture builds.

Frequently Asked Questions

How many SDI channels does it capture?

It captures four independent SD, HD, 3G or 2K SDI sources on one card.

What resolution and frame rate does it support?

It supports resolutions up to 2048 x 1080 at frame rates up to 144fps.

What form factor does it use?

It is an M.2 2280 Type M card with a PCIe Gen2 interface.

Is it low power?

Yes. Its efficient design is ideal for dense, compact capture builds.

Is there a two-channel version?

Yes. The Eco Capture Dual SDI M.2 captures two SDI channels in the same M.2 2280 Type M form factor.

What warranty applies to the Eco Capture quad SDI M.2?

2-year limited manufacturer warranty.
