By Lumens

Lumens Multi-Channel AV Media Processor, Streaming and Recording System

$7,300.51
$0.00 $7,300.51
SKU: LC200
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

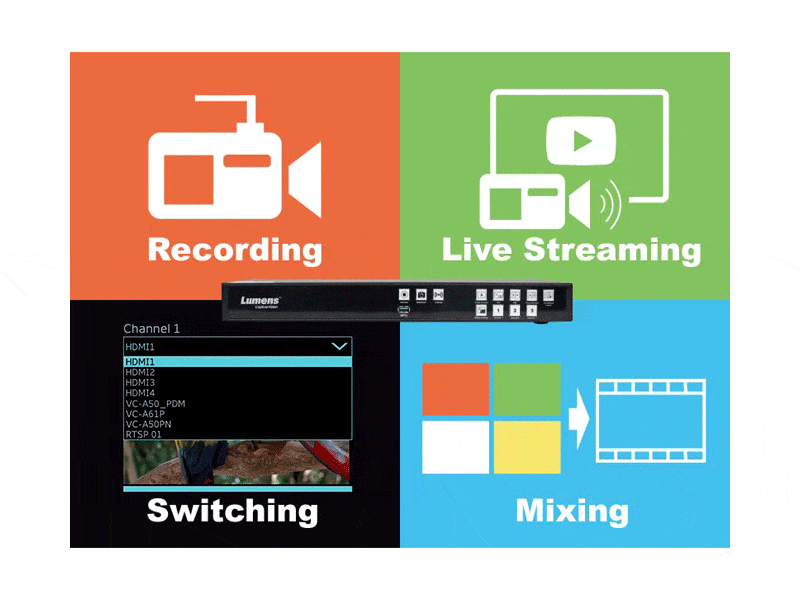

The Lumens LC200 CaptureVision System is an all-in-one 4-channel HD switcher, recorder, and live streaming media processor designed for lecture capture, event production, and corporate AV workflows. It accepts up to four HDMI inputs plus IP camera sources, allowing operators to mix, switch, and stream multiple video feeds simultaneously in a variety of layouts including picture-in-picture, side-by-side, and quad. Recordings are stored on the internal 1TB HDD and can be automatically uploaded to platforms such as Panopto, Kaltura, and Opencast, while live streams are delivered to YouTube, Facebook, Twitch, and other CDNs. The unit integrates with Crestron control systems and supports full automation via calendar scheduling.

Key features
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel

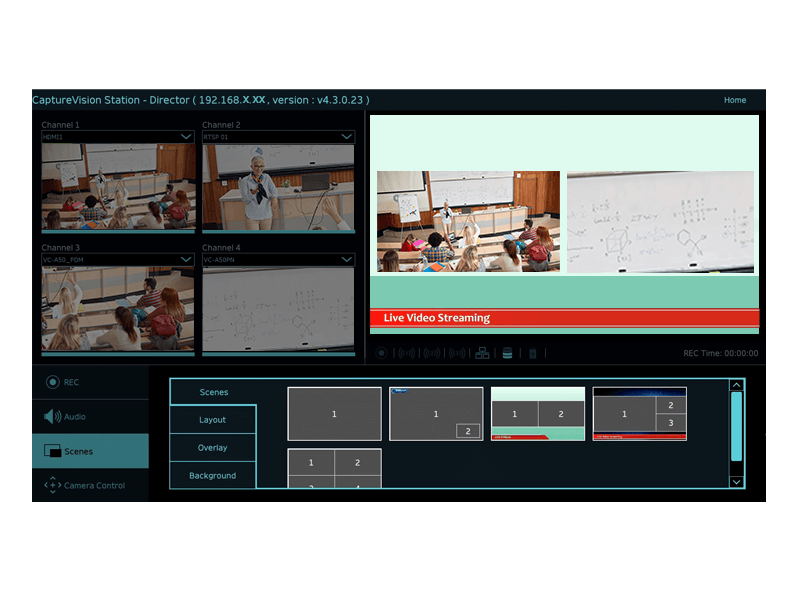

  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • Internal 1TB HDD + USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty

Warranty

5-year warranty

Certifications
  • FCC Part 15, Class A, Supplier's Declaration of Conformity (47 CFR § 2.1077) (USA)
  • ICES-003 Class A, Industry Canada (Canada)
  • CE marked, EN 55032 Electromagnetic compatibility
  • KC registered, Industrial (Class A) electromagnetic wave suitability (South Korea)
Product specs Download
Assembly guide Download

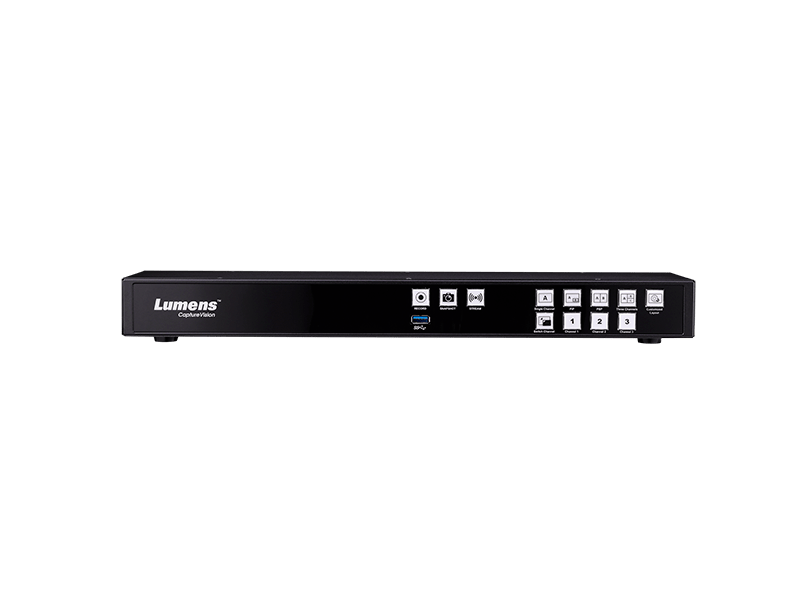

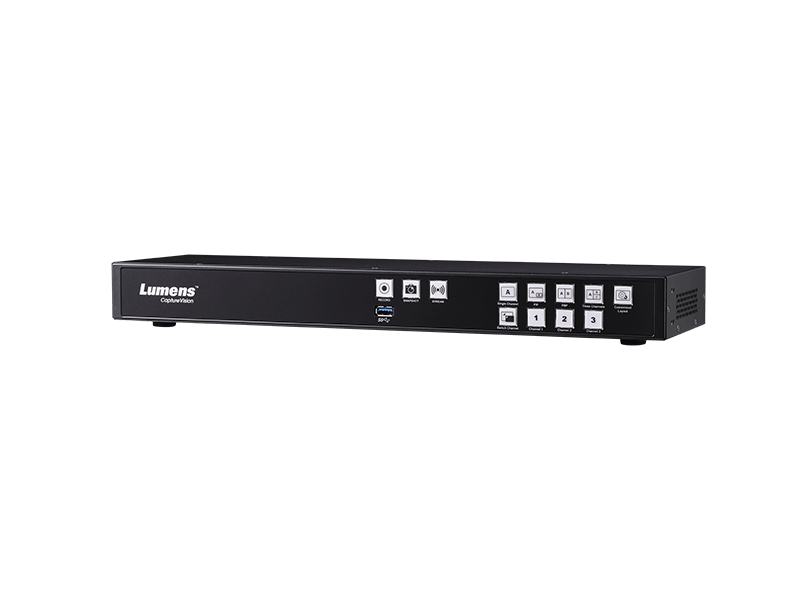

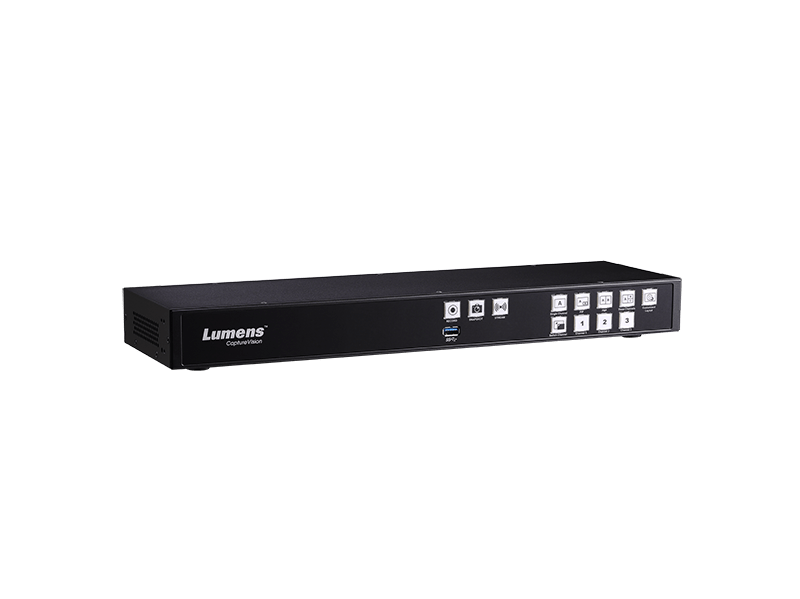

Lumens LC-200 Multi-Channel AV Media Processor, Streaming and Recording System (LC200), main product image
$7,300.51
$0.00 $7,300.51

Technical details

The LC200 supports Full HD 1080p video and audio recording with gorgeous high-definition images and crystal clear audio, which is excellent for lecture capture, conference recording, and event streaming.

  • 4-input video processor (with HDMI and IP).
  • Source scaling switching and vision mixing.
  • Supports RTMP, RTMPS, MPEG-TS, TCP, and UDP streaming protocols.
  • Full Panopto integration and Crestron control.
  • On-board disk storage with network storage support.
  • Supports 1080p 60/30fps recording.
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel
  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • Internal 1TB HDD + USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty
SpecificationDetail

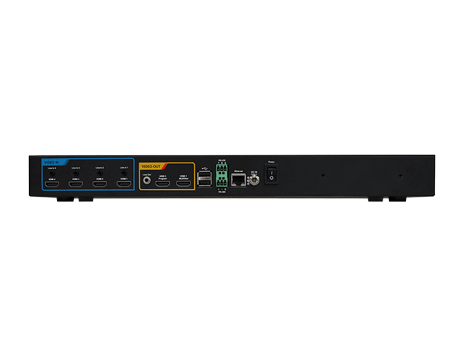

Video inputs4x HDMI (480i-1080p 60fps) + IP cameras (RTSP H.264)
Video outputs3x Ethernet (H.264), 2x HDMI
Output resolution1080p @ 30/60fps
Video compressionH.264/AVC 4:2:0
Bitrate200 kbps, 10 Mbps
Internal storage1TB HDD
External storageUSB 3.0
Audio inputs4x Line In (3.5mm), 4x HDMI embedded, IP audio
Streaming protocolsRTMP, RTMPS, MPEG-TS, TCP, UDP, RTSP
ControlRS-232, RS-485, Ethernet
Dimensions431 x 122.5 x 44.3mm (1U rack)
Weight1.2kg
Power24W (12V DC)
Warranty5 years
Option
1TB internal storage
2TB internal storage (LC200-2TB)

Compatibility

  • 4x HDMI sources
  • Lumens IP PTZ and Box cameras
  • RTSP H.264 sources (1080p 60/30fps)
  • Crestron control systems
  • Panopto, Kaltura, Opencast, Wowza
  • YouTube, Facebook, Twitch, Livestream

Frequently Asked Questions

Can it record each input separately?

Yes. It records all 4 inputs independently plus the program output at the same time, at up to 1080p 60fps.

What inputs does it accept?

It accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP H.264 sources.

Which platforms can it stream and upload to?

It streams to YouTube, Facebook, Twitch, Livestream and custom CDNs, and integrates with Panopto, Kaltura, Opencast and Wowza.

How much storage does it have?

This model has a 1TB internal HDD, plus USB 3.0 for external storage. A 2TB version is also available.

Can it be controlled remotely?

Yes. It supports Crestron control, RS-232, RS-485 and Ethernet, and the optional LC-RC01 wall panel.

What warranty does it have?

The Lumens LC200 has a 5-year warranty.
