By Advanced Network Devices

IP Speaker with LED Display

$2,154.55
$0.00 $2,154.55
SKU: IPSWD-RWB
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

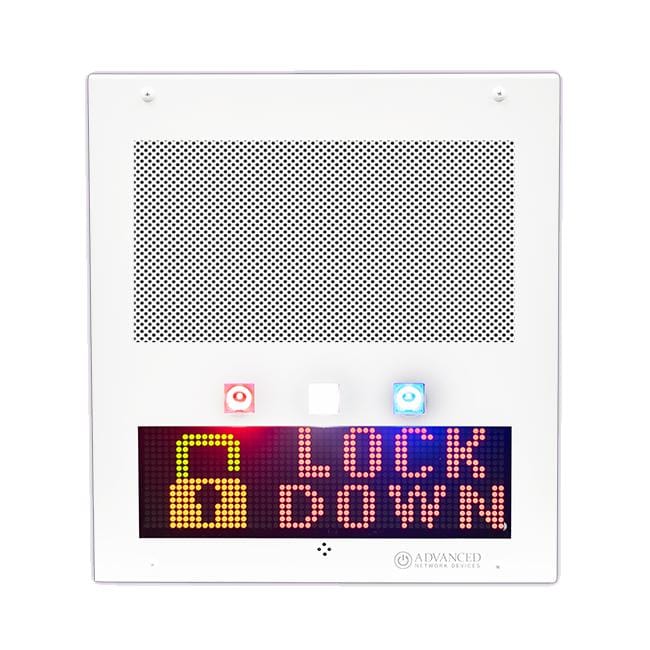

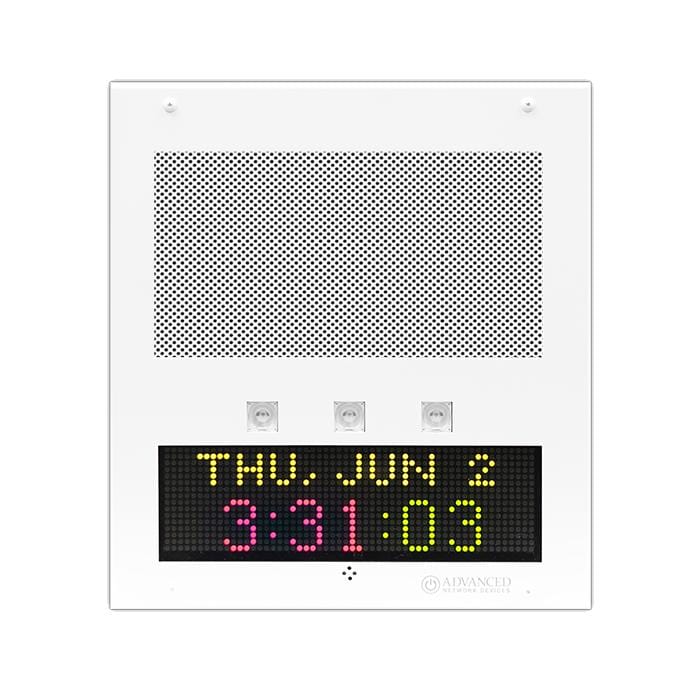

The ANetD IPSWD-RWB is a PoE IP speaker with a multi-colour LED scrolling display and red/white/blue LED flashers, delivering combined audio and visual notifications in a single ceiling or wall-mounted unit. The 8" speaker covers up to 600 ftĀ², while the scrolling LED display shows text and pixel graphics in one or two lines. A built-in microphone enables hands-free two-way intercom. A surface or flush mount enclosure (sold separately) is required for installation.

Key features
  • Multi-colour LED scrolling display shows text and pixel graphics (1 or 2 lines)
  • Red, white, and blue LED flashers individually controlled for visual alerting
  • 8" speaker with up to 600 ftĀ² audio coverage
  • Built-in microphone for hands-free two-way intercom
  • Auto-dimming light sensor adjusts display brightness automatically
  • SIP/VoIP enabled with ClockWise Campus software included
  • PoE powered, single Ethernet cable installation
  • Requires surface or flush mount enclosure (sold separately)
  • 6-year limited warranty

Warranty

6-year limited warranty

Certifications
  • UL STD 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • IEC 62471
  • PoE+ IEEE 802.3at
Product specs Download
Assembly guide Download
Advanced Network Devices IP Speaker with LED Display (IPSWD-RWB), built-in microphone, wall-mounted
$2,154.55
$0.00 $2,154.55

Technical details

The PoE IP Speaker with Display (IPSWD-RWB) works well for offices, classrooms, and any average-sized room.

Key Features:

  • Required surface mount (IPS-SM1) or flush mount (IPS-FM1) enclosure sold separately.
  • Viewable up to 40 feet Configurable multi-colour text and pixel images
  • 8" high-efficiency speaker
  • Flashers for enhanced alert and messaging
  • Built-in microphone and sound masking
  • General purpose inputs and outputs for sensors, buttons, strobes, and contact closures

Installation only requires access to an Ethernet cable connected to a PoE switch. Once connected to the network, the device will power up automatically. For detailed installation and setup instructions, download ourĀ Full Installation and Setup Guide for AND IP Devices.

  • Multi-colour LED scrolling display shows text and pixel graphics (1 or 2 lines)
  • Red, white, and blue LED flashers individually controlled for visual alerting
  • 8" speaker with up to 600 ftĀ² audio coverage
  • Built-in microphone for hands-free two-way intercom
  • Auto-dimming light sensor adjusts display brightness automatically
  • SIP/VoIP enabled with ClockWise Campus software included
  • PoE powered, single Ethernet cable installation
  • Requires surface or flush mount enclosure (sold separately)
  • 6-year limited warranty
SpecificationDetail
PowerPoE 802.3af 15.4W or PoE+ 802.3at 30W
Ethernet10/100 Mbps
Speaker Size8"
Audio Power8W / 16W
Frequency Response60 Hz, 17 kHz
Average Sensitivity95 dB (1W/1M)
Audio CodecG.711 A-law/Ī¼-law, PCM
DisplayMulti-colour LED scrolling (1 or 2 line)
FlashersRed/White/Blue LED (individually controlled)
GPI/GPO2 GPI, 1 GPO (17.5 VDC)
ProtocolsSIP, IPv4, IPv6, 802.1X, HTTP, SNMP v1/v2c, DHCP, NTP, LLDP-MED, MDNS
Operating Temperature-10Ā°C to 50Ā°C
Dimensions342mm (W) x 377mm (H) x 124mm (D)
Weight4.7 kg
Detail
Single configuration

Compatibility

  • Requires ANetD surface mount enclosure (IPS-SM1) or flush mount enclosure for installation. Compatible with ClockWise Campus, InformaCast, Singlewire, Intrado, Bell Commander, Connexall, and Vigilar systems.

Features

  • Made in USA

    Manufactured in the United States, ensuring high-quality standards and reliable performance.

  • ISO Certified

    Built in facilities adhering to ISO standards, reflecting a commitment to quality management and product reliability

  • Approved Software Partners: Cisco GPL

    Compatible with approved third-party software and listed on the Cisco Global Price List, ensuring seamless integration and procurement.

  • ClockWise Campus Software Included

    Comes with ClockWise Campus software, providing advanced scheduling and notification capabilities.

Frequently Asked Questions

How far away can the display be read?

The LED display is viewable from up to 40 feet (about 12m).

Do I need a separate enclosure to install it?

Yes. A surface mount (IPS-SM1) or flush mount (IPS-FM1) enclosure is required and sold separately.

What can the LED display show?

It shows configurable multi-colour text and pixel graphics in one or two lines, and is viewable from up to around 40 feet.

Does it support two-way intercom?

Yes. It has a built-in microphone for hands-free two-way intercom, plus sound masking.

How is it powered?

It runs on PoE (802.3af) or PoE+ (802.3at) through a single Ethernet cable.

What warranty does it come with?

The IP Speaker with LED Display comes with a 6-year limited warranty.
