By Acril Convex

Indoor Quarter Dome Acrylic Mirror

$87.00 - $145.00

Free standard shipping on all orders over $250

SKU: 18541H
$87.00
$87.00

Overview

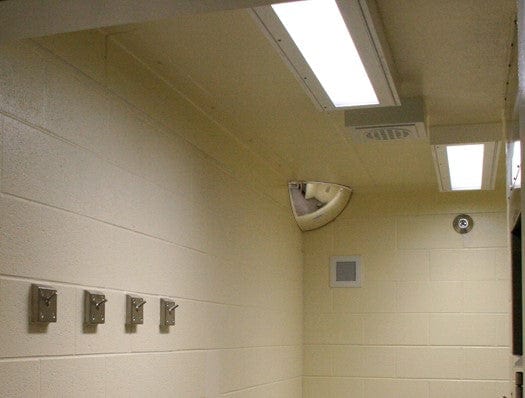

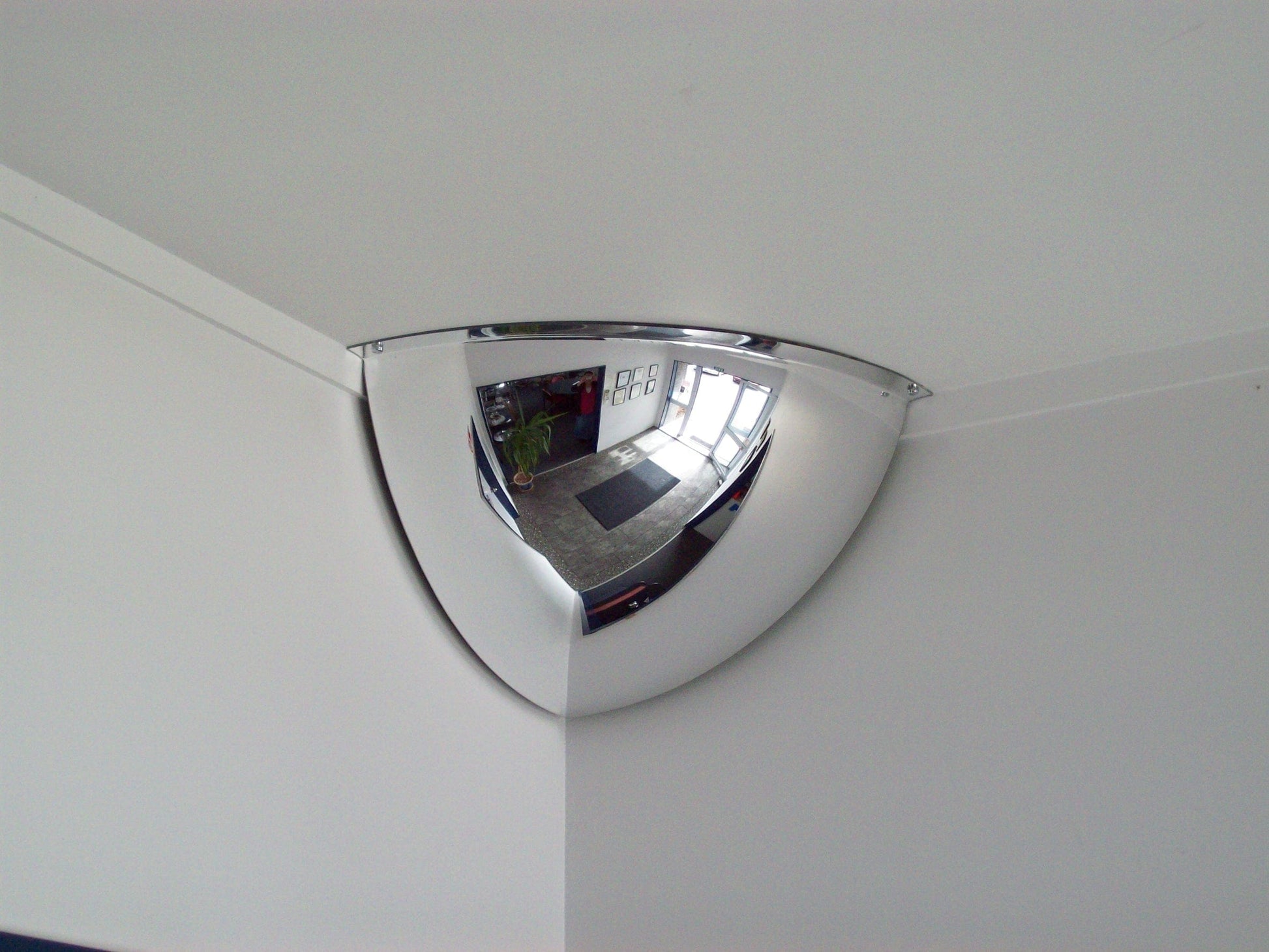

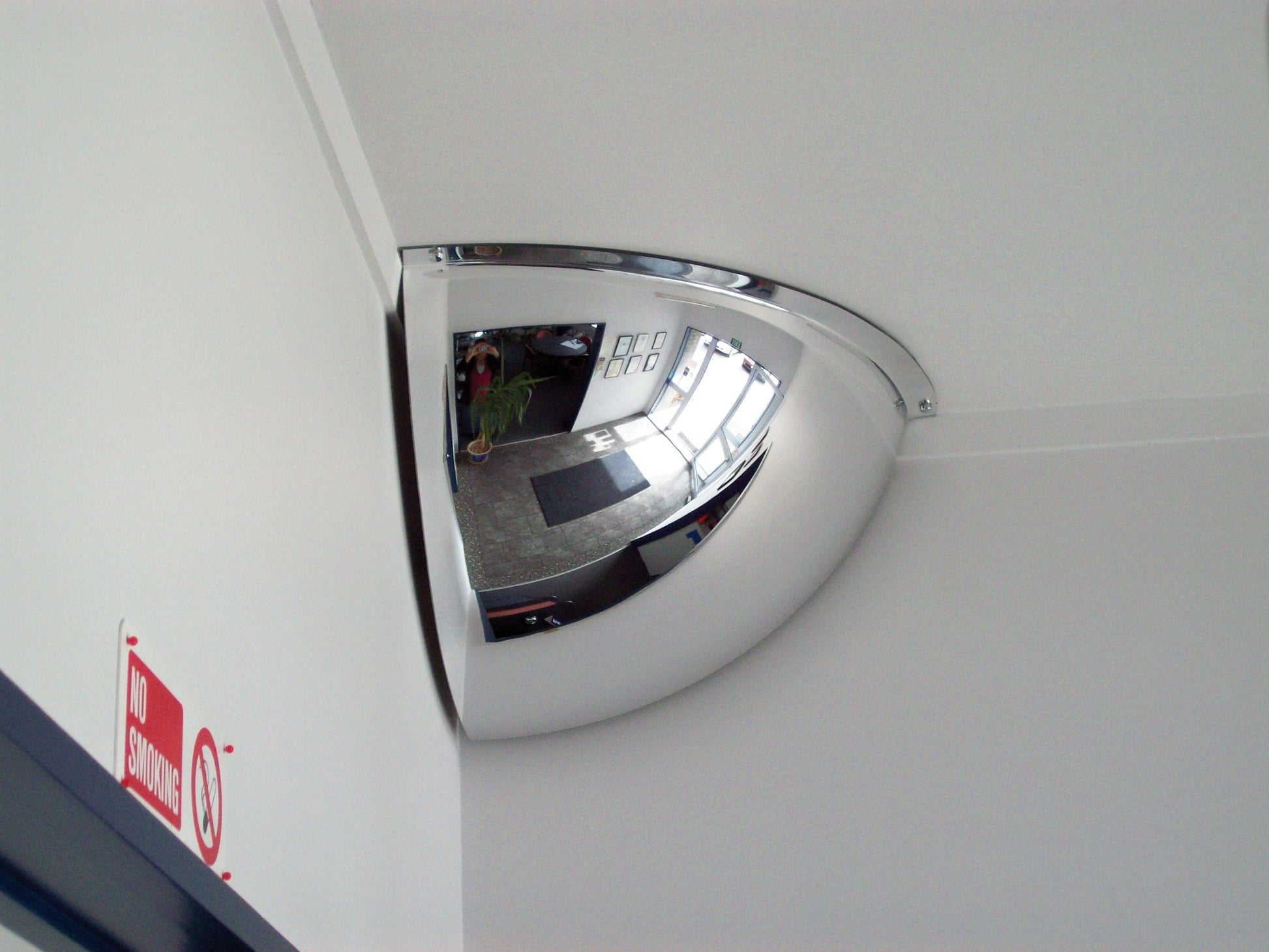

Purpose-built for right-angle corners and 90° intersections, this indoor quarter dome mirror is mounted directly into a ceiling corner to provide clear visibility around blind spots in corridors, retail aisles, and reception areas. Its 90° viewing angle makes it the most targeted solution for corner surveillance, reducing the risk of collisions and improving safety without the footprint of a larger dome mirror. Available in three sizes, 600mm, 900mm, and 1200mm, with view distances up to 10 metres, it covers a range of space sizes with a single, easy-to-install unit. Manufactured in New Zealand with a clear acrylic mirror face for distortion-free reflection.

Key features
  • 90° viewing angle for right-angle corner coverage
  • Clear, distortion-free acrylic mirror face
  • Dome capped screws supplied for direct corner ceiling mounting
  • Available in 600mm, 900mm, and 1200mm sizes
  • Compact quarter-dome profile, ideal for low-profile corner installations
  • Made in New Zealand

Warranty

5-year warranty

Product specs Download
Assembly guide Download
Acril Convex Indoor Quarter Dome Acrylic Mirror, main product image
$87.00
$87.00

Technical details

The Indoor Quarter Dome Acrylic Mirror is designed to improve visibility and safety in indoor environments where a 90° viewing angle is required. Ideal for corridor corners, right-angle intersections, retail aisles, and reception areas, it helps reduce collisions and provides effective surveillance of blind spots. The acrylic mirror face delivers a clear, distortion-free reflection and is housed in a lightweight design for easy installation.

These mirrors have a 5-year warranty.

This mirror is best suited for indoor use where ceiling corners are available for mounting. It is installed directly to the ceiling using dome-capped screws supplied with the mirror.

Includes dome-capped screws for corner ceiling mounting.
Mounting screws not included.

  • 90° viewing angle for right-angle corner coverage
  • Clear, distortion-free acrylic mirror face
  • Dome capped screws supplied for direct corner ceiling mounting
  • Available in 600mm, 900mm, and 1200mm sizes
  • Compact quarter-dome profile, ideal for low-profile corner installations
  • Made in New Zealand
SpecificationDetail
Viewing Angle90°
Mirror FaceAcrylic (clear, distortion-free)
MountingDome capped screws (corner ceiling mount)
OriginMade in New Zealand by Bennett Mirror Technologies Ltd

Sizes and view distances

ModelSizeView distance
18541H600mm (300x300mm footprint)up to 3m
18560H900mm (450x450mm footprint)up to 6m
18563H1200mm (600x600mm footprint)up to 10m
SKUSizeView distanceMaterialMounting
18541H600mm (300x300mm)Up to 3mAcrylic mirror faceCorner ceiling mount
18560H900mm (450x450mm)Up to 6mAcrylic mirror faceCorner ceiling mount
18563H1200mm (600x600mm)Up to 10mAcrylic mirror faceCorner ceiling mount

Compatibility

  • Corridor corners and right-angle intersections
  • Retail aisles and supermarket ends
  • Reception areas
  • Office buildings
  • Schools and childcare centres
  • Industrial and warehouse corner junctions

What Clients Say

  • Quality Customer Service

    "Fantastic customer service, the online communication was straightforward and provided me with confidence in the service. The team has a wealth of knowledge and provided multiple products as option to suit my needs. I'd definitely recommend Leading Solutions and use them again in the future."

Frequently Asked Questions

How much ceiling corner space does it need?

The 600mm size has a 300x300mm footprint, the 900mm 450x450mm and the 1200mm 600x600mm.

What viewing angle does it provide?

It provides a 90° viewing angle.

What sizes are available?

It comes in 600mm (up to 3m view), 900mm (up to 6m) and 1200mm (up to 10m).

How is it installed?

It fixes directly into a ceiling corner using the supplied dome-capped screws.

Should I choose a quarter dome or a half dome?

Choose a quarter dome for a single right-angle corner. It gives targeted 90° coverage without the footprint of a larger dome.

What warranty is included?

It is made in New Zealand and comes with a 5-year warranty.
