IP Speaker with HD Display, Matte White
Back orders delivered in 4 weeks
Not available for local pickup. On backorder
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Technical details

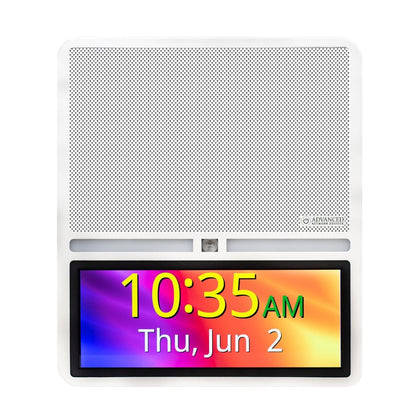

Engage and capture attention with the new IP Speaker with HD Display, from Advanced Network Devices. Employ custom graphics and images for day-to-day and critical announcements.
Key Features:
- 1920 x 720 pixel HD resolution Image graphics with full-colour spectrum
- Viewable up to 50 feet 8" high-efficiency speaker and microphone for paging and two-way intercom
- RGB flasher bar with bright centre RGB for enhanced alert and messaging
- General purpose inputs and outputs for sensors, buttons, strobes, and contact closures
- Angled face for reduced glare Power over Ethernet (PoE+)
- SIP-Enabled
Installation only requires access to an Ethernet cable connected to a PoE switch. Once connected to the network, the device will power up automatically. For detailed installation and setup instructions, download our Full Installation and Setup Guide for AND IP Devices.
- 1920x720 full-colour HD LCD with 10° anti-glare tilt
- RGB LED flasher bar displays any colour for flexible visual alerting
- 8" speaker with digitally enhanced bass and up to 600 ft² audio coverage
- Built-in microphone for hands-free two-way intercom
- Stereo analog line in and line out for peripheral audio integration
- Connects to strobes, electronic locks, motion sensors, and other peripherals via GPI/GPO
- Auto-dimming light sensor adjusts display brightness automatically
- PoE+ powered, single Ethernet cable installation
- 6-year limited warranty
| Specification | Detail |
|---|---|
| Power | PoE+ IEEE 802.3at, 30W |
| Ethernet | 10/100/1000 Mbps |
| Display | 1920x720 full-colour LCD, 10° angled |
| Speaker Size | 8" |
| Frequency Response | 60 Hz, 17 kHz |
| Audio Codec | G.711 A-law/μ-law, G.722, PCM |
| Average Sensitivity | 95 dB (1W/1M) |
| Flasher | RGB LED bar (any colour) |
| Audio Interfaces | Stereo analog line out, stereo analog line in |
| GPI/GPO | 2 GPI, 1 GPO (contact closure or 21.6 VDC) |
| Protocols | SIP, IPv4, IPv6, 802.1X, HTTP, SNMP v1/v2c, DHCP, NTP, LLDP-MED, MDNS |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 343mm (W) x 396mm (H) x 115mm (D) |
| Weight | 4.7 kg |
| Colour | Matte White |
| Detail |
|---|
| Single configuration |
Compatibility
- Compatible with ClockWise Campus, InformaCast, Singlewire, Intrado, Bell Commander, Connexall, and Vigilar systems. Supports peripheral integration via GPI/GPO.
Features
-
Made in USA
-
ISO Certified
-
Approved Software Partners: Cisco GPL
-
ClockWise Campus Software Included
Frequently Asked Questions
Does the screen adjust to room lighting?
Does the screen adjust to room lighting?
How is it powered?
How is it powered?
Does it support two-way intercom?
Does it support two-way intercom?
Can it connect to other devices?
Can it connect to other devices?
Why is the display angled?
Why is the display angled?
What warranty does it come with?
What warranty does it come with?
