Compact 2K Capture for M.2 Systems

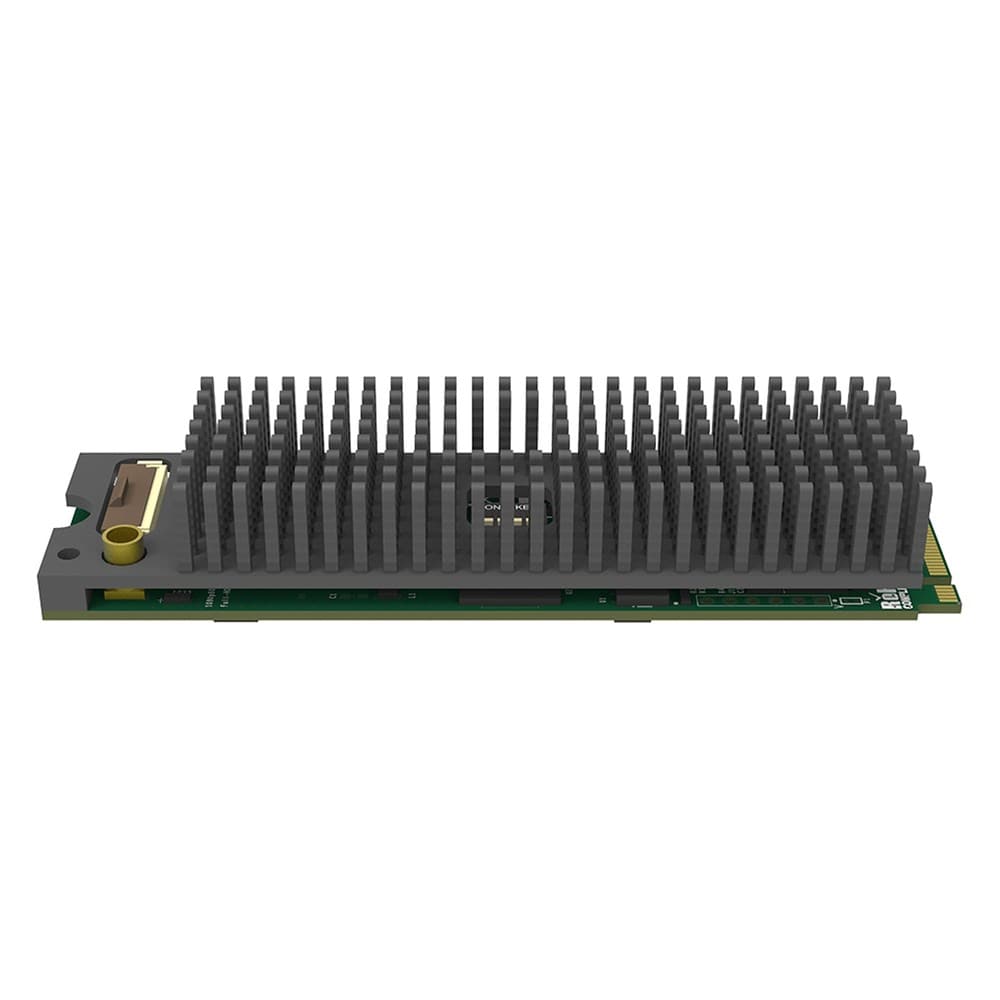

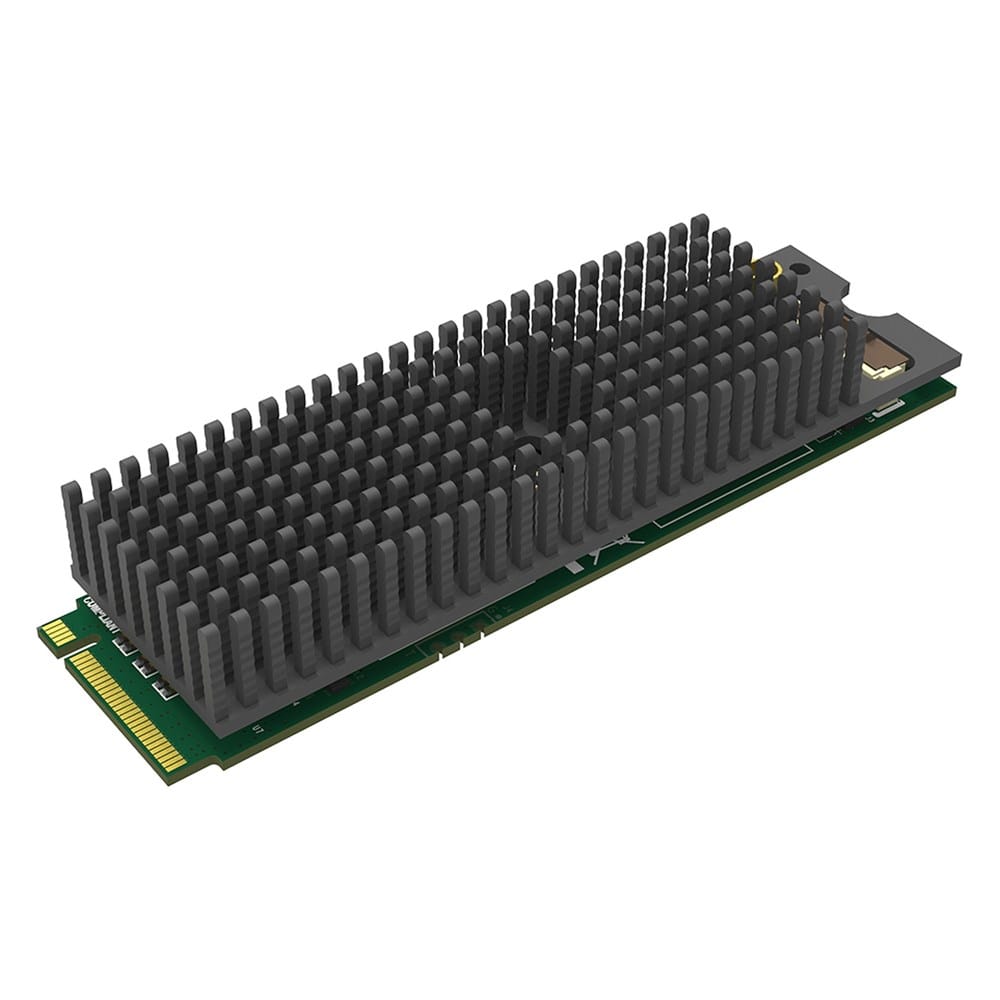

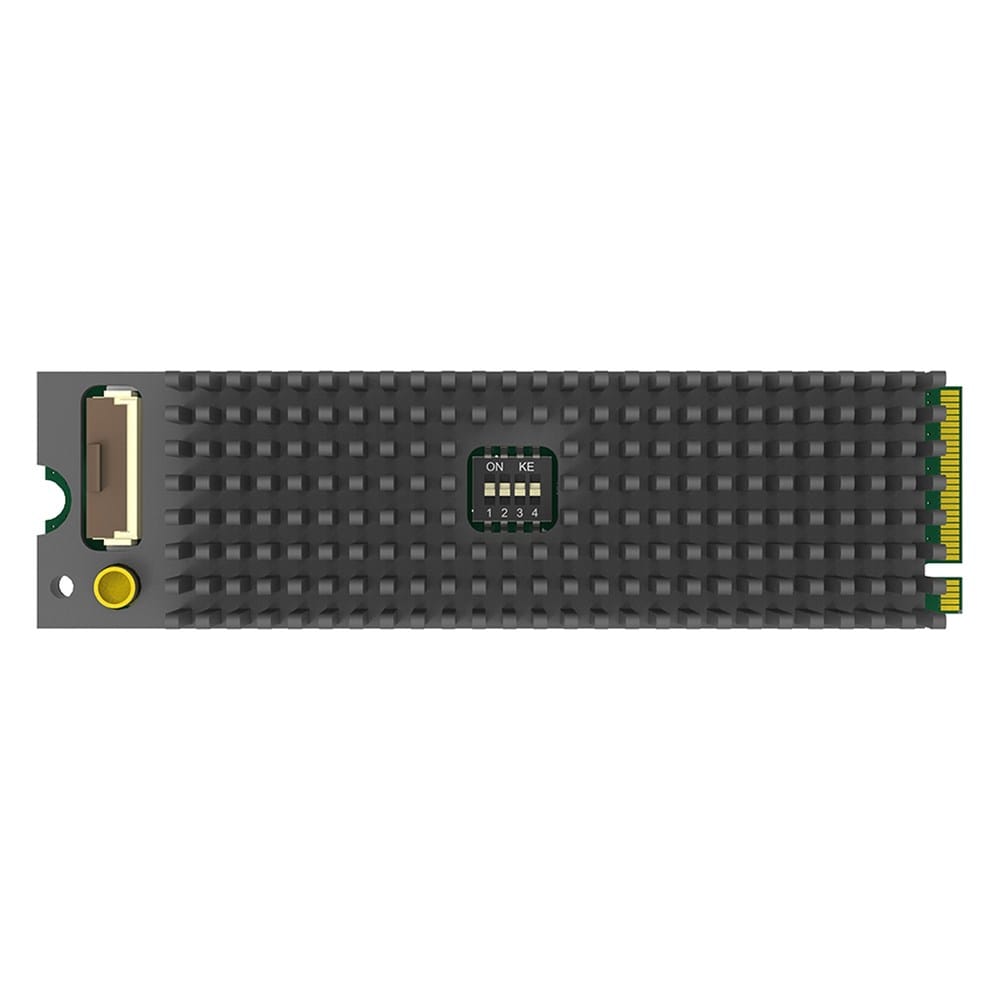

The Magewell Eco Capture AIO M.2 is a one-channel 2K capture card for all-in-one interfaces. Its M.2 2280 Type M form factor provides a compact capture solution for compatible systems.
With support for HDMI, SDI and CVBS input formats, Eco Capture AIO M.2 can capture video from a range of sources. HDMI and SDI connections are made using accessory cables, and the card supports Windows and Linux capture software and APIs.
Flexible Input Options
Eco Capture AIO M.2 supports HDMI 1.4a and SD, HD and 3G-SDI sources through accessory cables. It also supports CVBS input with automatic signal detection and NTSC, PAL and SECAM standards.
HDMI input supports RGB and YCbCr formats, while SDI input supports SD, HD and 3G-SDI standards. Embedded audio can be captured alongside video from HDMI and SDI sources.
Video Processing and Capture
The card captures video at resolutions up to 2048x1080, with frame rates up to 144fps. Video processing features include scaling, de-interlacing, colour format conversion and frame rate conversion.
Capture output supports RGB and YCbCr colour spaces, including Rec. 601, Rec. 709 and Rec. 2020. The card outputs video at 8-bit 4:4:4.
Software and Integration
The M.2 2280 Type M interface uses PCIe Gen2 x2. Windows support includes DirectShow, DirectKS, Wave API, DirectSound and WASAPI, while Linux support includes V4L2 and ALSA.
The MWCapture SDK provides functions for signal status extraction, capture configuration and real-time audio and video capture. The card is compatible with software including VLC, OBS, vMix, Wirecast and other DirectShow- or V4L2-based applications.
- One-channel video capture.
- Capture resolutions up to 2048x1080.
- Capture frame rates up to 144fps.
- HDMI 1.4a input via an accessory cable.
- SD, HD and 3G-SDI input via an accessory cable.
- CVBS input with NTSC, PAL and SECAM support.
- HDMI input up to 2048x1080 at 60fps in 4:4:4.
- SDI input up to 2048x1080 at 60fps in 4:2:2 10-bit.
- Up to eight channels of embedded HDMI audio at 24-bit and 192kHz.
- Up to eight channels of embedded SDI audio at 48kHz.
- Video scaling, de-interlacing, colour format conversion and frame rate conversion.
- Windows DirectShow and Linux V4L2 support.
- MWCapture SDK support for capture configuration, signal status and real-time audio and video capture.
| Specification | Detail |
|---|---|
| Product type | One-channel 2K capture card for all-in-one interfaces |
| Input signals | HDMI 1.4a, SD/HD/3G-SDI and CVBS |
| Maximum capture resolution | 2048x1080 |
| Maximum capture frame rate | Up to 144fps |
| HDMI input | Up to 2048x1080 at 60fps, 4:4:4 |
| SDI input | Up to 2048x1080 at 60fps, 4:2:2 10-bit |
| HDMI audio | Up to 8 channels, 24-bit, 192kHz |
| SDI audio | Up to 8 channels, 48kHz |
| Host interface | M.2 2280 Type M, PCIe Gen2 x2 |
| Video processing | Scaling, de-interlacing, colour format conversion and frame rate conversion |
| Operating system support | Windows and Linux |
| Maximum power consumption | Approximately 2.94W |
Compatibility
- Windows DirectShow and Linux V4L2 support.
