By Audinate

Dante AVIO USBC IO Adapter 2x2

Regular price $365.00
Regular price Sale price $365.00
SKU: ADP-USBC-AU-2X2
Availability: Contact to order

Interested? Contact us

Not available for local pickup. Contact us for availability

Free standard shipping on all orders over $250

Overview

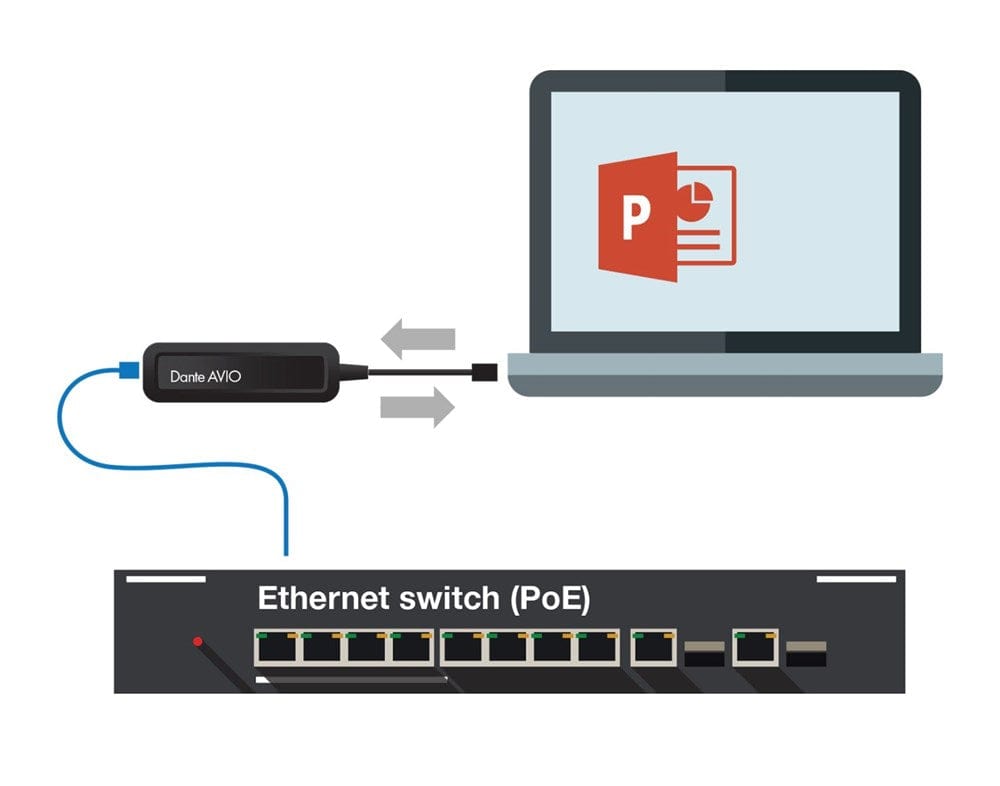

The Dante AVIO USB-C IO Adapter (ADP-USBC-AU-2X2) is a compact plug-and-play interface that connects any USB-C equipped computer or mobile device directly to a Dante audio network, enabling 2-in/2-out audio at 24-bit/48kHz without drivers or additional software. Powered by PoE or via the USB-C connection itself, it is automatically discovered on the network and managed through Dante Controller on any connected PC or Mac.

Key features

  • Connects USB-C computers and mobile devices to a Dante audio network with no drivers required
  • 2-in/2-out bidirectional audio at 24-bit/48kHz
  • Powered by PoE (802.3af) or USB-C bus power (5V/1.5A)
  • USB-C to USB-C cable included
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager for IT-level network security
  • Configurable device latency: 1, 2, or 5ms
  • Road-ready sonically welded ABS enclosure
Product specs Download

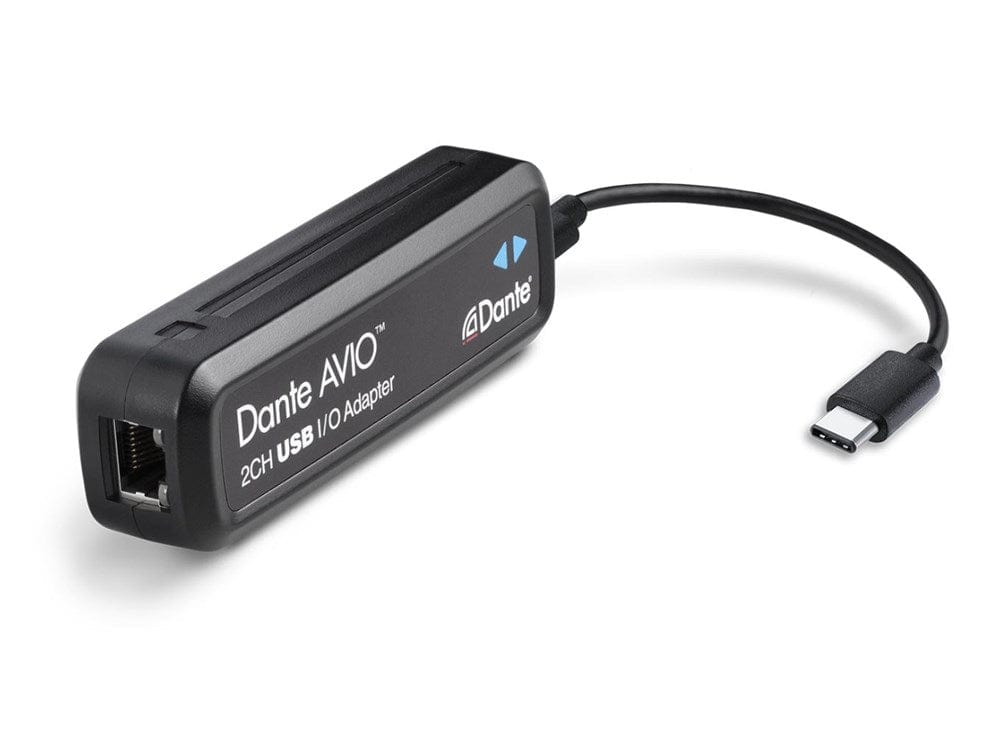

Audinate Dante AVIO USB-C I/O Adapter 2x2 (ADP-USBC-AU-2X2), main product image
Regular price $365.00
Regular price Sale price $365.00

Technical details


Audio Channels: 2 in, 2 out
Connectors: RJ45 & USB Type-C
Power: Class 1 802.3af PoE or USB
Power Consumption: <10 watts, < 2 watts no power delivery
USB Power Delivery: 5V 1.5A (7.5 watts)
Sample Rates: 48 kHz
Bit depth: 24
Dante Device Latency: 1, 2, or 5ms (configurable using Dante Controller)
Network Transport: Dante Audio over IP, AES67 RTP
USB: Class compliant USB 2.0 device
Operating Temp: -10 to +50C
Storage Temp: -25 to +70C
Part Number: ADP-USBC-AU-2X2

  • Connects USB-C computers and mobile devices to a Dante audio network with no drivers required
  • 2-in/2-out bidirectional audio at 24-bit/48kHz
  • Powered by PoE (802.3af) or USB-C bus power (5V/1.5A)
  • USB-C to USB-C cable included
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager for IT-level network security
  • Configurable device latency: 1, 2, or 5ms
  • Road-ready sonically welded ABS enclosure
SpecificationDetail
Part NumberADP-USBC-AU-2X2
Audio Channels2 in, 2 out
ConnectorsRJ45 & USB Type-C
PowerClass 1 802.3af PoE or USB
USB Power Delivery5V, 1.5A (7.5W)
Sample Rate48 kHz
Bit Depth24-bit
USB StandardClass compliant USB 2.0
Dante Device Latency1, 2, or 5ms (configurable)
Network TransportDante Audio over IP, AES67 RTP

Compatibility


  • Compatible with any USB-C equipped PC, Mac, or mobile device. Works with any Dante-enabled device on the same network. AES67 compatible for connection to non-Dante AoIP networks. Managed via Dante Controller software (Windows/Mac) or Dante Domain Manager.

Frequently Asked Questions


Does it work with Dante Domain Manager?

Yes. It is compatible with Dante Domain Manager for IT-level network security, and can also be managed in Dante Controller on Windows or Mac.

Is a cable included?

Yes. A USB-C to USB-C cable is included.

Do I need drivers?

No. It is a class-compliant USB 2.0 device with no drivers or extra software required.

How is it powered?

It can be powered by PoE (802.3af) or via USB-C, and can deliver 5V/1.5A to the connected device.

Is it AES67 compatible?

Yes. It supports Dante Audio over IP and AES67 RTP.

What is the part number?

The part number is ADP-USBC-AU-2X2.
