By Audinate

Dante AVIO USB IO Adapter 2x2

$365.00
$365.00
SKU: ADP-USB-AU-2X2
Availability: Contact to order

Interested? Contact us

Not available for local pickup. Contact us for availability

Free standard shipping on all orders over $250

Overview

The Dante AVIO USB IO Adapter (ADP-USB-AU-2X2) is a compact plug-and-play interface that connects any USB-A equipped computer or mobile device directly to a Dante audio network, enabling 2-in/2-out audio at 24-bit/48kHz without drivers or additional software. Powered by PoE or via the connected USB port, it is automatically discovered on the network and managed through Dante Controller on any connected PC or Mac.

Key features
  • Connects USB-A computers and mobile devices to a Dante audio network with no drivers required
  • 2-in/2-out bidirectional audio at 24-bit/48kHz
  • Powered by PoE (802.3af) or USB bus power from the connected host
  • Class compliant USB 2.0, works with any OS without additional software
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager for IT-level network security
  • Configurable device latency: 1, 2, or 5ms
  • Road-ready sonically welded ABS enclosure
Product specs Download

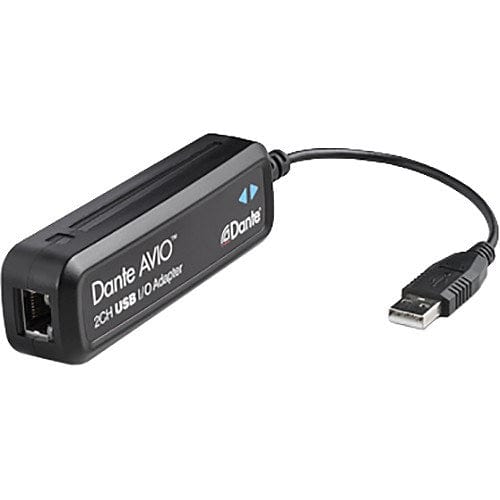

Audinate Dante AVIO USB IO Adapter 2x2 (ADP-USB-AU-2X2), main product image
$365.00
$365.00

Technical details

AVIO USB Adapter Audio Channels: 2 in, 2 out
Connectors: RJ45 & USB Type-A
Power: Class 1 802.3af PoE or USB Power
Consumption: < 2 watts
USB Power Delivery: —
Sample Rates: 48 kHz
Bit depth: 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Network Transport Dante Audio over IP, AES67 RTP
USB: Class compliant USB 2.0 device
Operating Temp: -10 to +50C
Storage Temp: -25 to +70C
Part Number: ADP-USB-AU-2X2

  • Connects USB-A computers and mobile devices to a Dante audio network with no drivers required
  • 2-in/2-out bidirectional audio at 24-bit/48kHz
  • Powered by PoE (802.3af) or USB bus power from the connected host
  • Class compliant USB 2.0, works with any OS without additional software
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager for IT-level network security
  • Configurable device latency: 1, 2, or 5ms
  • Road-ready sonically welded ABS enclosure
SpecificationDetail
Part NumberADP-USB-AU-2X2
Audio Channels2 in, 2 out
ConnectorsRJ45 & USB Type-A
PowerClass 1 802.3af PoE or USB
Sample Rate48 kHz
Bit Depth24-bit
USB StandardClass compliant USB 2.0
Dante Device Latency1, 2, or 5ms (configurable)
Network TransportDante Audio over IP, AES67 RTP

Compatibility

  • Compatible with any USB-A equipped PC, Mac, or mobile device (with adapter as required). Works with any Dante-enabled device on the same network. AES67 compatible for connection to non-Dante AoIP networks. Managed via Dante Controller software (Windows/Mac) or Dante Domain Manager.

Frequently Asked Questions

How does it differ from the AVIO USB-C adapter?

This model has a USB Type-A connector, while the USB-C version uses USB Type-C, includes a USB-C cable and can deliver 5V/1.5A to the connected device.

Do I need drivers?

No. It is a class-compliant USB 2.0 device, so no drivers are required.

How is it powered?

It can be powered by PoE (802.3af) or by the connected USB port.

What audio quality does it support?

It supports 24-bit audio at 48kHz.

How is it managed?

It is discovered automatically and managed through Dante Controller on Windows or Mac.

What is the part number?

The part number is ADP-USB-AU-2X2.
