By Audinate

Dante AVIO Analog Input Adapter 2x0

$455.00
$455.00
SKU: ADP-DAI-AU-2X0
Availability: Low stock: 3 left

Free standard shipping on all orders over $250

Overview

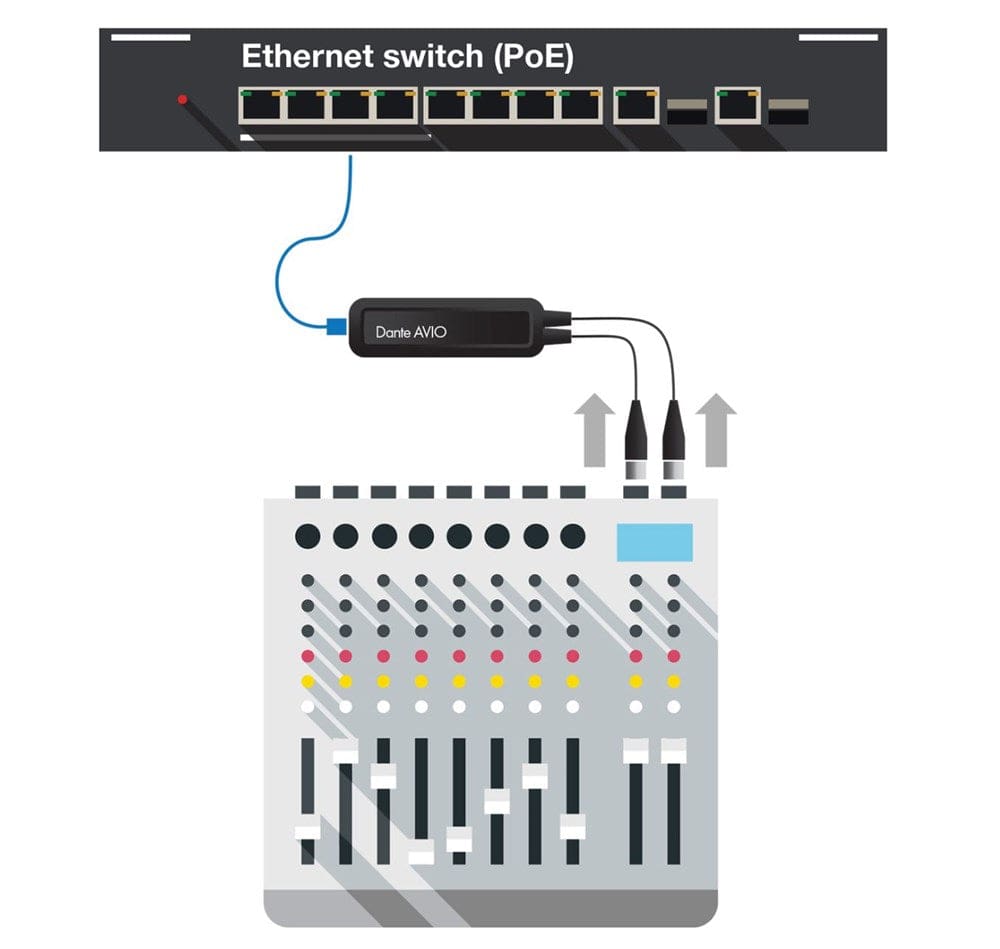

The Dante AVIO Analog Input Adapter (ADP-DAI-AU-2X0) is a two-channel analog input interface that connects analog audio sources to a Dante network, accepting balanced line-level signals via two XLR-F connectors. Powered by PoE with no separate power supply needed, it is automatically discovered on the network and allows mixers, wireless receivers, DI boxes, and other analog sources to be patched directly into a Dante audio infrastructure.

Key features
  • Brings 2 channels of balanced analog audio from XLR inputs onto a Dante network
  • Configurable input gain to match connected sources
  • Excellent dynamic range and SNR: >100dB
  • THD: <0.01% at +4dBu
  • Sample rates up to 96kHz; 16, 24, and 32-bit audio support
  • PoE powered, no AC adapter required
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager
  • Road-ready sonically welded ABS enclosure
Product specs Download

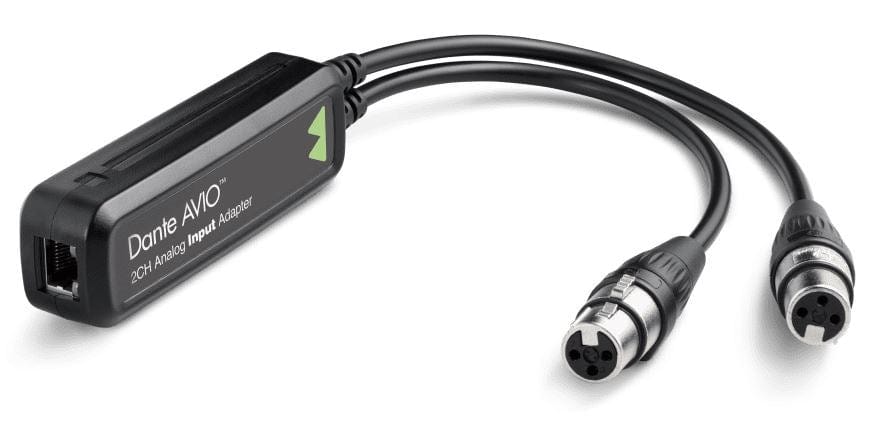

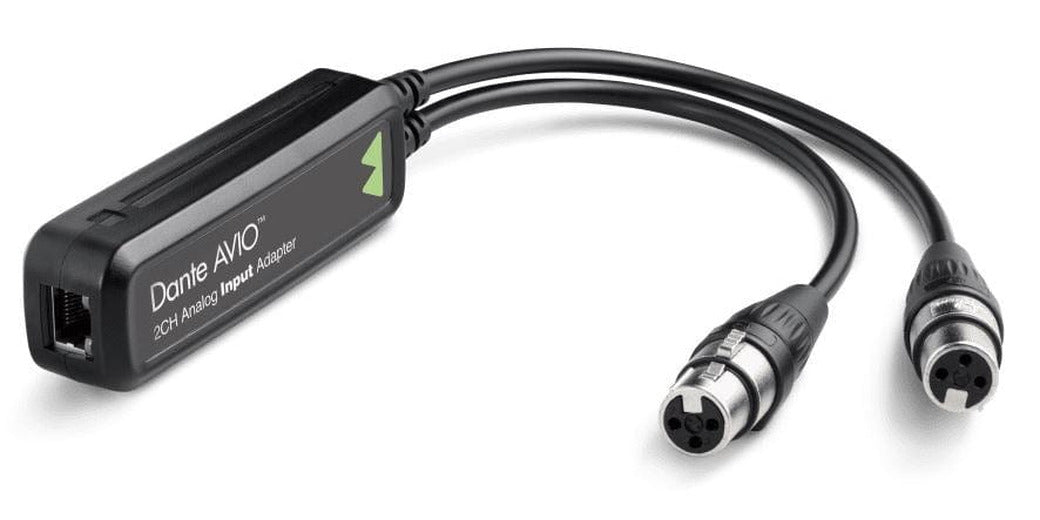

Audinate Dante AVIO Analog Input Adapter 2x0 (ADP-DAI-AU-2X0), main product image
$455.00
$455.00

Technical details

Audio Channels: 2 in, 1 out
Connectors: RJ45
Power: Class 1 802.3af PoE
Power Consumption: < 2.5 watts
Sample Rates: 48 kHz
Dante Device Latency: 1, 2, or 5ms (configurable using Dante Controller)
Bluetooth: 5.0
Operating Temp: -10 to +50C
Storage Temp: -25 to +70C
Part Number: ADP-BT-AU-2X1

  • Brings 2 channels of balanced analog audio from XLR inputs onto a Dante network
  • Configurable input gain to match connected sources
  • Excellent dynamic range and SNR: >100dB
  • THD: <0.01% at +4dBu
  • Sample rates up to 96kHz; 16, 24, and 32-bit audio support
  • PoE powered, no AC adapter required
  • Dante Audio over IP and AES67 RTP transport formats
  • Compatible with Dante Domain Manager
  • Road-ready sonically welded ABS enclosure
SpecificationDetail
Part NumberADP-DAI-AU-2X0
Audio Channels2 in, 0 out
ConnectorsRJ45 & 2 × XLR-F
PowerClass 1 802.3af PoE
Max Signal Level (balanced)+18dBu / +4dBu / 0dBu
Input Impedance20k Ohm balanced / 10k Ohm unbalanced
Frequency Response20Hz-20kHz (±0.5dB)
Dynamic Range>100dB
SNR>100dB
THD<0.01% at +4dBu
Sample Rates44.1, 48, 96 kHz
Bit Depth24-bit
Dante Device Latency1, 2, or 5ms (configurable)
Network TransportDante Audio over IP, AES67 RTP

Compatibility

  • Connects to any Dante-enabled device on the same network. Compatible with analog mixers, consoles, wireless microphone receivers, DI boxes, keyboard instruments, DSPs, compressors, and equalisers. AES67 compatible for connection to non-Dante AoIP networks.

Frequently Asked Questions

Can I adjust the Dante latency?

Yes. Device latency can be set to 1, 2 or 5ms using Dante Controller.

What kind of sources can I connect?

It suits line-level sources such as mixers, wireless mic receivers, DI boxes and keyboards.

How is it powered?

It is PoE powered (Class 1 802.3af), with no AC adapter needed.

Is the input gain adjustable?

Yes. Input gain is configurable to match connected sources.

What is the audio quality?

It offers dynamic range and SNR above 100dB, with THD below 0.01% at +4dBu.

What is the part number?

The part number is ADP-DAI-AU-2X0.
