Technical details
The FireNEX™-uLINK 10G is a high-speed USB-C extension cable designed for reliable, high-performance data transfer and power delivery. With support for USB 3.1 Gen 2 speeds up to 10Gbps, this cable is perfect for demanding applications requiring fast, stable connections. Its durable build includes TPE black jacket material and connectors designed to maintain robust performance in various environments. FireNEX-uLINK-10G USB-C to USB-C Multi-function Active Cable USB 3.1 Gen 2 10Gbps, DisplayPort 1.4, and 60W PD
Key Features:
- High-Speed Data Transfer: Supports USB 3.1 Gen 2 speeds up to 10Gbps.
- Display Support: Up to 4K@60Hz resolution.
- Power Delivery: USB PD 3.0 with voltage profiles up to 20V and 3A.
- Durability: TPE jacket for reliability in diverse settings.
Applications:
Ideal for professional environments requiring extended USB-C connectivity with high-speed data, video, and power delivery capabilities.

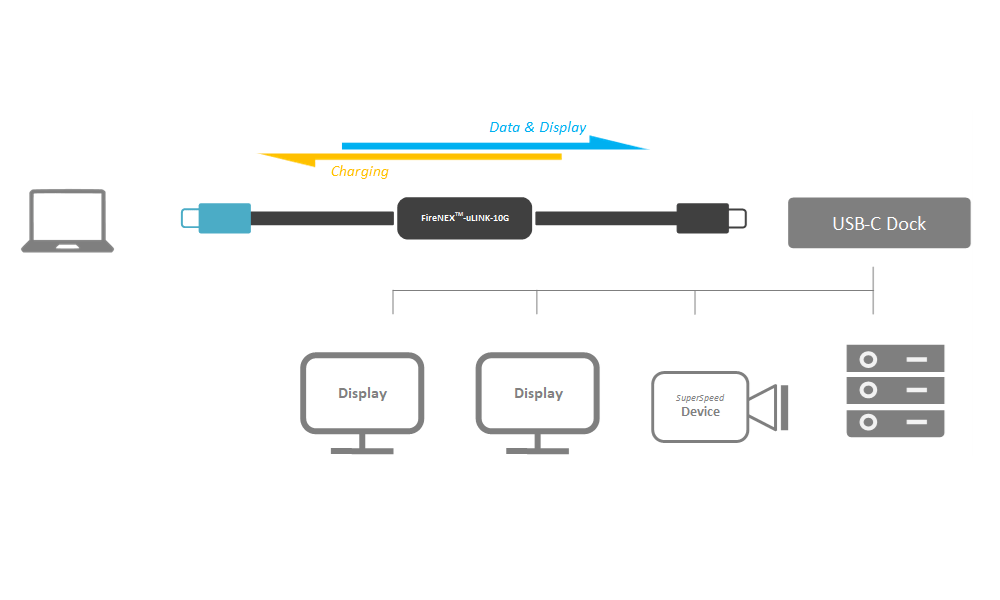

- Extends USB-C up to 8 metres with USB 3.2 Gen 2 data, DisplayPort 1.4, and 60W PD simultaneously
- 2-Lane DP 1.4 (HBR3): up to one 4K@60Hz or two 2K@60Hz displays
- Bidirectional USB PD 3.0 up to 60W (20V/3A)
- Backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0/1.1
- Compact metal repeater enclosure, ideal for wall conduit installation

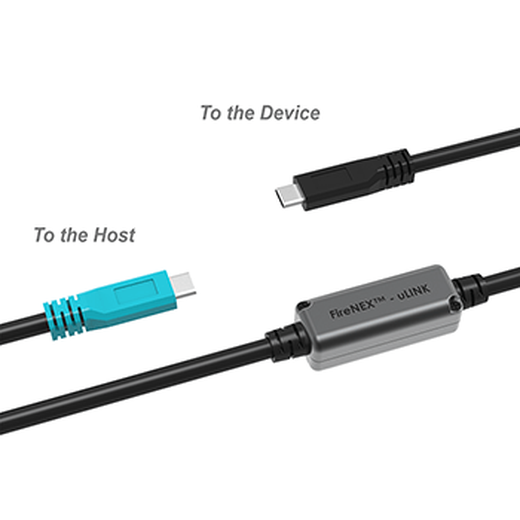

- Colour-coded connectors: aqua host end, black device end
- Plug and play, no drivers required on Windows, macOS, or Linux
- AIA USB3 Vision compliant for machine vision applications
| Specification | Detail |
|---|---|
| Part Number | ULK10G-CC-8M |
| Type | USB-C Active Repeater Cable (C Male to C Male) |
| USB Standard | USB 3.2 Gen 2 (10Gbps); backward compatible to 5Gbps / USB 2.0 |
| DisplayPort | DP 1.4, 2-Lane, HBR3 (up to 4K@60Hz or two 2K@60Hz) |
| Power Delivery | USB PD 3.0, bidirectional; up to 60W (20V/3A) |
| Cable Length | 8m (26.2 ft.) |
| Cable Diameter | 6.4 ± 0.1mm |
| Cable Jacket | TPE, Black |
| Repeater Dimensions | 16 × 18 × 46mm |
| Host Connector | USB-C Male, Aqua |
| Device Connector | USB-C Male, Black |
| Operating Temp | 0°C to 40°C |
| Operating Humidity | 20-80% RH, non-condensing |
Compatibility
- Compatible with USB-C hosts and devices supporting USB 3.2 Gen 2 data, DisplayPort 1.4 Alt Mode, and/or USB Power Delivery. Works with Windows, macOS, and Linux. AIA USB3 Vision compliant.
