By Lumens

4K Ceiling Mount Document Camera

$6,239.00
$6,239.00
SKU: CL511
Availability: Low stock: 3 left

Free standard shipping on all orders over $250

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

The Lumens CL511 is a 4K ceiling-mounted document camera designed for rooms where a traditional desktop camera would be impractical or obstructive. It can be surface-mounted or fully embedded into a ceiling tile, keeping the workspace clear while providing an overhead view of documents, objects, whiteboards, or demonstration areas below. With 300x total zoom and a 60x optical lens, it captures fine detail across a large capture area, and its laser center-positioning aid helps installers and presenters align the image quickly. Output options include HDMI, VGA, USB, and Ethernet IP streaming, and the camera is PoE+ powered for a single-cable installation.

Key features
  • 4K resolution ceiling camera; suspend or embed in ceiling tile (see CLA01 bracket)
  • 300x total zoom (60x optical, 5x electronic, 15x digital) for fine detail capture
  • Laser center-positioning aid for easy alignment during setup and presentations
  • Simultaneous output via HDMI, VGA, USB, and IP streaming (RTSP H.264)
  • PoE+ powered (IEEE 802.3at), single cable for power and network
  • A3 capture area at 2m height (2235 x 1211mm); minimum close-up 50mm
  • Audio line in/out 3.5mm; RS-232/Ethernet/USB control
  • Picture-in-picture, image rotation, and onboard annotation support
  • Compatible with Ladibug software on Windows, macOS, and Chrome OS
  • 5-year warranty

Warranty

5-year warranty

Certifications
  • FCC Part 15, Class A, Supplier's Declaration of Conformity (47 CFR § 2.1077) (USA)
  • ICES-003 Class B, Industry Canada (Canada)
  • CE marked, EN 55032 Electromagnetic compatibility
  • FDA, DHHS Radiation Rules, 21 CFR Chapter 1, Subchapter J (USA)
  • EN 60825, Class 2 Laser Product
Product specs Download
Assembly guide Download

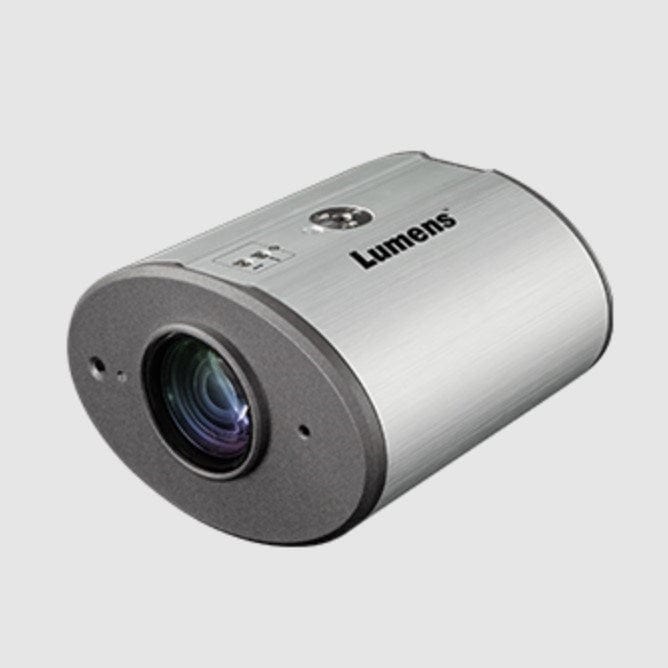

Lumens 4K Ceiling Mount Document Camera (CL511), main product image
$6,239.00
$6,239.00

Technical details

Sharp 4K UHD Overhead Video

Lumens CL511 can be suspended from, or embedded into the ceiling. It provides presenters an unobstructed top view of a table top, podium, or demonstration area. The camera can shoot documents or objects larger than A0 size (over 88" x 48" / 2.2m x 1.2m) at up to 4K resolution.

Accurate Positioning

The CL511 can project mark the middle of the shooting area with a targeting laser, making it quick and easy to position objects accurately in the center of the frame. With 300x close-up capabilities, the camera is ready to capture the finest details.

Step-Up Onboard Collaboration

The CL511 supports a wireless mouse to access onboard collaboration tools for spotlighting a particular area. It also enables free drawing without a PC or any software. The addition of Lumens Ladibug program gives users access to advanced features such as text overlay, 4K recording, and use with a touch panel.


Fast & Easy Installation

Featuring HDMI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network.
The CL511 also supports Power over Ethernet (PoE+). Using a standard network cable, the visualizer can be operated without additional power supplies. These features significantly reduce installation time and costs.
  • 4K resolution ceiling camera; suspend or embed in ceiling tile (see CLA01 bracket)
  • 300x total zoom (60x optical, 5x electronic, 15x digital) for fine detail capture
  • Laser center-positioning aid for easy alignment during setup and presentations
  • Simultaneous output via HDMI, VGA, USB, and IP streaming (RTSP H.264)
  • PoE+ powered (IEEE 802.3at), single cable for power and network
  • A3 capture area at 2m height (2235 x 1211mm); minimum close-up 50mm
  • Audio line in/out 3.5mm; RS-232/Ethernet/USB control
  • Picture-in-picture, image rotation, and onboard annotation support
  • Compatible with Ladibug software on Windows, macOS, and Chrome OS
  • 5-year warranty
SpecificationDetail
Sensor1/2.8" 8.6MP CMOS
Total zoom300x (60x optical, 15x digital)
HDMI output2160p30, 1080p60
USB outputH.264 2160p30
IP streamingRTSP H.264 2160p30
Capture area (at 2m height)2235 x 1211mm
Minimum object distance50mm
AudioLine In / Line Out (3.5mm)
ControlRS-232, Ethernet, USB
PowerPoE+ 13W / DC 12W
Dimensions126 x 86 x 142mm
Weight800g
Warranty5 years

Compatibility

  • Ceiling or ceiling tile installation (with CLA01 bracket)
  • Ladibug software, Windows, macOS, Chrome OS
  • Suitable for classrooms, lecture theatres, and training rooms

Frequently Asked Questions

How is the Lumens CL511 installed?

It can be suspended from the ceiling or embedded into a ceiling tile using the CLA01 bracket, giving an overhead view while keeping the desk clear.

What resolution and zoom does it offer?

It captures up to 4K resolution and offers 300x total zoom, including 60x optical.

How large an area can it capture?

At a 2m height it can capture 2235 x 1211 mm, larger than A0 size. The minimum close-up distance is 50 mm.

Does it need a separate power supply?

No. It supports PoE+ (IEEE 802.3at), so one network cable can provide both power and data. DC power is also supported.

What outputs does it have?

It outputs via HDMI, VGA, USB and IP streaming (RTSP H.264), so it can feed projectors, displays and video conferencing platforms.

What warranty does it come with?

The Lumens CL511 comes with a 5-year warranty.
