This unidirectional USB-C Active Cable offers high-speed 10Gbps data transfer, DisplayPort with 2-lane support, and power delivery up to 60W. Available in 8m and 15m lengths, it is designed for extended connections in professional AV and data environments, maintaining signal quality over longer distances.
Key Features:
- Data Rate: USB 3.2 Gen 2, up to 10Gbps.
- Display Support: 2-lane DisplayPort for clear video output.
- Power Delivery: Up to 60W (20V/3A).
Applications:
Ideal for AV, video conferencing, and extended USB-C setups in professional spaces.

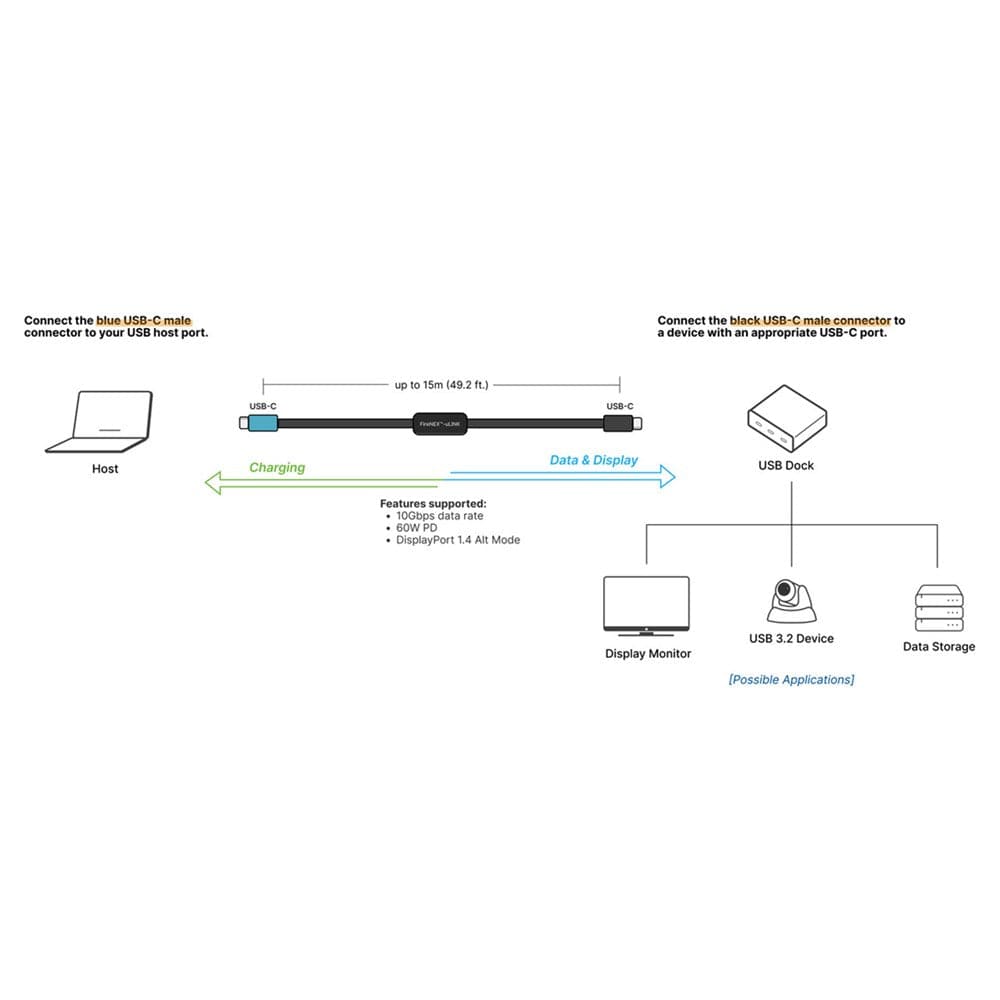

- Extends USB-C up to 15 metres with USB 3.2 Gen 2 data, DisplayPort 1.4, and 30W PD simultaneously

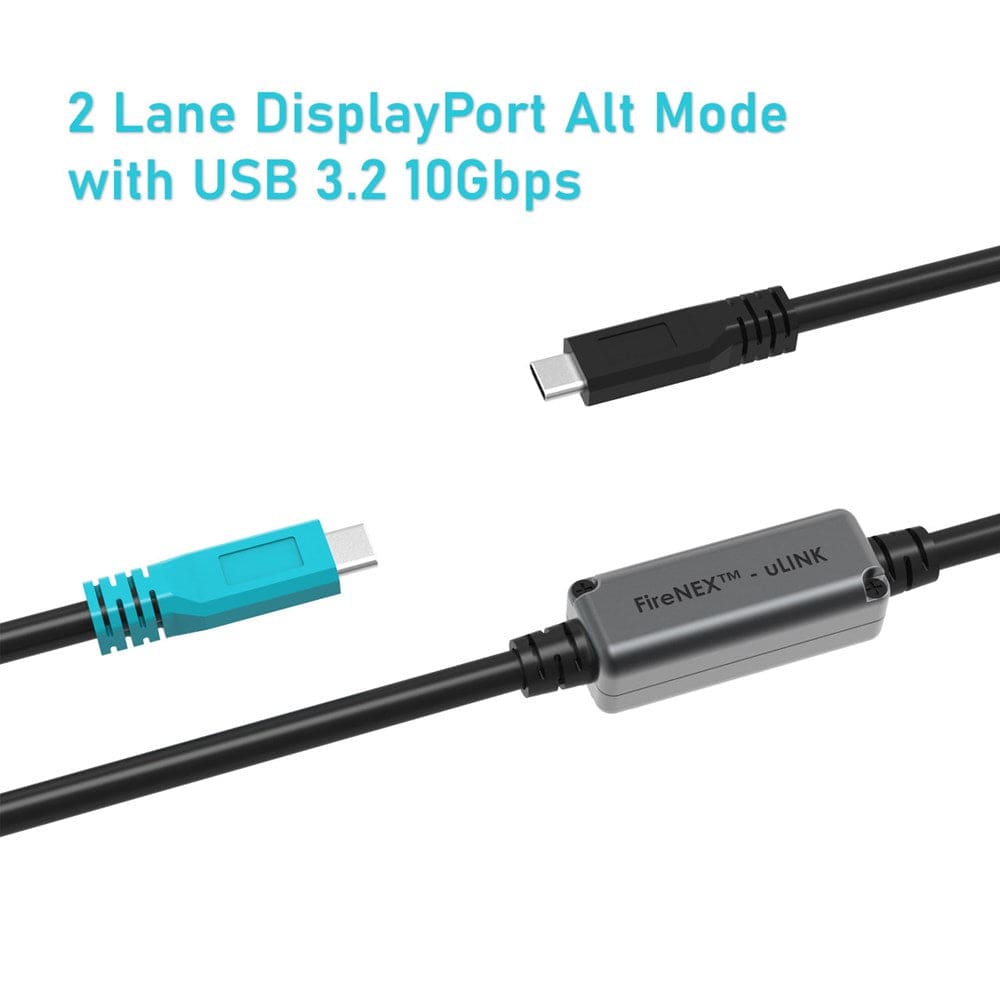

- 2-Lane DP 1.4 (HBR3): up to one 4K@60Hz or two 2K@60Hz displays
- Bidirectional USB PD 3.0 up to 30W
- Backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0/1.1
- Dual metal repeater enclosures built in for signal integrity over long runs

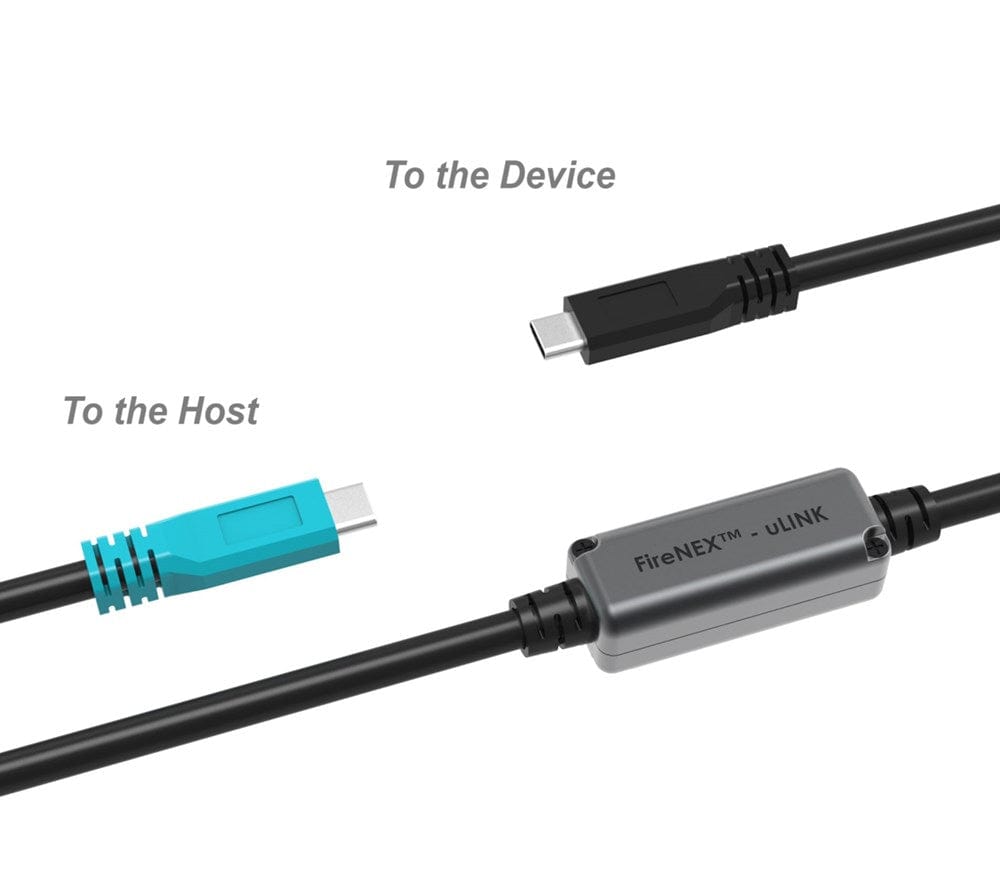

- Colour-coded connectors: aqua host end, black device end
- Plug and play, no drivers required on Windows, macOS, or Linux
- AIA USB3 Vision compliant for machine vision applications
| Specification | Detail |
|---|---|
| Part Number | ULK10G-CC-15M |
| Type | USB-C Active Repeater Cable (C Male to C Male) |
| USB Standard | USB 3.2 Gen 2 (10Gbps); backward compatible to 5Gbps / USB 2.0 |
| DisplayPort | DP 1.4, 2-Lane, HBR3 (up to 4K@60Hz or two 2K@60Hz) |
| Power Delivery | USB PD 3.0, bidirectional; up to 30W |
| Cable Length | 15m (49.2 ft.) |
| Cable Diameter | 6.4 ± 0.1mm |
| Cable Jacket | TPE, Black |

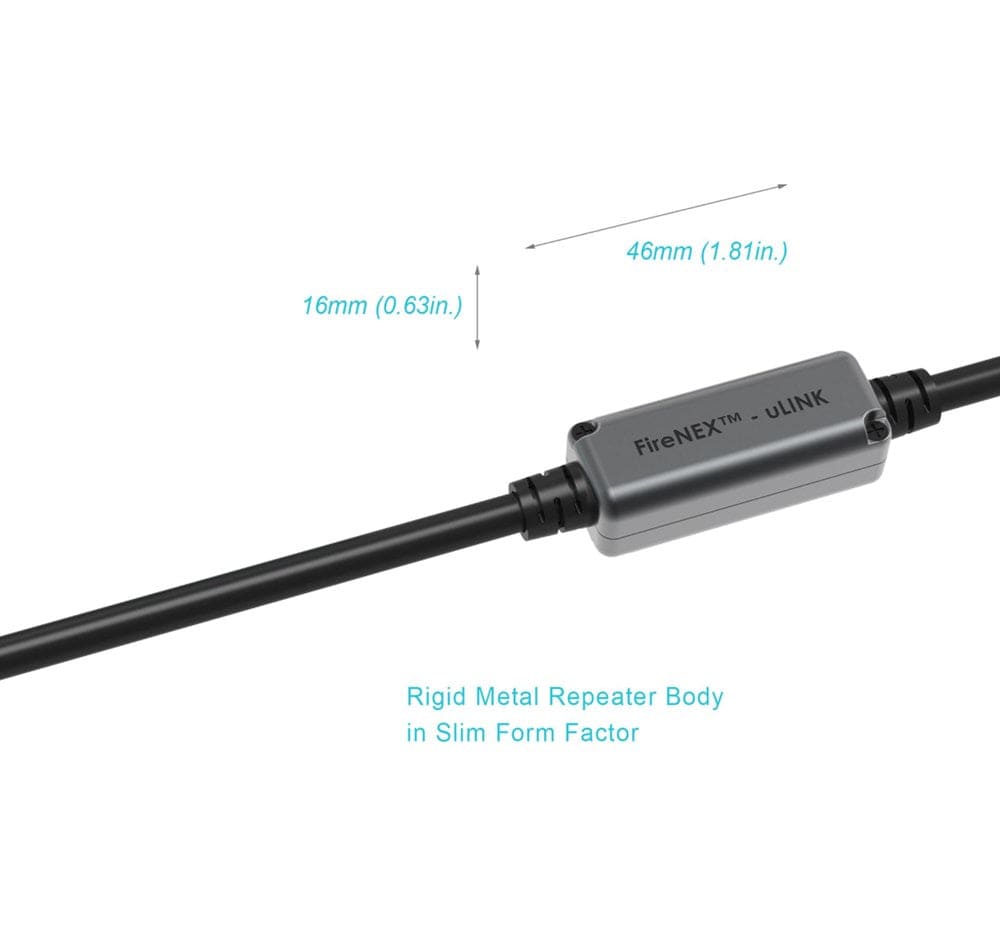

| Repeater Dimensions | 16 × 18 × 46mm (each) |
| Host Connector | USB-C Male, Aqua |
| Device Connector | USB-C Male, Black |
| Operating Temp | 0°C to 40°C |
| Operating Humidity | 20-80% RH, non-condensing |
Compatibility
- Compatible with USB-C hosts and devices supporting USB 3.2 Gen 2 data, DisplayPort 1.4 Alt Mode, and/or USB Power Delivery. Works with Windows, macOS, and Linux. AIA USB3 Vision compliant.
