By Salamander Designs

Salamander Electric Lift Wall Stand

Regular price $5,099.00
Regular price Sale price $5,099.00
SKU: SD-FPS1W/EL/GG/EX
Availability: 19 in stock

**Bulky Item** request a quote to place your order.

Overview

The Salamander FPS1W/EL/GG/EX is a wall-mounted electric lift stand that combines the fixed footprint of a wall mount with the ergonomic height adjustment of a motorised stand. It is designed for interactive displays and large flat panels up to 86 inches in spaces where floor space is limited but users still need to adjust the screen height for collaborative or individual work. The motorised lift is operated via a wired remote and delivers ADA-compliant height positioning.

Key features

  • Motorised electric lift built into a wall-mounted form factor, no floor footprint required
  • Supports large interactive displays up to 86" and 175 lbs (79 kg)
  • ADA compliant for accessible height adjustment
  • Broad VESA compatibility: horizontal 200-800mm, vertical 200-500mm
  • Wired remote control for precise height positioning

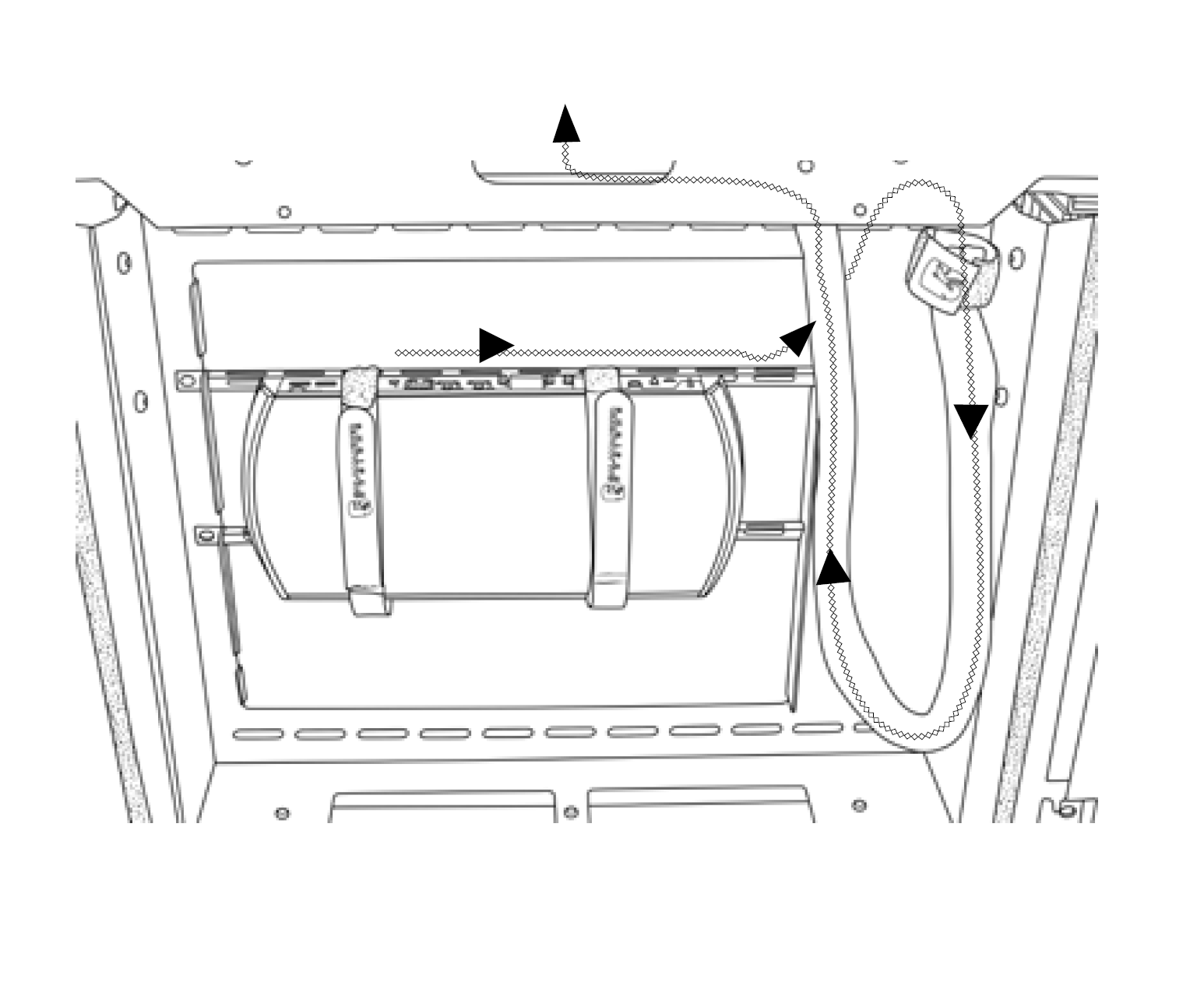

  • Fully concealed cable management
  • Made in the USA from powder-coated welded steel
  • Limited lifetime warranty

Warranty

Limited lifetime warranty

Product specs Download
Assembly guide Download

Free standard shipping on all orders (exlcuding bulk freight)

Returns

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Shipping

To return your product, you should mail your product to:

Activ8tion, 12 Distribution Drive, Orchard Hills, NSW, 2748.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Missing item(s) or Wrong item(s)

When receiving a parcel please make sure you inspect the contents before signing for it.

For missing item(s) please contact us within 14-days and let us know about your missing item(s). We will ship out the missing item(s) to you free of charge within the 14-days return policy.

For incorrect item(s) please contact us within 14-days and let us know about the incorrect item(s). We will either refund you in full or dispatch the correct item(s) (if applicable and available). Leading Solutions will decide whether the incorrect item(s) needs to be returned back to us and we will shoulder the shipping fee.

For any issues please contact:

sales@leadingsolutions.net.au or phone us at 1800 960 015

We are available during the following hours:

Mon - Fri 8:30am - 5:00 PM

Warranty

For any faulty items we offer a 1-year warranty period from the original date of purchase if the product fails due to a manufacturing defect.

If the item is deemed faulty, please send it back to our warehouse for inspection together with your reference number and we will inspect if it is claimable.

If the product is indeed faulty we will replace this unit free-of-charge.

The warranty does not cover misuse or damage caused by wear and tear.

The warranty will be voided if the product is used  for other than what the product is designed for.

Before sending the “broken” or faulty unit back to us please contact us before hand as we can advise immediately if this is claimable or not.

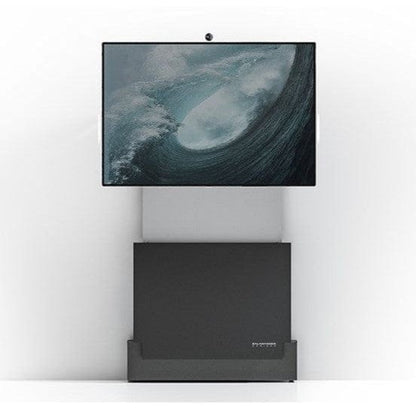

Salamander Electric Lift Wall Stand holding a large flat-screen display
Regular price $5,099.00
Regular price Sale price $5,099.00

Technical details


The Salamander Electric Lift Wall Stand provides heavy-duty, motorised height adjustment for most large displays up to 86" (90.7 kg).

Now with an optional Hollow Wall & Steel Frame Mounting Kit accessory, this stand adapts to every installation environment - from traditional timber studs to steel frames and gib walls.

Key Features:

  • Supports displays up to 86" with a maximum weight capacity of 90.7 kg
  • Motorised lift with a centre-of-screen travel range from 863.8 mm (34.01") to 1513.8 mm (59.6")
  • Cavity dimensions 381 × 432 × 137 mm (HxWxD)
  • Optional Hollow Wall & Steel Frame Mounting Kit (SD-FPSA/WHDF) enables safe, code-compliant installation on drywall, steel studs, or timber framing
  • Concealed cable management for a clean, professional appearance

Designed for meeting rooms, classrooms, digital signage, and collaborative workspaces, it delivers performance, safety, and flexible, professional display mounting.

  • Motorised electric lift built into a wall-mounted form factor, no floor footprint required
  • Supports large interactive displays up to 86" and 175 lbs (79 kg)
  • ADA compliant for accessible height adjustment
  • Broad VESA compatibility: horizontal 200-800mm, vertical 200-500mm
  • Wired remote control for precise height positioning
  • Fully concealed cable management
  • Made in the USA from powder-coated welded steel
  • Limited lifetime warranty
SpecificationDetail
Screen SizeUp to 86"
Weight Capacity175 lbs (79 kg)
VESA CompatibilityHorizontal 200-800mm; Vertical 200-500mm
Lift TypeMotorised electric with wired remote
ConstructionPowder-coated welded steel
MountingWall-anchored
Option
Graphite / Gray panels
White panels

Compatibility


  • Compatible with VESA-compliant flat-panel and interactive displays up to 86". Wall mounting required, not a freestanding unit.

Frequently Asked Questions


What displays does the Electric Lift Wall Stand support?

It supports most large flat-panel and interactive displays up to 86".

What is the height travel range?

The centre of the screen travels from 863.8 mm to 1513.8 mm.

Can it be installed on gib or steel-frame walls?

Yes. The optional Hollow Wall & Steel Frame Mounting Kit (SD-FPSA/WHDF) supports drywall, steel studs and timber framing.

Which VESA patterns are supported?

It supports VESA patterns from 200 to 800 mm horizontal and 200 to 500 mm vertical.

Is it ADA compliant?

Yes. Its ADA-compliant design supports accessible height adjustment via a wired remote.

What warranty is included?

It includes a limited lifetime warranty.
