By Magewell

Magewell USB Capture HDMI Plus

$822.19
$822.19
SKU: MG-320400000
Availability: Low stock: 2 left

Overview

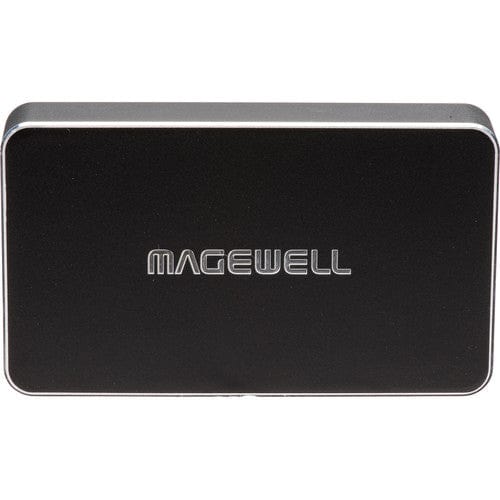

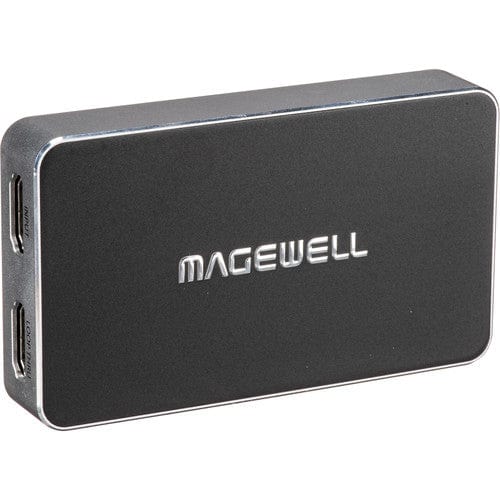

The Magewell USB Capture HDMI Plus is a USB 3.0 capture device with a full-bandwidth HDMI loop-through output, allowing a single HDMI source to feed both the capture computer and a connected display simultaneously without signal splitting. A built-in 3.5mm audio jack doubles as both a microphone input and headphone output, and the device also functions as a USB audio card for playback monitoring.

Key features

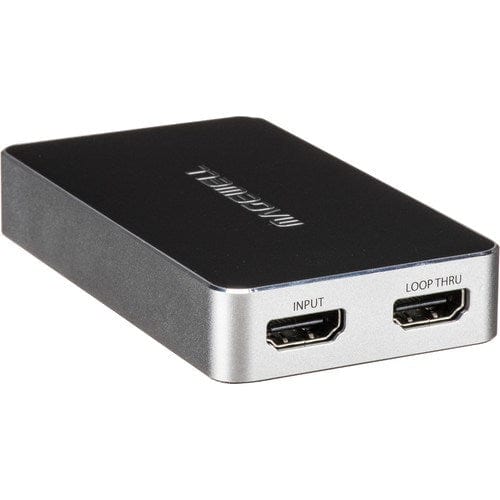

  • Single HDMI input with full 4096×2160 loop-through output to a connected display
  • Captures up to 2048×2160 at up to 120fps via USB 3.0

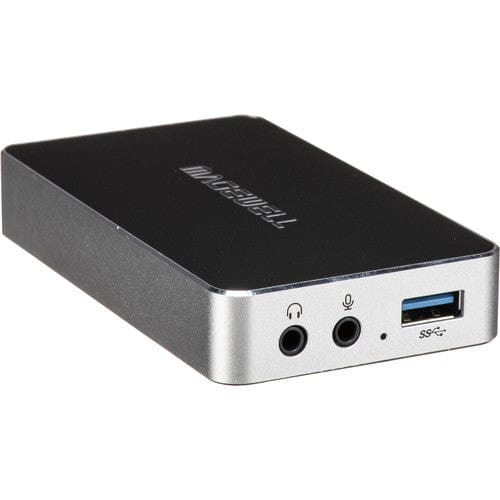

  • 3.5mm mic input and headphone output; also functions as a USB audio card
  • Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
  • Supports 4Kp60 4:2:0 input from game consoles (PS4 Pro, Xbox One S) with auto down-scale to 2K for capture
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Zoom Certified
  • Rated for continuous 24/7 operation

Warranty

3-year warranty

Product specs Download
Assembly guide Download
Magewell I/O (Capture) Magewell USB Capture HDMI Plus
$822.19
$822.19

Technical details

Magewell USB Capture HDMI Plus

One-channel 2K capture device.

Capture HDMI + embedded audio.

Loop-through HDMI signal.

Audio input via mic.

Extract HDMI embedded audio output via headphones.

Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as the PS5 and Xbox Series X & Series S. Automatically downscale to 2K for recording or streaming.

  • Single HDMI input with full 4096×2160 loop-through output to a connected display
  • Captures up to 2048×2160 at up to 120fps via USB 3.0
  • 3.5mm mic input and headphone output; also functions as a USB audio card
  • Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
  • Supports 4Kp60 4:2:0 input from game consoles (PS4 Pro, Xbox One S) with auto down-scale to 2K for capture
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Zoom Certified
  • Rated for continuous 24/7 operation
SpecificationDetail
Part Number32040
Video Input1 × HDMI (HDMI 1.4, DVI-D)
Loop-Through Output1 × HDMI (up to 4096×2160 30fps 4:4:4)
Max Capture Resolution2048×2160 at up to 120fps
Audio Ports3.5mm mic in / headphone out
Audio CaptureUp to 8-channel 24-bit at 192kHz
USB StandardUSB 3.0 (USB 2.0 compatible)
Max Power~4.5W (0.9A at 5V)
Dimensions98.1 × 56.8 × 17mm
OS SupportWindows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS
Operating Temp0-45°C

Compatibility

  • Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.

Frequently Asked Questions

What resolution does the USB Capture HDMI Plus capture?

It captures up to 2048 x 2160 at up to 120fps via USB 3.0.

Can it accept a 4K input?

Yes. It accepts 4Kp60 4:2:0 input and automatically downscales to 2K for recording or streaming.

Does it have loop-through?

Yes. It has a full-bandwidth HDMI loop-through output to a connected display.

What audio options does it have?

A 3.5 mm jack supports microphone input and headphone output, and it captures up to 8-channel HDMI-embedded audio.

Which operating systems are supported?

It supports Windows 10/11 and Server, Linux, macOS 10.9+ and Chrome OS.

What warranty does it have?

It has a 3-year warranty.
