By Advanced Network Devices

AND Button Kit

$219.00
$219.00
SKU: AND-BTN-KIT-1
Availability: Contact to order

Back orders delivered in 4 weeks

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The ANetD AND-BTN-KIT-1 is an add-on push button kit that connects to a compatible ANetD IP device to enable intercom calls, paging, all-call announcements, and alert triggering from a single button press. The brushed stainless steel faceplate provides a durable, professional finish, and the button supports programmable push/release or push/hold modes to dial up to two SIP extensions or phone numbers. It is not a standalone PoE device and requires connection to a compatible ANetD IP endpoint.

Key features
  • Triggers intercom calls, page zones, all-calls, or emergency alerts via connected ANetD IP device
  • Activates integrated devices such as strobes, electronic locks, and other endpoints
  • Programmable push/release or push/hold modes (up to 2 extensions or phone numbers)
  • 16-gauge brushed stainless steel faceplate for durability
  • Rated for 200,000 electrical cycles
  • Compatible with approved third-party notification software
  • 6-year limited warranty

Warranty

6-year limited warranty

Certifications
  • ITE E495890
Product specs Download
Assembly guide Download

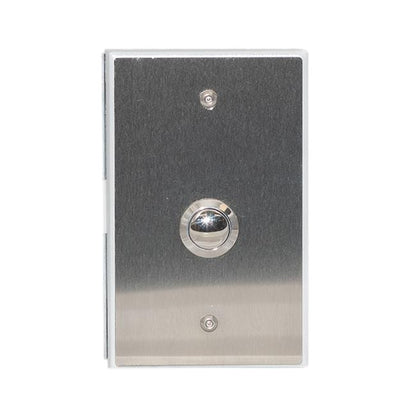

Advanced Network Devices AND Button Kit (AND-BTN-KIT-1), intercom and alert triggers via IP network, main product image
$219.00
$219.00

Technical details

AND Button Kit - Streamlined Communication and Alerts

Enhance your facility's communication with the AND Button Kit (AND-BTN-KIT-1). Designed for easy integration with compatible IP devices, this kit enables two-way communication, intercom functionality, and paging. It supports dual command modes, including push/release and push/hold, and can trigger alerts to activate devices like strobes or electronic locks. With SIP integration, it dials preset numbers to play pre-recorded messages, making it ideal for seamless VoIP phone system integration.

Key Features:

  • Two-way communication and intercom
  • Dual command modes
  • Trigger alerts for other devices
  • SIP integration for pre-recorded messages

Installation only requires access to an Ethernet cable connected to a PoE switch. Once connected to the network, the device will power up automatically. For detailed installation and setup instructions, download ourĀ Full Installation and Setup Guide for AND IP Devices.

  • Triggers intercom calls, page zones, all-calls, or emergency alerts via connected ANetD IP device
  • Activates integrated devices such as strobes, electronic locks, and other endpoints
  • Programmable push/release or push/hold modes (up to 2 extensions or phone numbers)
  • 16-gauge brushed stainless steel faceplate for durability
  • Rated for 200,000 electrical cycles
  • Compatible with approved third-party notification software
  • 6-year limited warranty
SpecificationDetail
Faceplate16-gauge brushed stainless steel
SwitchMomentary ON, SPST
Electrical Life200,000 cycles
Rating2A @ 48V DC
Installation Depth25.4mm (1")
Plate Dimensions70mm (W) x 114mm (H)
Weight108g
Operating Temperature-20Ā°C to 50Ā°C
Detail
Single configuration

Compatibility

  • Requires a compatible ANetD IP device for operation. Not a standalone PoE device. Compatible with ClockWise Campus and approved third-party notification platforms.

Features

  • Made in USA

    Manufactured in the United States, ensuring high-quality standards and reliable performance.

  • ISO Certified

    Built in facilities adhering to ISO standards, reflecting a commitment to quality management and product reliability

  • Approved Software Partners: Cisco GPL

    Compatible with approved third-party software and listed on the Cisco Global Price List, ensuring seamless integration and procurement.

  • ClockWise Campus Software Included

    Comes with ClockWise Campus software, providing advanced scheduling and notification capabilities.

Frequently Asked Questions

How deep does it need to be installed?

It needs an installation depth of 25.4mm (1"), and the faceplate measures 70mm wide x 114mm high.

Is the AND Button Kit a standalone PoE device?

No. It is an add-on kit and must be connected to a compatible ANetD IP device to work. It does not connect to the network on its own.

Can the button trigger other devices such as strobes or door locks?

Yes. Through the connected ANetD IP device it can activate integrated devices such as strobes, electronic locks and other endpoints.

What button modes are supported?

The button supports programmable push/release or push/hold modes and can dial up to two SIP extensions or phone numbers.

How durable is the AND Button Kit?

It has a 16-gauge brushed stainless steel faceplate and is rated for 200,000 electrical cycles, with an operating temperature range of -20Ā°C to 50Ā°C.

What warranty comes with the AND Button Kit?

The AND Button Kit comes with a 6-year limited warranty.
